Black brass rotatable offset fitting with G1/4 threads and coloured O-rings

Alphacool

Alphacool Eiszapfen 8mm Offset Fitting Rotatable G1/4 - Black Brass (17604)

SKU CH-G9AH-1ZBPJ

A rotatable 8 mm offset fitting with G1/4 internal and external threads, 360-degree rotation, and coloured O-rings included

  • TypeFittings

Color Black

  • Compact 8 mm offset fits tight loops
  • 360 ° rotation eases tube routing
  • G1/4 internal and external threads connect standard blocks
  • Brass body with 5 mm thread depth for secure seal
  • Black finish plus red yellow blue O-rings for colour coding

Alphacool Eiszapfen 8mm Offset Fitting

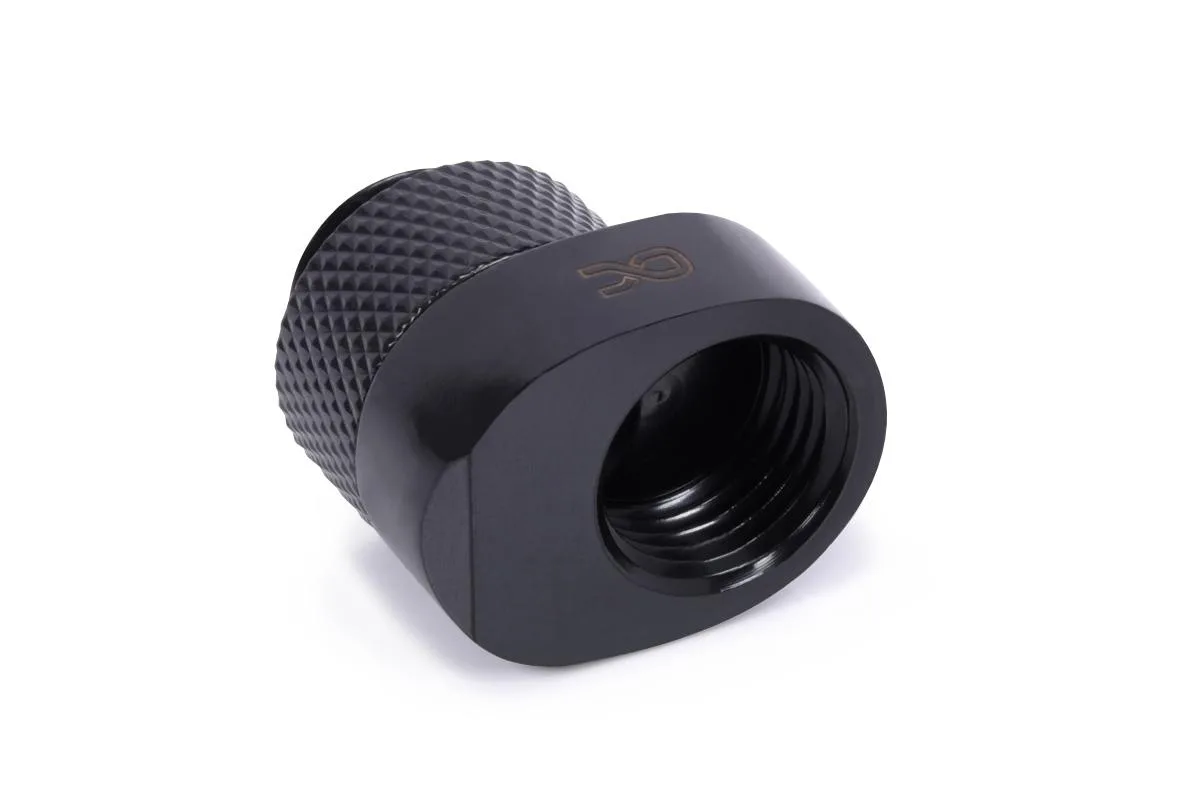

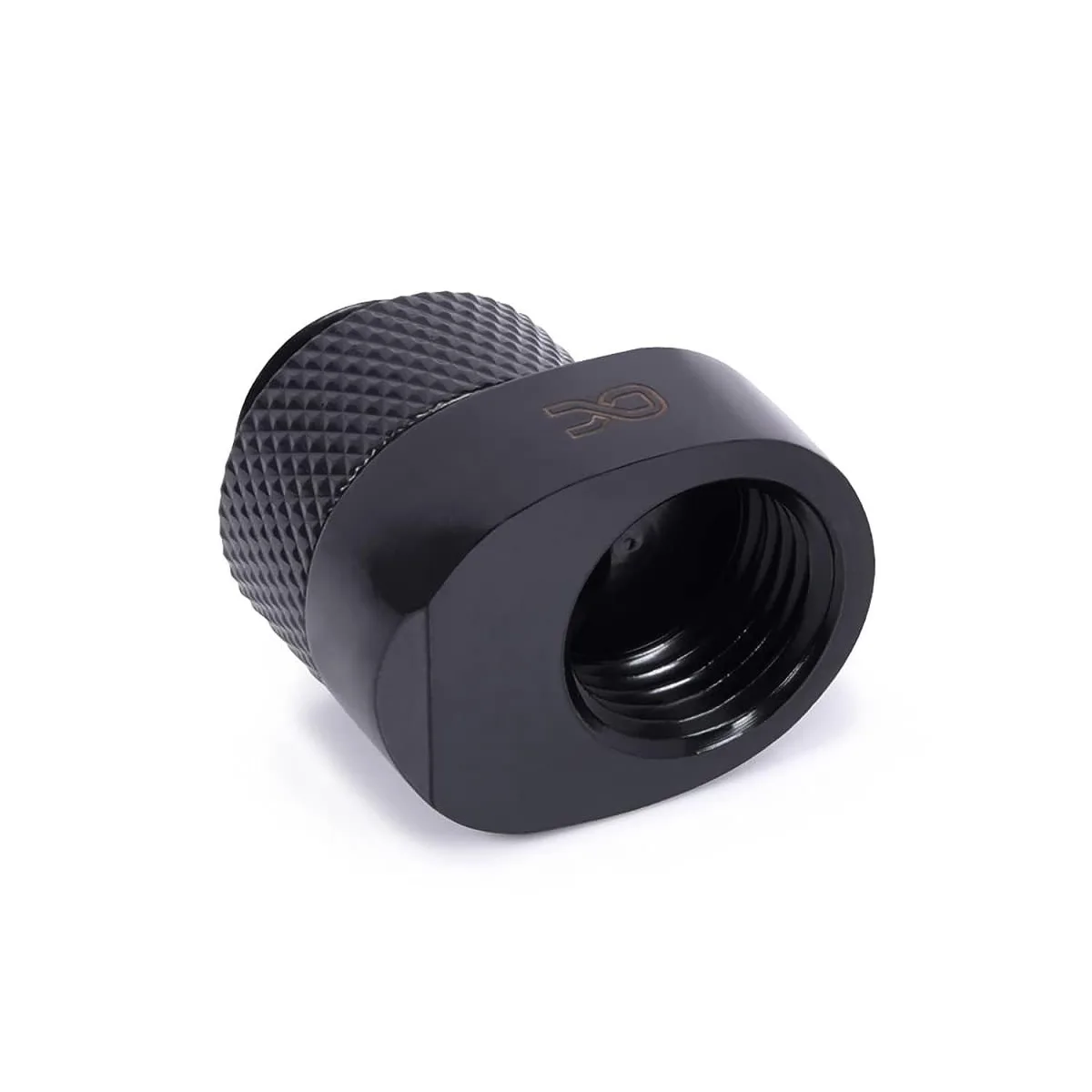

The Alphacool Eiszapfen is a rotatable 8 mm offset fitting with G1/4" internal and external threads. It connects directly into any custom water-cooling loop. The brass body is finished in black and includes four coloured O-rings for visual customisation.

Suited for tight routing and colour coordination

Builders working in compact cases benefit from the 360-degree rotation and 8 mm offset to clear obstacles. The extra O-rings let you match loop accents without extra purchases. Not for systems that require straight barb or compression fittings, or loops using thread sizes other than G1/4".

8 mm offset with 360-degree rotation

The defining specification is the 8 mm lateral offset combined with full rotational freedom. This geometry decides whether the fitting can bridge the gap between two components in your specific layout. Verify the offset distance and thread orientation before ordering.

Highlights

  • Compact 8 mm offset fits tight loops
  • 360 ° rotation eases tube routing
  • G1/4 internal and external threads connect standard blocks
  • Brass body with 5 mm thread depth for secure seal
  • Black finish plus red yellow blue O-rings for colour coding

Specifications

TypeFittings

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What G1/4 thread depth and height does the 17604 fitting require on the component ports?

Both the internal and external G1/4 threads are 5 mm deep and 5 mm high, so the mating ports must provide at least 5 mm of thread engagement.

How do you install the rotatable offset fitting without stressing the O-rings?

Screw the G1/4 external thread into the component first, then rotate the body 360° to align the offset before tightening the internal thread; this prevents twisting the sealed O-rings.

Which coloured O-rings are supplied for future replacement?

The package includes one black O-ring already fitted plus three spare O-rings in red, yellow and blue for colour-coding or replacement.
