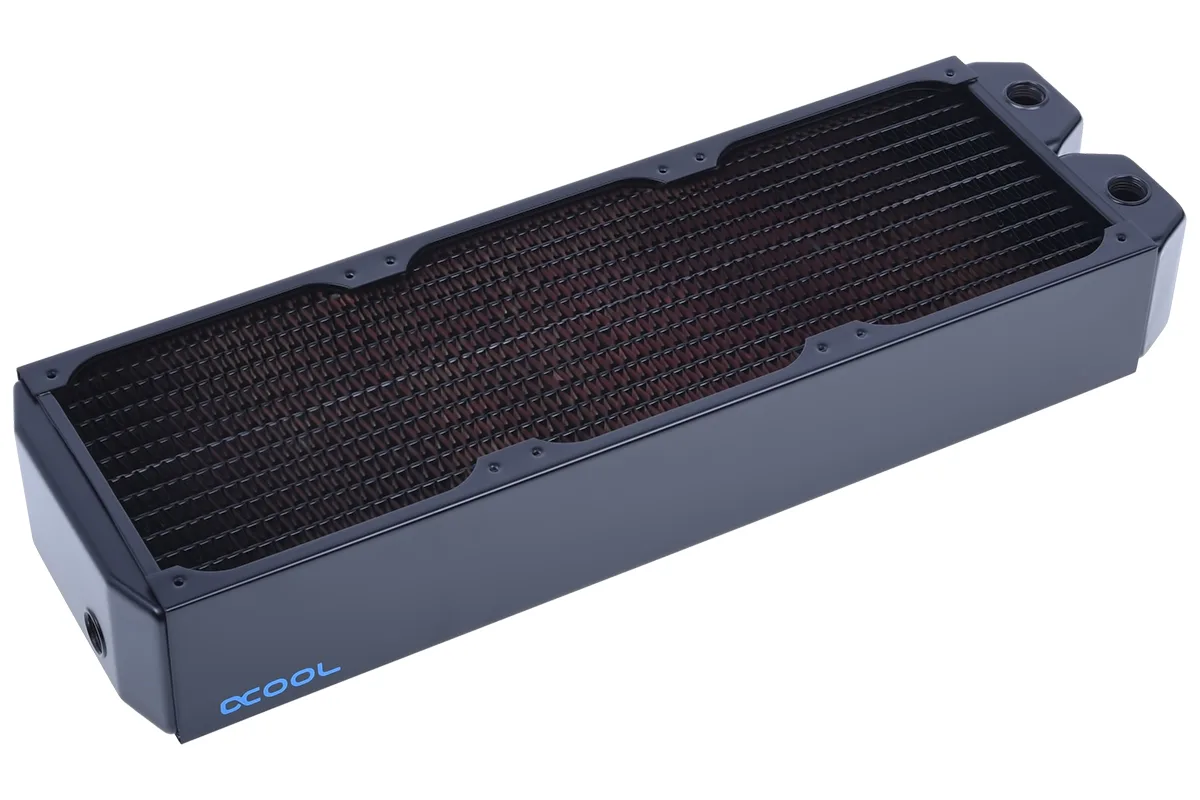

Black triple-fan copper radiator, 400 by 124 by 60mm, G1/4 ports, steel side panels

Alphacool

Alphacool NexXxos UT60 Full Copper Radiator 360 Black 60mm 14174 diy cooling

SKU CH-KGKV-QVAXB

Full-copper 360 mm radiator with six G1/4 ports and 60 mm thickness for triple-fan custom loops

  • TypeRadiator

Size 360mm

  • Full copper chambers and fins maximise heat transfer

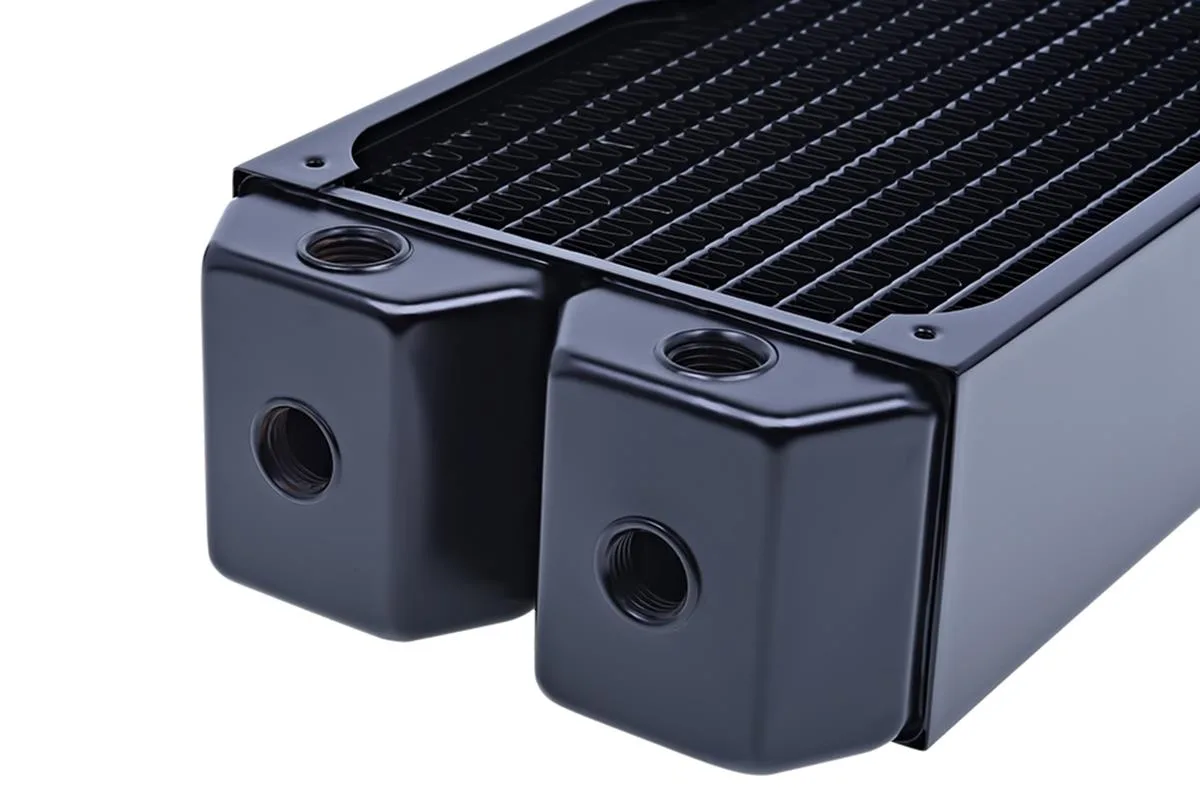

  • Six G1/4 ports allow flexible loop routing
  • 60 mm thickness fits triple 120 mm fans
  • 400 x 124 mm footprint suits 360 mm mounts
  • Steel side panels protect the copper core

Alphacool NexXxos UT60 360 Radiator

This full-copper radiator measures 360 mm in length and 60 mm in thickness to suit triple 120 mm fan mounts. It is built for custom-loop builders who want maximum heat-transfer surface in a single unit. The copper chambers, fins and channels are paired with brass threads and steel side panels for structural rigidity.

Sustained thermal performance

Separated internal chambers give the coolant a directed path through the copper core, reducing flow restriction while keeping contact time high. The 60 mm core depth and copper construction allow the loop to shed heat steadily during long rendering or compute sessions without the temperature climb seen in thinner aluminium alternatives.

Installation and common issues

Six G1/4 ports provide flexible inlet and outlet routing for complex tubing runs. The 400 x 124 x 60 mm footprint and 1 958 g weight demand secure case mounting points and adequate clearance around motherboard heatsinks. Builders must flush the radiator thoroughly before use to remove manufacturing residue that can clog blocks.

Highlights

  • Full copper chambers and fins maximise heat transfer
  • Six G1/4 ports allow flexible loop routing
  • 60 mm thickness fits triple 120 mm fans
  • 400 x 124 mm footprint suits 360 mm mounts
  • Steel side panels protect the copper core

Specifications

TypeRadiator

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and noise should I expect from the 60 mm thick copper chambers and fins running continuously?

The full-copper chambers, channels and fins transfer heat efficiently so fans can spin slower, reducing noise while the 60 mm depth provides ample surface area for all-day loads.

Which fittings and fans do I need to install the six G1/4 ports on this 360 mm radiator?

You need six G1/4 compression or barb fittings for tubing and three 120 mm fans mounted on the 124 mm wide frame.

Will the 400 x 124 x 60 mm brass-threaded tank clear older motherboard heatsinks and tall RAM modules?

The 60 mm thickness and 124 mm width sit above most motherboard components, while standard G1/4 threads work with existing copper or brass loop parts.
