Alphacool NexXxoS XT45 Full Copper 140mm Radiator 45mm 14168

NexXxoS XT45 Full Copper Radiator

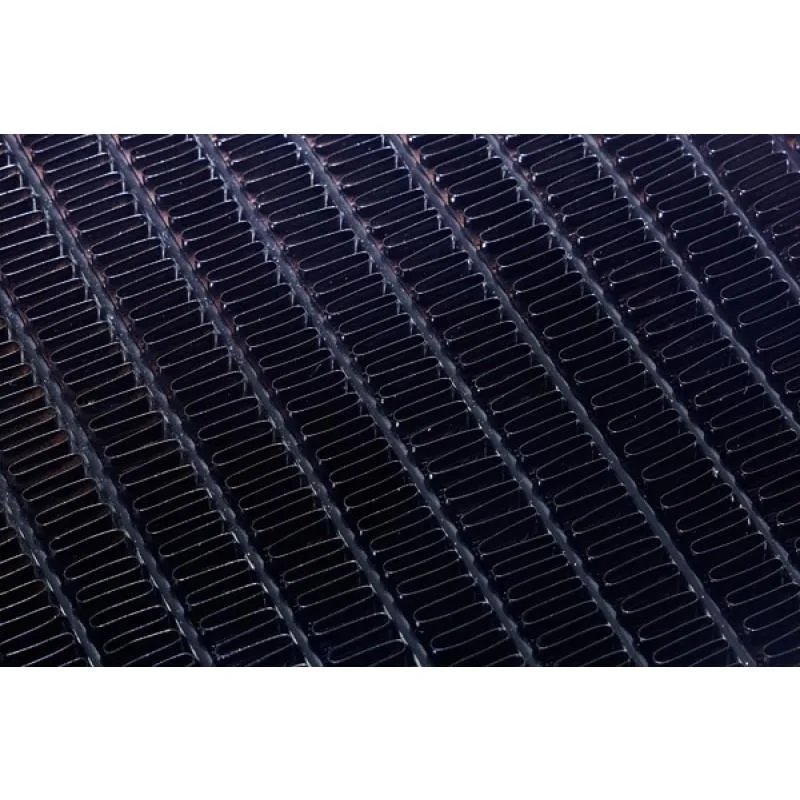

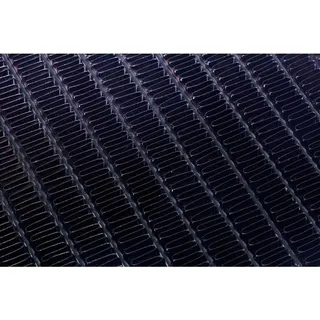

The Alphacool NexXxoS XT45 is a full-copper water-cooling radiator built for custom-loop builders who want maximum thermal density in a single 140 mm unit. Its chambers, fins and channels are all made from copper, removing the thermal barrier found in mixed-metal designs. Separated internal chambers give coolant a directed path that supports high flow rates across the whole loop. The 45 mm thickness targets users who need more dissipation per fan slot than a slim radiator can provide.

45 mm thickness with G1/4 ports

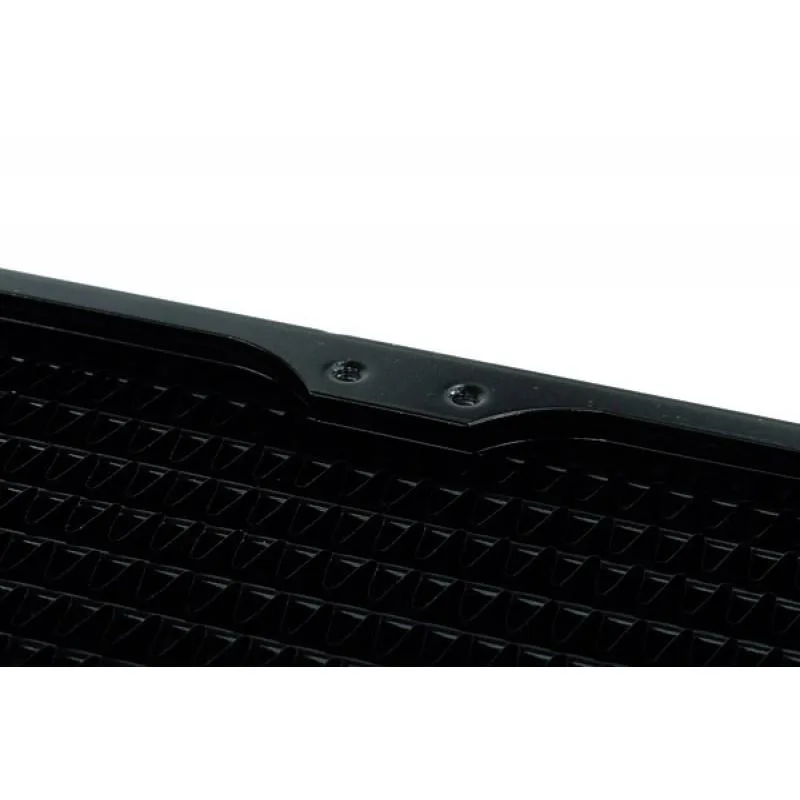

The single specification that decides fit is the 45 mm core depth combined with standard G1/4 threads on both inlet and outlet. This dimension determines whether the radiator clears your case, fans and motherboard components when mounted. Three fitting positions are available on each end tank, letting you rotate angled adapters for tidy tubing runs without forcing sharp bends. Flat chamber ends reduce overall length, helping the unit sit closer to the chassis wall.

Mounts on 140 mm fan positions

The radiator installs on any case or bracket drilled for 140 mm fans, freeing you from proprietary mounting kits. Because the chambers are flat, the assembly sits closer to the frame, leaving more room for push-pull fan sets or thick cable bundles behind the motherboard tray. High flow capacity means the loop pump does not need to overcome restrictive channels, lowering noise at a given coolant temperature. Builders who need more surface area than a single 140 mm slot allows should plan for multiple radiators.
