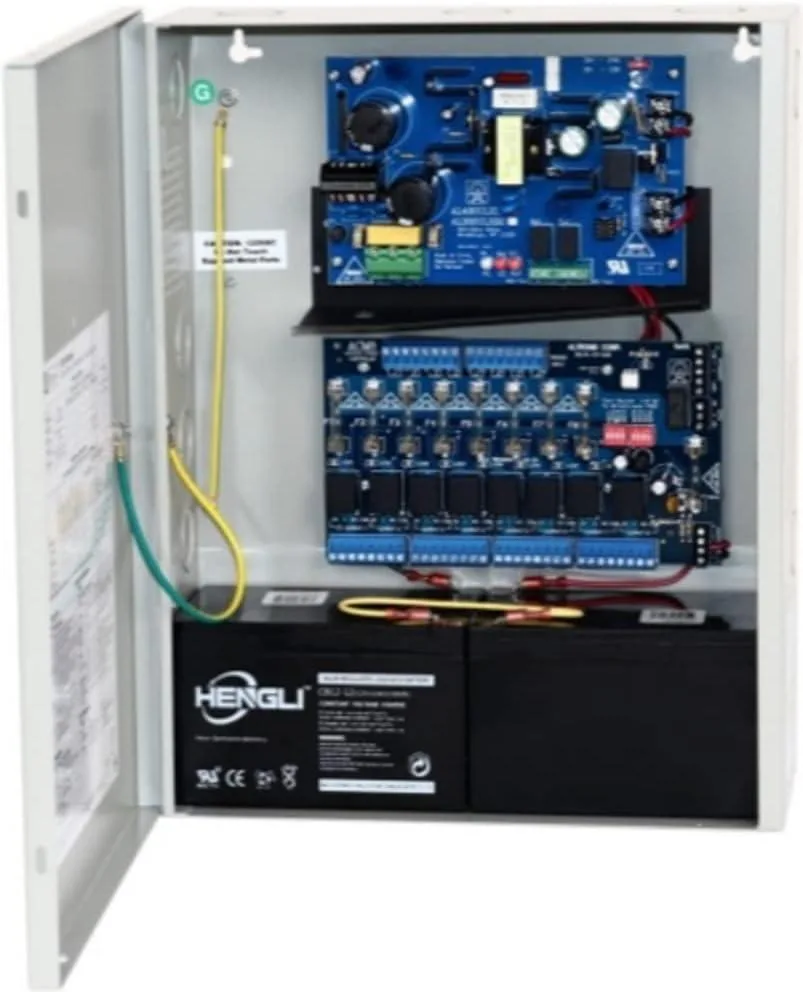

Metal enclosure with eight fused output terminals and power supply labels

ALTRONIX

ALTRONIX ACM Series 8 Fused Outputs Power Supply/Charger 12/24 VDC 4/3 Amps

SKU CH-5VFH-KVTVP

Distributes 12 or 24 VDC at 4 or 3 amps across eight fused outputs with fire-alarm disconnect and overload protection

  • TypeOther
  • Fire alarm disconnect selectable per output for flexible safety integration
  • Short circuit and thermal overload protection prevents equipment damage
  • Filtered and electronically regulated outputs deliver clean power
  • Alarm output relay signals FACP trigger with form C contact
  • Lifetime warranty provides long-term reliability assurance

Access power controller with eight fused outputs

The ALTRONIX ACM Series unit is an access power controller that provides eight individually fused outputs for security and fire-alarm installations. It suits installers who need a single enclosure to distribute regulated 12 or 24 VDC power to multiple devices such as door strikes, readers or alarm modules.

Dual-voltage supply rated at 4 amps on 12 V

The built-in power supply delivers filtered, electronically regulated output at either 12 VDC or 24 VDC. At 12 V it provides up to 4 amps of total current; at 24 V the available current drops to 3 amps. Installers must size the load so the combined draw across all eight outputs stays within the chosen voltage rating.

Fire-alarm disconnect selectable per output

Each of the eight outputs can be set for latching or non-latching fire-alarm disconnect, allowing the controller to meet local code requirements without extra hardware. A form-C alarm relay rated at 1 amp 28 VDC signals when the FACP input is triggered. Short-circuit and thermal overload protection safeguard the supply and connected devices.

Highlights

  • Fire alarm disconnect selectable per output for flexible safety integration
  • Short circuit and thermal overload protection prevents equipment damage
  • Filtered and electronically regulated outputs deliver clean power
  • Alarm output relay signals FACP trigger with form C contact
  • Lifetime warranty provides long-term reliability assurance

Specifications

TypeOther

Questions about this item

Will the ACM Series 8 fused outputs work with my existing 12 VDC access control devices?

Yes, the unit provides 12 VDC regulated outputs rated at 4 amps, so existing 12 VDC locks and readers can connect directly to any of the eight fused outputs.

How can I verify the fire alarm disconnect is functioning after installation?

Trigger the FACP input; the form C alarm relay will change state and the selected outputs will drop power, confirming the latching or non-latching disconnect is active.

Does the package include the backup batteries or must they be purchased separately?

The supply description lists only the power supply/charger unit; backup batteries are not included and must be sourced separately.
