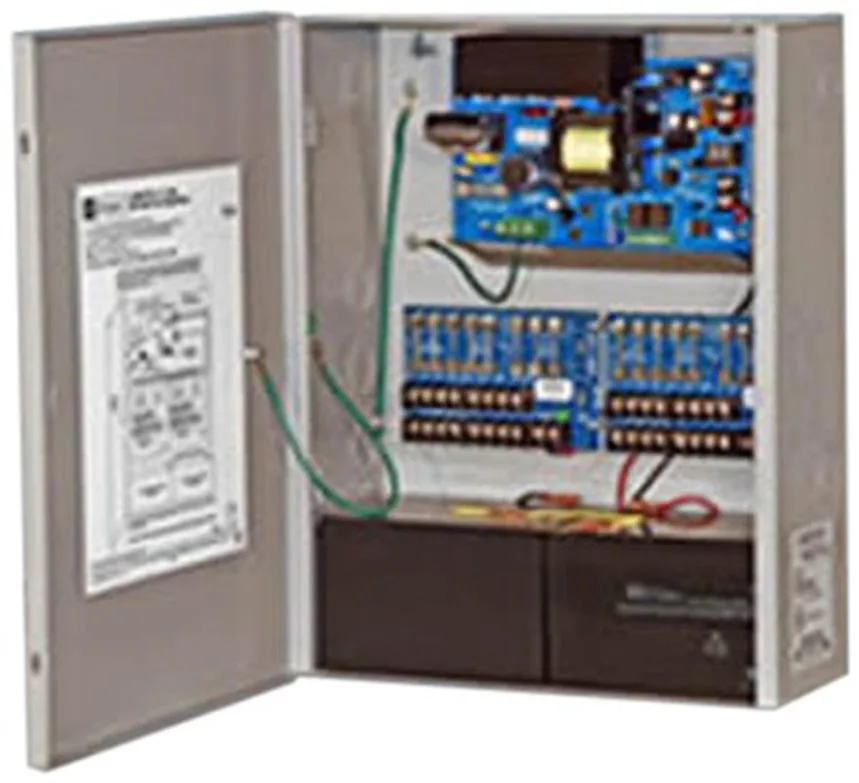

Grey steel enclosure with 16 fuse outputs 12 or 24VDC 6A

ALTRONIX

ALTRONIX AL600ULXPD16 16 Fuse 12/24VDC 6A

SKU CH-26XW-1F58F

A 6 A multi-output power supply and charger delivering 12 VDC or 24 VDC through 16 fused outputs in a steel enclosure

  • TypeOther
  • 16 fused outputs protect every circuit
  • Selectable 12 VDC or 24 VDC at 6 A matches load needs
  • Steel enclosure with cam lock secures installation
  • UL 294 and UL 1481 listed for access-control and fire use
  • Includes battery leads and spare fuse for backup readiness

Power supply for access control systems

The Altronix AL600ULXPD16 is a multi-output power supply and charger designed for security and access control installations. It delivers either 12 VDC or 24 VDC at a total of 6 A across 16 individually fused outputs. The unit is built into a steel enclosure with a gray finish and carries UL 294 and UL 1481 listings for safety compliance.

Rack-mount installation with cam lock

The enclosure measures 12.00 inches wide, 15.5 inches high and 4.50 inches deep, fitting standard rack spaces. A cam lock secures the door and battery leads are included for backup power connection. Installers should verify that the 115 VAC 60 Hz input matches the site supply and that the total load across all 16 outputs does not exceed the 6 A rating.

Continuous 6 A output under UL standards

The supply is rated for a sustained 6 A at the selected voltage, not just a momentary peak. UL 294 and UL 1481 certification means the unit has been tested for continuous duty in life-safety and access-control applications. It is not intended for general-purpose IT equipment that requires different voltage rails or higher current capacity.

Highlights

  • 16 fused outputs protect every circuit
  • Selectable 12 VDC or 24 VDC at 6 A matches load needs
  • Steel enclosure with cam lock secures installation
  • UL 294 and UL 1481 listed for access-control and fire use
  • Includes battery leads and spare fuse for backup readiness

Specifications

TypeOther

Questions about this item

How do I verify the ALTRONIX AL600ULXPD16 is operating correctly after installation?

Measure 12VDC or 24VDC across the 16 fused outputs and confirm the total draw does not exceed 6A while the 115VAC 60 Hz input is live.

What ships with the unit and what must be sourced separately?

The steel enclosure includes battery leads, a cam lock and one spare fuse; backup batteries are not included.

Should I choose the 12VDC or 24VDC output setting for my access-control panel?

Select 12VDC if the panel requires 12V; select 24VDC if it requires 24V — the supply delivers 6A at either voltage.
