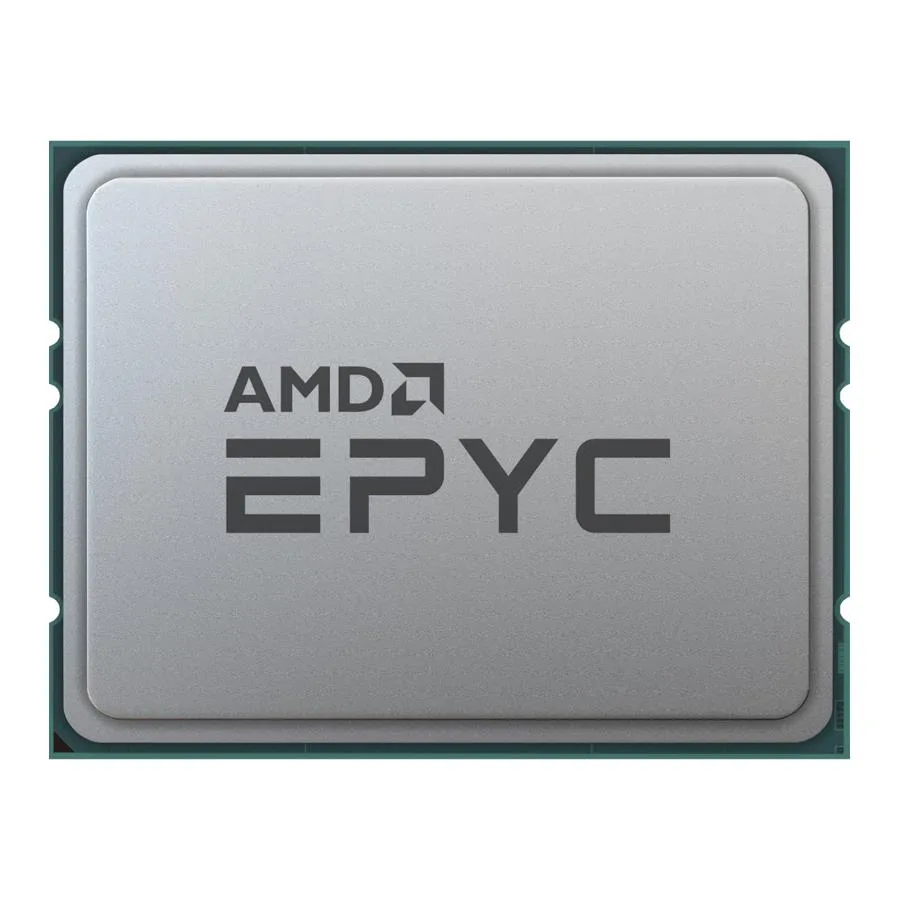

Silver square server processor with gold contact pads and green substrate, labeled EPYC 7513 100-000000334

AMD

AMD EPYC 7513 32-Core 2.6 GHz Server Processor 100-000000334

SKU CH-DKQA-X7AP2 MPN 100-000000334

32-core server processor with 64 threads, 2.6 GHz base clock, 3.65 GHz max turbo, 128 MB L3 cache, 200 W TDP, DDR4-3200 support and PCIe 4.0 with 128 lanes

  • NameEPYC 7513
  • CPU Socket TypeSocket SP3
  • Core NameMilan
  • # of Cores32-Core
  • # of Threads64
  • Operating Frequency2.6 GHz
  • 32 cores and 64 threads handle parallel workloads efficiently
  • 6 GHz base with 3.65 GHz max turbo frequency for responsive performance
  • 128 MB L3 cache reduces latency on complex tasks
  • DDR4 3200 eight-channel memory controller supports high bandwidth
  • 128 PCIe 4.0 lanes enable extensive I/O connectivity

What this processor is

The AMD EPYC 7513 is a 32-core server CPU built for the SP3 socket. It targets data-centre operators who need high core density and eight-channel DDR4-3200 memory bandwidth. The processor runs at a 2.6 GHz base clock with a 3.65 GHz maximum turbo frequency. It is sold without a cooling solution.

The specification that decides fit

The CPU requires a motherboard with an SP3 socket and a platform qualified for the EPYC 7003 series. It provides 128 PCIe 4.0 lanes and supports eight memory channels. A 200 W thermal design power means the chassis and power delivery must handle that heat load. Systems still running older EPYC generations cannot accept this part.

Installation notes

The processor drops into the SP3 LGA socket using the server board’s retention mechanism; no consumer-style lever is present. Because no cooler is included, a compatible SP3 heatsink or liquid block must be sourced separately. Common issues are bent socket pins during handling and insufficient mounting pressure causing thermal throttling. Apply thermal paste evenly before securing the cooler.

Highlights

  • 32 cores and 64 threads handle parallel workloads efficiently
  • 6 GHz base with 3.65 GHz max turbo frequency for responsive performance
  • 128 MB L3 cache reduces latency on complex tasks
  • DDR4 3200 eight-channel memory controller supports high bandwidth
  • 128 PCIe 4.0 lanes enable extensive I/O connectivity

Specifications

BrandAMD
SeriesAMD EPYC 7003
NameEPYC 7513
Model100-000000334
CPU Socket TypeSocket SP3
Core NameMilan
# of Cores32-Core
# of Threads64
Operating Frequency2.6 GHz
Max Turbo Frequency3.65 GHz
L3 Cache128MB
64-Bit SupportYes
Manufacturing Tech7 nm
Integrated Memory Controller SpeedDDR4 3200
Memory Channel8 Channel
Virtualization Technology SupportYes
PCI Express Revision4.0
Max # of PCI Express Lanes128
Thermal Design Power200W
Cooling DeviceCooling device not included - Processor Only
Shipping weight0.82 kg
Package size152 × 152 × 102 mm

Questions about this item

What does 2.6 GHz base clock with 3.65 GHz max turbo mean for sustained workloads on this EPYC 7513?

The processor runs at 2.6 GHz across all 32 cores under continuous load and can boost up to 3.65 GHz on fewer cores when thermal headroom allows, giving consistent throughput for server tasks.

How does PCI Express 4.0 with 128 lanes limit expansion on this CPU?

The platform provides 128 lanes of PCIe 4.0 bandwidth, which sets the maximum number of high-speed devices such as GPUs, storage controllers or network adapters that can operate at full Gen 4 speed simultaneously.

What physical clearance and mounting does the SP3 socket require for this 200 W processor?

The SP3 LGA socket needs a compatible server motherboard and a heatsink rated for at least 200 W TDP; no cooler is included, so a qualified SP3 mounting kit must be sourced separately.
