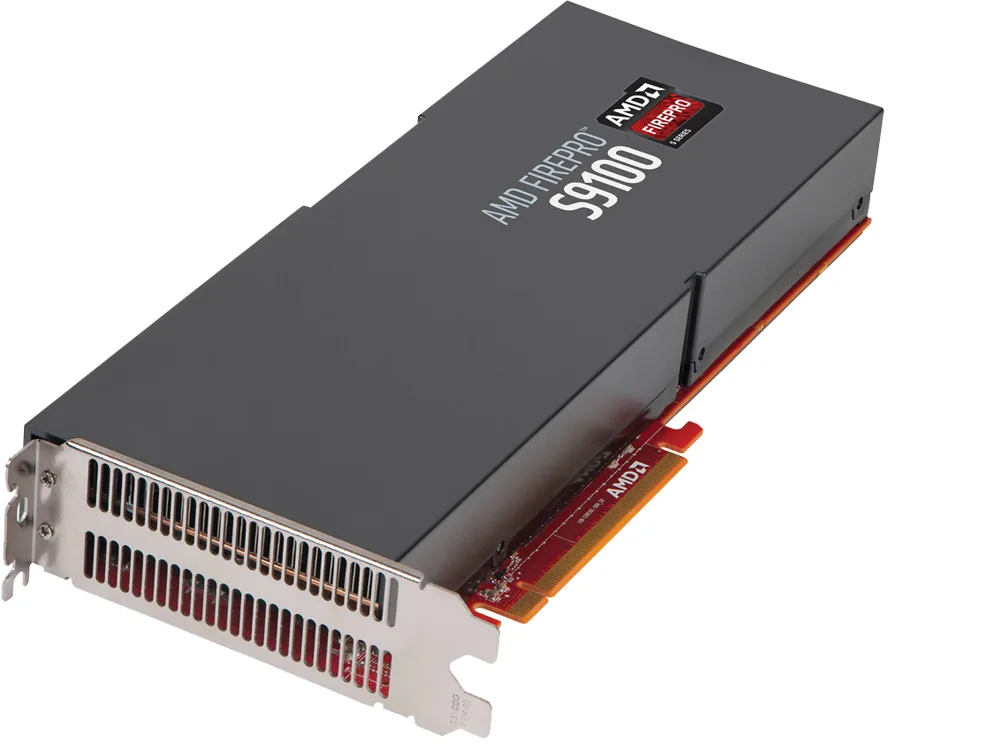

AMD FirePro S9100 full-height server GPU with passive dual-slot cooler

AMD

AMD FirePro S9100 12GB GDDR5 server graphics card

SKU CH-7GRE-2A66C

Server GPU with 12GB GDDR5 memory, 4.22 TFLOPS single and 2.11 TFLOPS double precision performance, and PCIe 3.0 x16 interface

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesHawaii
  • GPUHawaii PRO GL
  • Core Clock824 MHz
  • Memory Size12GB
  • 12 GB GDDR5 memory with 320 GB/s bandwidth for large datasets
  • 22 TFLOPS single-precision compute accelerates simulations and rendering
  • 11 TFLOPS double-precision compute supports scientific workloads
  • Passive fanless cooler needs 15 CFM airflow at 45 °C inlet
  • PCIe 3.0 x16 interface fits full-height dual-slot servers

12GB GDDR5 server compute card

The AMD FirePro S9100 delivers 12GB of GDDR5 memory on a 512-bit interface with 320 GB/s bandwidth. It targets server workloads such as simulation, video transcoding and computational fluid dynamics. The Hawaii PRO GL GPU runs at 824 MHz and provides 4.22 TFLOPS single precision and 2.11 TFLOPS double precision performance. It connects through a PCI Express 3.0 x16 slot.

Upgrade from earlier S-series or consumer cards

The jump is justified when workloads exceed the memory capacity or double precision throughput of older FirePro S models or consumer GPUs. The 12GB frame buffer and 2.11 TFLOPS double precision enable larger datasets and higher accuracy in structural mechanics or reservoir simulation. Support for DirectX 12 and OpenGL 4.5 ensures compatibility with current professional software stacks.

Fanless dual-slot install with strict airflow needs

The card occupies two full-height slots and measures 267 mm in length, requiring a PCI Express x16 slot and one 6-pin plus one 8-pin auxiliary power connector. A minimum of 15 CFM airflow at a 45° C inlet temperature is mandatory because the cooler is fanless. Insufficient case airflow is the most common cause of thermal throttling or shutdown. The system also needs 16GB of system memory and a supported server OS such as Windows Server 2012 R2 or Linux.

Highlights

  • 12 GB GDDR5 memory with 320 GB/s bandwidth for large datasets
  • 22 TFLOPS single-precision compute accelerates simulations and rendering
  • 11 TFLOPS double-precision compute supports scientific workloads
  • Passive fanless cooler needs 15 CFM airflow at 45 °C inlet
  • PCIe 3.0 x16 interface fits full-height dual-slot servers

Specifications

BrandAMD
SeriesAMD FirePro S9100
ModelAMD FirePro S9100
InterfacePCI Express 3.0 x16
Chipset ManufacturerAMD
GPU SeriesHawaii
GPUHawaii PRO GL
Core Clock824 MHz
Memory Size12GB
Memory Interface5000 MHz
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
CoolerFanless
Operating Systems SupportedServer® 2012 R2, Windows Server® 2008 R2 SP1, and Linux® (32- or 64-bit)
System Requirements15 CFM airflow cooling at 45° C maximum inlet temperature Available PCI Express® x16 (dual slot), 3.0 for optimal performance Power supply plus one 2x4 (8-pin) AUX power connector 16GB system memory Supported OS; see API and OS Support above Internet connection for driver installation
Power Connector1 x 6-Pin + 1 x 8-Pin
Form FactorPlug-in CardFull-height
Max GPU Length267 mm
Slot Width2 Slots

Questions about this item

Will this card fit in a standard full-height server chassis?

The card is a full-height plug-in card measuring 267 mm in length and occupies two expansion slots.

What power connectors and airflow does the card require?

It needs one 6-pin and one 8-pin auxiliary power connector plus at least 15 CFM airflow at a maximum 45 °C inlet temperature.

Which operating systems are officially supported for this GPU?

Supported systems include Windows Server 2012 R2, Windows Server 2008 R2 SP1, and 32- or 64-bit Linux distributions.
