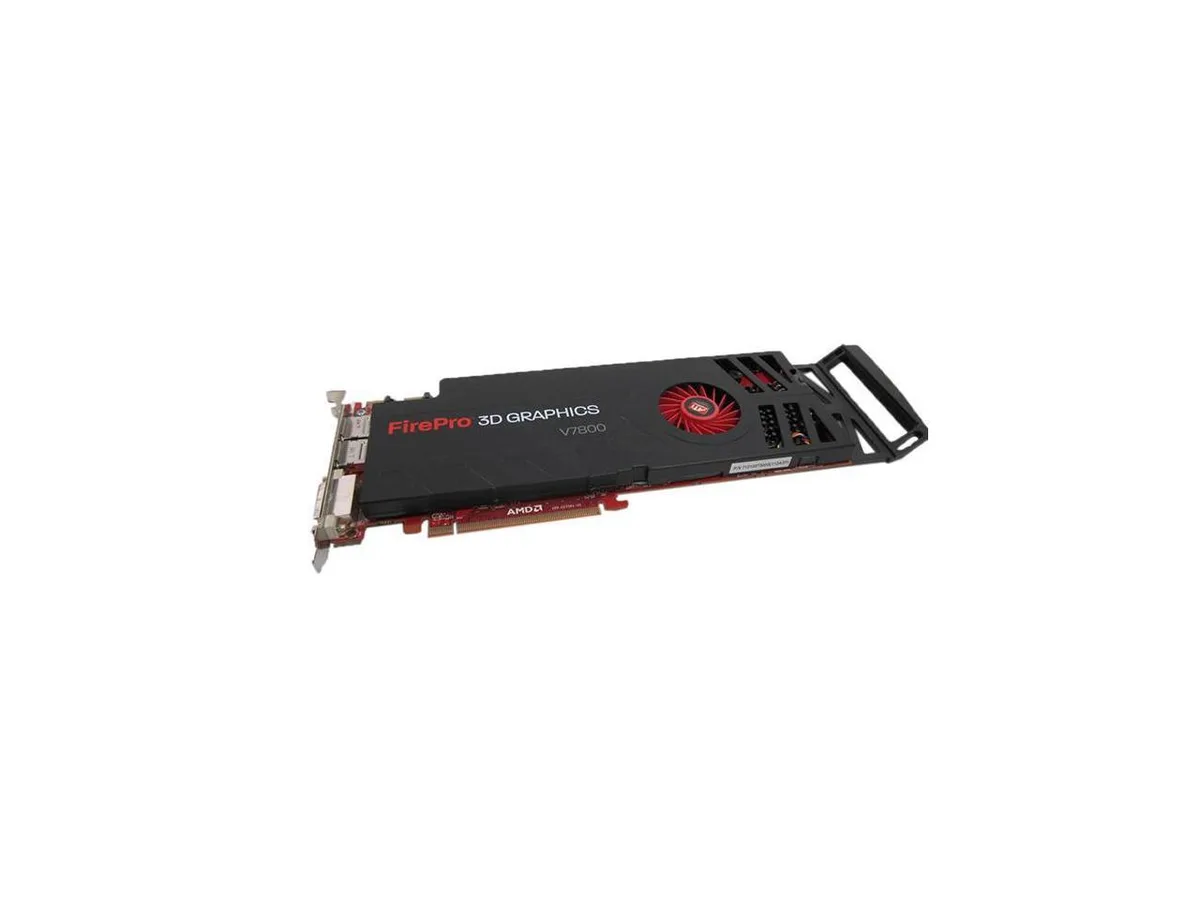

AMD FirePro V7800 full-height graphics card, single-slot cooler, rear bracket visible

AMD

AMD FirePro V7800 graphics card 2GB GDDR5

SKU CH-5TSC-MR227 MPN V7800

Professional graphics card with 2GB 256-bit GDDR5 memory, three-display support up to 2560x1600 resolution, and PCI Express 2.1 x16 interface

  • Memory TypeGDDR5
  • 2GB 256-bit GDDR5 memory handles large datasets
  • PCI Express 2.1 x16 interface fits modern workstations
  • Three simultaneous displays from 2x DisplayPort 1.1 and 1x DVI
  • 150W TGP with 6-pin power keeps thermals manageable
  • DirectX 11 and OpenGL 4.1 support professional applications

Professional graphics for multi-display workstations

The AMD FirePro V7800 is a workstation graphics card built on the TeraScale 2 architecture. It provides 2GB of 256-bit GDDR5 memory and supports up to three simultaneous displays. The card targets professionals requiring reliable multi-monitor output and DirectX 11 or OpenGL 4.1 compatibility.

Upgrade from single-display

This card replaces older single-output GPUs or entry-level professional models that lack DisplayPort 1.1 connectivity. The jump is justified when a workflow demands three active displays at 2560x1600 digital resolution or requires the 150W TGP power envelope for sustained compute tasks.

Single-slot full-height design with 6-pin power

The board occupies a single PCI Express 2.1 x16 slot in a full-height chassis and draws auxiliary power through a 6-pin connector. A rear bracket is included for secure mounting. This layout frees adjacent expansion slots while delivering professional display connectivity through two DisplayPort 1.1 outputs and one DVI port.

Highlights

  • 2GB 256-bit GDDR5 memory handles large datasets
  • PCI Express 2.1 x16 interface fits modern workstations
  • Three simultaneous displays from 2x DisplayPort 1.1 and 1x DVI
  • 150W TGP with 6-pin power keeps thermals manageable
  • DirectX 11 and OpenGL 4.1 support professional applications

Specifications

Memory TypeGDDR5

Questions about this item

Will this card fit in a single-slot, full-height PCIe 2.1 x16 slot?

Yes, it is a single-slot, full-height card designed for a PCI Express 2.1 x16 slot and includes a rear bracket.

What power connector does the 150 W TGP require?

The card draws up to 150 W and needs one 6-pin power connector from the PSU.

How many monitors can run simultaneously from the native outputs?

Up to three displays can be active at once using the two DisplayPort 1.1 ports and the single DVI port.
