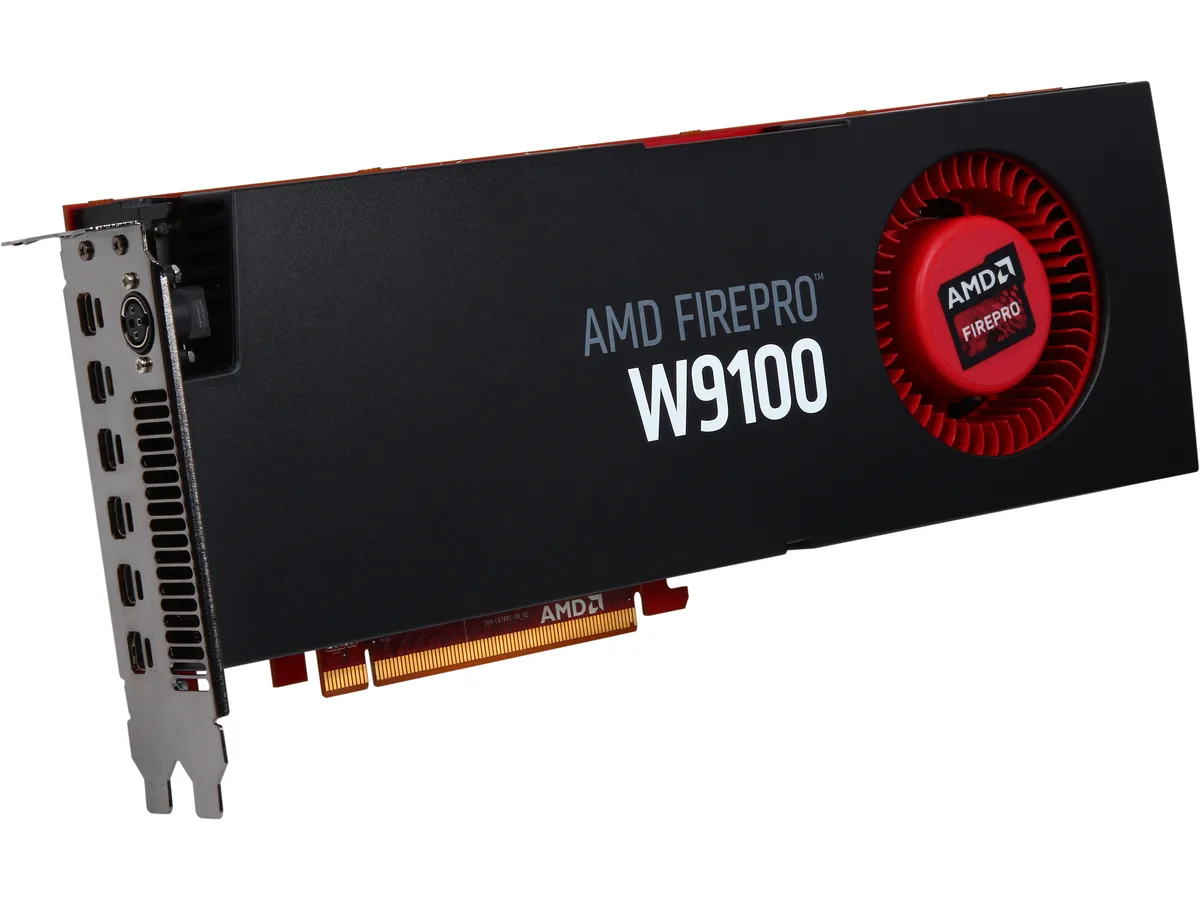

Full-height dual-slot graphics card with matte black shroud and six mini DisplayPort outputs

AMD

AMD FirePro W9100 100-505977 16GB 512-bit GDDR5 workstation graphics card

SKU CH-8E7P-2JG63 MPN 100-505977

A workstation graphics card with 16GB GDDR5 memory on a 512-bit interface delivering 5.24 TFLOPS single-precision and 2.62 TFLOPS double-precision compute performance

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerAMD
  • GPUFirePro W9100
  • Stream Processors2816
  • Floating Point Formats5.24 TFLOPS peak single-precision floating-point performance
  • Memory Size16GB
  • 16GB GDDR5 memory handles large datasets and 4K assets
  • 24 TFLOPS single-precision compute accelerates rendering and simulation workloads
  • 62 TFLOPS double-precision performance enables high-accuracy engineering calculations
  • 2816 stream processors provide parallel throughput for multi-application workflows

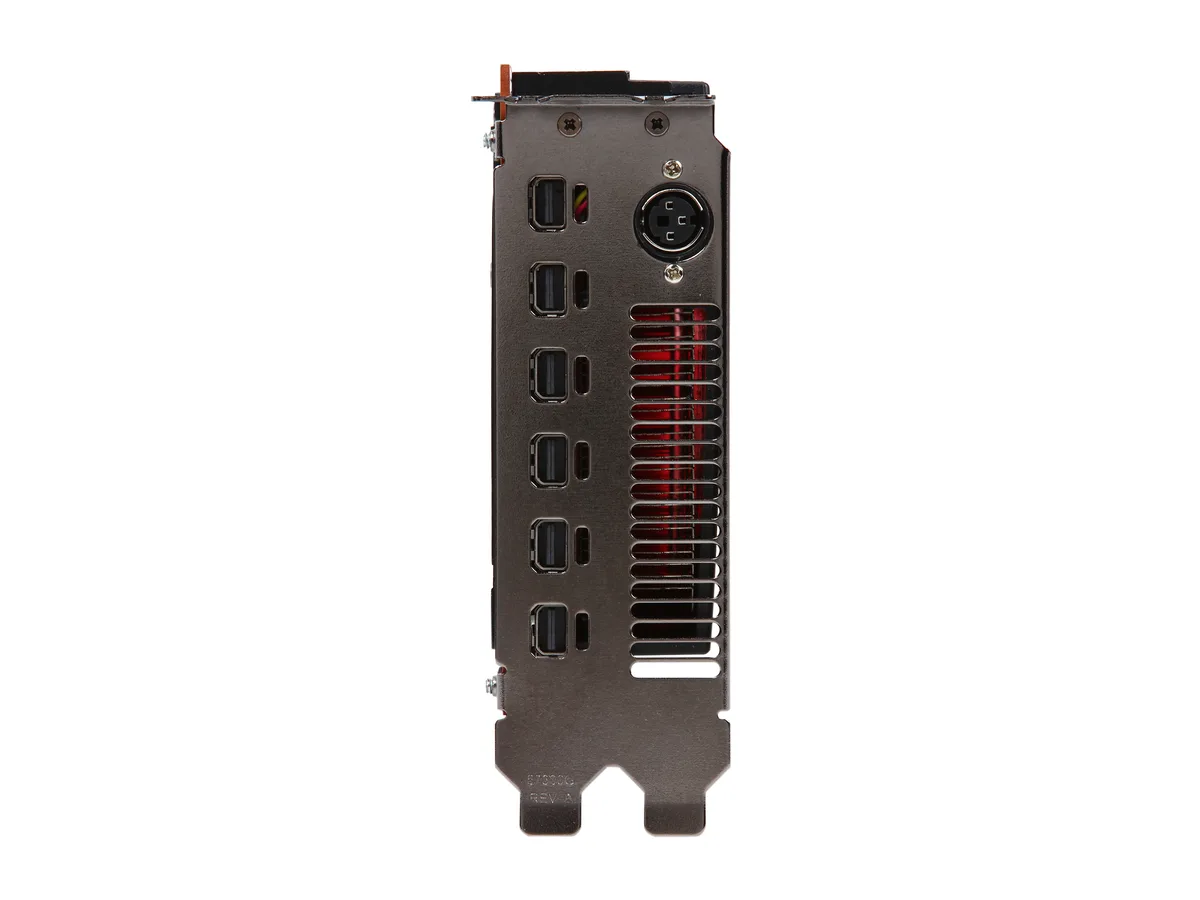

  • Six Mini DisplayPort 1.2 outputs drive multiple 4K displays simultaneously

Professional Workstation Card

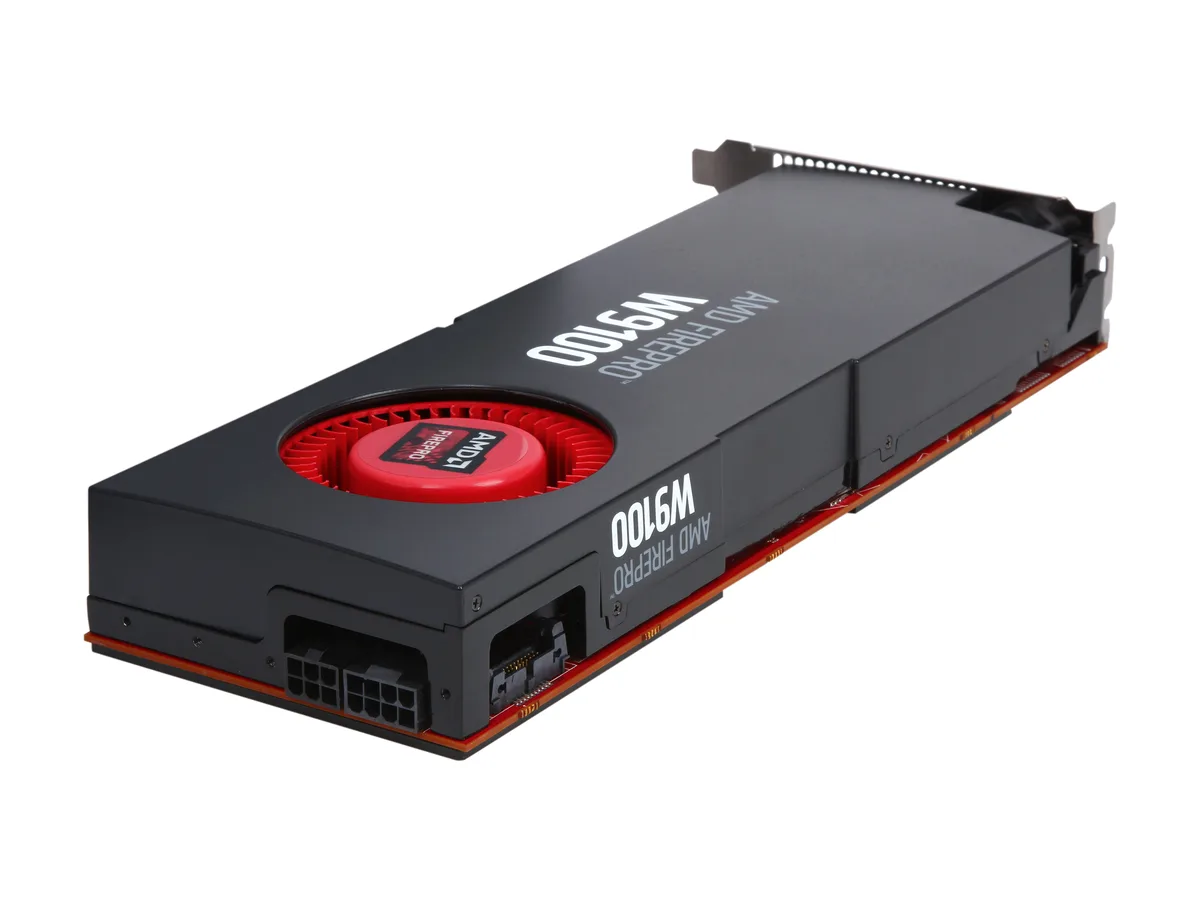

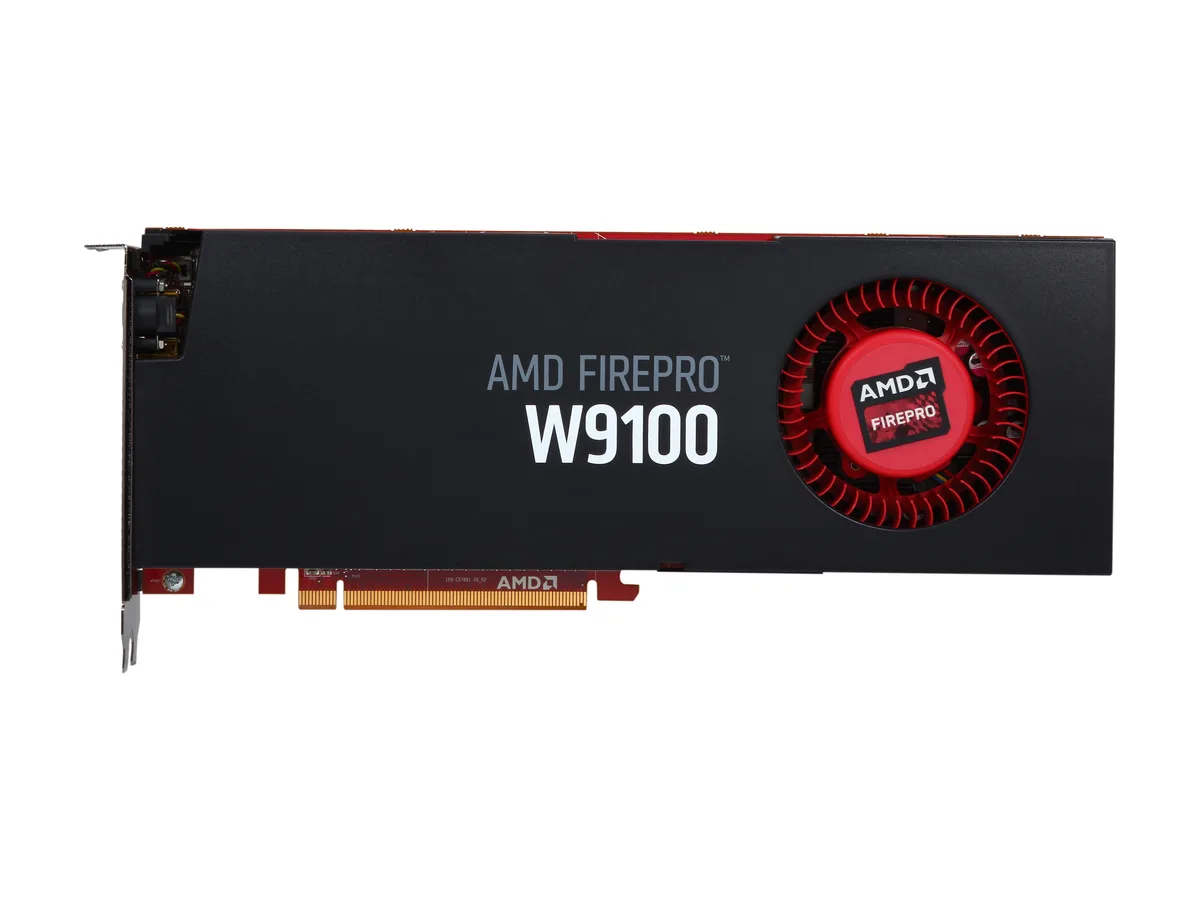

The AMD FirePro W9100 model 100-505977 is a full-height dual-slot graphics card built for professional workstations. It connects through a PCI Express 3.0 x16 interface and uses a discreet active-cooling solution. The card requires one 8-pin and one 6-pin PCIe auxiliary power connector and has a maximum power consumption of 275W.

Compute-Focused Professionals

This card suits engineers and creatives who need 2.62 TFLOPS peak double-precision and 5.24 TFLOPS single-precision floating-point performance for compute-intensive workflows. It supports DirectX 11.2/12, OpenGL 4.4 and six mini DisplayPort 1.2a outputs for multi-display 4K setups. Buyers who do not require double-precision compute capability or certified application optimisations should consider alternatives.

16GB GDDR5 Frame Buffer

The 16GB GDDR5 memory on a 512-bit interface delivers 320 GB/s bandwidth, enabling large datasets and complex 4K scenes to reside entirely on the GPU. This capacity and bandwidth combination is the primary specification that determines suitability for high-resolution professional workloads.

Highlights

  • 16GB GDDR5 memory handles large datasets and 4K assets
  • 24 TFLOPS single-precision compute accelerates rendering and simulation workloads
  • 62 TFLOPS double-precision performance enables high-accuracy engineering calculations
  • 2816 stream processors provide parallel throughput for multi-application workflows
  • Six Mini DisplayPort 1.2 outputs drive multiple 4K displays simultaneously

Specifications

BrandAMD
Model100-505977
InterfacePCI Express 3.0 x16
Chipset ManufacturerAMD
GPUFirePro W9100
Stream Processors2816
Floating Point Formats5.24 TFLOPS peak single-precision floating-point performance
2.62 TFLOPS peak dual-precision floating-point performance
Memory Size16GB
Memory Interface512-bit
Memory TypeGDDR5
DirectXDirectX 11.2/12
OpenGLOpenGL 4.4
DisplayPort6 x mini DisplayPort 1.2a
Digital Resolution4096 x 2160
CoolerDiscreet active-cooling solution
Operating Systems SupportedMicrosoft Windows 10, Windows 8.1, Windows 7 or Linux operating system (32- or 64-bit)
System Requirements275W maximum power consumption
Available PCIe x16 (dual-slot), 3.0 for optimal performance
A power supply, on?e PCIe AUX power connector (8-pin) and one PCIe AUX power connector (six-pin)
16GB system memory
Internet connection for driver installation
Form FactorFull-height
Slot WidthDual-slot
Shipping weight1.86 kg
Package size389 × 251 × 99 mm

Questions about this item

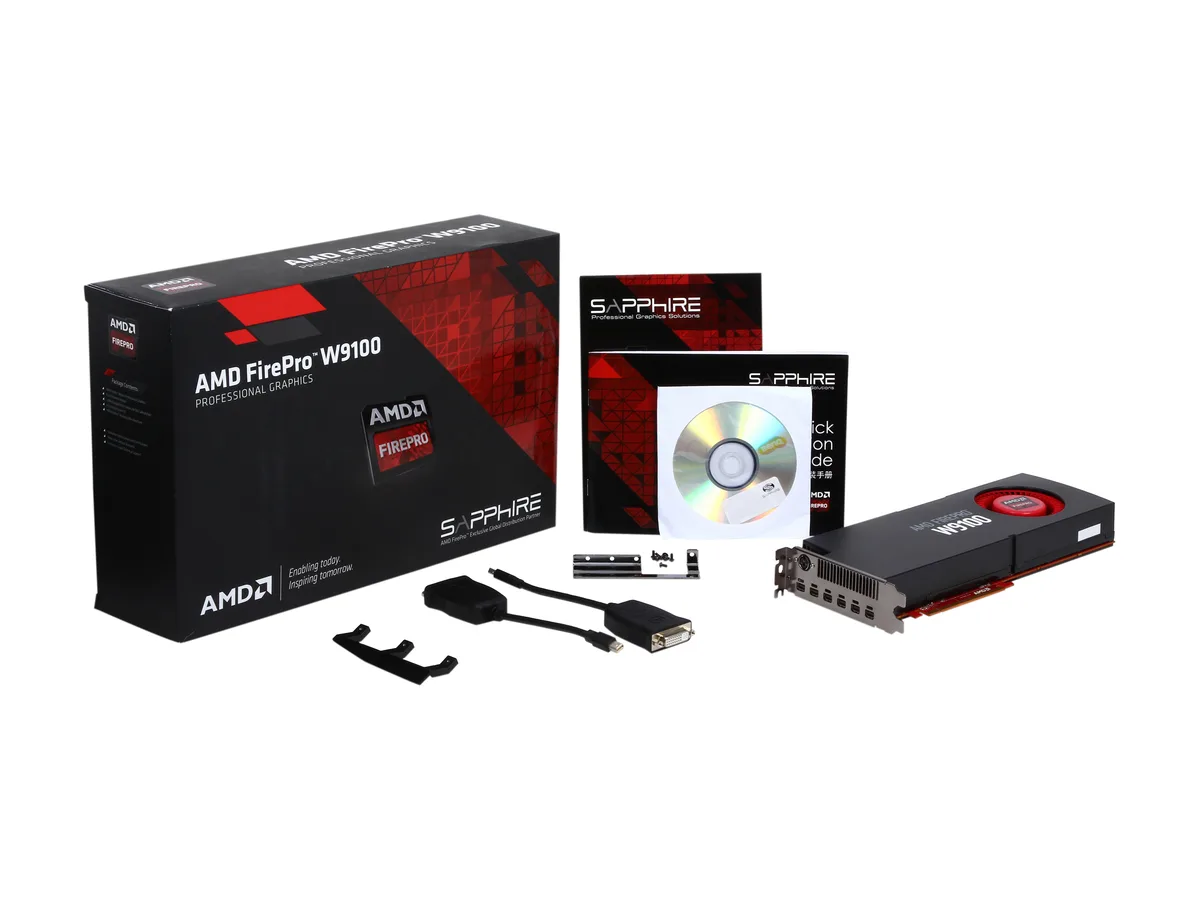

What comes in the box and which cables or adapters must be bought separately?

The card ships with six mini DisplayPort 1.2 outputs; mini DisplayPort to DisplayPort or HDMI cables are not included and must be purchased separately.

Which version of the FirePro W9100 should I choose for 4K multi-display work?

This single model provides 16GB GDDR5 on a 512-bit interface with 2816 stream processors and six mini DisplayPort 1.2 connectors, supporting up to six 4K displays at 4096 x 2160.

What does the 5.24 TFLOPS single-precision figure mean when the card is installed in a workstation?

It represents the peak single-precision floating-point throughput of the 2816 GCN stream processors, enabling real-time compute performance for complex engineering and creative workloads at 4K resolution.
