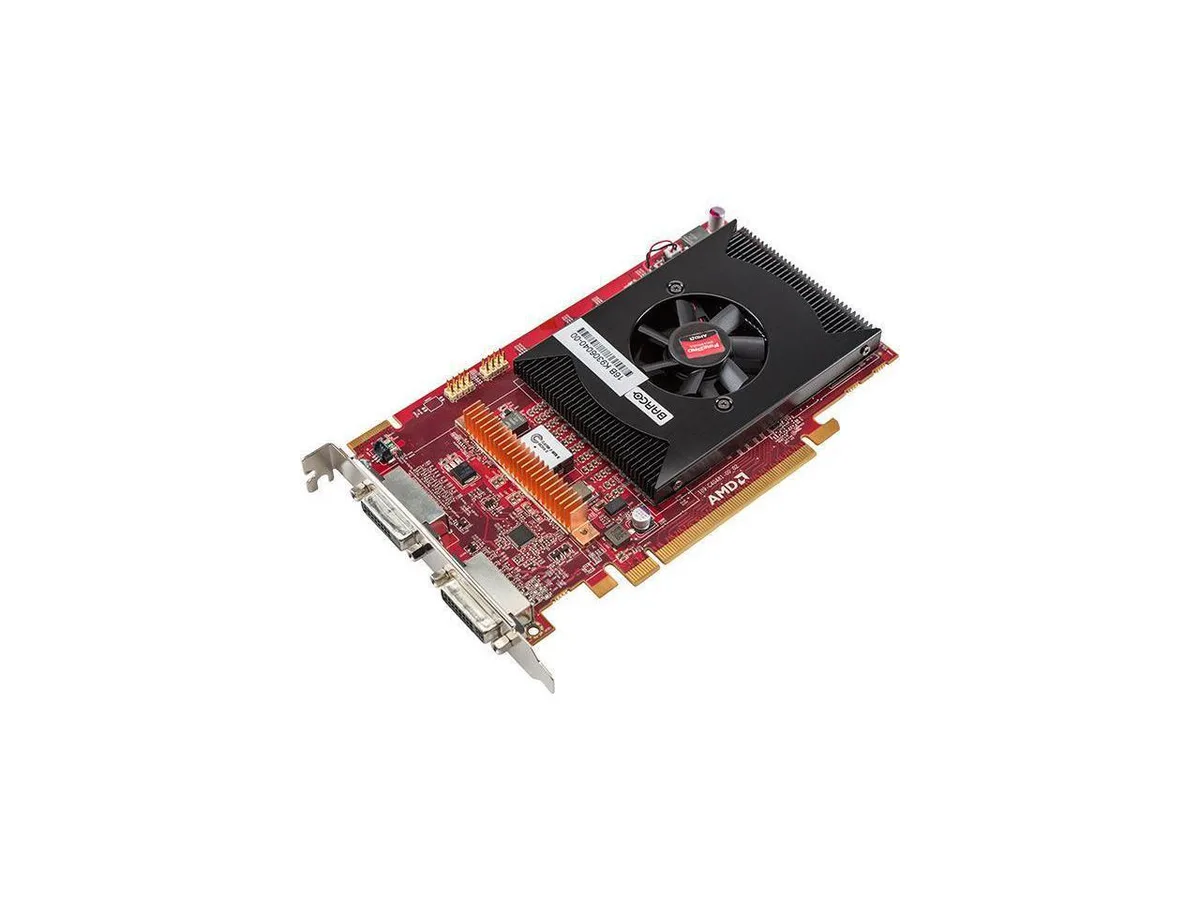

Single-slot AMD MXRT-5550 graphics card with fan cooler and two DVI ports

AMD

AMD MXRT-5550 2GB GDDR5 graphics card

SKU CH-EDF3-KAY1W

PCI Express 3.0 x16 graphics card with 2GB GDDR5 memory, dual DVI outputs and 5.8MP grayscale resolution for medical imaging

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerAMD
  • GPUMXRT-5550
  • Memory TypeGDDR5
  • DirectXDirectX 11.1
  • OpenGLOpenGL 4.2
  • PCI Express 3.0 x16 interface enables fast data throughput
  • 2GB GDDR5 memory supports smooth 3D image manipulation
  • Dual DVI outputs drive two monitors at full refresh rate
  • 8MP grayscale resolution delivers detailed medical imaging
  • Single-slot cooler fits compact workstation builds

Medical imaging display controller

The AMD MXRT-5550 is a PCI Express 3.0 x16 graphics card built for healthcare workstations. It drives two monitors at full refresh rate using 2GB of GDDR5 memory. The board supports DirectX 11.1 and OpenGL 4.2 for 3D imaging applications. A single-slot design with an integrated fan fits compact clinical systems.

Sustained 3D image manipulation

The GPU delivers ultra-fast loading, roaming and manipulation of grayscale images up to 5.8MP resolution. Steady frame rates are maintained during extended diagnostic sessions without thermal throttling. Conference Clone View enables accurate projection onto large-screen displays. Dim View, Spot View, Find Cursor and Single View tools preserve image quality across multi-display workflows.

Straightforward workstation upgrade

The single-slot form factor installs in any PCI Express 3.0 x16 slot without additional power cables. Two DVI connectors provide direct links to medical-grade monitors. Driver support covers Windows 7 and Windows 8.1 in both 32-bit and 64-bit versions. The only common issue is confirming OS compatibility before deployment in legacy PACS environments.

Highlights

  • PCI Express 3.0 x16 interface enables fast data throughput
  • 2GB GDDR5 memory supports smooth 3D image manipulation
  • Dual DVI outputs drive two monitors at full refresh rate
  • 8MP grayscale resolution delivers detailed medical imaging
  • Single-slot cooler fits compact workstation builds

Specifications

BrandAMD
SeriesMXRT-5550
ModelMXRT-5550
InterfacePCI Express 3.0 x16
Chipset ManufacturerAMD
GPUMXRT-5550
Memory TypeGDDR5
DirectXDirectX 11.1
OpenGLOpenGL 4.2
DVI2 x DVI
Max Resolution5.8MP grayscale
CoolerWith Fan
Operating Systems SupportedWindows 7 - 32/64-bit Windows 8.1 - 32/64-bit
Slot WidthSingle Slot

Questions about this item

How much heat or noise does the MXRT-5550 produce when running all day?

The MXRT-5550 uses an active fan cooler in a single-slot design, so it exhausts heat directly out of the case rear. Fan speed scales with GPU load, keeping temperatures stable during extended 3D imaging sessions.

What must my system already have for the MXRT-5550 to work?

Your motherboard needs a free PCI Express 3.0 x16 slot and the operating system must be Windows 7 or Windows 8.1, either 32-bit or 64-bit. The card draws power from the slot itself, so no extra power cables are required.

Will the MXRT-5550 work with older DVI monitors I want to keep?

Yes. The card provides two DVI connectors and supports up to 5.8MP grayscale resolution per display, so existing DVI monitors can be driven at their native resolution without adapters.
