AMD
AMD Radeon Pro WX 9100 graphics card 16GB HBM2
Professional graphics card with 16GB HBM2 memory, six Mini DisplayPort outputs and 1.2GHz core clock for 3D rendering and CAD workloads
- InterfacePCI Express 3.0 x16
- Chipset ManufacturerAMD
- GPUAMD Radeon Pro WX 9100
- Core Clock1.2 GHz
- Memory Size16GB
- Memory Interface2048-Bit
- 16 GB HBM2 memory handles large datasets and complex scenes
- 2 GHz core clock drives fast compute for rendering and simulation
- 6 Mini DisplayPort outputs connect multiple high-resolution displays
- Dual-slot fan cooler sustains performance under 230 W load
- PCI Express 3.0 x16 interface provides high-bandwidth system connectivity
Professional Workstation GPU

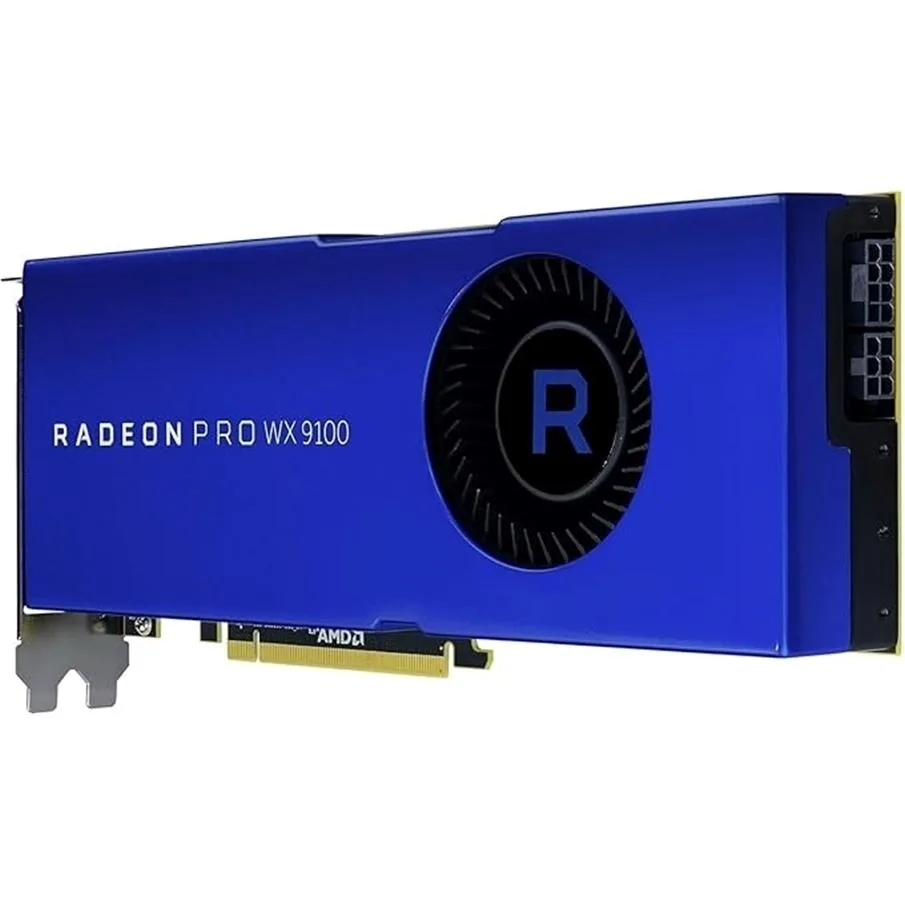

The AMD Radeon Pro WX 9100 is a professional graphics card built for workstations that run 3D rendering, video editing, or CAD applications. It delivers 16GB of HBM2 memory and six Mini DisplayPort outputs to drive multiple high-resolution displays. The dual-slot design fits standard PCI Express 3.0 x16 slots. This card is not suited for compact chassis that cannot accommodate a dual-slot cooler or a 230W power draw.
16GB HBM2 Memory Capacity
The 16GB HBM2 frame buffer connected through a 2048-bit interface is the specification that determines whether this card can hold your datasets and textures. A 1.2 GHz core clock drives the GPU while DirectX 12 support handles modern API workloads. CrossFire Ready capability allows multi-GPU scaling for larger scenes. Buyers who need more than 16GB of video memory must consider a different product tier.
Sustained 230W Thermal Load
The card operates at a 230W operational wattage and requires an 8-pin power connector to maintain stable output during extended render jobs. An onboard fan cooler manages the continuous heat load rather than a brief boost clock. Six Mini DisplayPort connectors support up to 7680 x 4320 resolution across multiple panels. Systems without adequate case airflow or a sufficient power supply will throttle under prolonged stress.
Highlights
- 16 GB HBM2 memory handles large datasets and complex scenes
- 2 GHz core clock drives fast compute for rendering and simulation
- 6 Mini DisplayPort outputs connect multiple high-resolution displays
- Dual-slot fan cooler sustains performance under 230 W load
- PCI Express 3.0 x16 interface provides high-bandwidth system connectivity
Specifications
| Brand | AMD |
|---|---|
| Model | AMD Radeon Pro WX 9100 |
| Interface | PCI Express 3.0 x16 |
| Chipset Manufacturer | AMD |
| GPU | AMD Radeon Pro WX 9100 |
| Core Clock | 1.2 GHz |
| Memory Size | 16GB |
| Memory Interface | 2048-Bit |
| Memory Type | HBM2 |
| DirectX | DirectX 12 |
| DisplayPort | 6 x Mini DisplayPort |
| Tuner | None |
| Max Resolution | 7680 x 4320 |
| SLI Support | SLI Ready |
| Cooler | With Fan |
| Slot Width | Dual Slot |
Questions about this item
What does the 1.2 GHz core clock mean for real-world rendering performance?
The 1.2 GHz core clock drives the Radeon Pro WX 9100 GPU to deliver high throughput for 3D rendering, video editing, and CAD workloads, backed by 16GB HBM2 memory.
How does the PCI Express 3.0 x16 interface affect data transfer limits?
The PCI Express 3.0 x16 slot provides up to 16 GT/s per lane bandwidth, capping host-to-GPU throughput for large datasets and multi-GPU CrossFire configurations.
What physical space and power connectors does this dual-slot card require?
The card occupies two expansion slots, needs an 8-pin power connector, and draws 230W operational wattage; ensure your chassis and PSU can accommodate both.
