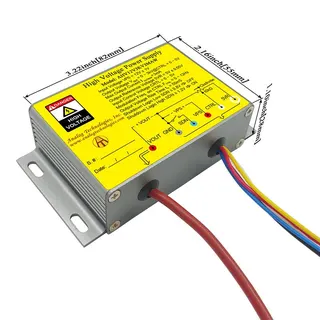

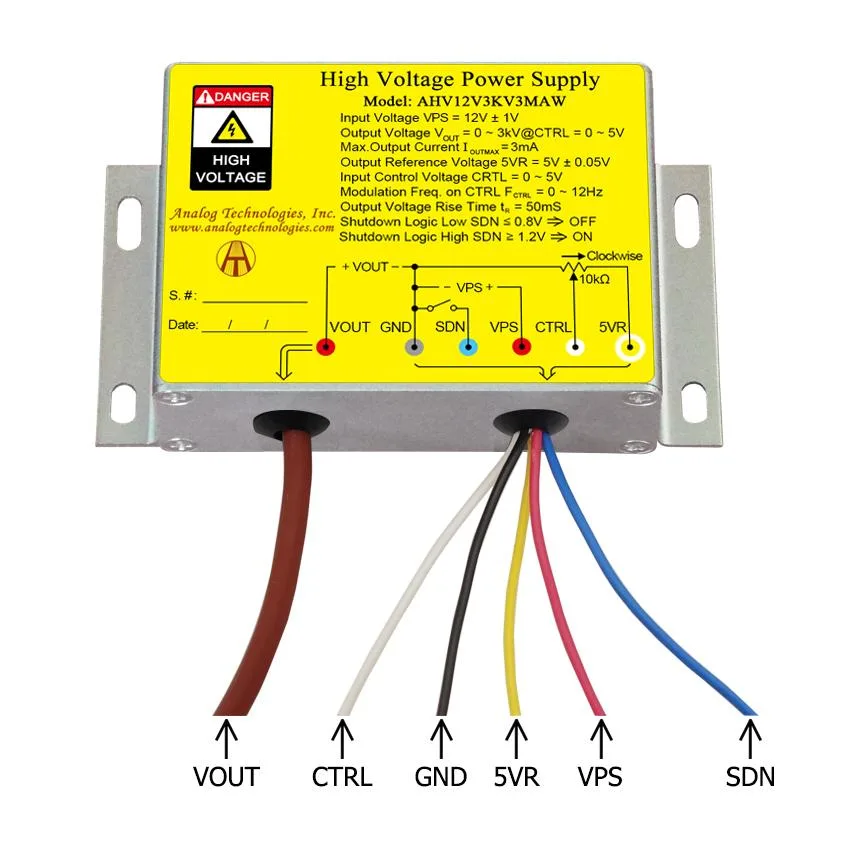

Compact rectangular module, matte finish, labelled AHV12V3KV3MAW

Analog Technologies

Analog Technologies AHV12V3KV3MAW 12 V 3 kV 3 mA power supply

SKU CH-EJ8E-2G79W MPN AHV12V3KV3MAW

Converts a 12 V input to an adjustable 0–3 kV output at up to 3 mA with 0–5 V control and electronic shutdown for X-ray, spectroscopy and deposition systems

  • TypeHigh Voltage Power Supply
  • Dimensions3.23×2.17×1.10
  • Weight3
  • 12 V input with 225 mA to 1.1 A current range
  • Adjustable 0 to 3 kV output controlled by 0 to 5 V signal
  • 5 V reference voltage with ±0.05 V accuracy for precise regulation
  • Electronic shutdown control enables instant output disable

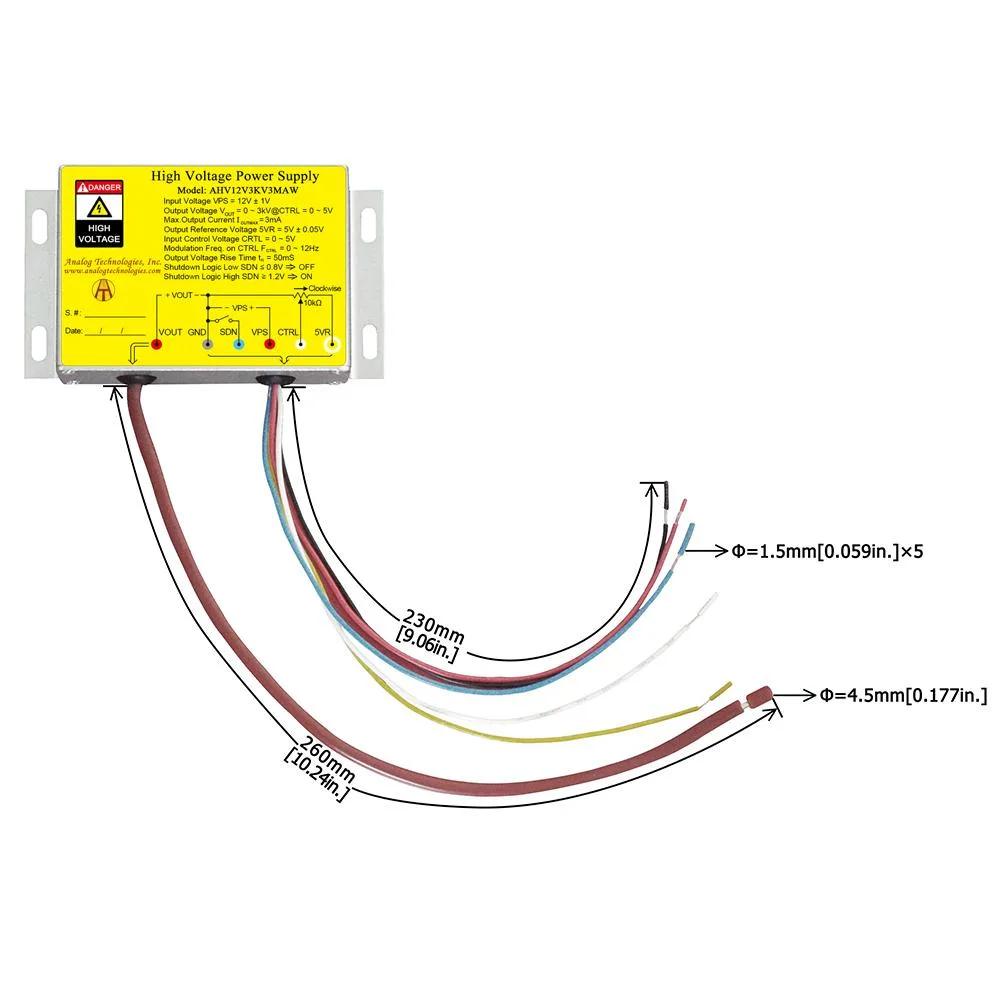

  • Compact 3.23×2.17×1.10 module suits space-constrained high-voltage applications

High-voltage DC-DC module for 12 V systems

The Analog Technologies AHV12V3KV3MAW converts a 12 V DC input into an adjustable 0 to 3 kV output with a maximum current of 3 mA. It accepts an input current between 225 mA and 1.1 A and provides a 5 V reference voltage for external control. The module measures 3.23×2.17×1.10 and weighs 3 units.

Suited for laboratory

This unit fits X-ray machines, spectral analysis, semiconductor equipment, particle accelerators, capillary electrophoresis, electrospinning, coating and sputtering systems. It is not for applications that require more than 3 mA of output current or an input voltage outside the 12 V ± 1 V range.

0 to 3 kV output controlled by 0 to 5 V signal

The output voltage spans the full 0 to 3 kV range proportionally to a 0 to 5 V control input, and an electronic shutdown function allows immediate disabling. This single control characteristic determines whether the module matches the required regulation scheme.

Highlights

  • 12 V input with 225 mA to 1.1 A current range
  • Adjustable 0 to 3 kV output controlled by 0 to 5 V signal
  • 5 V reference voltage with ±0.05 V accuracy for precise regulation
  • Electronic shutdown control enables instant output disable
  • Compact 3.23×2.17×1.10 module suits space-constrained high-voltage applications

Specifications

BrandAnalog Technologies
ModelAHV12V3KV3MAW
TypeHigh Voltage Power Supply
Dimensions3.23×2.17×1.10
Weight3

Questions about this item

What comes in the box with the AHV12V3KV3MAW and what must be sourced separately?

The module itself is supplied; a 12 V source capable of 225 mA to 1.1 A and a 0–5 V control signal are required but not included.

How do I choose the right output setting for my application?

The unit delivers 0–3 kV proportional to a 0–5 V control input; set the control voltage to match the desired output within the 3 mA current limit.

What does the 3 kV rating mean when the module is installed in a system?

It indicates the maximum adjustable output voltage reachable when the control input is at 5 V, with the output current capped at 3 mA.
