Rectangular green circuit board with silver metal heatsink covering top surface, M.2 2280 form factor

Apacer

Apacer AS2280Q4U 1TB M.2 PCIe 4.0 x4 internal SSD with heatsink

SKU CH-MFWC-GC090

M.2 2280 PCIe 4.0 x4 internal SSD with 1TB 3D NAND, up to 7400 MBps read and 7000 MBps write, includes heatsink for PS5 expansion

  • Device TypeInternal Solid State Drive (SSD)
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4
  • Connector75 Pins

Options 1TB

  • Up to 7400 MB/s read speed for faster load times
  • Up to 7000 MB/s write speed for quick file saves
  • PS5 compatible with included heatsink for easy expansion
  • Heatsink cuts drive temperature by up to 35%
  • Low 70mW idle power draw for efficient operation

M.2 2280 PCIe 4.0 x4 1TB SSD

The Apacer AS2280Q4U is an internal solid-state drive built on 3D NAND with a PCI-Express 4.0 x4 interface. It delivers sequential reads up to 7400 MBps and writes up to 7000 MBps for gaming and content creation workloads. A bundled metal heatsink is included to manage thermals.

Suits PS5 expansion and PC builds with M.2 2280

This drive meets the dimensional and performance requirements for PlayStation 5 storage expansion when the heatsink is fitted. It also fits standard desktop and laptop M.2 2280 sockets that support PCIe 4.0 x4 NVMe. Systems limited to PCIe 3.0 or SATA interfaces will not reach the rated speeds.

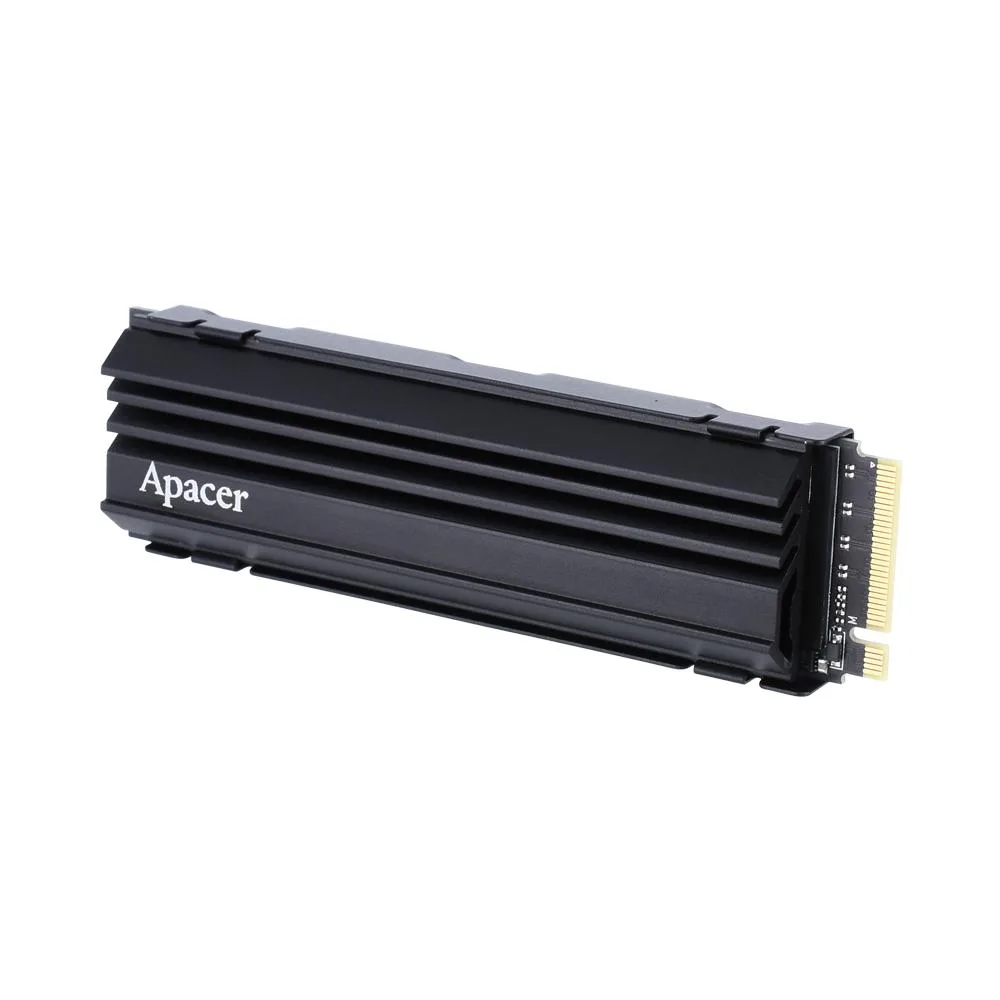

Heatsink lowers operating temperature by up to 35%

The supplied metal heat spreader uses natural convection to draw heat away from the controller and NAND packages. Cooler sustained operation helps maintain peak throughput during long sessions. No additional software or drivers are required for the thermal solution to function.

Highlights

  • Up to 7400 MB/s read speed for faster load times
  • Up to 7000 MB/s write speed for quick file saves
  • PS5 compatible with included heatsink for easy expansion
  • Heatsink cuts drive temperature by up to 35%
  • Low 70mW idle power draw for efficient operation

Specifications

BrandApacer
ModelAS2280Q4U
Device TypeInternal Solid State Drive (SSD)
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
Connector75 Pins
Max Sequential ReadUp to 7400 MBps
Max Sequential WriteUp to 7000 MBps
Power Consumption (Idle)70mW
Power Consumption (Active)9.7W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height10.80mm
Width80mm
Depth22.9mm
Weight10.2g
