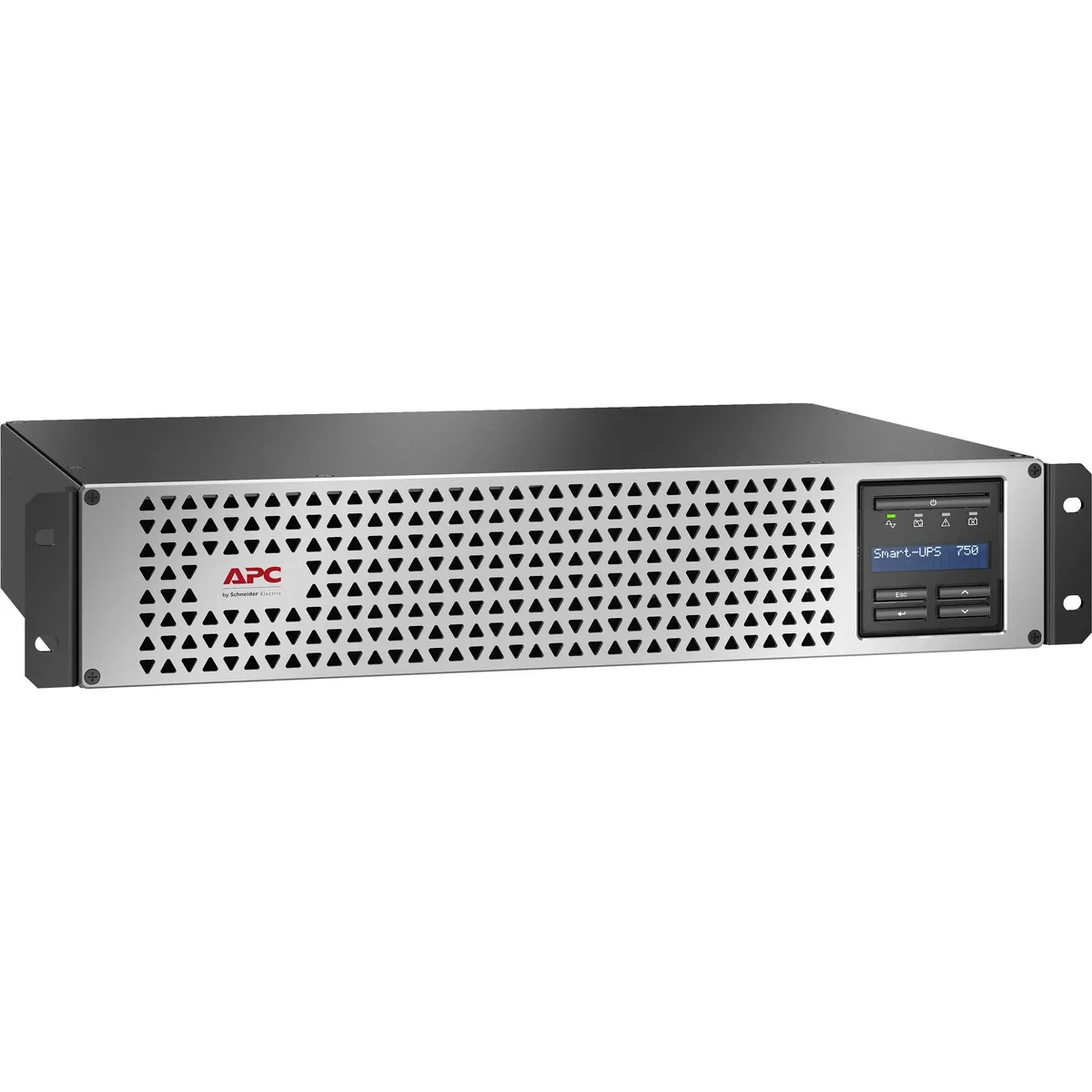

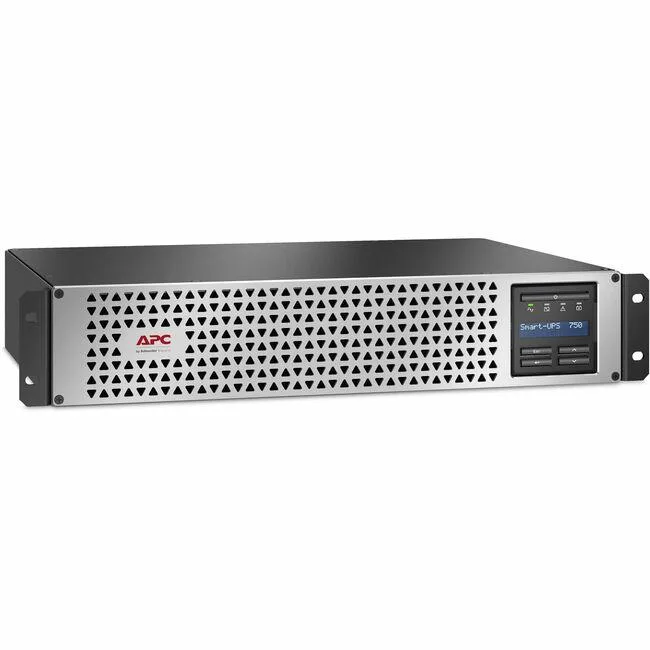

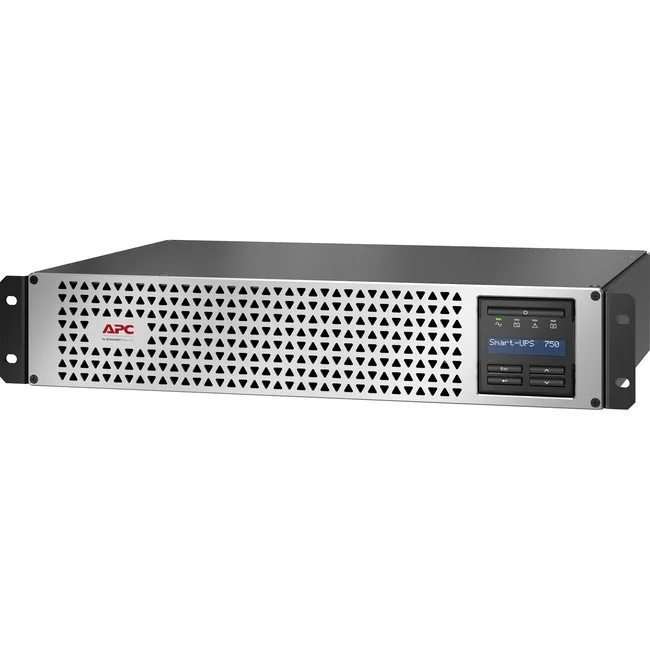

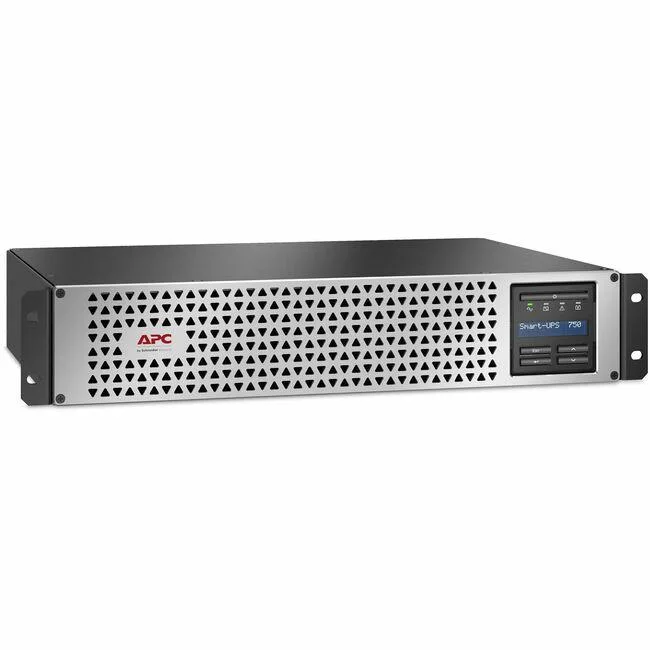

Rectangular black 2U rack-mount UPS with six NEMA 5-15R outlets

APC

APC SMTL750RM2UC 750VA 600W 120V 6x NEMA 5-15R 680J UPS

SKU CH-RRBB-S7V1Q MPN SMTL750RM2UC

Lithium-ion battery backup delivers 600 W from six NEMA 5-15R outlets in a short-depth rackmount form factor

  • Input Voltage Range82 - 144V
  • Input ConnectionNEMA 5-15P
  • VA Rating750VA
  • Watts600W
  • Output Voltage120V
  • Outlets6

Options SMTL750RM2UC

Show 1 more configurations
  • SMTL2200RM2UC

Struck-through versions exist but are not stocked here.

  • 750 VA capacity supports essential equipment during outages
  • 600 W output powers critical loads without overload
  • Lithium-ion battery lasts twice as long as lead-acid
  • Six NEMA 5-15R outlets connect multiple devices at once
  • 680 joule surge protection shields gear from voltage spikes

Compact rack UPS for edge servers

The APC SMTL750RM2UC delivers 750VA and 600W of sine-wave power in a 2U short-depth chassis. It accepts an input range of 82 to 144V through a NEMA 5-15P plug and feeds six NEMA 5-15R outlets at 120V. Lithium-ion cells recharge in 2 hours and provide twice the service life of typical lead-acid batteries. A 680 joule surge rating protects connected gear from transients.

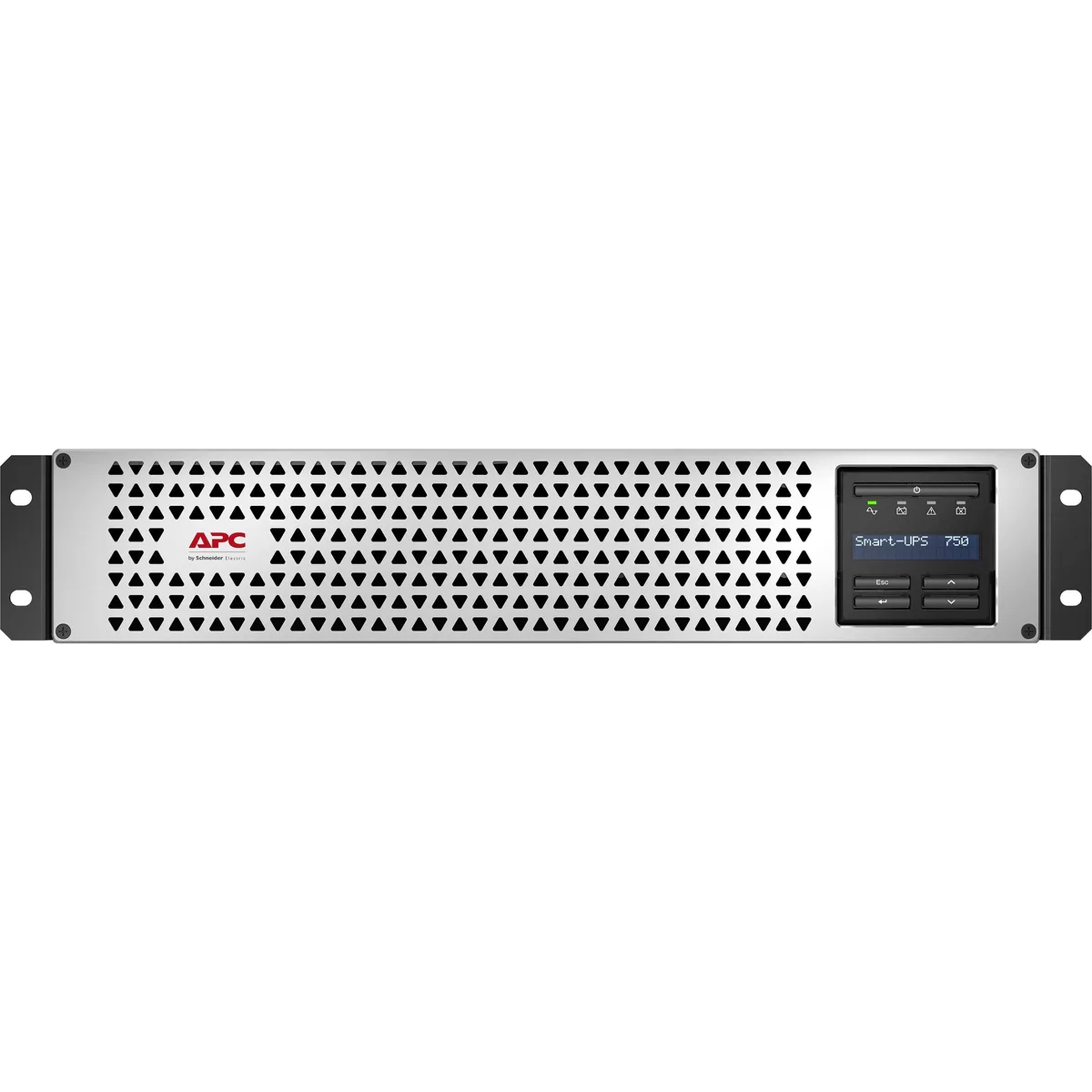

Front-access outlets and replaceable cells

Six NEMA 5-15R receptacles sit on the front panel for quick cable routing in shallow racks. The 17.20 by 3.40 by 12.50 inch footprint fits depth-constrained cabinets while the 34.00 lb weight keeps the load manageable. User-replaceable lithium-ion modules let IT staff swap batteries without removing the unit from the rack. SmartConnect enables remote monitoring through a secure cloud portal.

Replaces bulkier lead-acid units

This UPS suits sites that need longer battery longevity and reduced maintenance cycles. The jump is worth it when rack depth is limited and the 600W capacity covers the critical load. Buyers who need extended runtime beyond the internal pack or higher wattage for dense blade servers should evaluate larger-capacity models.

Highlights

  • 750 VA capacity supports essential equipment during outages
  • 600 W output powers critical loads without overload
  • Lithium-ion battery lasts twice as long as lead-acid
  • Six NEMA 5-15R outlets connect multiple devices at once
  • 680 joule surge protection shields gear from voltage spikes

Specifications

BrandAPC
ModelSMTL750RM2UC
Input Voltage Range82 - 144V
Input ConnectionNEMA 5-15P
VA Rating750VA
Watts600W
Output Voltage120V
Outlets6
Outlet Type6 x NEMA 5-15R
Battery TypeLithium Ion
Battery Recharge Time2 Hours
Surge Energy Rating680 Joules
Dimensions17.20" x 3.40" x 12.50"
Weight34.00 lbs.
Shipping weight24.95 kg
Package size584 × 457 × 229 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What input voltage range does the NEMA 5-15P connection accept?

The input connection accepts 82 to 144V, covering typical 120V utility supply with a wide tolerance for sags and swells.

How deep is the unit, and will it fit in a short-depth rack?

Depth is 12.50 inches, height is 3.40 inches (2U), and width is 17.20 inches, designed for short-depth rack installations.

What is the correct way to install the lithium-ion battery module, and what step is often missed?

Slide the user-replaceable lithium-ion battery module into the front compartment until it locks, then allow up to 2 hours for the initial recharge before relying on backup runtime.
