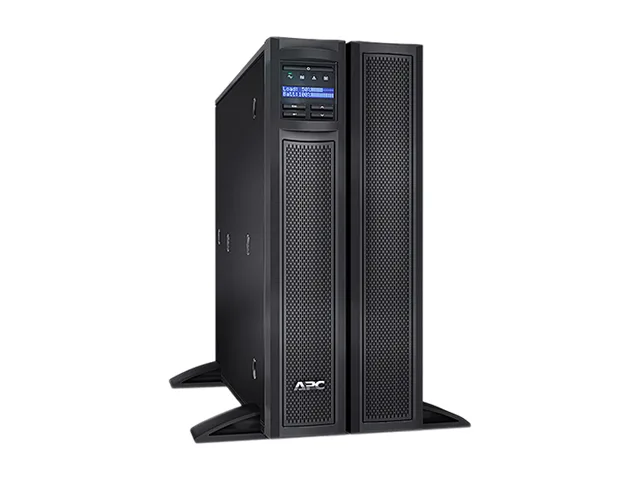

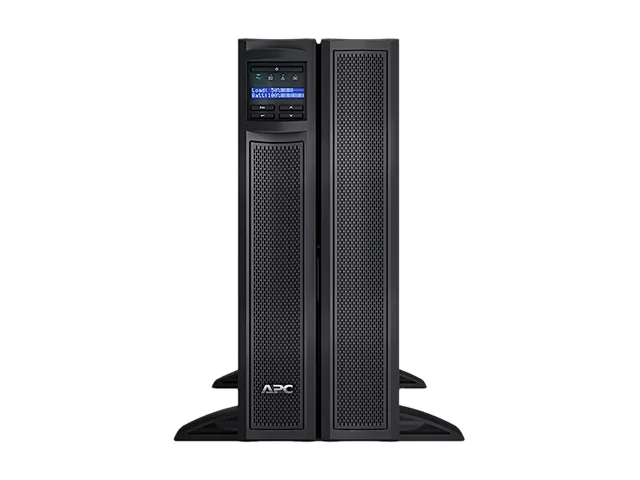

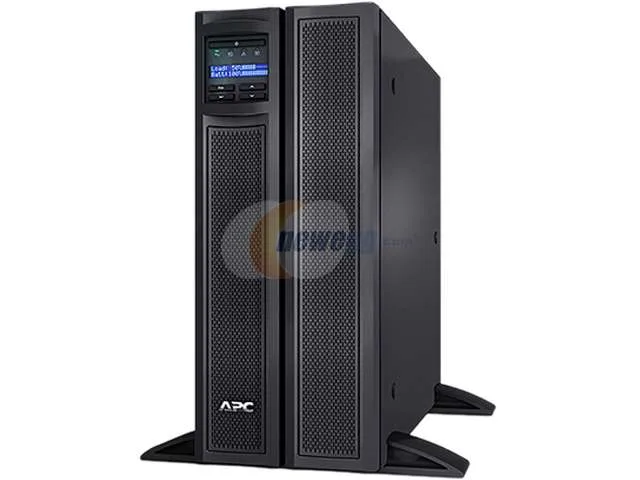

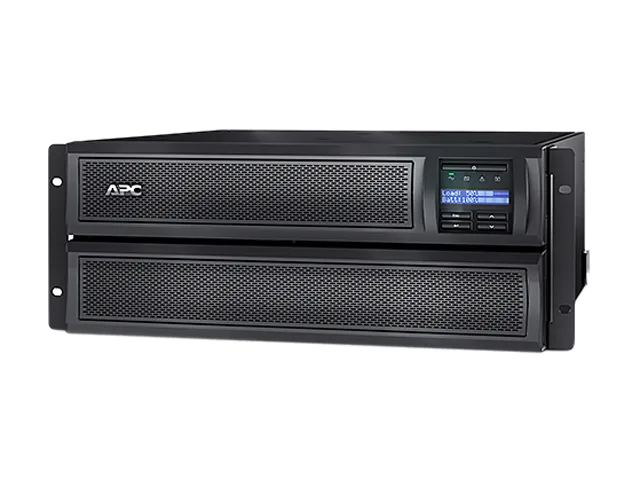

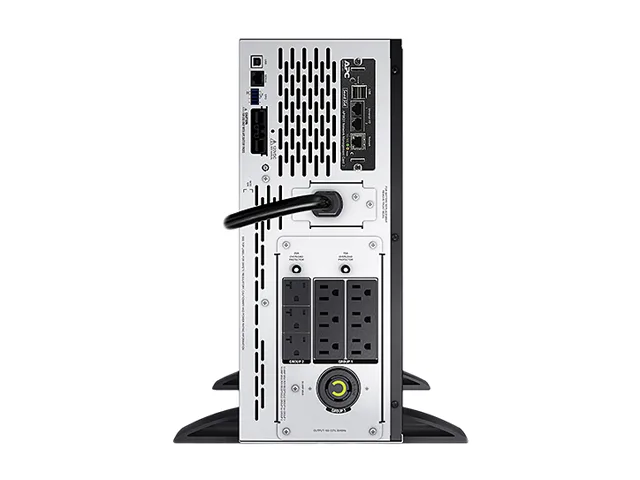

Rectangular 4U rackmount UPS in matte dark finish with front LCD panel and rear outlet bank

APC

APC SMX3000LVNC UPS 2880 VA 2700 W 120 V 10 Outlets 4U

SKU CH-7D4B-6FAC4 MPN SMX3000LVNC

Delivers 2700 W sine-wave output through 10 mixed NEMA outlets in a 4U short-depth rack/tower form with hot-swappable battery and network management card

  • International Version120V
  • Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
  • Input ConnectionNEMA L5-30P
  • VA Rating2880 VA
  • Watts2700 Watts
  • Output Voltage120V

Options SMX3000LVNC

  • SMX3000LVNC
  • SMX1500RM2UNC
  • SMX2000LV
  • SMX2000LVNC
  • SMX2000RMLV2U
  • SMX2000RMLV2UNC
  • SMX2200HV
  • SMX2200RMHV2U
  • SMX2200RMLV2U
  • SMX2200R2HVNC
  • SMX2200HVNC
  • SMX3000HV
Show 7 more configurations
  • SMX3000LV
  • SMX3000RMHV2U
  • SMX3000RMLV2U
  • SMX3000RMLV2UNC
  • SMX3000RMHV2UNC
  • SMX3000HVNC
  • SMX3000HVT

Struck-through versions exist but are not stocked here.

  • Pure sine wave output protects sensitive servers
  • 2880 VA and 2700 W capacity handles heavy loads
  • 10 outlets including L5-30R, 5-15R and 5-20R
  • Hot-swappable battery replacement without downtime
  • 18-minute runtime at half load extends uptime

Depth Smart-UPS X 3000 VA

The APC SMX3000LVNC is a line-interactive UPS rated at 2880 VA and 2700 W with a pure sine-wave output at 120 V. It fits a 4U rack or stands as a tower and includes a Network Management Card in the Smart-Slot for remote monitoring.

IT teams protecting servers and network gear

This unit suits installations that need 120 V input and output with a NEMA L5-30P plug and ten mixed outlets (one L5-30R, six 5-15R, three 5-20R). Buyers who need longer runtime at full load without adding external battery packs, or who require an input voltage outside the 100–127 V range, should look at other models.

2880 VA / 2700 W capacity

The 2880 VA apparent-power rating and 2700 W real-power rating are the single figures that decide whether this UPS can carry your connected load. The internal battery delivers approximately 18 minutes of runtime at half load and recharges in three hours.

Highlights

  • Pure sine wave output protects sensitive servers
  • 2880 VA and 2700 W capacity handles heavy loads
  • 10 outlets including L5-30R, 5-15R and 5-20R
  • Hot-swappable battery replacement without downtime
  • 18-minute runtime at half load extends uptime

Specifications

BrandAPC
SeriesSmart-UPS
ModelSMX3000LVNC
International Version120V
Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
Input ConnectionNEMA L5-30P
VA Rating2880 VA
Watts2700 Watts
Output Voltage120V
Output Frequency50/60 Hz +/- 3 Hz
Outlets10
Outlet Type1 x NEMA L5-30R
6 x NEMA 5-15R
3 x NEMA 5-20R
Battery TypeSealed Lead Acid
Battery Recharge Time3 hour(s)
Battery ReplaceableAPCRBC143
AlarmsAlarm when on battery : distinctive low battery alarm : configurable delays
Interface PortSmart-Slot
Management SoftwareYES
ApprovalsBSMI, CSA, EN 50091-2, EN 55022 Class A, ENERGY STAR (USA), FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
Rackmountable4U
Surge Energy Rating540 Joules
FeaturesAPC Smart-UPS,2700 Watts / 2880 VA,Input 120V / Output 120V, Interface Port SmartSlot, Extended runtime model, Rack Height 4 U
Dimensions7.00" x 19.00" x 17.00"
Weight85.00 lbs.
Package ContentsAPC Smart-UPS X 3000 VA Rack/Tower LCD 100 - 127V with Network Card, CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable, Web/SNMP Management Card
Shipping weight47.83 kg
Package size638 × 584 × 328 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What rack size and mounting style does the 4U SMX3000LVNC require?

The unit is a 4U rack-mountable chassis; it fits standard racks and includes brackets for tower or 4U rack installation.

Which input plug must be present on the circuit for the NEMA L5-30P connection?

The UPS ships with a NEMA L5-30P plug; the branch circuit must provide a matching 30 A locking receptacle.

Which replacement battery cartridge does the SMX3000LVNC use when the sealed lead-acid cells wear out?

The specified replacement is the APCRBC143 cartridge; the UPS supports hot-swappable battery changes without powering down the load.
