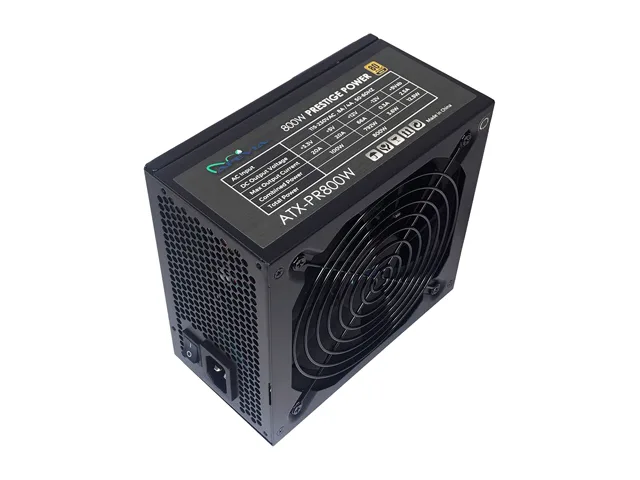

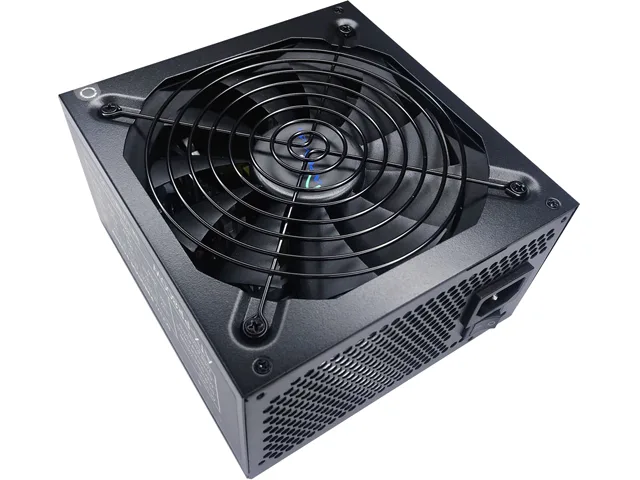

Black metal ATX power supply with 135mm black fan and fixed cables

APEVIA CORP.

APEVIA CORP. ATX-PR800W 800W 80 PLUS GOLD power supply

SKU CH-6R9N-M65VX MPN ATX-PR800W

Delivers 800 W through a single 12 V rail with 80 PLUS Gold efficiency and a 135 mm auto-controlled fan

  • TypeATX12V
  • Maximum Power800 W
  • Fans1 x 135mm black fan
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle
  • 80 PLUS Gold certification delivers up to 99% active PFC efficiency
  • Single +12V rail provides 66A for high-demand components
  • 135 mm auto-thermal fan maintains low noise under load
  • DC-to-DC converter design keeps voltage within 5% tolerance
  • 20+4 pin, 4+8 pin, two 6+2 pin PCI-E and seven SATA connectors included

Prestige 800 W ATX12V supply

This APEVIA Prestige unit delivers 800 W of continuous power through a single +12 V rail rated at 66 A. It carries 80 PLUS Gold certification and active PFC with a typical 99 % power factor. A 135 mm black fan provides automatic thermal control.

Non-modular design for fixed-cable builds

The non-modular cable set suits builders who prefer a permanent harness and have room to route unused leads. Systems needing fully modular cabling or a lower-wattage Gold unit should consider other models.

Check case depth and main-board power needs

Verify that the chassis can accommodate a standard ATX12V supply with a 135 mm fan. Ensure the motherboard accepts a 20+4 pin main connector and a 4/8 pin EPS connector for CPU power.

Highlights

  • 80 PLUS Gold certification delivers up to 99% active PFC efficiency
  • Single +12V rail provides 66A for high-demand components
  • 135 mm auto-thermal fan maintains low noise under load
  • DC-to-DC converter design keeps voltage within 5% tolerance
  • 20+4 pin, 4+8 pin, two 6+2 pin PCI-E and seven SATA connectors included

Specifications

BrandAPEVIA
SeriesPrestige Series
ModelATX-PR800W
TypeATX12V
Maximum Power800 W
Fans1 x 135mm black fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector7
ModularNon-Modular
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Input Voltage115 - 230V
Input Frequency Range50 - 60Hz
Input Current8A for 115VAC, 4A for 230VAC
Output+3.3V@20A, +5V@20A, +12V@66A, [email protected] , [email protected]
Connectors1 x 20/24pin Main Power
1 x 4/8 pin + 12V and EPS
7 x SATA
4 x Peripheral
2 x 6+2pin PCI Express
Features800W Power with 13.5cm black fan
80+ Gold & ROHS certified
High stability with 5% tolerance of 5V, 3.3V & 12V output
High quality components and housing
Universal AC input by active PFC (99%PF Typical)
Dimensions3.39" x 5.91" x 6.30"
Weight5.00 lbs.

Questions about this item

Will the 800W capacity and single +12V rail at 66A support a modern high-end graphics card?

The single +12V rail delivers up to 66A and the unit provides two 6+2-pin PCIe connectors, so it can power most current GPUs that require one or two 8-pin plugs.

Is the power supply fully modular or will unused cables stay inside the case?

This model is non-modular; all cables are permanently attached, so you will need to route or bundle any connectors you do not use.

Does the unit work automatically on both 115V and 230V mains without a voltage switch?

Yes, active PFC with universal AC input lets it operate from 115V to 230V at 50–60Hz without any manual selector.
