APEVIA CORP.
APEVIA CORP. ATX-VN500W 500 W power supply
A 500 W ATX supply with a 120 mm fan, single 12 V rail at 36 A, dual SATA connectors and 115/230 V input
- TypeIntel ATX 12V
- Maximum Power500 W
- FansForced air ventilation by 1 x 120mm black fan
- Main Connector20+4Pin
- +12V RailsSingle
- SATA Power Connector2
- Delivers 500 W maximum power for demanding builds
- Single +12 V rail supplies 36 A to multi-core CPUs
- 120 mm fan with thermal control keeps temperatures low
- Voltage selector handles 115 V and 230 V worldwide
- Sandblasted metal housing resists wear for long service life
500 W ATX power supply
The APEVIA ATX-VN500W is a 500 W Intel ATX 12V unit built for mainstream desktop systems. It ships with a 120 mm black fan in a sandblasted metal case and includes a 20+4 pin main connector plus a 4-pin CPU connector. Two SATA power connectors and four peripheral connectors handle drives and accessories. The 140 mm depth fits most standard chassis.
Home and office builds with a single graphics card
This unit suits everyday workstations and entry-level gaming rigs that draw moderate power from a single +12 V rail rated at 36 A. Builders who need more SATA power connectors for multiple drives or who require modular cabling for a compact case should look elsewhere.
Single +12 V rail at 36 A
The +12 V rail delivers up to 36 A, which sets the practical limit for CPU and graphics card combined draw. Check your components' peak current against this figure before purchasing.
Highlights
- Delivers 500 W maximum power for demanding builds
- Single +12 V rail supplies 36 A to multi-core CPUs
- 120 mm fan with thermal control keeps temperatures low
- Voltage selector handles 115 V and 230 V worldwide
- Sandblasted metal housing resists wear for long service life
Specifications
| Brand | APEVIA |
|---|---|
| Model | ATX-VN500W |
| Type | Intel ATX 12V |
| Maximum Power | 500 W |
| Fans | Forced air ventilation by 1 x 120mm black fan |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| SATA Power Connector | 2 |
| Max PSU Length | 140 mm |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 8A - 4A |

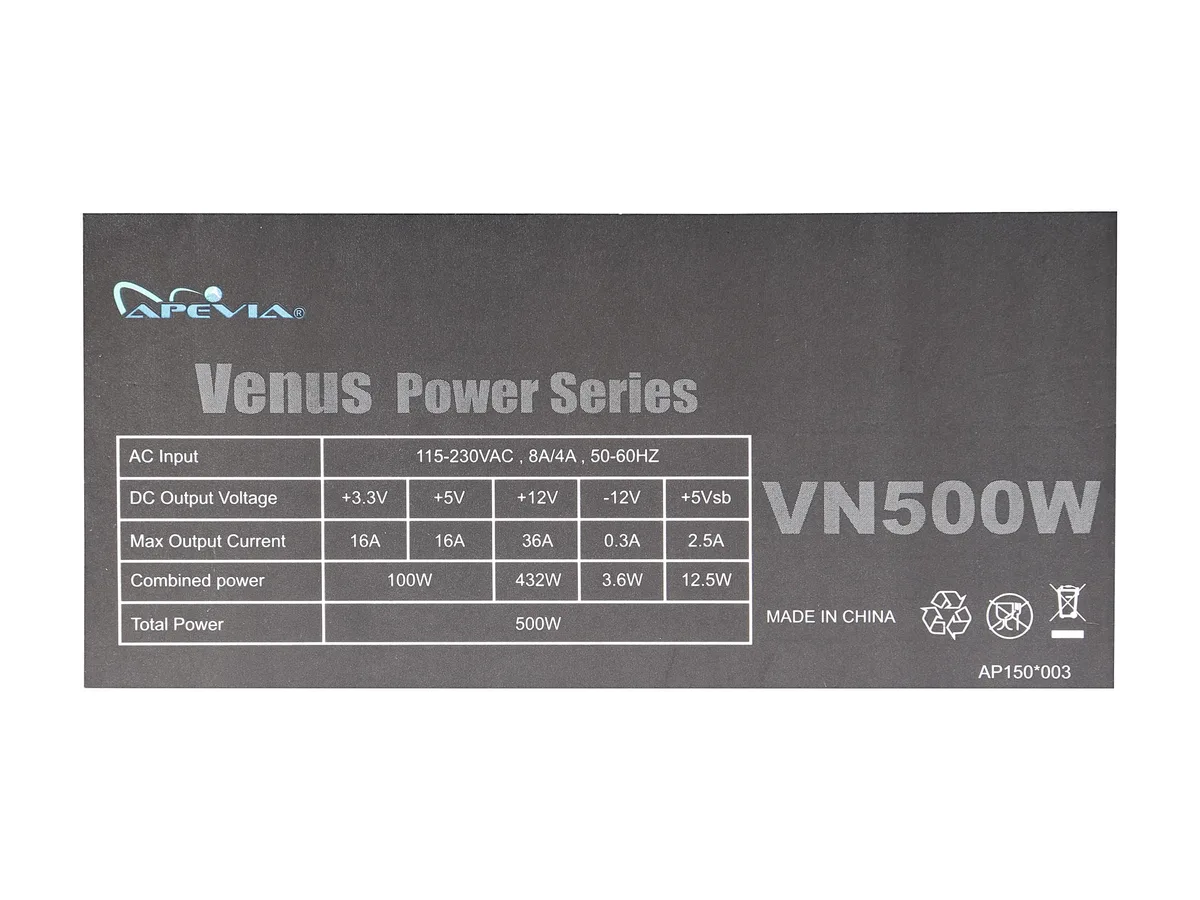

| Output | +3.3V@16A, +5V@16A, +12V@36A, [email protected] , [email protected] |

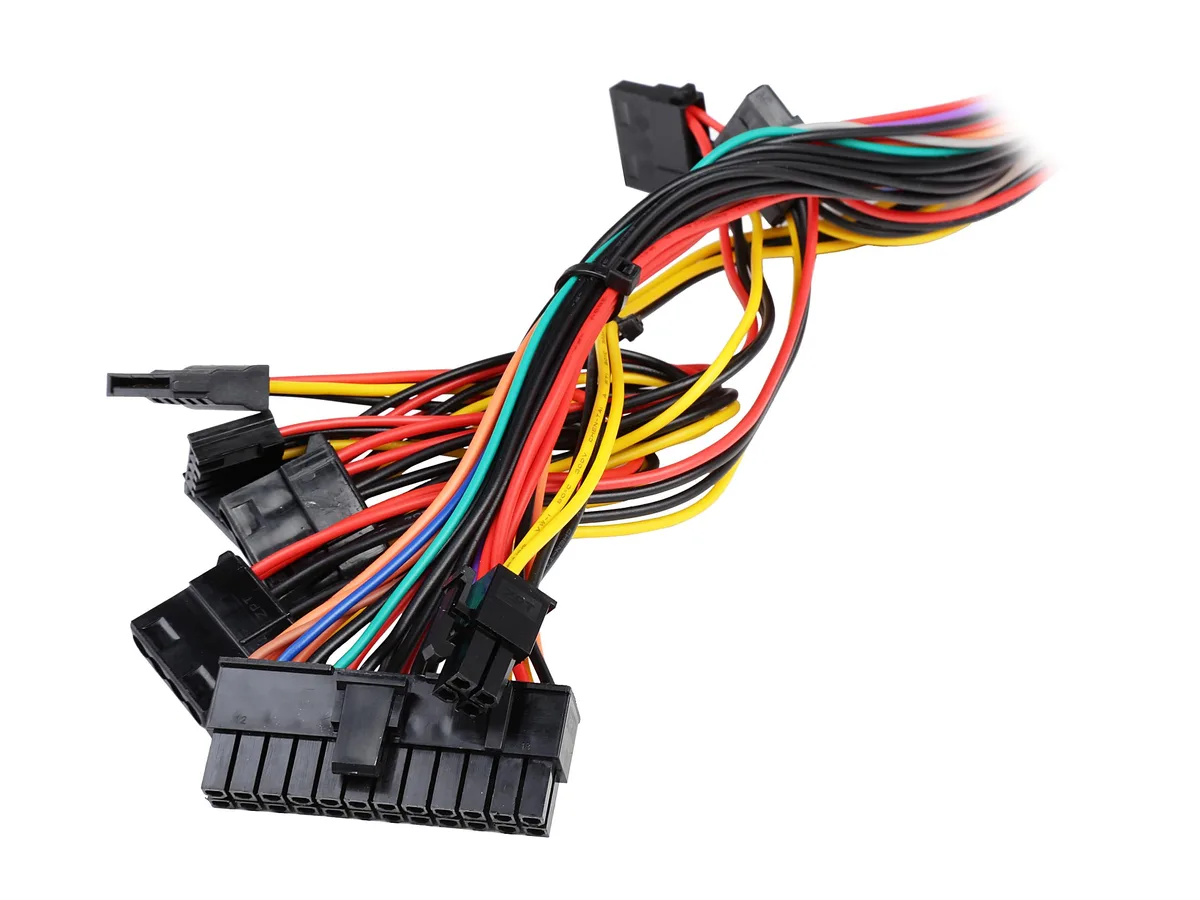

| Connectors | 1 x 20/24pin Main Power 1 x 4pin P4 2 x SATA 4 x Peripheral 1 x Floppy |
| Features | Black sandblasting coated case Metal Material Additional power rocker switch 115/230 Volt selector switch 500W Power with 12cm black fan High stability with 5% tolerance of 5V, 3.3V & 12V output High quality components and housing Low noise auto-thermally control 120mm fan Power cord Retail box 20 + 4 pin main connector can be used for 20 pin or 24 pin 1 x ATX12V 4pin connector 2 x SATA connector 4 x 4 pin peripheral connector 1 x floppy connector |
| Dimensions | 3.40" x 5.90" x 5.50" |
| Weight | 3.00 lbs. |
| Shipping weight | 1.18 kg |
| Package size | 246 × 185 × 99 mm |
Questions about this item
How much clearance do I need for the 140 mm depth of this PSU?
The unit measures 140 mm deep, 5.90 inches wide and 3.40 inches high, so allow at least that length plus cable bend radius behind the motherboard tray.

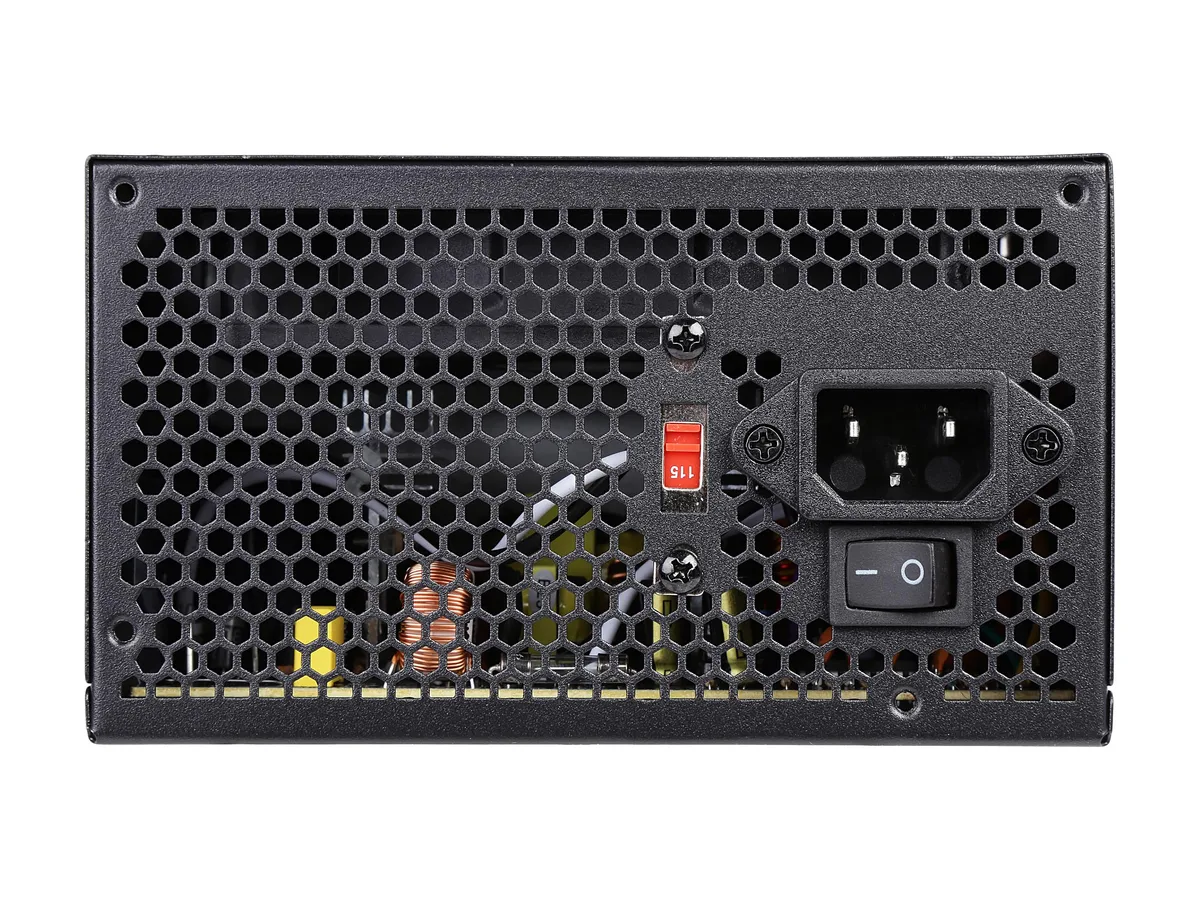

Which screws secure the unit and how do I set the 115/230 V switch before powering on?
Four standard ATX case screws hold the sandblasted metal chassis; flip the red voltage selector to match your mains supply before connecting the 20+4 pin main and 4 pin P4 cables.
When should I clean or replace the 120 mm fan to keep airflow steady?
Vacuum the beehive vent holes and fan blades every 6–12 months; if bearing noise appears or RPM drops, swap the 120 mm black fan for an identical 12 V unit.
