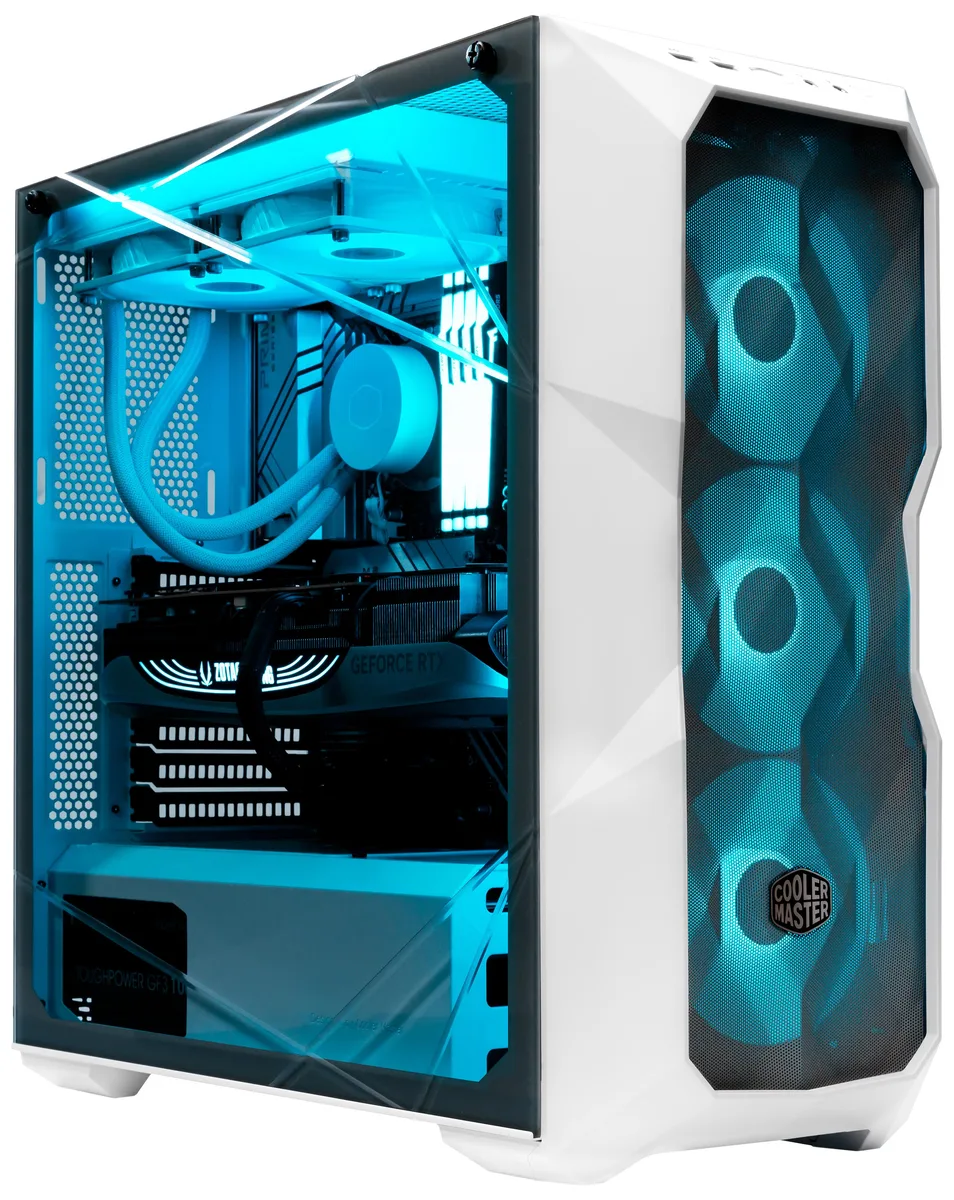

Cooler Master TD500 Mesh chassis in white with front mesh panel

ArsenalPC

ArsenalPC TD500 Mesh Liquid Cooled Intel Core Ultra 9 285K RTX 5060 128GB DDR5 4TB NVMe 2TB HDD gaming PC

SKU CH-TP8R-3CR8J

Liquid-cooled desktop with a 24-core Intel Core Ultra 9 285K at 5.7GHz, RTX 5060 8GB GDDR7, 128GB DDR5, 4TB NVMe SSD and 2TB HDD

  • CPU TypeIntel Core Ultra 9 Series 2
  • CPU NameIntel Core Ultra 9 285K
  • Installed Qty1
  • Max Supported Qty1
  • CPU Base Frequency5.7GHz
  • CPU Socket TypeLGA 1851

CPU Intel Core Ultra 9 285K

Video Card GeForce RTX 5060

  • GeForce RTX 5060 Ti
  • GeForce RTX 5070
  • GeForce RTX 5070 Ti
  • GeForce RTX 5080
  • GeForce RTX 5090
  • GeForce RTX 5060

Struck-through versions exist but are not stocked here.

Memory|Storage 128GB DDR5|4TB SSD + 2TB HDD

  • 24-core Intel Core Ultra 9 285K at 5.7GHz drives high-frame-rate gaming
  • 240mm liquid cooler keeps the CPU stable under sustained loads
  • 128GB DDR5 memory handles multitasking and large assets without swapping
  • 4TB NVMe SSD plus 2TB HDD gives fast boot and deep storage
  • GeForce RTX 5060 with 8GB GDDR7 powers 1440p play and VR readiness

Built for 4K Gaming and Heavy Multitasking

The ArsenalPC TD500 Mesh combines an Intel Core Ultra 9 285K 24-core processor running at 5.7GHz with an NVIDIA GeForce RTX 5060 graphics card carrying 8GB GDDR7 memory. 128GB DDR5 RAM and a 4TB NVMe SSD plus 2TB HDD provide capacity for large game libraries and creative workloads. A 240mm liquid cooler and 750W power supply support sustained performance in a mesh-front chassis. Windows 11 Home is pre-installed.

Verify Case Fit and Power Connections

Confirm your space accommodates a full-size desktop tower with a 240mm radiator mounted inside the Cooler Master TD500 Mesh chassis. The 750W unit powers the 285K CPU and RTX 5060 GPU; ensure your mains outlet and any UPS can deliver the required current. The motherboard uses an LGA 1851 socket, so future processor upgrades must match that platform. Four DDR5 slots are populated, leaving no free memory slots for expansion without replacing modules.

Ready-to-Game Platform with Room for Storage Growth

The system arrives assembled, liquid-cooled, and tested so you can play immediately after unboxing. Wi-Fi and RGB lighting are integrated into the build. The 4TB NVMe drive handles OS and active titles while the 2TB SATA HDD stores bulk media; additional SATA ports remain available if you need more mechanical storage later. The PCI Express x16 slot is occupied by the RTX 5060, so adding a second graphics card would require a different motherboard and chassis.

Highlights

  • 24-core Intel Core Ultra 9 285K at 5.7GHz drives high-frame-rate gaming
  • 240mm liquid cooler keeps the CPU stable under sustained loads
  • 128GB DDR5 memory handles multitasking and large assets without swapping
  • 4TB NVMe SSD plus 2TB HDD gives fast boot and deep storage
  • GeForce RTX 5060 with 8GB GDDR7 powers 1440p play and VR readiness

Specifications

CPU TypeIntel Core Ultra 9 Series 2
CPU NameIntel Core Ultra 9 285K
Installed Qty1
Max Supported Qty1
CPU Base Frequency5.7GHz
CPU Socket TypeLGA 1851
CPU Main Features64 bit 24-Core Processor
GPU/VGA TypeNVIDIA GeForce RTX 5060
GPU Memory8GB GDDR7
Graphics CardGeForce RTX 5060
Graphics InterfacePCI Express x16
Virtual Reality ReadyYes
Memory Capacity128GB DDR5
Memory SpeedDDR5
Form FactorDesktop
Memory Slot (Total)4
Memory Slots (Available/Total)4
SSD4TB NVMe
HDD2TB
HDD InterfaceSATA III
HDD RPM7200rpm
Storage Spec4TB SSD + 2TB HDD
Operating SystemWindows 11 Home
Power Supply750W
GraphicsRTX 5060
TypeGaming & Entertainment
AI FeaturesAI Ready
UsageConsumer
ColorWhite
ProcessorCore Ultra 9 285K
Processor Main Features64 bit 24-Core Processor
Memory128 GB
AudioSound card - Integrated
Ethernet2.5G Ethernet
Wireless CardYes
CaseArsenalPC CoolerMaster TD500 Mesh
Cooling SystemLiquid Cooling
Windows 11Ready
Special FeaturesRGB Lighting
WiFi GenerationWi-Fi 7
WLANWi-Fi 7
BluetoothBluetooth v5.4
BrandArsenalPC
ChipsetIntel LGA 1851
Motherboard NameASUS LGA 1851 Motherboard WIFI DDR5
Screen SizeNo Screen
Front USB2
Video Ports1 x HDMI 2.1b, 3 x DisplayPort 2.1b
Rear USB7
RJ451 port
Package TypeRetail

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What components come pre-installed in the ArsenalPC TD500 Mesh and what must I buy separately?

The system ships with an Intel Core Ultra 9 285K, 128GB DDR5, a GeForce RTX 5060 with 8GB GDDR7, a 4TB NVMe SSD, a 2TB SATA HDD, a 240mm liquid cooler, a 750W power supply and Windows 11 Home. No extra parts are needed to start gaming.

Should I choose a different capacity or version of this model?

This listing is a single fixed configuration: 128GB DDR5 across four slots, 4TB NVMe plus 2TB HDD storage and the RTX 5060 8GB GPU. There are no alternative capacities or versions to select.

What does the 5.7GHz CPU figure mean for actual gaming performance?

The Intel Core Ultra 9 285K runs at a 5.7GHz base frequency across its 24 cores, giving strong single-thread speed for high frame rates and enough multi-thread headroom for streaming or background tasks while you play.
