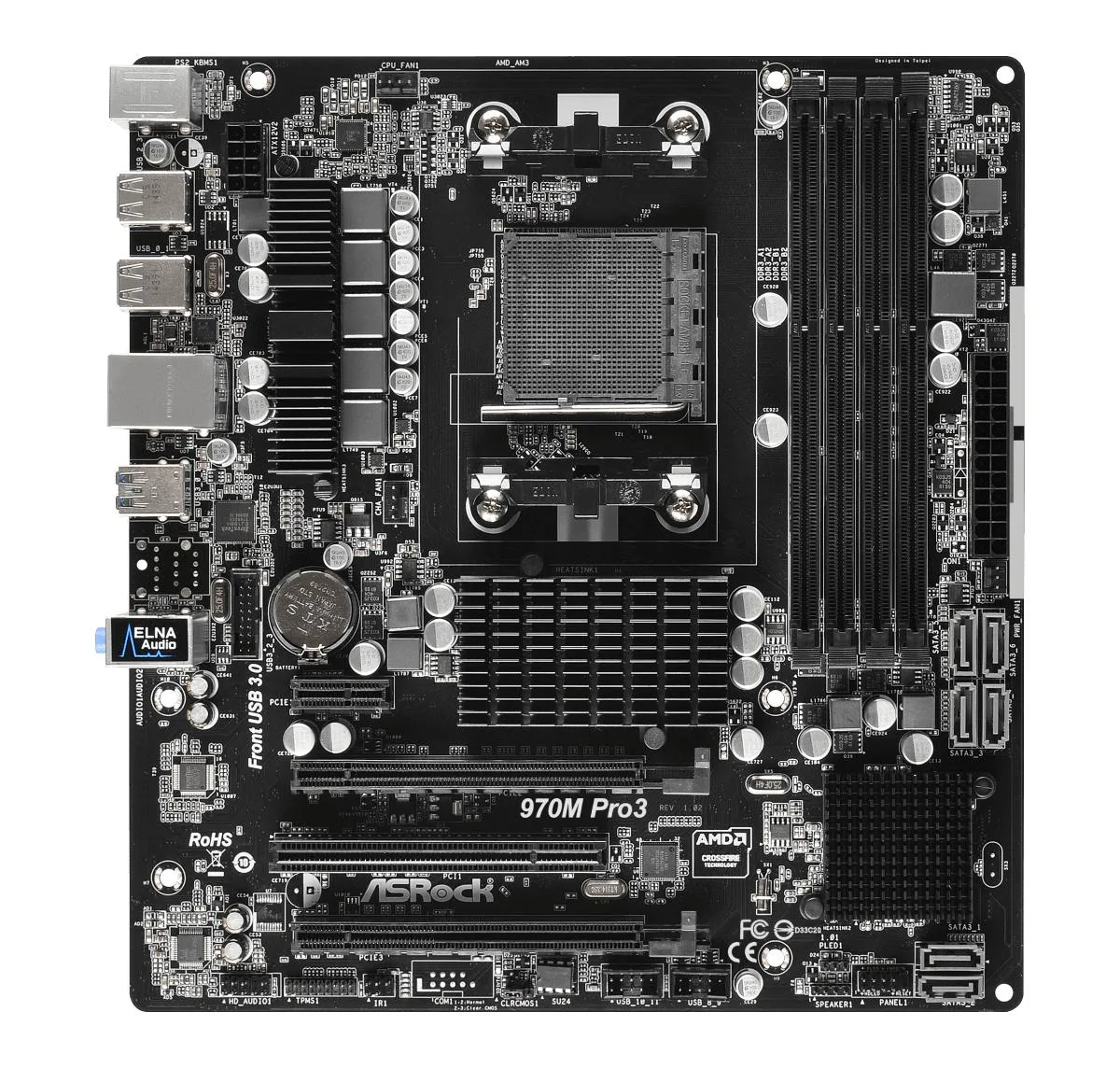

Dark green rectangular circuit board with black slots and silver connectors

ASRock

ASRock 970M Pro3 AMD motherboard AM3+ DDR3 2400+(OC) 2 PCIe 2.0 x16 6 SATA3 4 USB 3.1 Gen1

SKU CH-C6J3-6DKRW

Micro-ATX AM3+ board with dual-channel DDR3 up to 2400 MT/s, two PCIe 2.0 x16 slots, six SATA3 ports and four USB 3.1 Gen1 connections

  • CPU TypeAM3+
  • Supports AM3+ and AM3 CPUs with up to 140W TDP
  • Dual-channel DDR3 memory up to 2400 MHz overclocked with 64GB capacity
  • 1 channel audio via Realtek ALC892 with ELNA capacitors
  • Six SATA3 ports and four USB 3.1 Gen1 connections
  • Two PCIe 2.0 x16 slots plus PCIe 2.0 x1 and PCI expansion

AM3+ motherboard with DDR3 2400+(OC) support

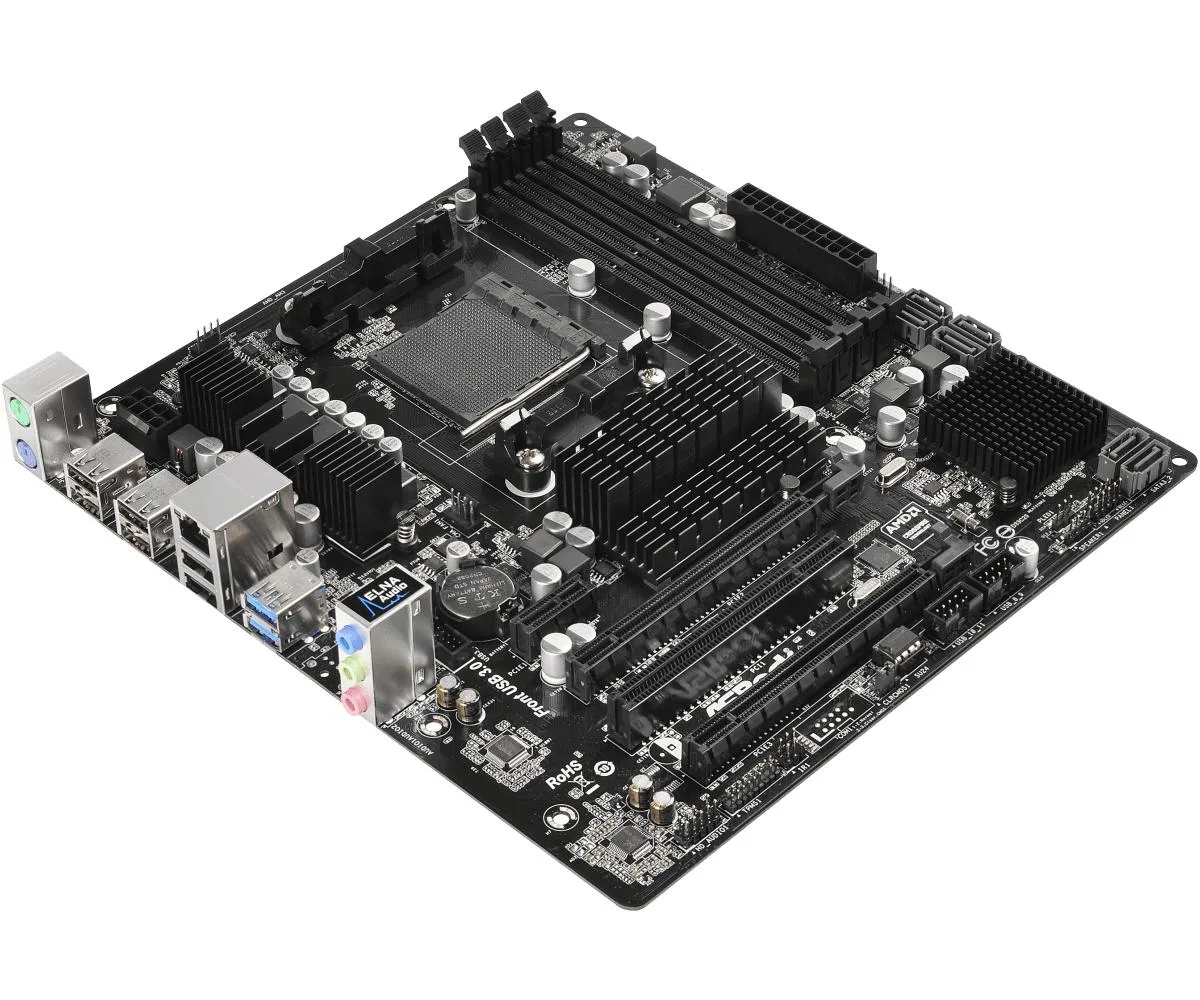

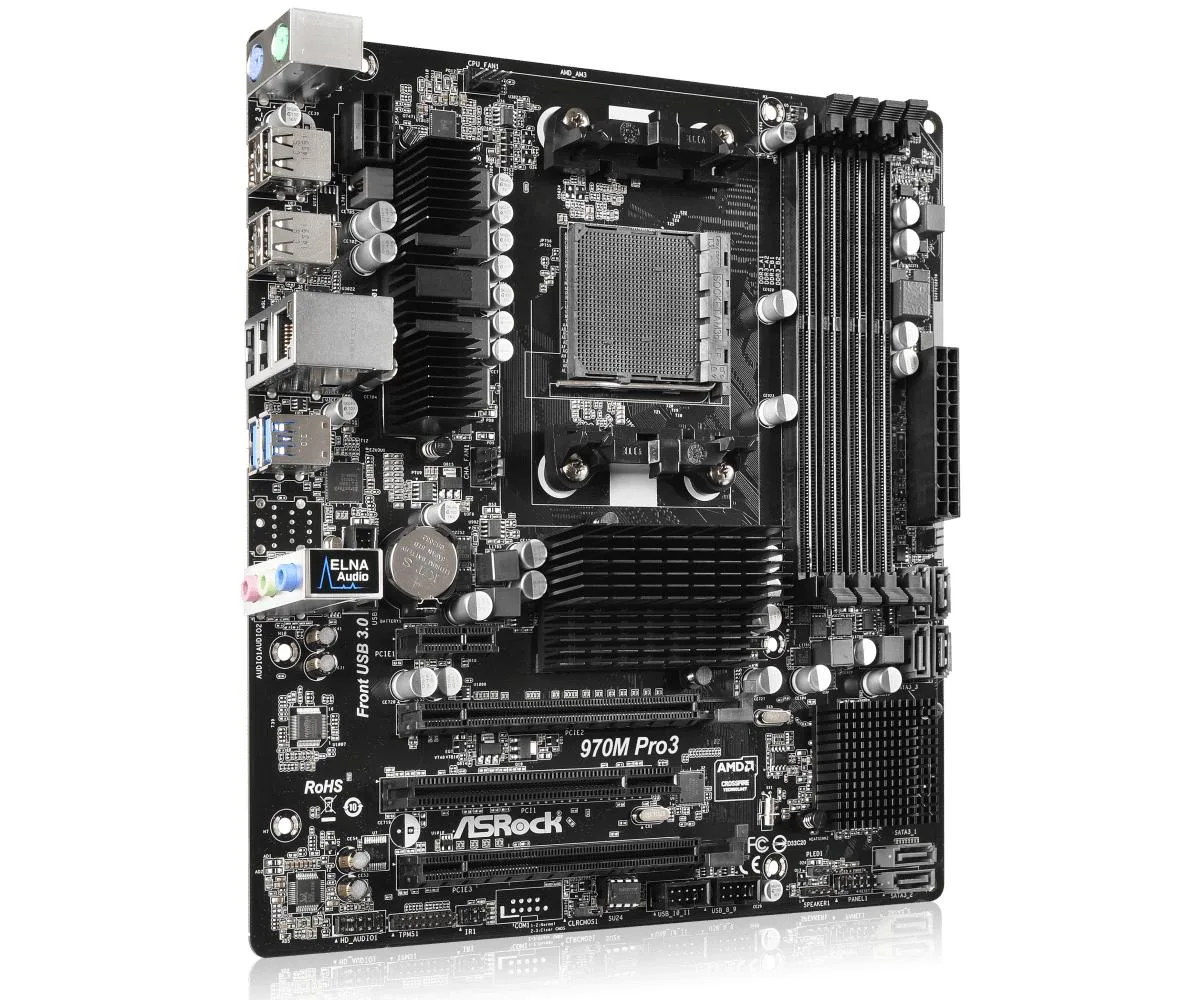

The ASRock 970M Pro3 is a Socket AM3+ motherboard built around the AMD 970 and SB950 chipsets. It accepts AM3+ and AM3 processors up to 140W and provides four DDR3 slots for dual-channel memory up to 64GB. The board includes 7.1 channel audio with Realtek ALC892 and ELNA capacitors.

Suits builders using AM3+

This board fits systems that rely on Socket AM3+ or compatible AM3 processors and dual-channel DDR3 modules. It is not suited for users who need newer CPU sockets, different memory types or more than four memory slots. Builds requiring additional PCIe lanes or integrated wireless connectivity should look elsewhere.

Four DDR3 slots supporting up to 64GB at 2400+(OC)

The memory subsystem provides four unbuffered DDR3 slots with dual-channel architecture. Supported speeds include 2400+(OC), 2100(OC), 1866(OC), 1800(OC), 1600(OC), 1333 and 1066. XMP 1.3/1.2 and AMP profiles are supported for compatible modules.

Highlights

  • Supports AM3+ and AM3 CPUs with up to 140W TDP
  • Dual-channel DDR3 memory up to 2400 MHz overclocked with 64GB capacity
  • 1 channel audio via Realtek ALC892 with ELNA capacitors
  • Six SATA3 ports and four USB 3.1 Gen1 connections
  • Two PCIe 2.0 x16 slots plus PCIe 2.0 x1 and PCI expansion

Specifications

CPU TypeAM3+

Questions about this item

Do I need DDR3 memory modules for the 970M Pro3 to operate?

Yes, the board has four DDR3 slots and requires un-buffered DDR3 DIMMs; it supports speeds up to 2400+(OC) in dual-channel mode with a maximum capacity of 64GB.

Can I keep using my Socket AM3 Phenom II X4 with this motherboard?

The 970M Pro3 accepts Socket AM3 processors including Phenom II X4 models, except the 920 and 940 variants, and provides a 4+1 phase power design rated for up to 140W CPUs.

How can I confirm the 7.1-channel audio is active after building the system?

In Windows Sound control panel the Realtek ALC892 codec will show a 7.1 speaker configuration option, and the rear panel provides the corresponding analogue jacks for full surround output.
