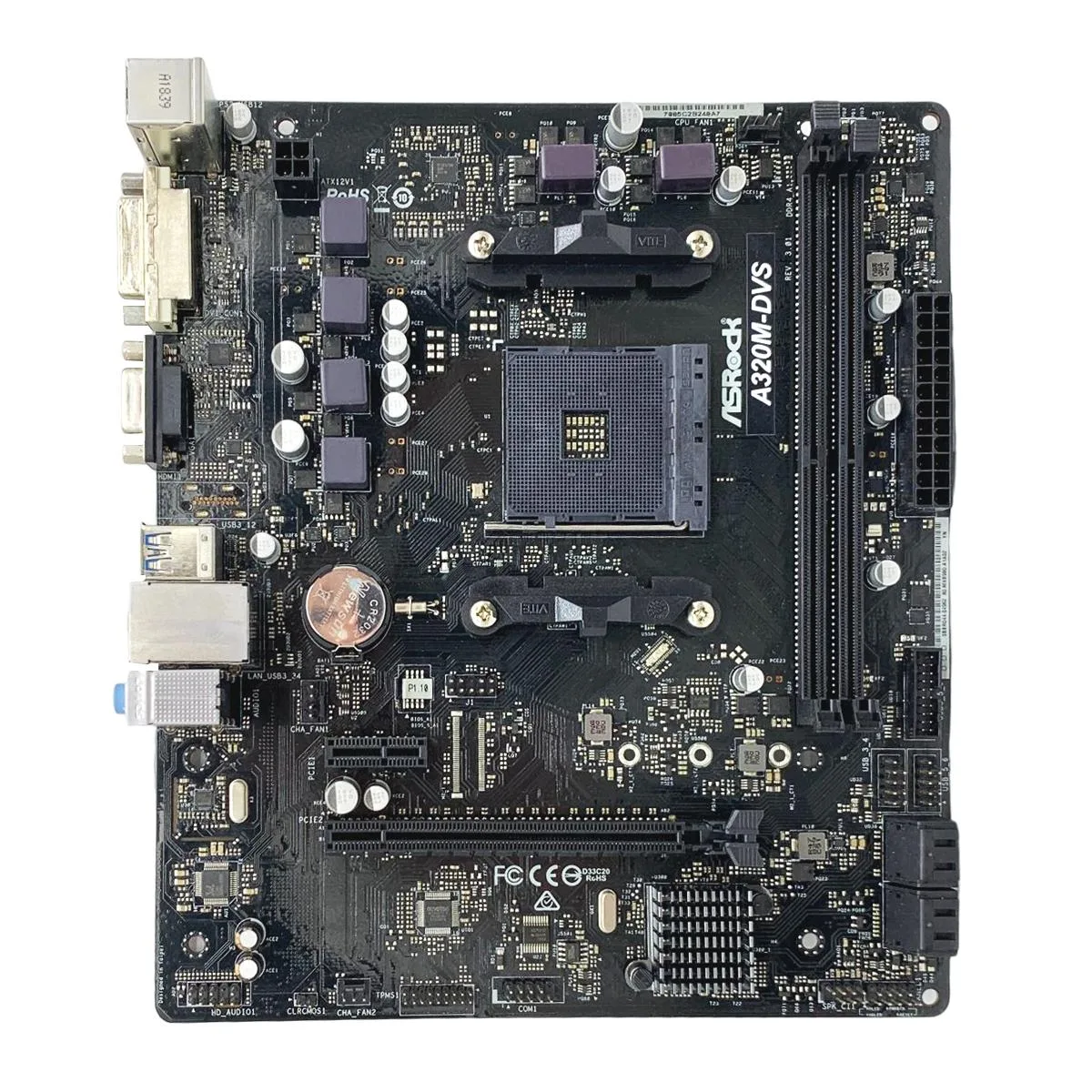

Micro ATX motherboard with AM4 socket and DVI-D output

ASRock

ASRock A320M-DVS R3.0 AMD motherboard

SKU CH-G67Q-60J09

Micro-ATX board for AM4 Ryzen and A-Series CPUs with dual-channel DDR4 up to 32 GB, one PCIe 3.0 x16 slot, four SATA3 ports, six USB 3.1 Gen1 ports, Realtek gigabit LAN and 7.1-channel audio

  • CPU Socket TypeAM4
  • CPU TypeA-Series
  • AM4 socket fits Ryzen and A-Series CPUs up to 105W
  • Two DDR4 slots reach 32GB at 3200MHz with OC headroom
  • PCIe 3.0 x16 plus PCIe 2.0 x1 give GPU and add-in card room
  • DVI-D and D-Sub outputs drive legacy and modern displays
  • 1 Realtek ALC887 audio with ELNA caps delivers clear sound

AM4 Socket DDR4 Motherboard

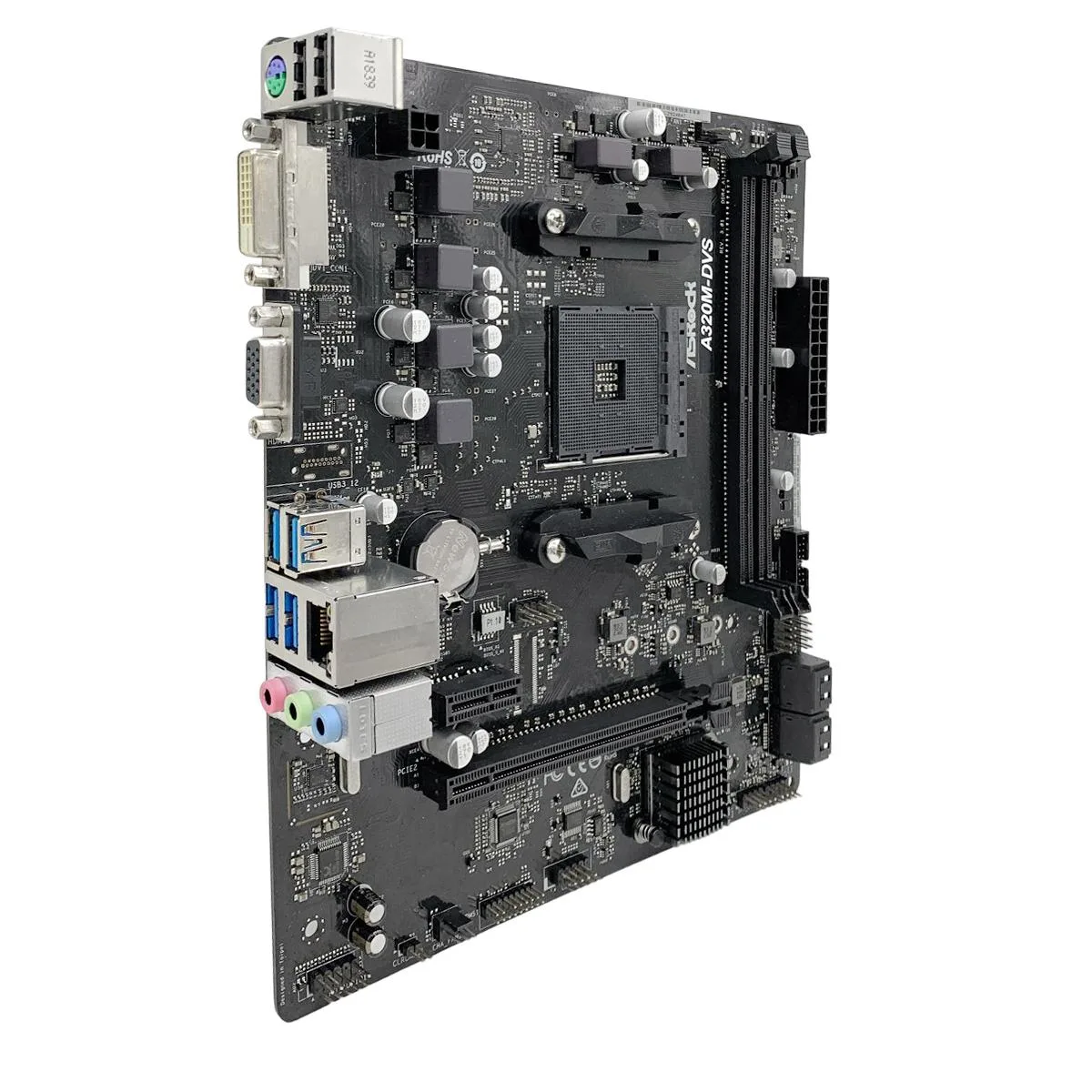

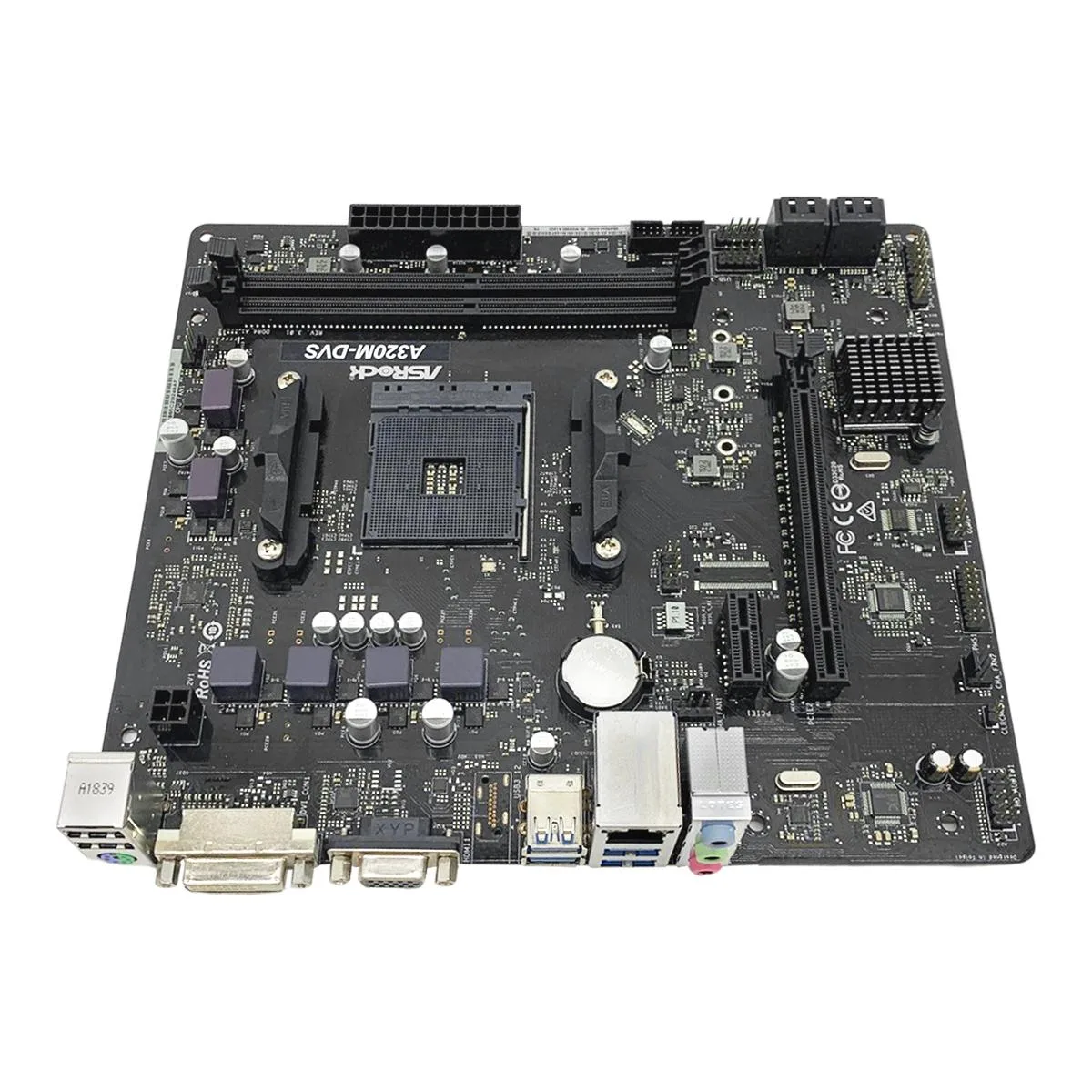

The ASRock A320M-DVS R3.0 is a Micro-ATX board built around the AMD Promontory A320 chipset for Socket AM4 processors. It accepts Ryzen series CPUs and A-Series APUs with a power draw up to 105W. Two DDR4 DIMM slots support dual-channel memory up to 32GB total capacity. Integrated graphics output is provided via DVI-D and D-Sub ports.

Sustained Load Power Phase Design

A 6 Power Phase design delivers stable current to the CPU socket during extended workloads. The 128Mb AMI UEFI BIOS includes ACPI 5.1 compliance for reliable wake events and power management. Realtek Gigabit LAN and 7.1 CH HD Audio with ELNA Audio Caps maintain consistent connectivity and sound quality without thermal throttling concerns.

32GB Maximum Memory Capacity

System memory tops out at 32GB across the two DDR4 slots, which decides if this board fits a given build. Four SATA3 ports and six USB 3.1 Gen1 headers handle storage and peripherals. Expansion consists of one PCIe 3.0 x16 slot and one PCIe 2.0 x1 slot for add-in cards.

Highlights

  • AM4 socket fits Ryzen and A-Series CPUs up to 105W
  • Two DDR4 slots reach 32GB at 3200MHz with OC headroom
  • PCIe 3.0 x16 plus PCIe 2.0 x1 give GPU and add-in card room
  • DVI-D and D-Sub outputs drive legacy and modern displays
  • 1 Realtek ALC887 audio with ELNA caps delivers clear sound

Specifications

CPU Socket TypeAM4
CPU TypeA-Series

Questions about this item

How much power does the 6-phase VRM handle for a CPU running all day?

The 6 Power Phase design supports CPUs up to 105W for sustained operation.

Which graphics output does the board provide if I keep an older monitor?

It includes DVI-D and D-Sub ports for legacy display connections.

Will my existing DDR4 2400 modules work without overclocking?

Yes, the board natively supports DDR4 2400 speeds with compatible Ryzen CPUs.
