ASRock A320M-HDV R3.0 AMD motherboard
AM4 micro-ATX board with six power phases, 105 W CPU support, dual-channel DDR4 up to 32 GB, an Ultra M.2 socket, four SATA 6.0 Gb/s ports and Realtek 1 Gbps LAN
- CPU Socket TypeAM4
- CPU TypeSupports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ry
- ChipsetAMD Promontory A320
- Number of Memory Slots2x288pin (DDR4)
- Memory StandardAMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC
- Maximum Memory Supported32GB* * Due to the operating system limitation, the actual m
- Supports Ryzen Summit Ridge, Raven Ridge and Pinnacle Ridge CPUs on AM4 socket
- 6 power phase design handles processors up to 105W for stable operation
- Dual-channel DDR4 memory support up to 32GB at 3200MHz overclocked speeds
- Ultra M.2 socket accepts 2242, 2260 and 2280 modules with PCIe Gen3 x4 bandwidth
- Realtek ALC887 delivers 7.1 channel audio with Gigabit LAN for connectivity
AM4 Socket for Ryzen and A-Series APUs

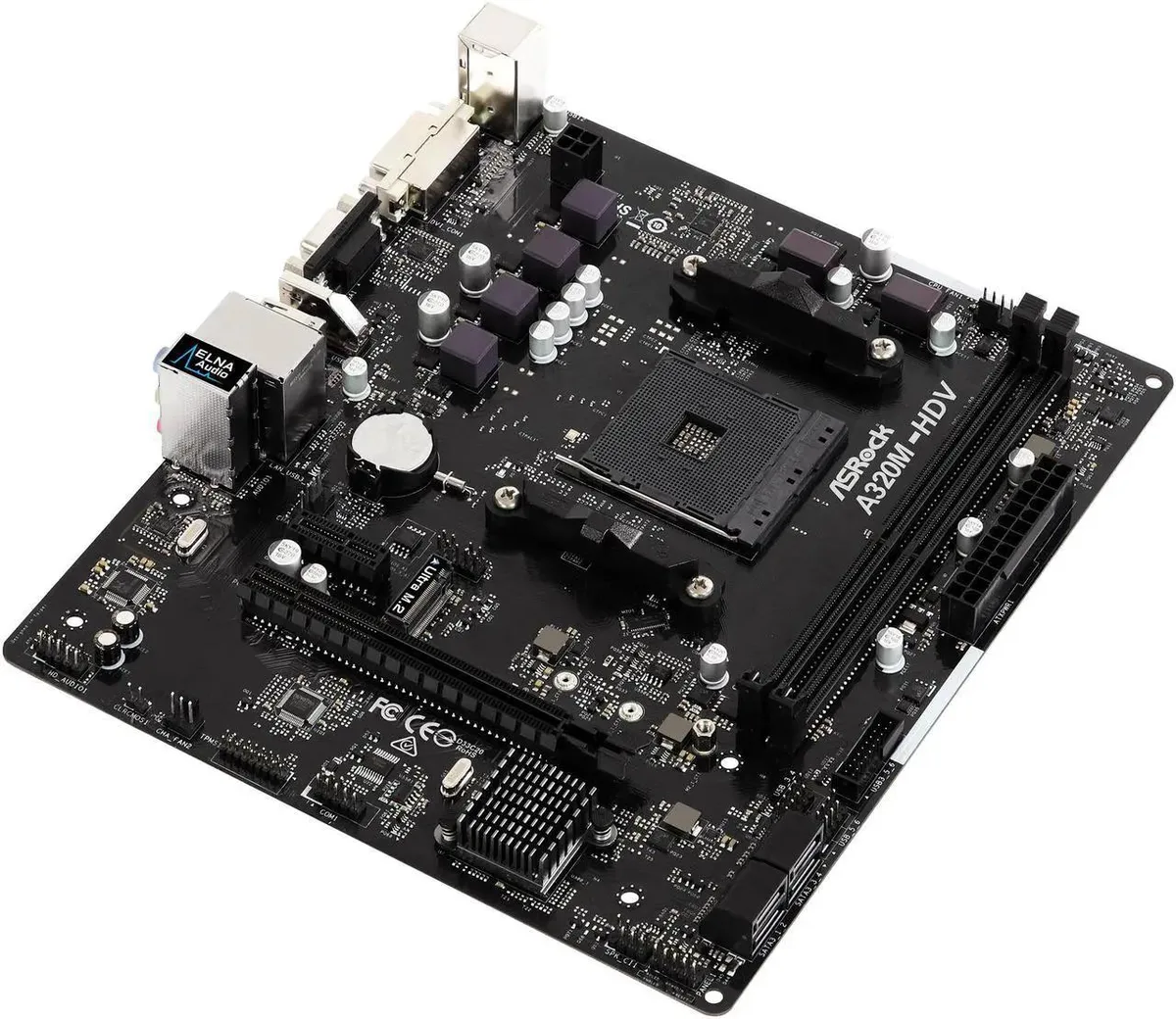

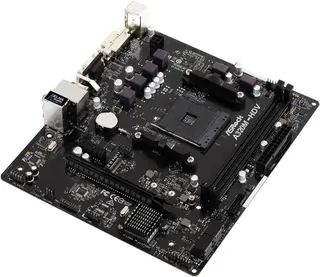

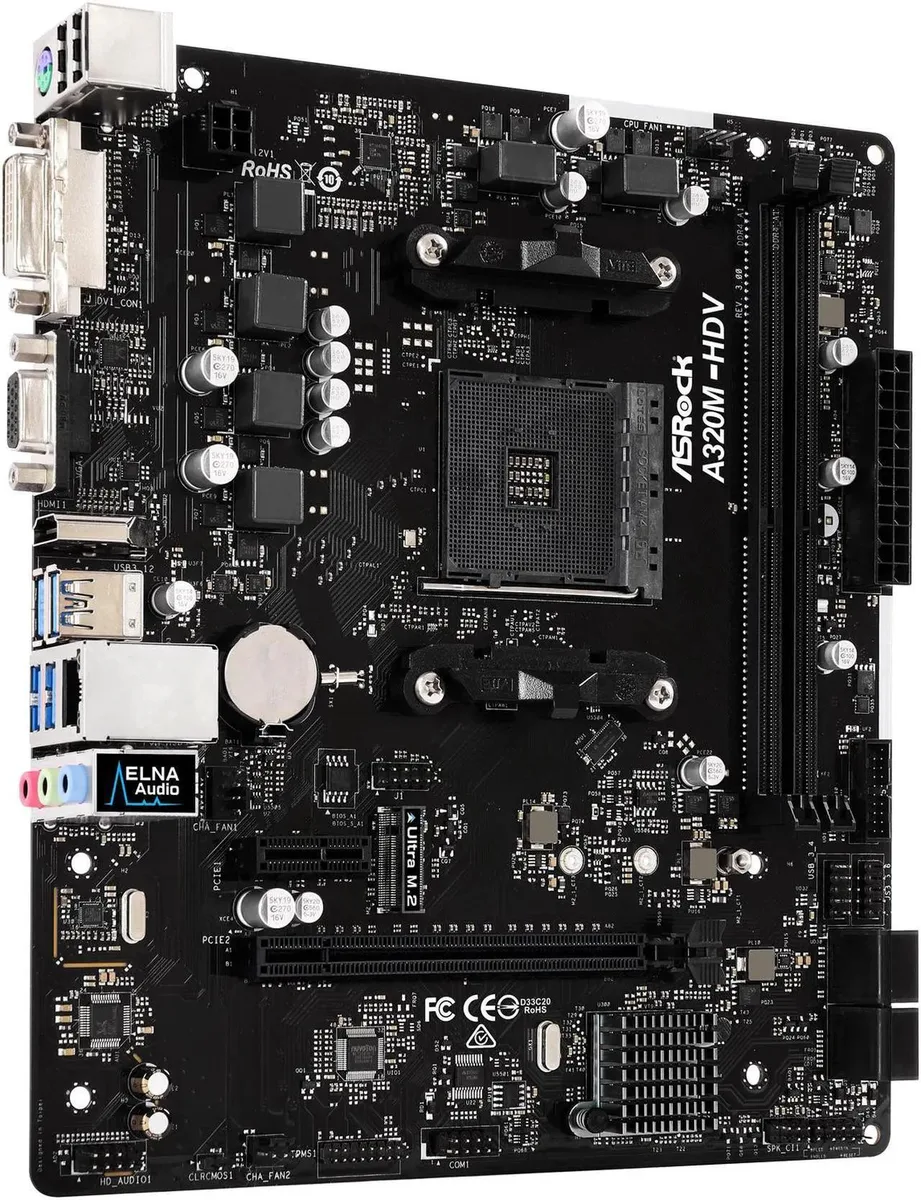

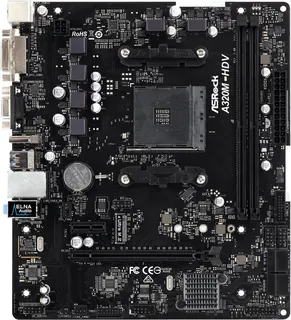

The ASRock A320M-HDV R3.0 is a Micro ATX motherboard built around the AMD Promontory A320 chipset. It accepts AMD Socket AM4 processors including Ryzen Summit Ridge, Raven Ridge, Pinnacle Ridge and A-Series Bristol Ridge APUs. A 6 Power Phase design delivers stable power for CPUs up to 105W. The board targets budget builds and office upgrades that need reliable AM4 compatibility.
32GB DDR4 Dual Channel Capacity
Two 288pin DDR4 slots support up to 32GB of memory in dual channel mode. Ryzen Pinnacle Ridge and Summit Ridge CPUs run DDR4 at 3200+(OC), 2933(OC), 2667, 2400 and 2133 speeds with ECC and non-ECC un-buffered modules. Raven Ridge supports the same frequencies without ECC unless a PRO CPU is used. A-Series APUs are limited to 2400 and 2133 non-ECC. The 32GB ceiling suits mainstream workloads; heavier multitasking or content creation will hit this limit.
PCIe 3.0 x16, Ultra M.2 and Four SATA3 Ports
The primary PCI Express 3.0 x16 slot runs at x16 with Summit Ridge and Pinnacle Ridge CPUs and at x8 with Raven Ridge APUs. A second PCI Express 2.0 x1 slot adds basic expansion. One Ultra M.2 socket accepts 2242, 2260 or 2280 M Key modules, delivering PCIe Gen3 x4 (32Gb/s) with Ryzen CPUs or Gen3 x2 (16Gb/s) with A-Series APUs, plus SATA3 6.0Gb/s support. Four SATA3 6.0Gb/s connectors provide RAID 0, 1 and 10 along with NCQ and Hot Plug. Realtek RTL8111GR LAN tops out at 1Gbps, and Realtek ALC887 audio outputs 7.1 channels.
Highlights
- Supports Ryzen Summit Ridge, Raven Ridge and Pinnacle Ridge CPUs on AM4 socket
- 6 power phase design handles processors up to 105W for stable operation
- Dual-channel DDR4 memory support up to 32GB at 3200MHz overclocked speeds
- Ultra M.2 socket accepts 2242, 2260 and 2280 modules with PCIe Gen3 x4 bandwidth
- Realtek ALC887 delivers 7.1 channel audio with Gigabit LAN for connectivity
Specifications
| Brand | ASRock |
|---|---|
| Model | A320M-HDV R3.0 |
| CPU Socket Type | AM4 |
| CPU Type | Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) 6 Power Phase design Supports CPU up to 105W |
| Chipset | AMD Promontory A320 |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory* AMD 7th Gen A-Series APUs support DDR4 2400/ 2133 non-ECC, un-buffered memory* * For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. |
| Maximum Memory Supported | 32GB* * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD 7th A-Series APUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) (If you use Athlon 2xxGE series APU, PCIE2 slot will run at x4 mode.)* * Supports NVMe SSD as boot disks |
| PCI Express x1 | 1 x PCI Express 2.0 x1 Slot |
| Serial ATA (SATA) | 4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug |
| M.2 | 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16Gb/s) (with A-Series APU, and Athlon 2xxGE series APU)* * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* Integrated AMD Radeon R-Series Graphics in A-series APU* DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB.** Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDM |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN Chipset | Realtek RTL8111GR |
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.1 | 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| USB 1.1/2.0 | 2 x USB 2.0 Ports (Supports ESD Protection) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
| Other Connectors | 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)* 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 9.0" x 7.9" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 4-pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - High Density Glass Fabric PCB - Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128MB AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment Software and UEFI: Software - ASRock APP Charger - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer * These utilities can be downloade |
| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
Questions about this item
Will my existing DDR4-2400 memory work with the 288-pin slots on this A320M-HDV R3.0?
Yes. The board runs DDR4 at 2133, 2400, 2667, 2933 and 3200 with Ryzen CPUs, so 2400 modules are supported.
How can I confirm the Realtek RTL8111GR LAN is running at 1 Gbps after I build the system?
Open the network adapter status in Windows or check the router port LEDs; both will show a 1 Gbps link when the driver is loaded.
Does the box include an M.2 mounting screw for the Ultra M.2 socket that takes 2242, 2260 and 2280 drives?
The board ships with the M.2 standoff and screw, I/O shield, SATA cables, driver disc and manual; no extra parts are needed for an M.2 SATA or PCIe module.
