ASRock
ASRock A520M-HDV AMD motherboard AM4 Micro ATX
Micro ATX AM4 board with A520 chipset, dual DDR4 slots up to 64 GB, one PCIe 3.0 x16 slot, one M.2 socket and four SATA 6.0 Gb/s ports
- CPU Socket TypeAM4
- CPU TypeSupports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors
- ChipsetAMD A520
- Number of Memory Slots2x288pin (DDR4)
- Memory StandardAMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC)/ 4533
- Maximum Memory Supported64GB
Option A520M-HDV
- A520M PRO4
- A520M-HDV
- A520M-HVS
- A520M-ITX/AC
Struck-through versions exist but are not stocked here.
- Supports 3rd Gen Ryzen 3000 and 4000 series CPUs via AM4 socket
- Dual-channel DDR4 up to 64GB with XMP 2.0 profiles
- Ultra M.2 slot handles 2242 2260 2280 drives at Gen3 x4 32Gb/s
- Four SATA3 6.0Gb/s ports with RAID 0 1 10 support
- Realtek ALC887 7.1 audio and RTL8111H 1Gbps LAN
AM4 Micro ATX Platform

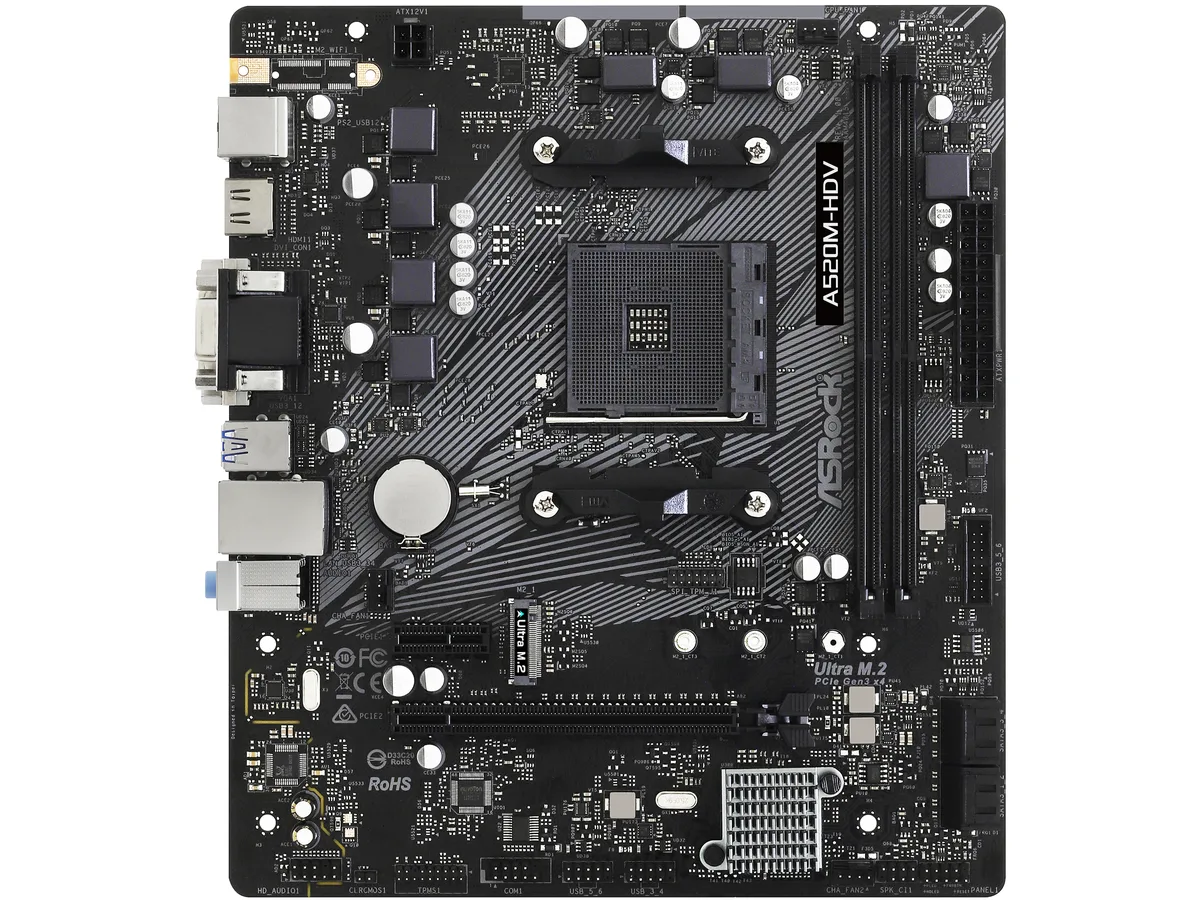

The ASRock A520M-HDV is an AMD A520 motherboard built for the AM4 socket. It targets builders who want a compact foundation for Ryzen 3000 and 4000 series processors. The board excludes Ryzen 5 3400G and Ryzen 3 3200G from its supported CPU list. Dual channel DDR4 memory tops out at 64 GB across two slots.
Upgrade Path From Older AM4 Boards
Moving from an A320 or first generation Ryzen board adds native PCIe 3.0 x4 M.2 bandwidth and broader memory frequency headroom. The jump is worth it when you need NVMe boot speeds or plan to run DDR4 above 3200 MT/s on a Matisse or Renoir CPU.
Build Integration Essentials

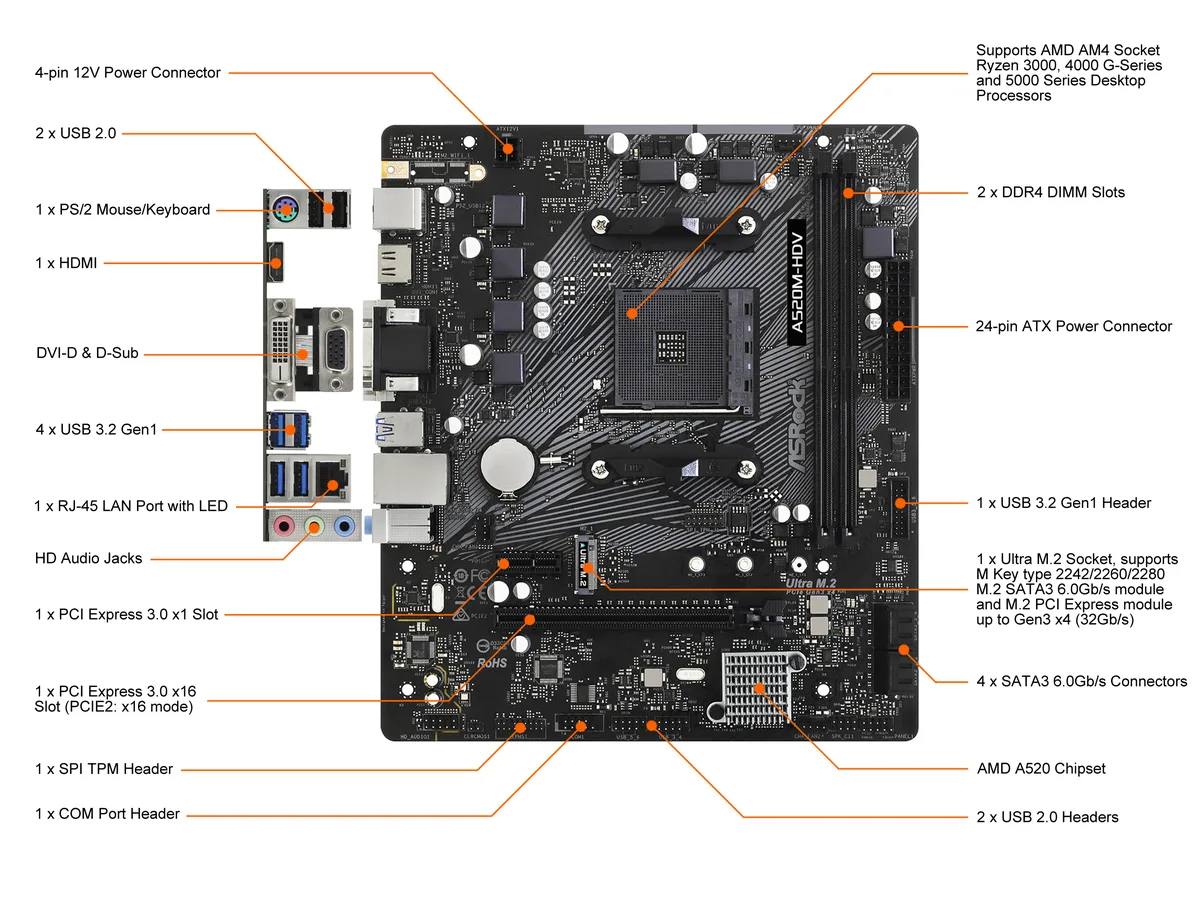

One full length PCIe 3.0 x16 slot handles a discrete GPU while a single x1 slot remains for add in cards. Four SATA 6.0 Gb/s ports and one Ultra M.2 socket with 2242, 2260 and 2280 support cover storage. Realtek ALC887 7.1 channel audio and RTL8111H 1 Gbps LAN handle I/O without extra cards.
Highlights
- Supports 3rd Gen Ryzen 3000 and 4000 series CPUs via AM4 socket
- Dual-channel DDR4 up to 64GB with XMP 2.0 profiles
- Ultra M.2 slot handles 2242 2260 2280 drives at Gen3 x4 32Gb/s
- Four SATA3 6.0Gb/s ports with RAID 0 1 10 support
- Realtek ALC887 7.1 audio and RTL8111H 1Gbps LAN
Specifications
| Brand | ASRock |
|---|---|
| Model | A520M-HDV |
| CPU Socket Type | AM4 |
| CPU Type | Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)* * Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G. |
| Chipset | AMD A520 |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* * Please refer to Memory Support List on ASRock's website for |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 2.0 |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* * Supports NVMe SSD as boot disks |
| PCI Express x1 | 1 x PCI Express 3.0 x1 Slot |
| Serial ATA (SATA) | 4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug |
| M.2 | 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* * Actual support may vary by CPU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB. * The Max shared memory 16GB requires 32GB system memory installed. Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
| Max LAN Speed | 1Gbps |

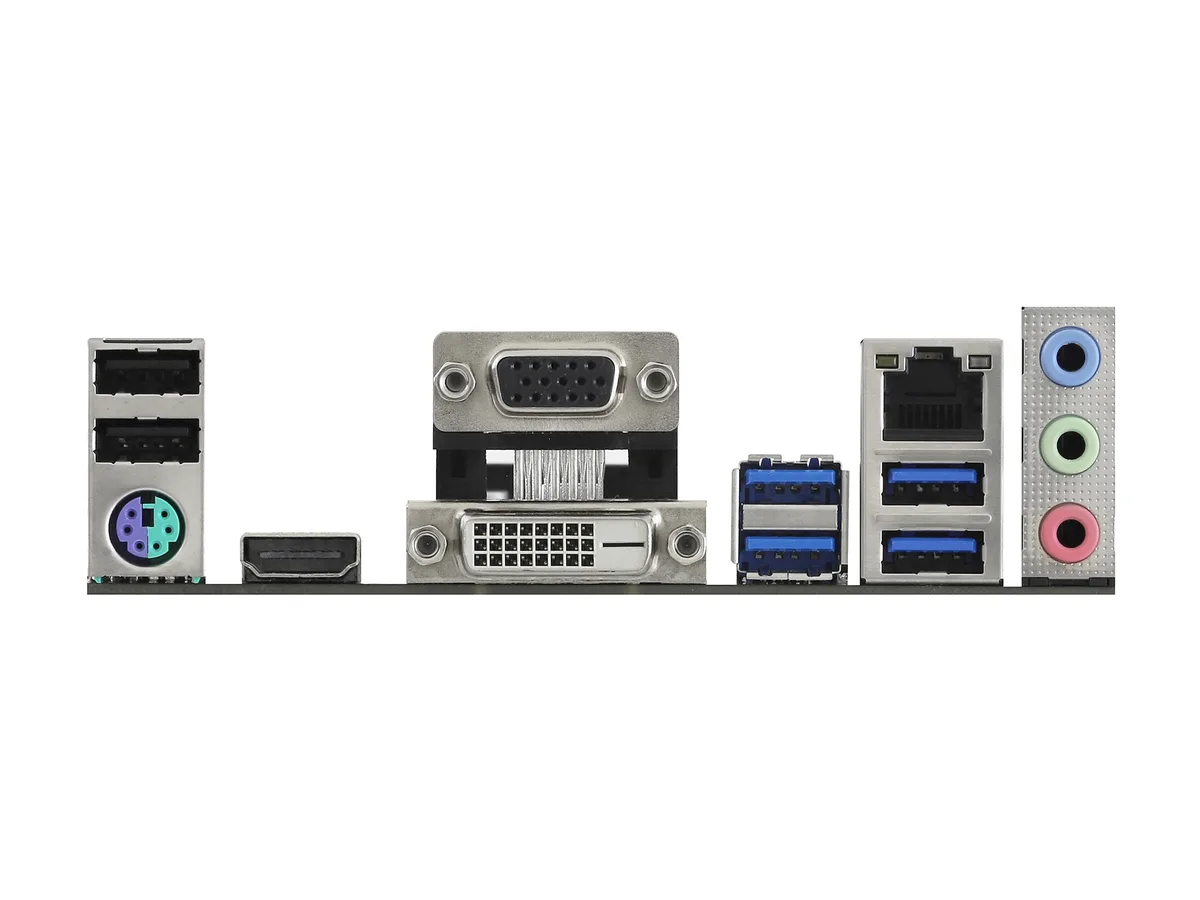

| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Other Connectors | 1 x SPI TPM Header 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power. * CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. 1 x Front Panel Audio Connector |
| Form Factor | Micro ATX |
| LED Lighting | None RGB |

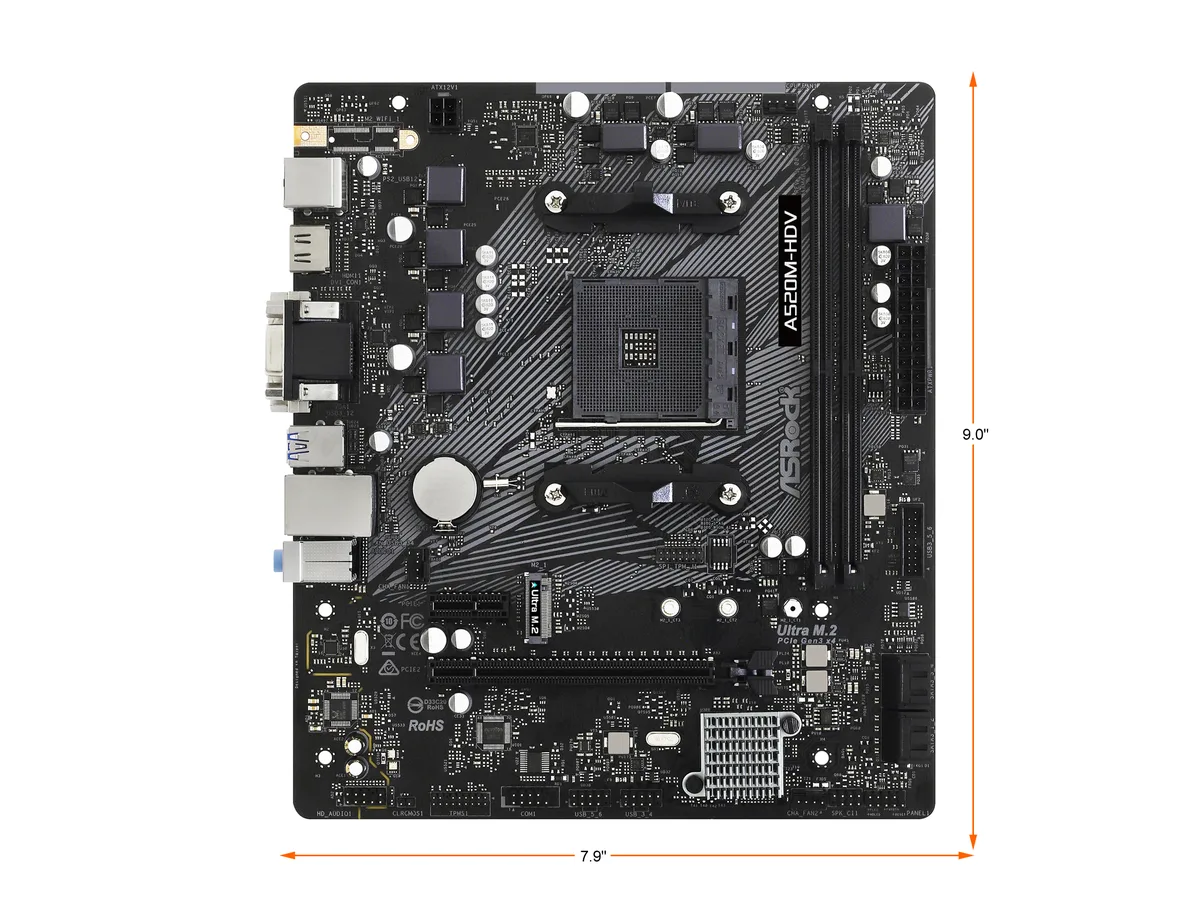

| Dimensions (W x L) | 9.0" x 7.9" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 4-pin 12V Power Connector |
| Windows 11 | Supported |
| Features | Unique Feature: ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS Feature: - 128MB AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Software and UEFI |
| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
| Shipping weight | 0.83 kg |
| Package size | 275 × 240 × 58 mm |
Questions about this item
Will the 288-pin DDR4 slots fit inside a standard Micro ATX case?
Yes, the Micro ATX form factor matches standard Micro ATX mounting holes, so the board fits any case designed for that size.
Which power connectors must be attached before the first boot?
Connect the 24-pin ATX cable and the 8-pin CPU power cable; forgetting the 8-pin connector is the most common reason the system will not post.
How often should the Realtek ALC887 audio capacitors be checked for leakage?
Solid capacitors on this board are rated for long life; visual inspection once a year is sufficient unless you hear distortion.
