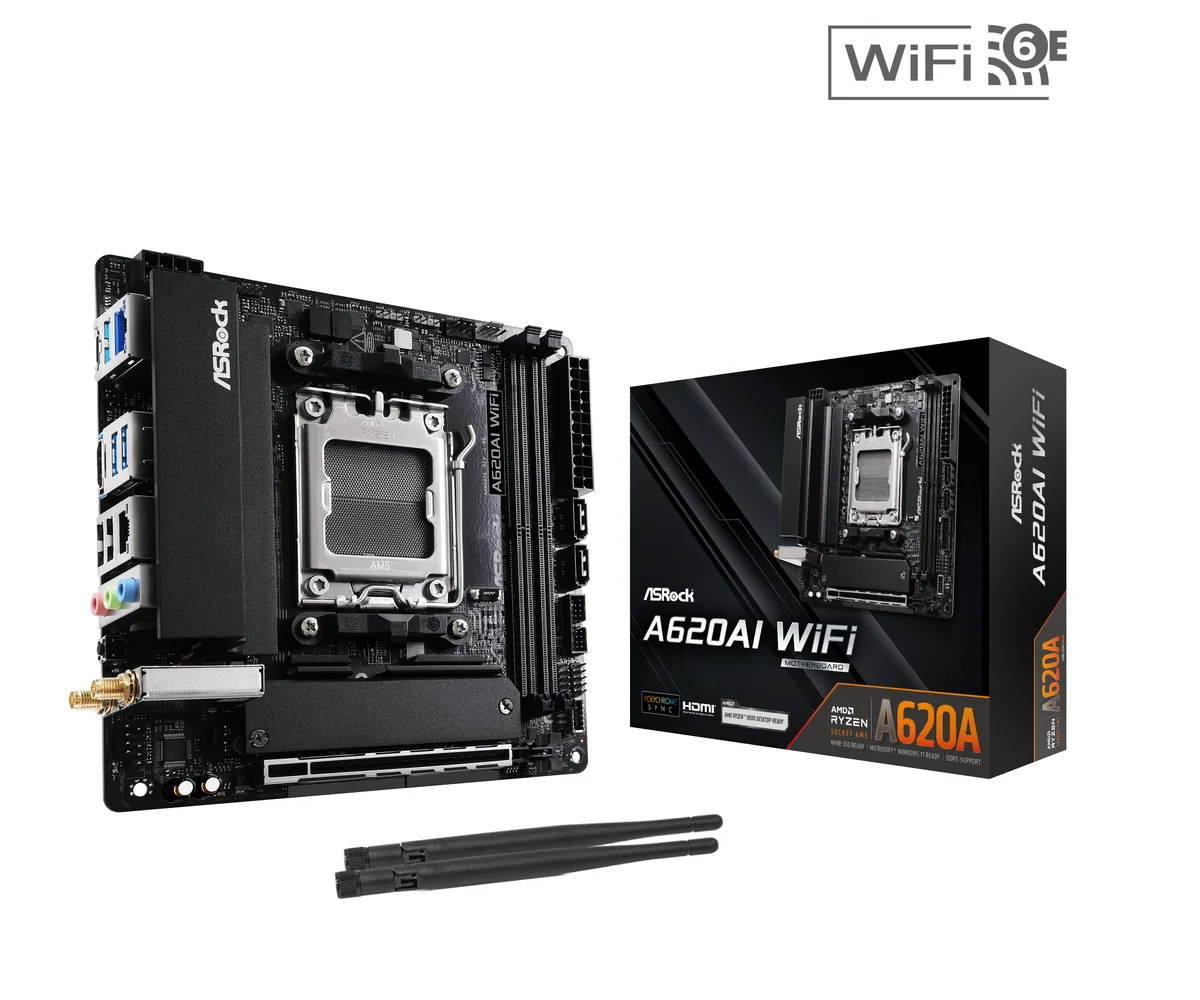

Compact square motherboard with black PCB, silver heatsinks, single HDMI port, two vertical DDR5 slots

ASRock

ASRock A620AI WiFi AMD motherboard

SKU CH-EQ0T-SE25Z MPN A620AI WiFi

Mini ITX AM5 board with 80A Dr.MOS, dual DDR5 slots up to 8200 MT/s, one PCIe 4.0 x16, one Gen4 M.2, one Gen3 M.2, 2.5 GbE and Wi-Fi 6E

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD A620A
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardUp to 8200+(OC)
  • Maximum Memory Supported128GB
  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 8+2+1 phase power with 80A Dr.MOS for stable VCore delivery
  • Two DDR5 slots run dual-channel up to 8200+(OC) with ECC support
  • Hyper M.2 socket provides PCIe 4.0 x4 at 64 Gb/s for fast NVMe storage
  • 5Gbps Dragon LAN plus Wi-Fi 6E for high-speed wired and wireless networking

AM5 Mini ITX Platform

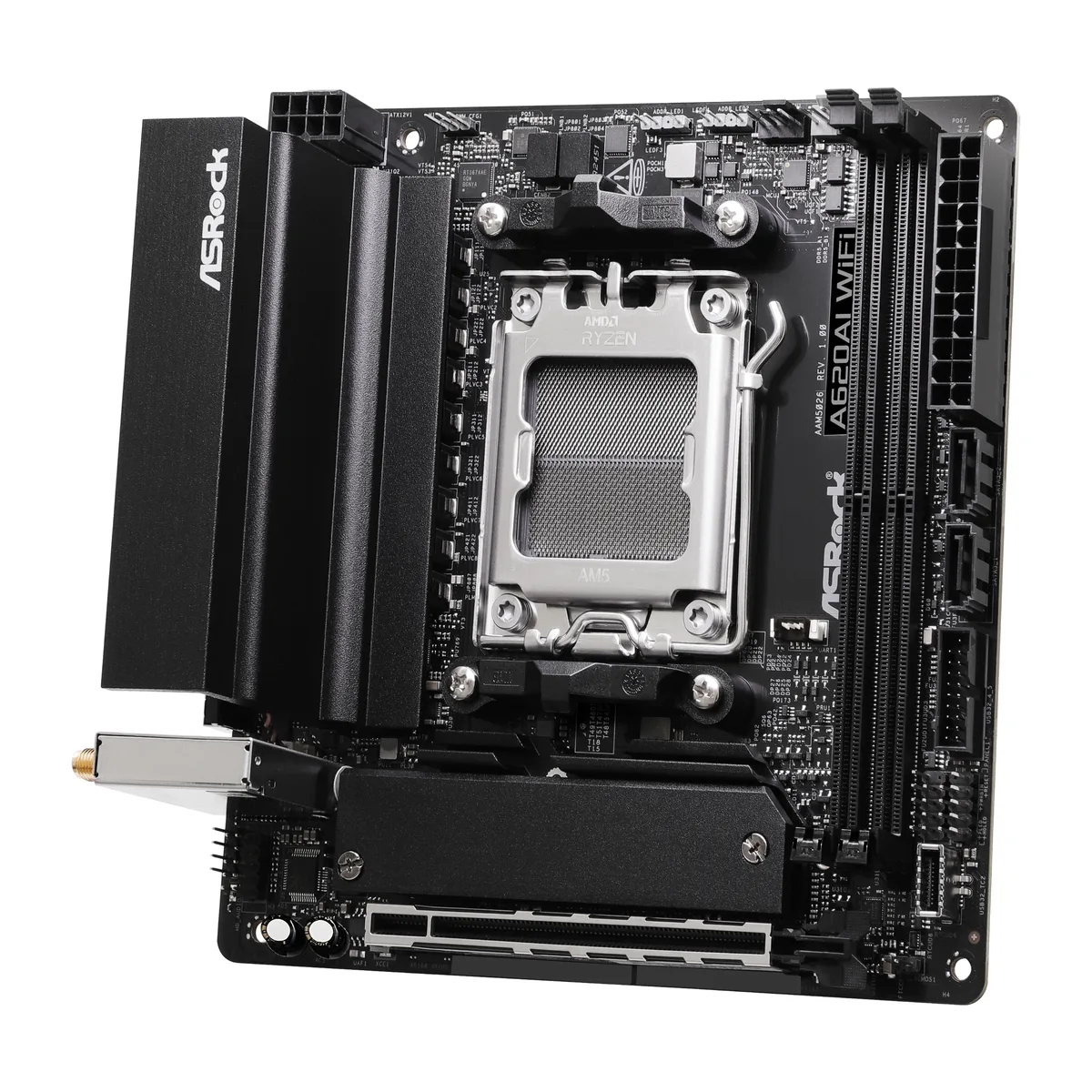

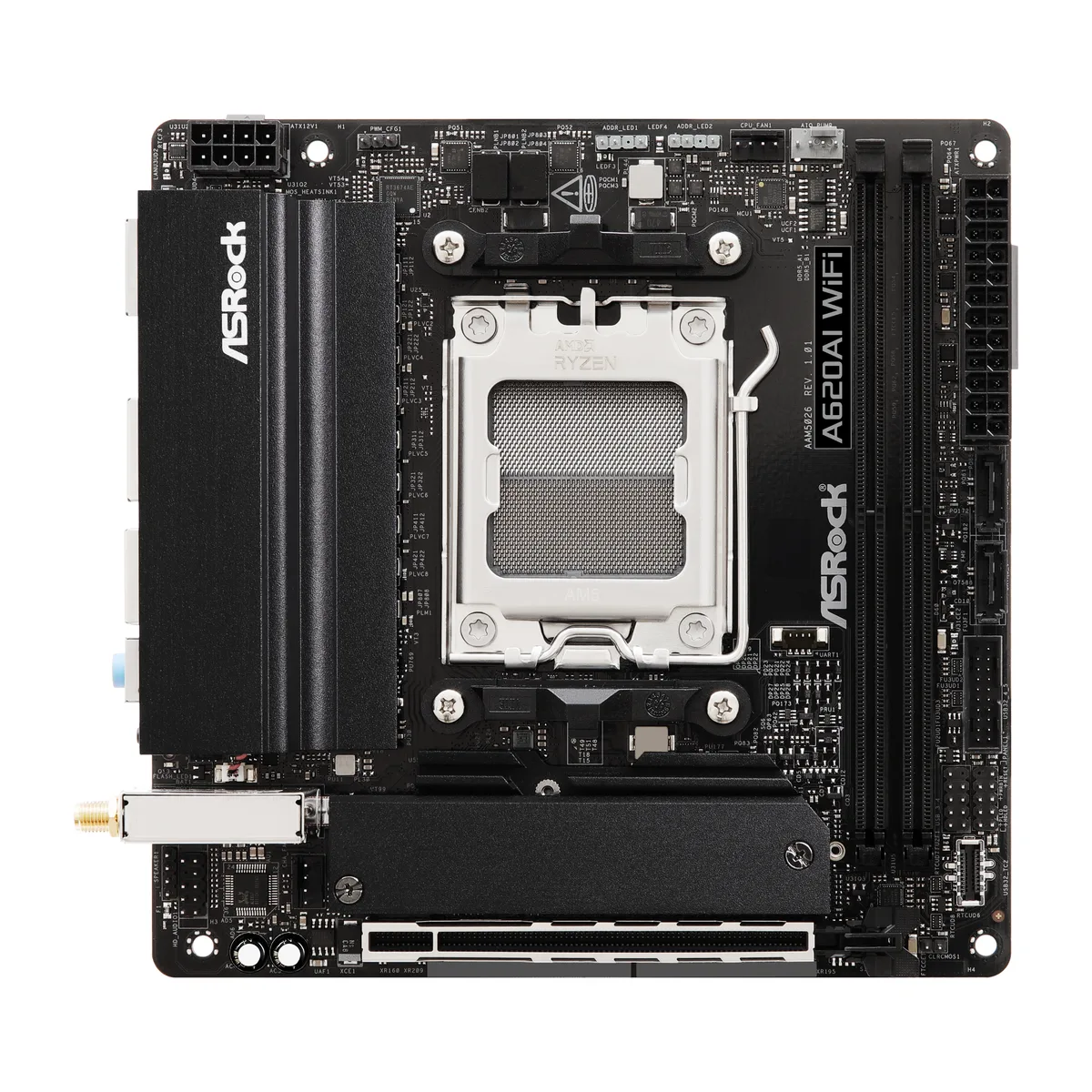

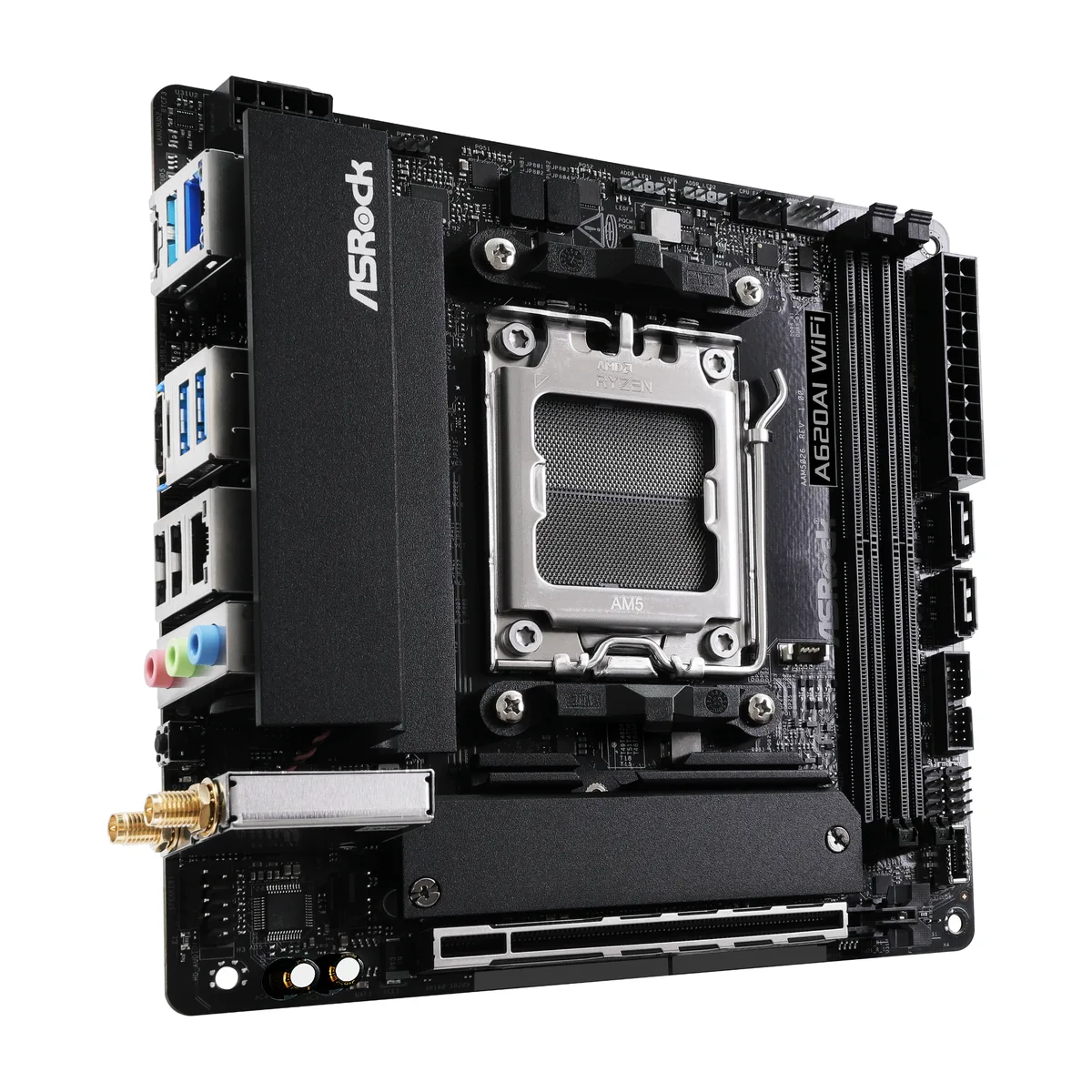

The ASRock A620AI WiFi is a Mini ITX motherboard for AMD Socket AM5 processors. It accepts Ryzen 7000, 8000 and 9000 series CPUs and uses the AMD A620A chipset. The board targets small-form-factor builds that need current-generation Ryzen performance in a compact footprint.

Build Integration

Two 288-pin DDR5 slots support dual-channel memory up to 128GB at speeds up to 8200+ (OC) with XMP 3.0 or EXPO profiles. A single PCIe 4.0 x16 slot runs at x16 with 7000 and 9000 series CPUs, x8 with 8000 Phoenix 1, and x4 with 8000 Phoenix 2. Storage includes one CPU-attached Hyper M.2 2280 Gen4x4 and one chipset Ultra M.2 2280 supporting SATA 6.0 Gb/s or Gen3x4. Networking uses a 2.5Gbps Dragon RTL8125BG LAN and 802.11axe Wi-Fi 6E. Audio is handled by a Realtek ALC897 7.1-channel codec with Nahimic Audio. An HDMI port provides display output for APUs.

Upgrade Path

The board replaces older AM4 ITX platforms and adds DDR5, PCIe 4.0 storage and 2.5Gbps wired networking. The jump is worthwhile when moving to Ryzen 7000, 8000 or 9000 series CPUs for higher instructions-per-clock and integrated graphics. ECC un-buffered memory support adds reliability for workstation tasks. The 8+2+1 phase 80A Dr.MOS power design sustains multi-core workloads within the Mini ITX power envelope.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 8+2+1 phase power with 80A Dr.MOS for stable VCore delivery
  • Two DDR5 slots run dual-channel up to 8200+(OC) with ECC support
  • Hyper M.2 socket provides PCIe 4.0 x4 at 64 Gb/s for fast NVMe storage
  • 5Gbps Dragon LAN plus Wi-Fi 6E for high-speed wired and wireless networking

Specifications

BrandASRock
ModelA620AI WiFi
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD A620A
Number of Memory Slots2x288pin (DDR5)
Memory StandardUp to 8200+(OC)
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 4.0 x161 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
* PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
M.2CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
* M2_1 is the first priority for M.2 installation.
Supports NVMe SSD as boot disks
SATA RAIDSupports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LAN802.11axe Wi-Fi 6E
BluetoothBluetooth 5.2

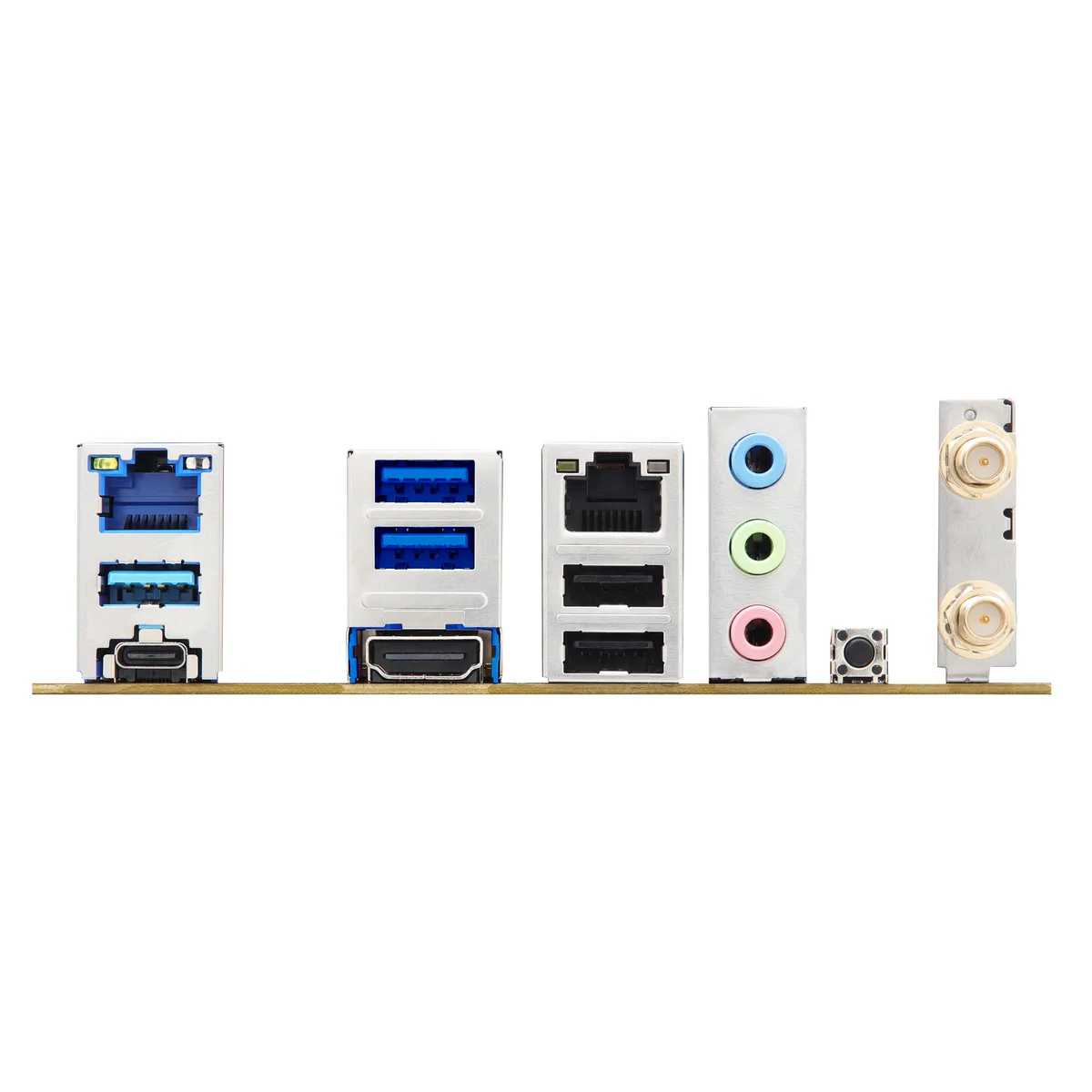

Back I/O Ports2 x Antenna Ports
1 x HDMI Port
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
1 x USB 3.2 Gen1 Port
2 x USB 2.0 Ports
2 x RJ-45 LAN Ports
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors2 x Addressable LED Headers*
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
* Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1, CHA_FAN1 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN1, CHA_FAN1 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Windows 11Windows 10 64-bit / 11 64-bit
Package Contents1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
Shipping weight0.68 kg
Package size279 × 216 × 58 mm

Questions about this item

Will my Ryzen 9000 processor run the PCIe x16 slot at full Gen 4.0 x16 speed?

Yes, the PCIe 4.0 x16 slot operates at Gen4x16 with Ryzen 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series, and Gen4x4 with 8000 (Phoenix 2) series.

Can I install two M.2 SSDs and run them in RAID 10?

RAID 10 for M.2 NVMe drives requires additional M.2 NVMe expansion cards; the board provides one CPU Hyper M.2 (Gen4x4) and one chipset Ultra M.2 (Gen3x4 or SATA).

Does the board support ECC memory for a workstation build?

Yes, un-buffered ECC DDR5 is supported up to 128 GB across the two 288-pin slots with dual-channel operation.
