ASRock A770 CL 16GO graphics card

16GB Arc A770 for creators and gamers

The ASRock Challenger Arc A770 delivers 16GB of GDDR6 memory across a 256-bit bus with a 2150 MHz core clock. It targets content creators and 1440p gamers who need high VRAM capacity for texture-heavy workloads. The dual-fan cooler keeps the 225W TDP in check inside standard ATX builds. PCI Express 4.0 x16 provides the host link.

Upgrade from 8GB cards when VRAM limits appear

Moving from an 8GB model makes sense when titles or creative apps exceed that buffer at 1440p or 4K. The 16GB frame buffer removes the need to lower texture settings in modern releases. A 650W power supply and two 8-pin connectors are required to support the 225W board power. The jump is worth it if current VRAM usage regularly hits the ceiling.

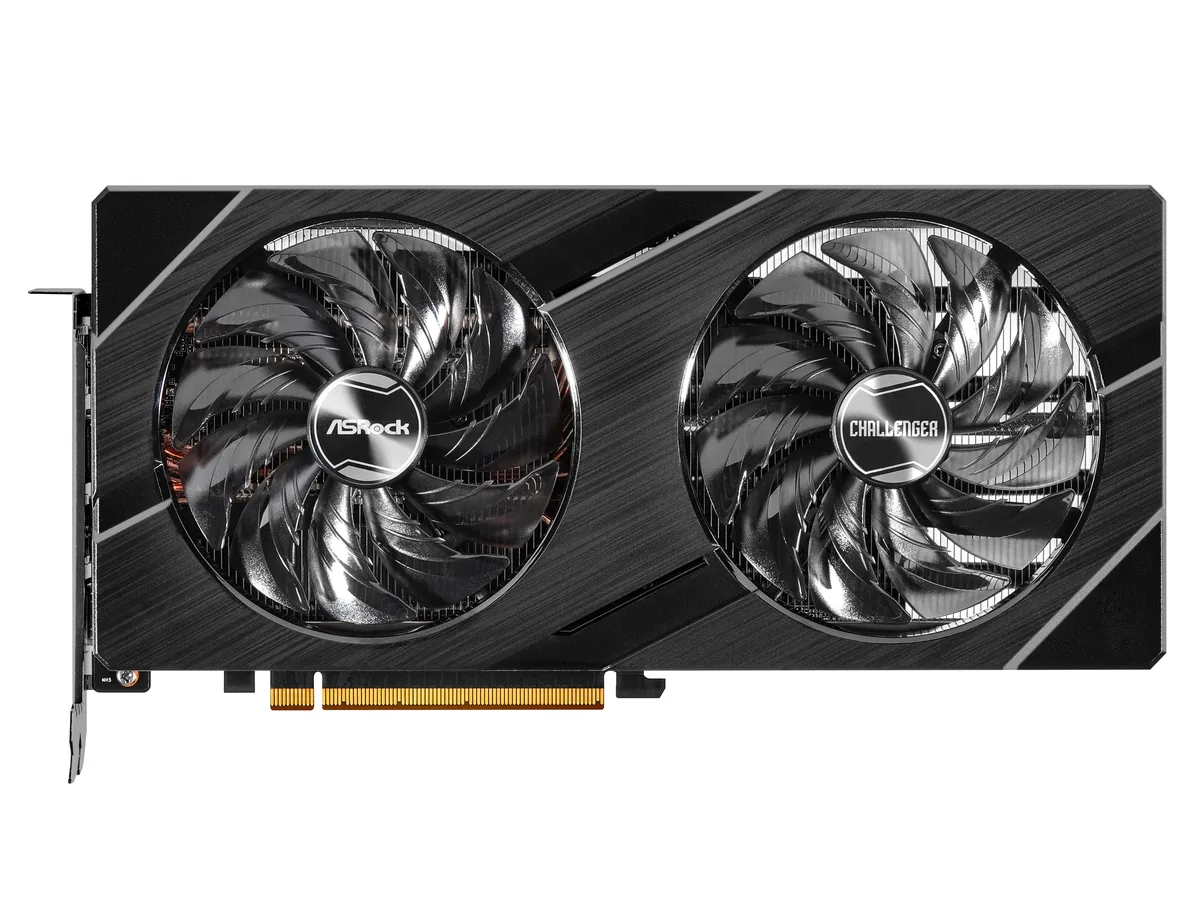

Fits dual-slot ATX cases with 271 mm clearance

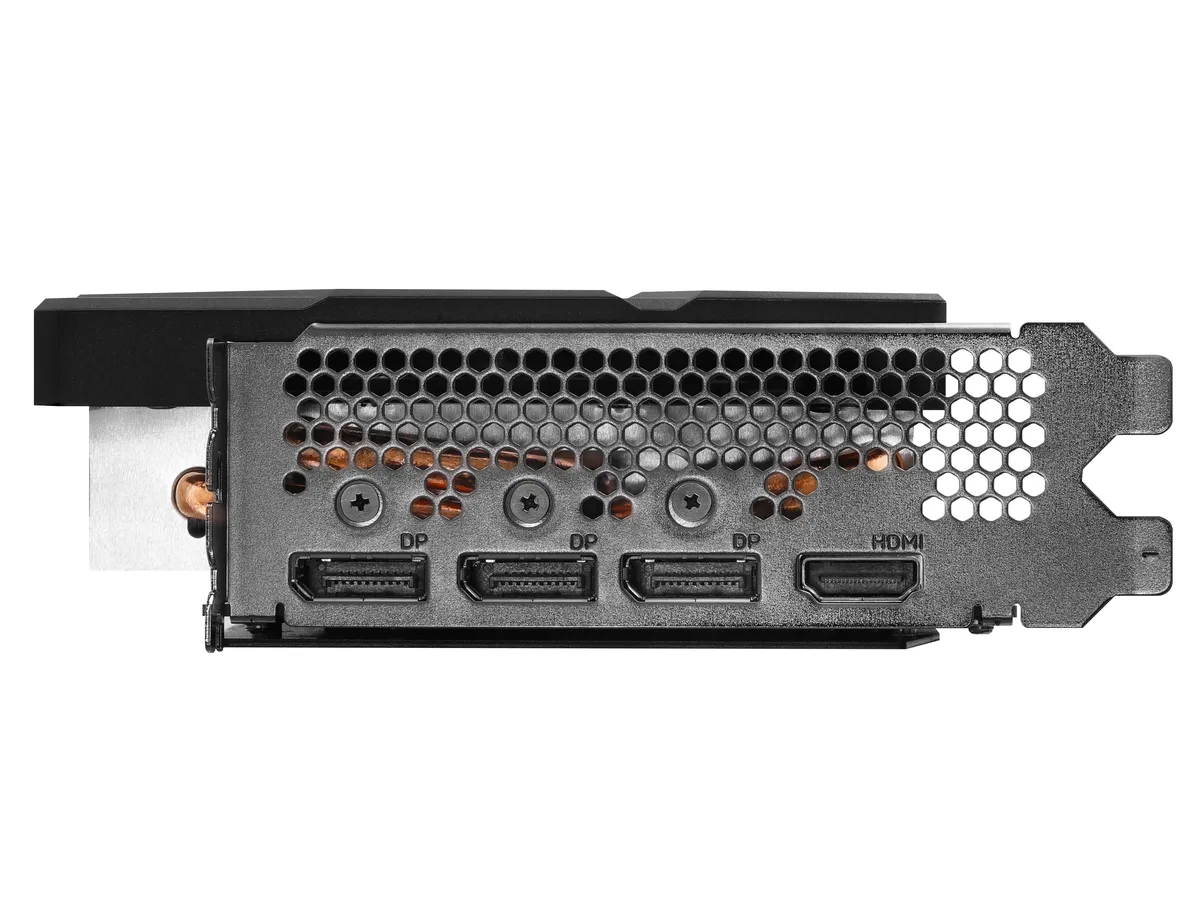

The card occupies 2.4 slots and measures 271 mm long, so verify case length and PCIe bracket space before purchase. One HDMI 2.1 and three DisplayPort 2.0 outputs drive up to four displays at 7680 x 4320 resolution. DirectX 12 Ultimate and OpenGL 4.6 cover current API needs. The double-fan design exhausts heat into the chassis, so adequate front-to-rear airflow is recommended.
