ASRock Phantom Gaming Arc A770 graphics card, triple-fan cooler, dark finish, three DisplayPort and one HDMI port visible

ASRock

ASRock A770 PGD 8GO graphics card

SKU CH-A1N1-7DKTG MPN A770 PGD 8GO

Refurbished Intel Arc A770 GPU with 8GB 256-bit GDDR6, 2200 MHz core clock, triple-fan cooler, HDMI 2.1 and three DisplayPort 2.0 outputs for 7680 x 4320 resolution

  • InterfacePCI Express 4.0 x16
  • Chipset ManufacturerIntel
  • GPU SeriesIntel Arc A-Series
  • GPUArc A770
  • Core Clock2200 MHz
  • Memory Size8GB
  • 8 GB GDDR6 on a 256-bit bus feeds high-resolution textures
  • Core clock reaches 2200 MHz for responsive gaming

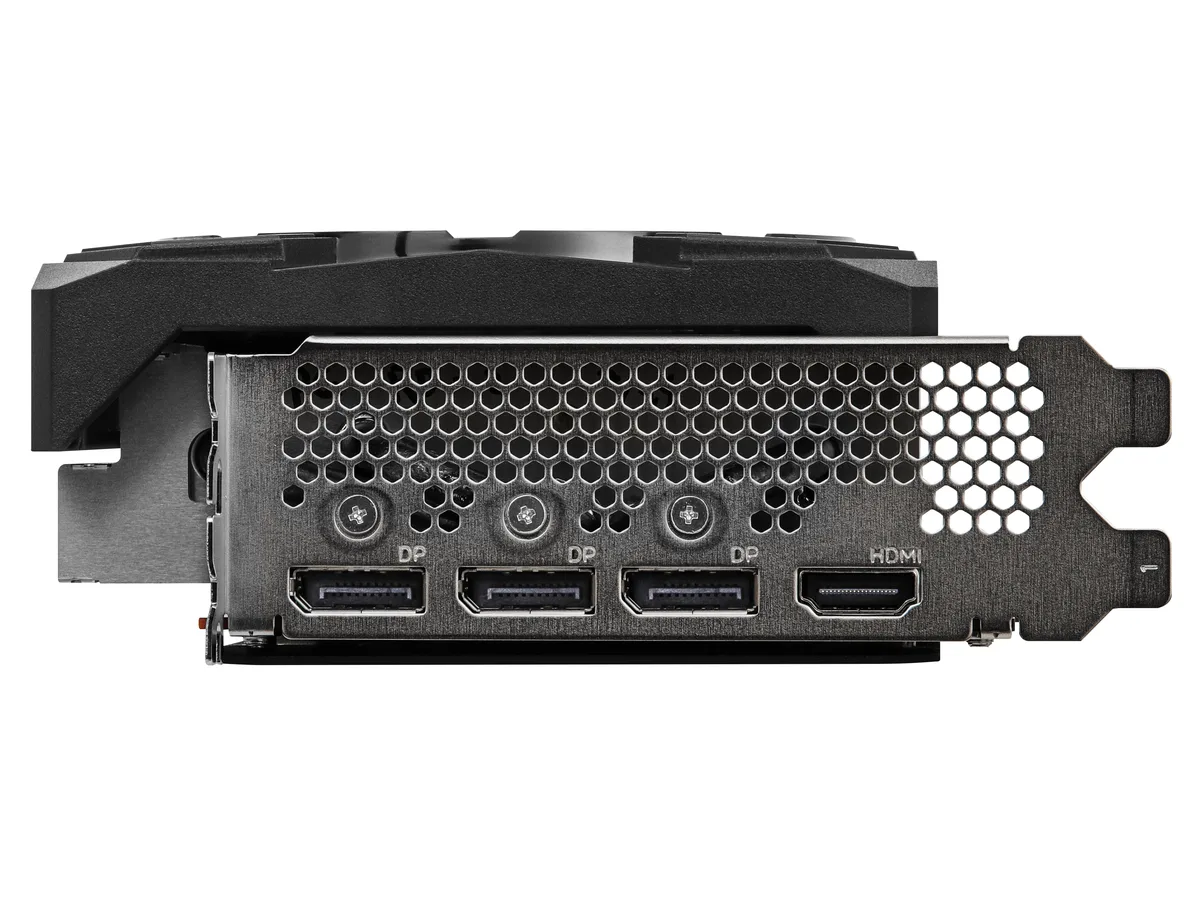

  • HDMI 2.1 plus three DisplayPort 2.0 outputs drive four 8K displays
  • Triple-fan cooler manages the 225 W TDP under load
  • PCI Express 4.0 x16 interface with Resizable BAR unlocks full Arc performance

ASRock Arc A770 8GB graphics card

The ASRock Phantom Gaming Arc A770 delivers 8GB of GDDR6 memory on a 256-bit interface with a core clock of 2200 MHz. It connects through a PCI Express 4.0 x16 slot and occupies 2.8 slots in an ATX chassis. The card measures 305 mm long and draws up to 225W, requiring a 700W power supply and two 8-pin connectors.

Upgrade from older 8GB GPUs on PCIe 3.0

Moving to this card adds PCIe 4.0 bandwidth, DisplayPort 2.0 outputs and DirectX 12 Ultimate support for modern titles. The jump is worthwhile when your current board supports Resizable BAR and your power supply meets the 700W recommendation. Without Resizable BAR enabled, the Intel Arc architecture cannot reach its intended performance level.

Practical limits of PCIe 4.0 x16 and DisplayPort 2.0

The x16 link provides ample throughput for the Arc A770, so the interface is not a bottleneck at 1440p or 4K. DisplayPort 2.0 ports can drive 7680 x 4320 resolution, but cable quality and monitor capabilities often limit real-world refresh rates at that pixel count. HDMI 2.1 supports the same maximum resolution for a single display.

Highlights

  • 8 GB GDDR6 on a 256-bit bus feeds high-resolution textures
  • Core clock reaches 2200 MHz for responsive gaming
  • HDMI 2.1 plus three DisplayPort 2.0 outputs drive four 8K displays
  • Triple-fan cooler manages the 225 W TDP under load
  • PCI Express 4.0 x16 interface with Resizable BAR unlocks full Arc performance

Specifications

BrandASRock
SeriesPhantom Gaming
ModelA770 PGD 8GO
InterfacePCI Express 4.0 x16
Chipset ManufacturerIntel
GPU SeriesIntel Arc A-Series
GPUArc A770
Core Clock2200 MHz
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 2.0
Max Resolution7680 x 4320
CoolerTriple Fans
Thermal Design Power225W
Recommended PSU Wattage700W
Power Connector2 x 8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length305 mm
Card Dimensions (L x H)305 x 131 x 56 mm
Slot Width2.8 Slots
Shipping weight2.00 kg
Package size399 × 229 × 114 mm

Questions about this item

Will the 305 mm length and 2.8 slot width fit in my ATX case?

The card measures 305 x 131 x 56 mm and occupies 2.8 slots, so verify your case clearance and motherboard spacing before purchase.

Which power connectors must I plug in for the 225W TDP?

Connect both 8-pin PCIe power cables from a 700W or larger PSU; missing either connector will prevent the card from starting.

How often should I clean the triple-fan cooler to keep temperatures stable?

Blow dust from the heatsink and fan blades every three to six months; thermal paste replacement is only needed if temperatures rise unusually after years of use.
