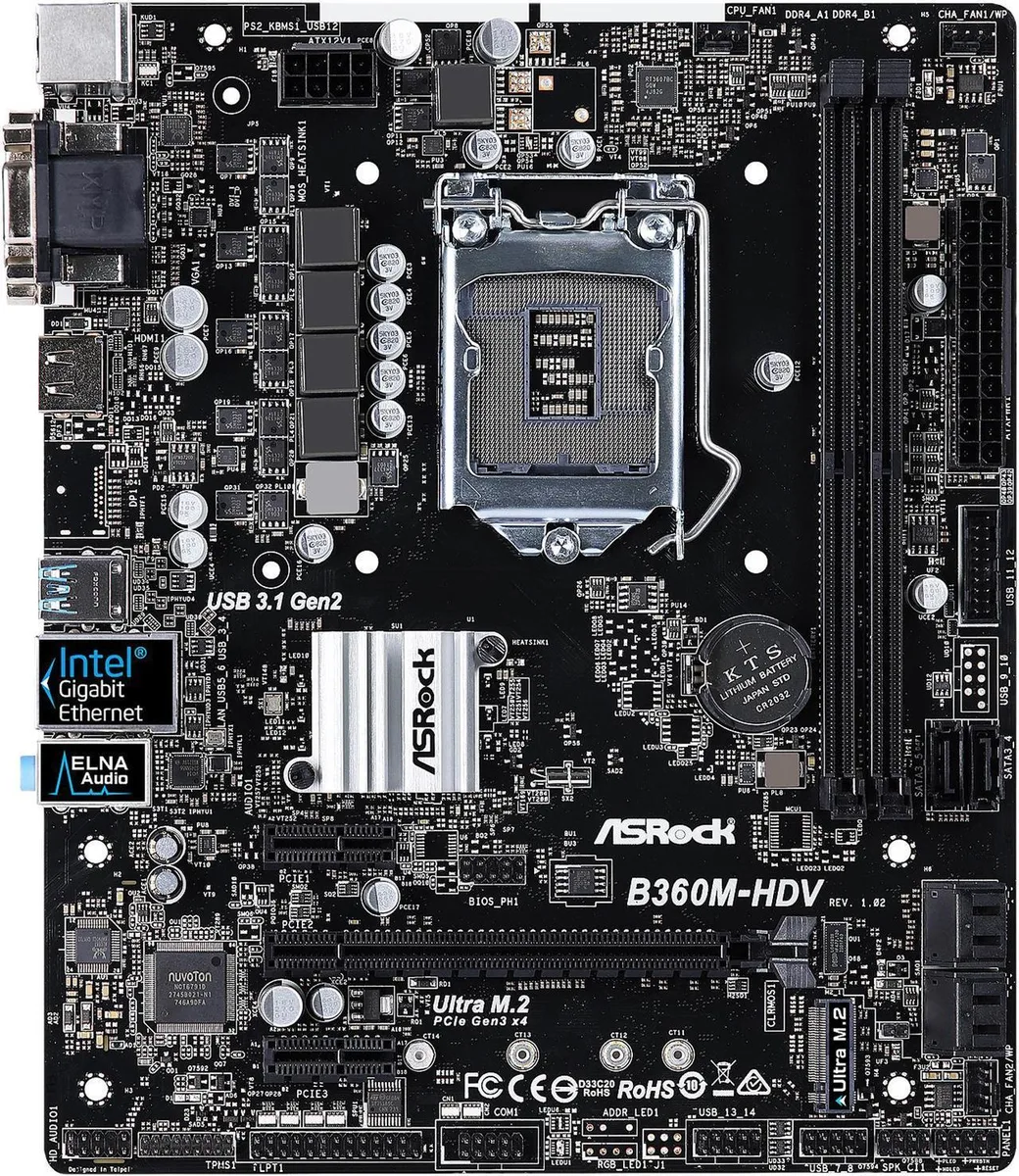

Green Micro ATX motherboard with silver heatsinks and black slots

ASRock

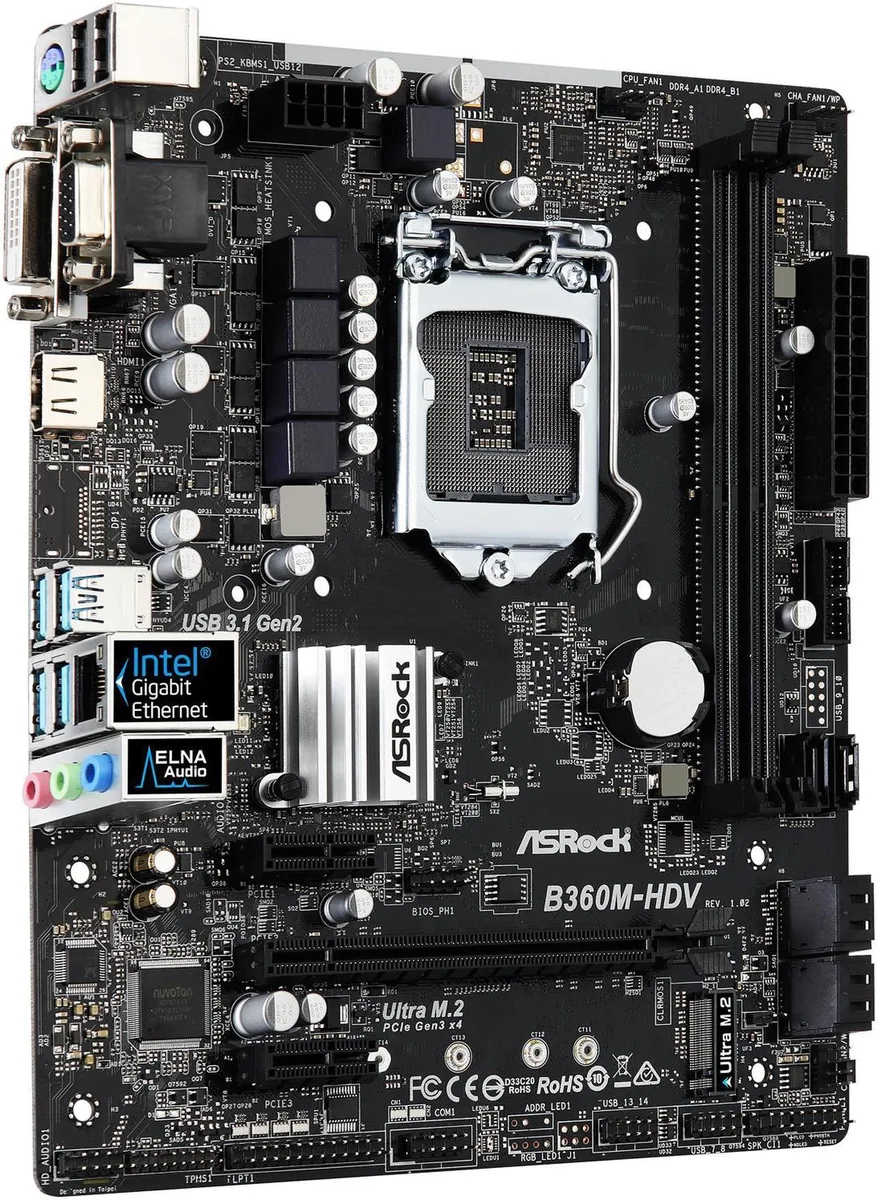

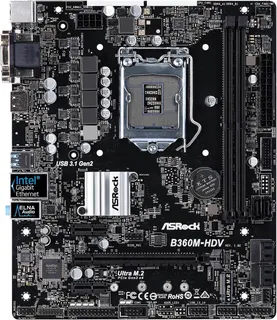

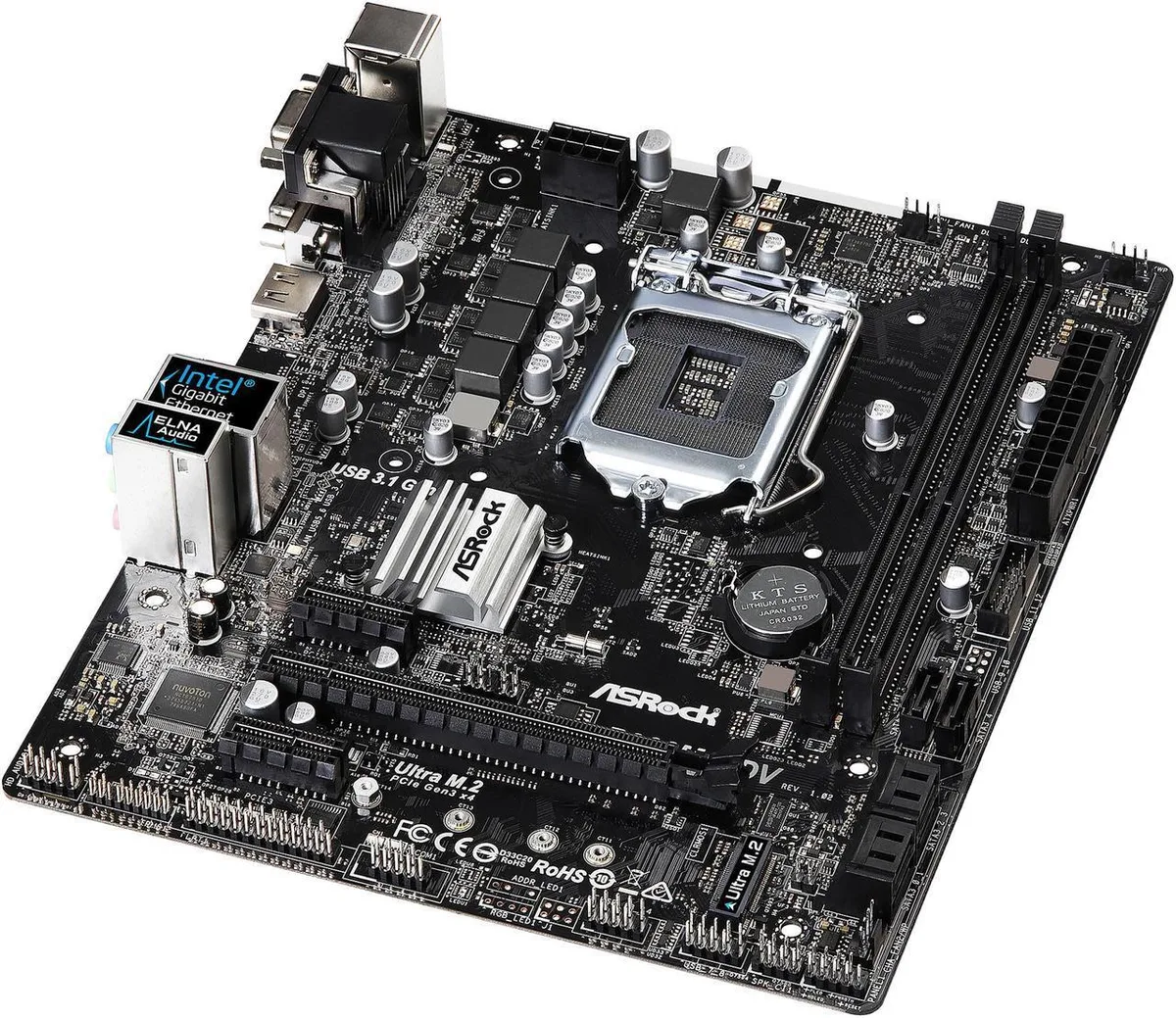

ASRock B360M-HDV Micro ATX Intel motherboard

SKU CH-PZ1C-B0Z5P

Micro-ATX board with Intel B360 chipset for 8th-gen Core CPUs, dual-channel DDR4 up to 2666, one PCIe 3.0 x16, Ultra M.2 Gen3 x4, six SATA 6.0Gb/s, 7.1 audio and Intel 1GbE LAN

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupports 8th Generation Intel Core Processors (Socket 1151)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel B360
  • Onboard Video Chipset* Intel UHD Graphics Built-in Visuals and the VGA outputs ca
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MT/s with 32 GB maximum capacity
  • Ultra M.2 socket enables PCIe 3.0 x4 NVMe SSD boot drives
  • Intel I219-V Gigabit LAN delivers 1 Gbps wired networking
  • Realtek ALC887 codec provides 7.1-channel high-definition audio

Socket and processor support

The board uses the LGA 1151 (300 Series) socket and accepts 8th Generation Intel Core processors only. Older LGA 1151 CPUs will not work. Turbo Boost Technology 2.0 is supported for automatic frequency scaling.

Installation notes

A Micro ATX form factor fits standard mounting points in most chassis. The two 288-pin DDR4 slots and single PCI Express 3.0 x16 slot are clearly labelled. If a SATA-type M.2 device occupies the Ultra M.2 socket, the third SATA3 connector is disabled.

Capacity and headroom

Dual-channel DDR4 memory runs at 2666, 2400 or 2133 up to 32GB total. The Ultra M.2 socket supports PCIe 3.0 x4 NVMe or SATA modules in 2230, 2242, 2260 and 2280 lengths. Six SATA3 6.0Gb/s ports provide additional storage lanes.

Highlights

  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MT/s with 32 GB maximum capacity
  • Ultra M.2 socket enables PCIe 3.0 x4 NVMe SSD boot drives
  • Intel I219-V Gigabit LAN delivers 1 Gbps wired networking
  • Realtek ALC887 codec provides 7.1-channel high-definition audio

Specifications

BrandASRock
ModelB360M-HDV
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupports 8th Generation Intel Core Processors (Socket 1151)
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel B360
Onboard Video Chipset* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
- DirectX 12
- HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports HDMI with max. resolution up to 4K x 2K (409
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2666/ 2400/ 2133
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
* Supports NVMe SSD as boot disks
PCI Express x12 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Serial ATA (SATA)6 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
M.21 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Audio ChipsetRealtek ALC887
Audio Channels7.1 Channels
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Supports Surge Protection
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x D-Sub Port
1 x DVI-D Port
HDMI1 x HDMI
RJ451 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.14 x USB 3.1 Gen2 Type-A Ports (10Gb/s)
USB 1.1/2.02 x USB 2.0 Ports (Supports ESD Protection)
Audio PortsHD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x Print Port Header
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio Connector
Form FactorMicro ATX
Dimensions (W x L)8.9" x 7.4"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Ports (10Gb/s) ASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS Feature:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment
Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Software and UEFI:
Sof
Package ContentsAccessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

Questions about this item

How can I confirm the motherboard is working correctly after installing an 8th Generation Intel Core processor and DDR4 memory?

The system should POST and display the ASRock logo on a monitor connected to the HDMI, DVI-D or D-Sub port; the board supports Intel UHD Graphics only with a processor that has integrated graphics.

What accessories are included in the box and what essential components must I purchase separately?

The motherboard ships with an I/O shield, SATA cables and documentation; you must buy an LGA 1151 (300 Series) CPU, DDR4 2666/2400/2133 modules up to 32 GB, storage drives and a chassis separately.

Which M.2 form factors and interfaces are supported by the Ultra M.2 socket?

The M2_1 slot accepts M Key modules in 2230, 2242, 2260 and 2280 lengths running either SATA3 6.0 Gb/s or PCI Express 3.0 x4 (32 Gb/s) NVMe, and it supports Intel Optane Technology.
