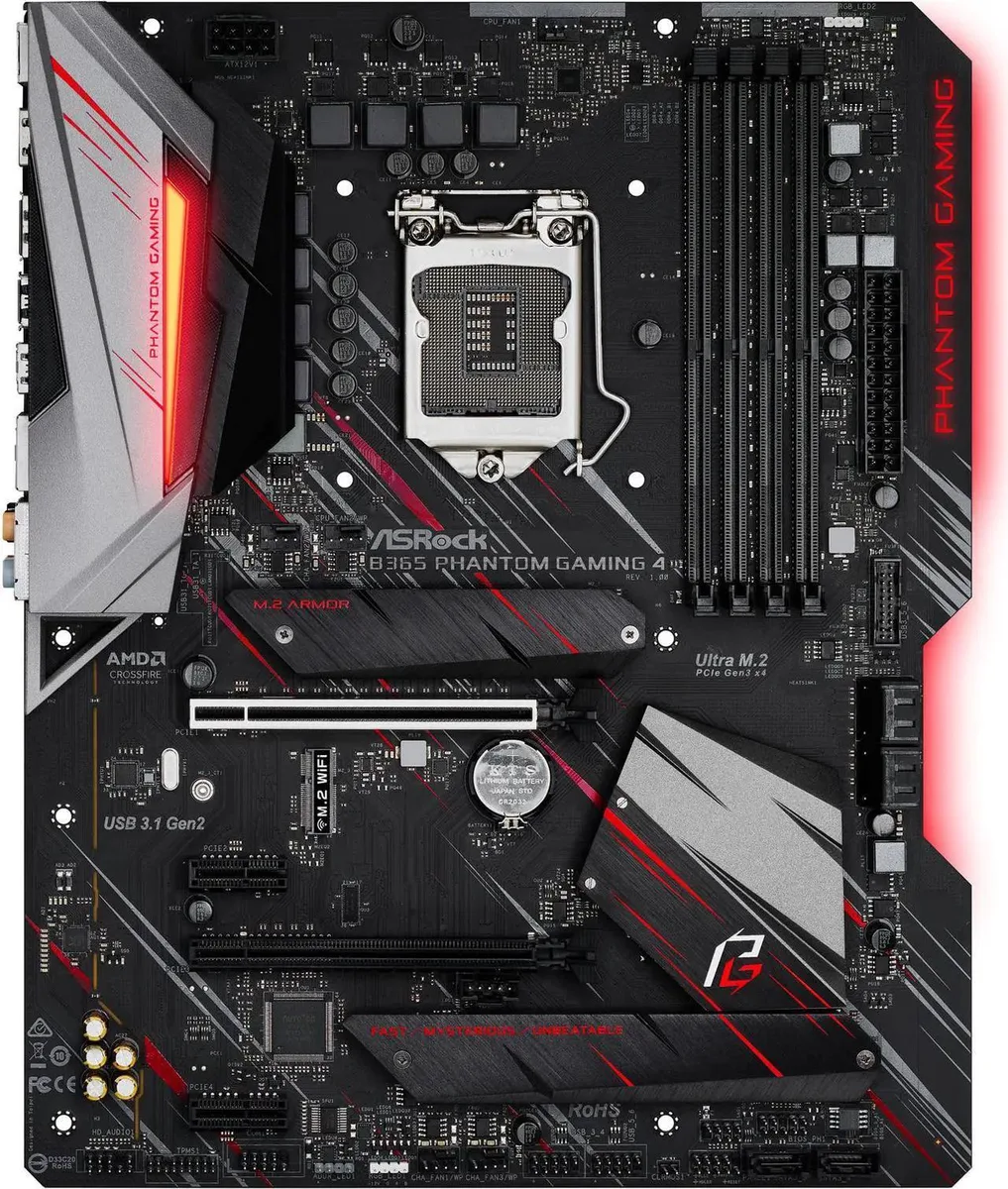

Black ATX motherboard with silver heatsinks and four DDR4 slots

ASRock

ASRock B365 Phantom Gaming 4 Intel motherboard

SKU CH-DGWJ-ENTQD

Supports 8th and 9th Gen Intel Core CPUs with four DDR4 slots up to 64 GB, two PCIe 3.0 x16 slots, two Ultra M.2 sockets and six SATA3 ports

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupports 9th and 8th Gen Intel Core Processors (Socket 1151)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel B365
  • Onboard Video ChipsetSupports Intel UHD Graphics Built-in Visuals: Intel Quick Sy
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Four DDR4 slots accept up to 64 GB at 2666 MT/s in dual-channel mode
  • Two PCIe 3.0 x16 slots plus two PCIe 3.0 x1 slots for expansion cards
  • Two Ultra M.2 sockets deliver up to 32 Gb/s for fast storage
  • Realtek ALC1200 codec provides 7.1-channel audio with surge protection

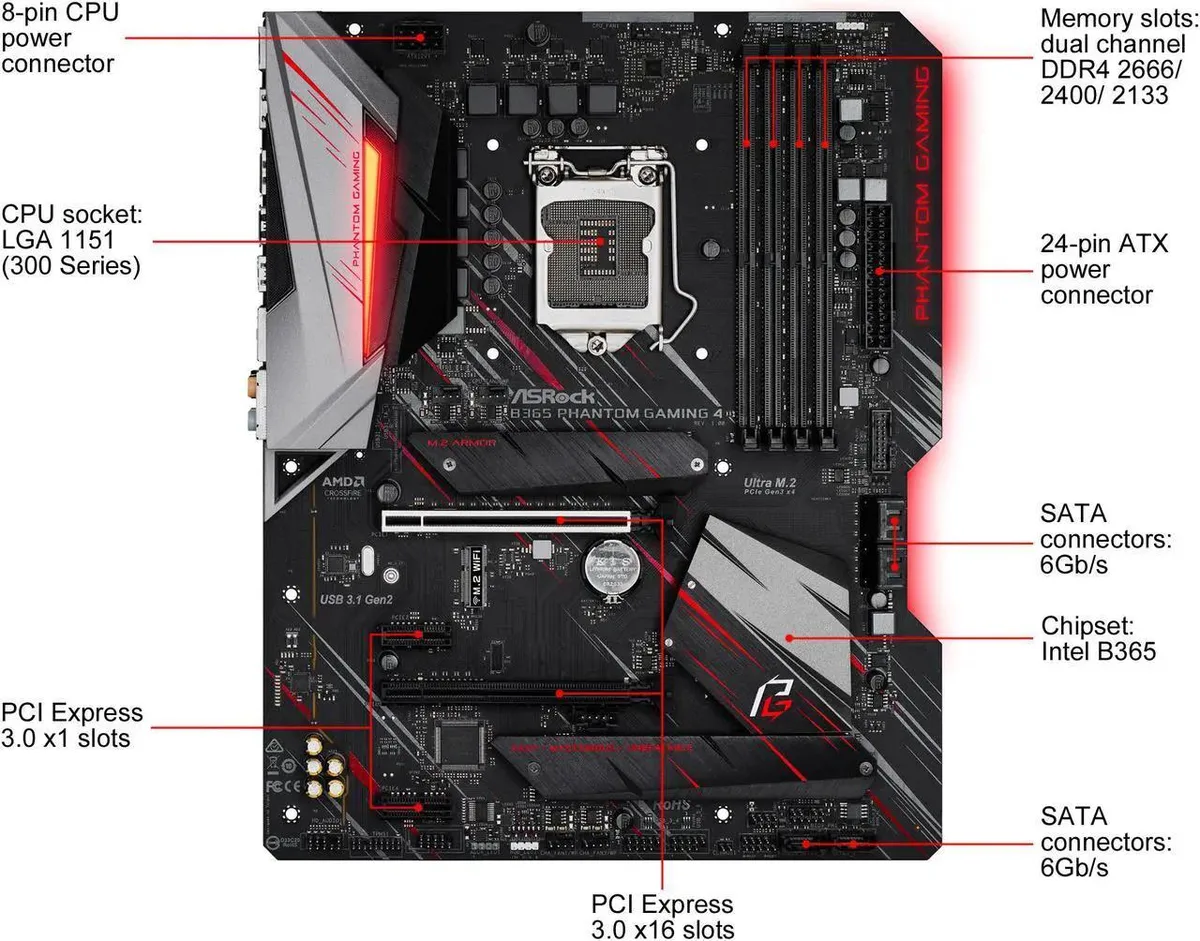

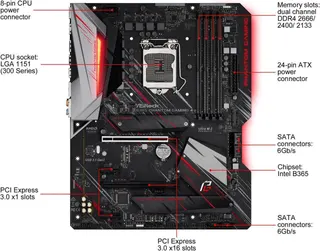

Socket & CPU support

This board uses the LGA 1151 300 Series socket and accepts 8th and 9th Generation Intel Core processors. It is not backward compatible with older LGA 1151 CPUs. The Intel B365 chipset provides native support for Turbo Boost Technology 2.0. Dual channel DDR4 memory runs at 2666, 2400 or 2133 across four slots with a 64GB limit.

Expansion & storage layout

Two PCI Express 3.0 x16 slots operate at x16 or x16/x4 depending on population; using the secondary x1 or M.2 slots can reduce the third slot to x2. Two Ultra M.2 sockets take 2230 to 2280 drives, one supporting PCIe Gen3 x4 and the other SATA. Six SATA3 ports offer RAID 0, 1, 5 and 10. Realtek ALC1200 delivers 7.1 channel audio.

Boot NVMe on B365

The primary M.2 socket supports NVMe SSDs as boot devices at PCIe 3.0 x4 speeds. This single capability decides whether a fast modern boot drive can be used without adding a PCIe adapter card.

Highlights

  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Four DDR4 slots accept up to 64 GB at 2666 MT/s in dual-channel mode
  • Two PCIe 3.0 x16 slots plus two PCIe 3.0 x1 slots for expansion cards
  • Two Ultra M.2 sockets deliver up to 32 Gb/s for fast storage
  • Realtek ALC1200 codec provides 7.1-channel audio with surge protection

Specifications

BrandASRock
ModelB365 Phantom Gaming 4
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupports 9th and 8th Gen Intel Core Processors (Socket 1151)
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel B365
Onboard Video ChipsetSupports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
DirectX 12
HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
Dual graphics outputs: HDMI 1.4 and DisplayPort 1.2
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30 Hz
Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60 Hz
Supports Auto Lip Sync, Deep Color (
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2666/ 2400/ 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
* If PCIE2 or PCIE4 is occupied, PCIE3 will downgrade to x2 mode
* Supports NVMe SSD as boot disks
PCI Express x12 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Other Slots1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module
15µ Gold Contact in VGA PCIe Slot (PCIE2)
Serial ATA (SATA)6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.21 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1200
Audio Channels7.1 Channels
Supports Surge Protection
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.2
1 x Optical SPDIF Out Port
2 x USB 2.0 Ports (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
2 x RGB LED Headers*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin)
1 x Post Status Checker (PSC)
* Support in total up to 12V/3A, 36W LED Strip.
** Supports in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesGaming Armor:
Memory
- 15µ Gold Contact in DIMM Slots
VGA Card
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
- Intel LAN
Cooling
- XXL Aluminum Alloy Heatsink
Unique Feature:
ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10Gb/s)
ASRock Super Alloy
- Premium 50A Power Choke
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Shaped PCB Design
- Matte Black PCB
- High Density Glass Fabric PCB
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Steel Slot
A

Questions about this item

Will this board run a 9th generation Intel Core i5 processor?

Yes, the LGA 1151 (300 Series) socket supports 9th and 8th Gen Intel Core processors.

Can I install four DDR4 memory modules for a total of 64GB?

The board has four 288-pin DDR4 slots with a maximum capacity of 64GB running in dual-channel mode.

Does the primary M.2 slot support a PCIe 3.0 x4 NVMe drive?

The Ultra M.2 socket (M2_1) accepts M Key 2280 modules and runs at PCIe 3.0 x4 (32Gb/s) for NVMe SSDs.
