Green MicroATX motherboard with silver CPU socket and black PCIe slots

ASRock

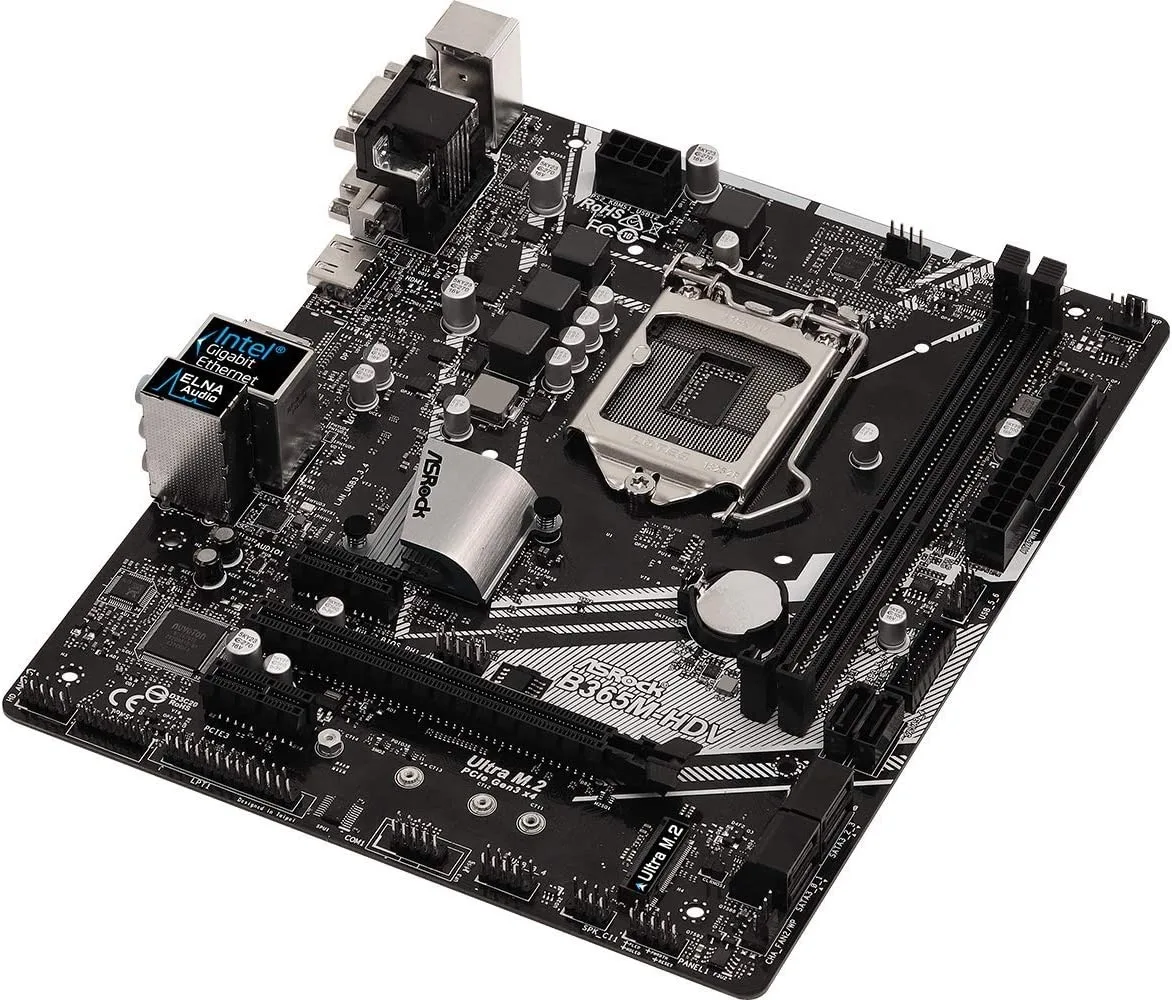

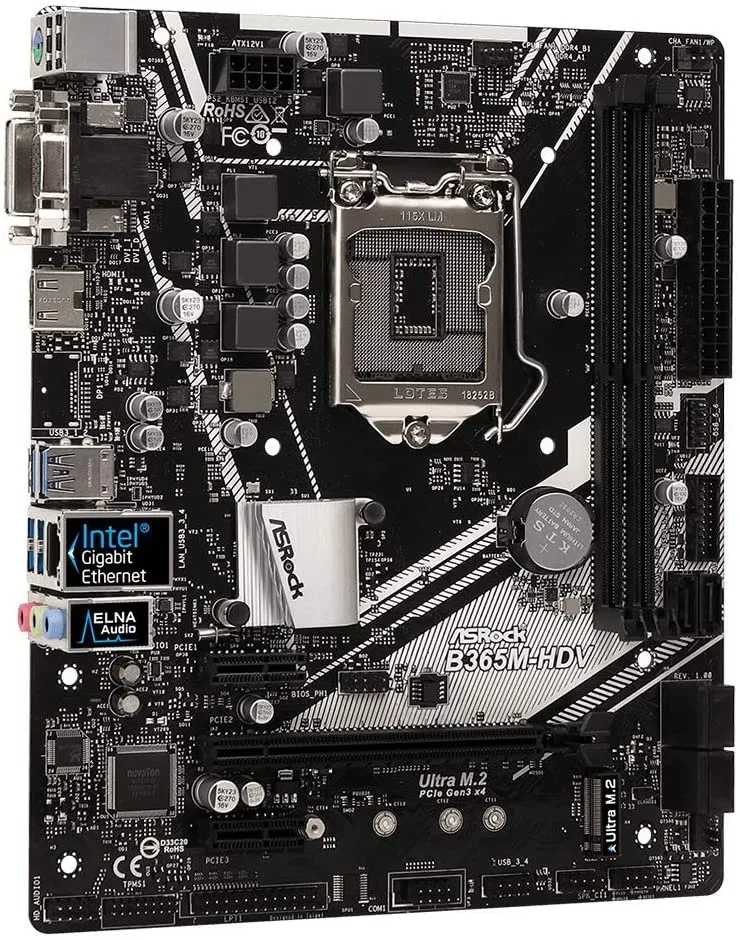

ASRock B365M-HDV Intel motherboard

SKU CH-J95W-0DZZS MPN B365M-HDV.

Micro-ATX board for LGA 1151 CPUs with Intel B365 chipset, DDR4 up to 32 GB, one PCIe 3.0 x16 slot, one M.2 slot, USB 3.1 Gen 2 Type-A and Gigabit LAN, sold without I/O shield or accessories

  • CPU Socket TypeLGA 1151
  • ChipsetIntel B365
  • Memory StandardDDR4
  • Maximum Memory Supported32GB
  • PCI Express 3.0 x161x PCI Express 3.0 x16
  • PCI Express x161
  • LGA 1151 socket supports 8th and 9th generation Intel Core processors
  • Intel B365 chipset provides stable platform for everyday computing
  • DDR4 memory support up to 32 GB for responsive multitasking
  • PCI Express 3.0 x16 slot enables dedicated graphics card installation
  • USB 3.1 Gen 2 Type-A port delivers fast data transfer

Socket & Chipset

This is an Intel LGA 1151 motherboard built on the B365 chipset. It fits Micro ATX cases and supports DDR4 memory up to 32 GB. The board is sold as a standalone unit without an I/O shield or any cables.

PCI Express 3.0 x16

The single PCI Express 3.0 x16 slot is the specification that determines graphics card compatibility. One full-size slot and one legacy PCI slot are available for expansion cards. An M.2 slot is present for storage devices.

Installation Notes

Mounting follows the standard Micro ATX screw pattern. The missing I/O shield must be sourced separately before the board can be fitted to the case rear panel. Buyers who need bundled accessories or a manufacturer warranty should look elsewhere.

Highlights

  • LGA 1151 socket supports 8th and 9th generation Intel Core processors
  • Intel B365 chipset provides stable platform for everyday computing
  • DDR4 memory support up to 32 GB for responsive multitasking
  • PCI Express 3.0 x16 slot enables dedicated graphics card installation
  • USB 3.1 Gen 2 Type-A port delivers fast data transfer

Specifications

BrandASRock
ModelB365M-HDV
CPU Socket TypeLGA 1151
ChipsetIntel B365
Memory StandardDDR4
Maximum Memory Supported32GB
PCI Express 3.0 x161x PCI Express 3.0 x16
PCI Express x161
PCI Slots1 x PCI Slot
Back I/O Ports1 x USB 3.1 Gen 2 Type-A
RJ451 x RJ45
USB 3.11 x USB 3.1
Form FactorMicro ATX

Questions about this item

What does the 32 GB maximum memory mean once the board is installed?

The four DDR4 slots can hold up to 32 GB total, so a typical 2 × 8 GB kit fills half the capacity and leaves room to double it later.

What does the PCI Express 3.0 x16 slot cap in practice?

The single full-length slot runs at PCIe 3.0 speeds, limiting any graphics card or add-in card to that generation's bandwidth.

What does the Micro ATX form factor need to fit or mount?

A Micro ATX or full-size ATX case with the standard six-hole mounting pattern will accept the board.
