ASRock
ASRock B365M Pro4 LGA 1151 Micro ATX Intel motherboard
Micro-ATX board for 8th and 9th Gen Intel CPUs with four DDR4 slots, dual Ultra M.2 sockets, six SATA ports and 7.1-channel audio
- CPU Socket TypeLGA 1151 (300 Series)
- CPU TypeSupports 9th / 8th Gen Intel Core Processors * Not backward
- Supported CPU TechnologiesTurbo Boost Technology 2.0
- ChipsetIntel B365
- Onboard Video ChipsetSupported only by CPU with integrated graphic
- Number of Memory Slots4x288pin (DDR4)
- Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
- Four DDR4 slots accept up to 64GB at 2666 MHz dual channel
- Two Ultra M.2 sockets for PCIe x4 and SATA storage devices
- Six SATA 6Gb/s ports with RAID 0/1/5/10 support
- Realtek ALC892 delivers 7.1 channel high definition audio
Socket 1151 (300 Series) Micro ATX board

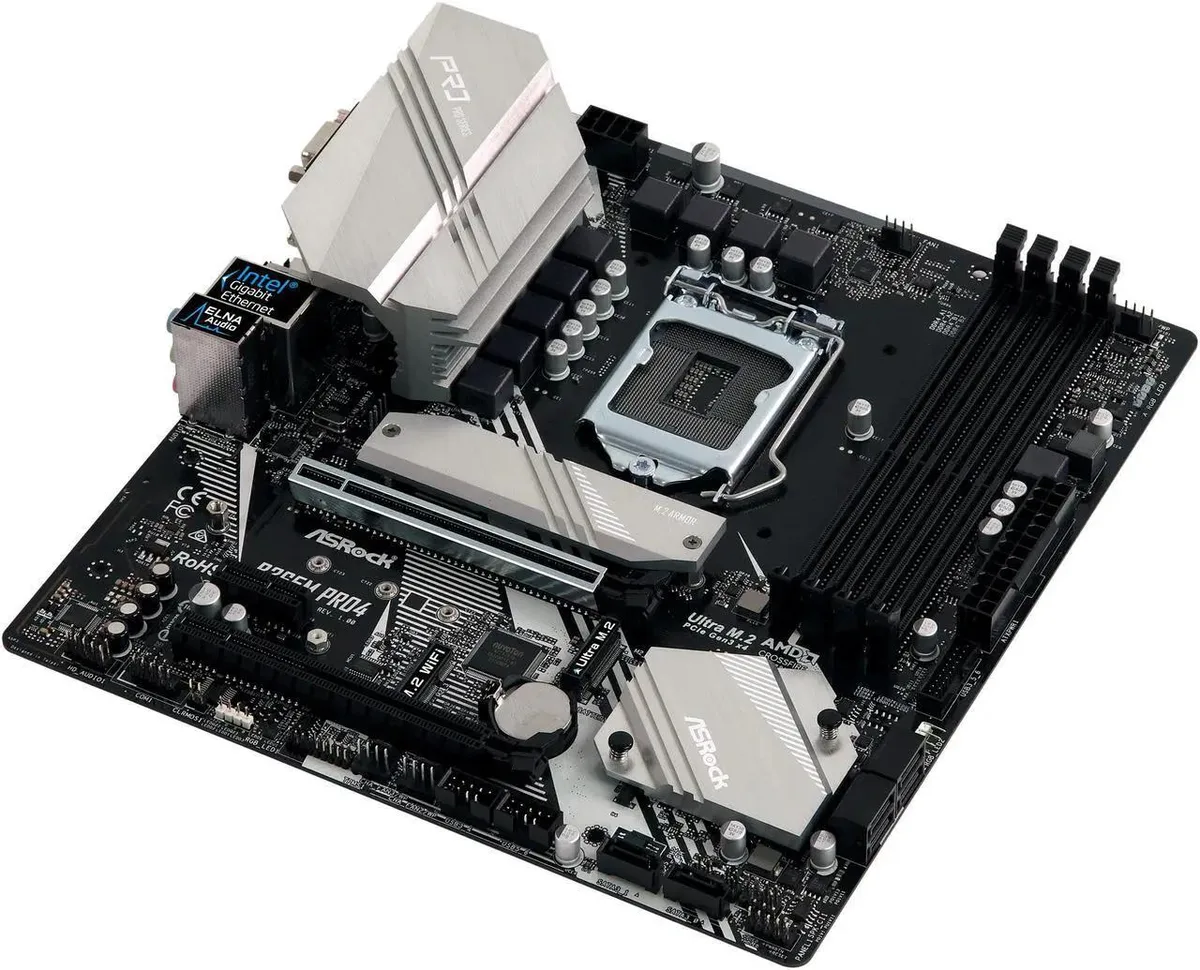

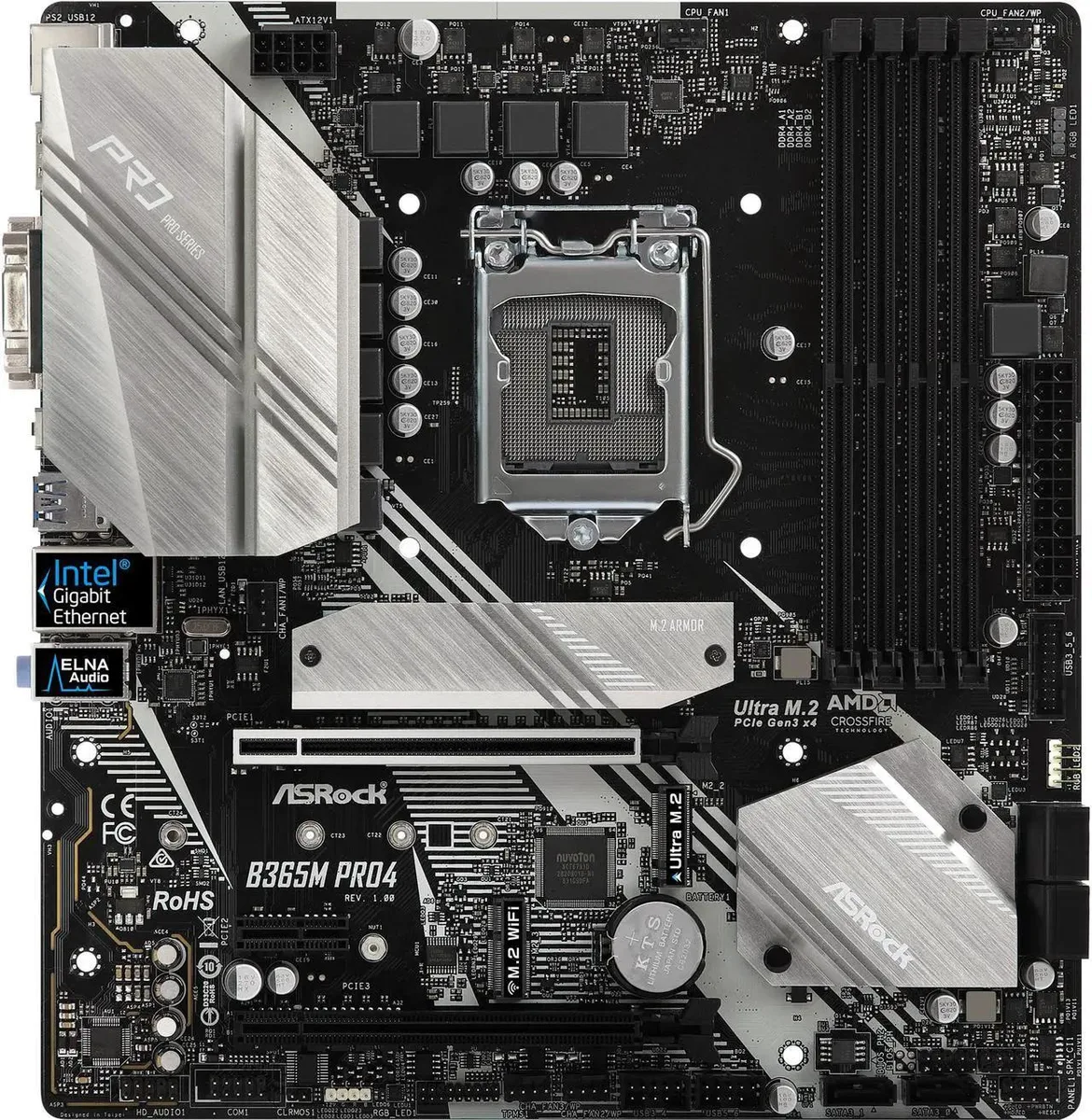

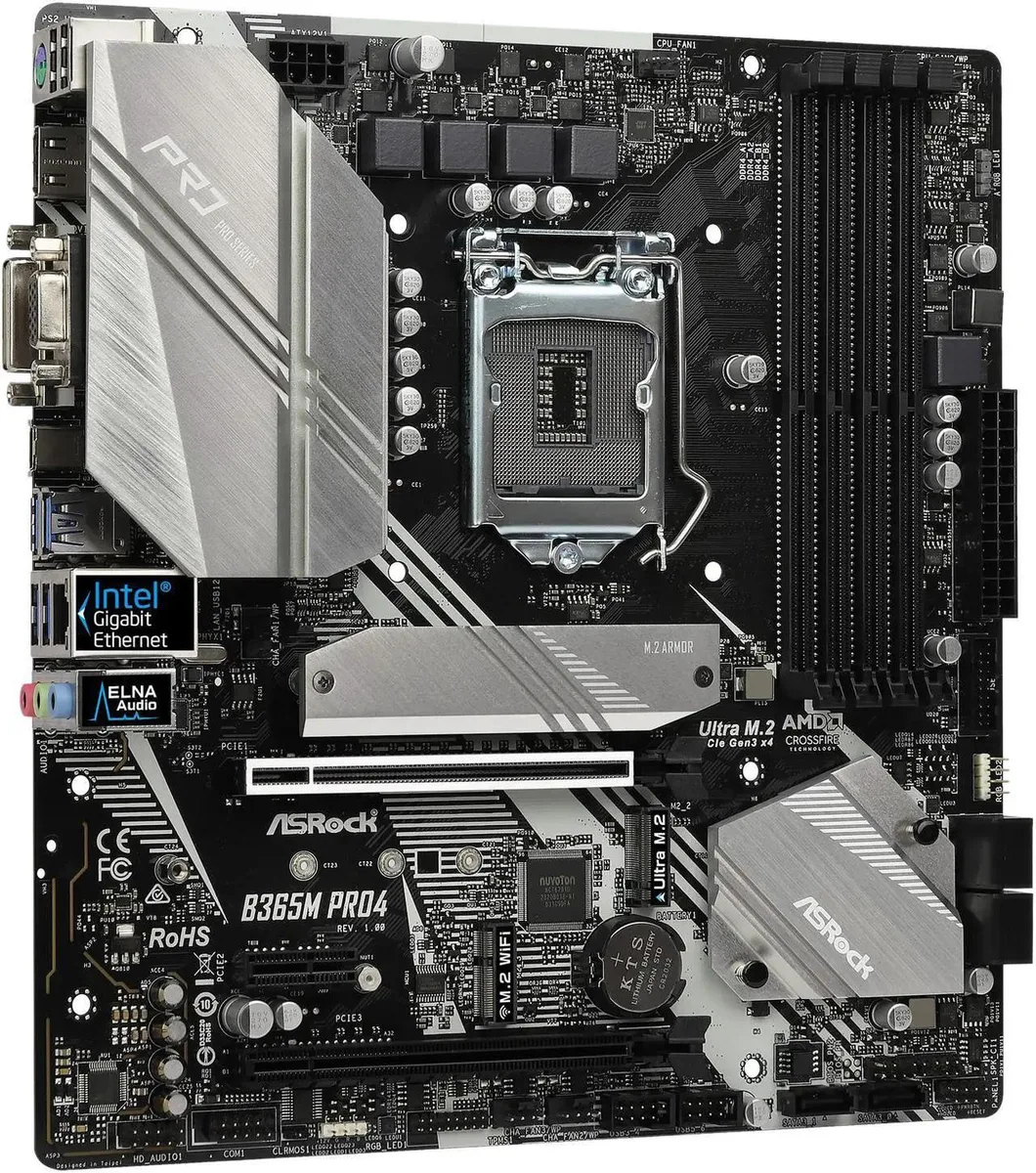

This ASRock B365M Pro4 uses the Intel B365 chipset on a Micro ATX form factor. It accepts 8th and 9th Gen Intel Core processors in an LGA 1151 (300 Series) socket. The board is not backward compatible with older LGA 1151 CPUs. Four 288pin DDR4 slots support up to 64GB in dual channel mode at 2666, 2400 or 2133 speeds.
Two PCIe 3.0 x16 slots and dual M.2 sockets
Two full length PCI Express 3.0 x16 slots provide expansion for graphics or other add in cards and both support NVMe SSD as boot disks. One Ultra M.2 socket (M2_1) takes M Key PCIe modules up to Gen3 x4 (32Gb/s) in 2242, 2260 or 2280 sizes. A second Ultra M.2 socket (M2_2) adds support for 22110 length drives and also accepts M.2 SATA3 6.0Gb/s modules. A third M.2 Socket (Key E) is reserved for a 2230 Wi Fi/BT module.
Six SATA 6Gb/s ports with RAID and 7.1 audio
Six SATA 6Gb/s connectors handle traditional SSDs and hard drives and support RAID 0, 1, 5 and 10 arrays. Realtek ALC892 codec delivers 7.1 channel high definition audio when paired with an HD front panel audio module and the appropriate driver. Intel Optane Ready certification allows compatible Optane memory modules to accelerate mechanical storage. Onboard video output functions only with a CPU that includes integrated graphics.
Highlights
- Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
- Four DDR4 slots accept up to 64GB at 2666 MHz dual channel
- Two Ultra M.2 sockets for PCIe x4 and SATA storage devices
- Six SATA 6Gb/s ports with RAID 0/1/5/10 support
- Realtek ALC892 delivers 7.1 channel high definition audio
Specifications
| Brand | ASRock |
|---|---|
| Model | B365M Pro4 |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | Supports 9th / 8th Gen Intel Core Processors * Not backward compatible with older generation of LGA 1151 CPUs. |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel B365 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 2666 / 2400 / 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16* * Supports NVMe SSD as boot disks. |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
| M.2 | 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s)* 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* * Supports Intel Optane Technology. * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
| Audio Channels | 7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN Chipset | Intel I219-V |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
| Other Connectors | 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 2 x RGB LED Headers* 1 x Addressable LED Header** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector * Support in total up to 12V/3A, 36W LED Strip. ** Supports in total up to 5V/3A, 15W LED Strip. *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W |
| Windows 11 | Supported |
| Form Factor | Micro ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.0" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment Software and UEFI: Software - ASRock A- |
| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
Questions about this item
Will a 9th-generation Intel Core i7 fit the LGA 1151 socket?
Yes, the board supports 9th and 8th Gen Intel Core processors on the LGA 1151 (300 Series) socket.
Can I install 64 GB of DDR4 memory across the four slots?
The board has four 288-pin DDR4 slots and a maximum capacity of 64 GB running in dual-channel mode.
Does the primary M.2 slot support a PCIe 3.0 x4 NVMe drive as a boot device?
The Ultra M.2 socket (M2_1) accepts M-key 2242/2260/2280 PCIe 3.0 x4 modules and supports NVMe SSD boot.
