ASRock
ASRock B460 Phantom Gaming 4 LGA 1200 Intel motherboard
An ATX board with Intel B460 chipset for 10th Gen Core CPUs, four DDR4 slots up to 128 GB, dual PCIe 3.0 x16, one Ultra M.2 and six SATA 6.0 Gb/s ports
- CPU Socket TypeLGA 1200
- CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
- Supported CPU TechnologiesTurbo Boost Technology 3.0
- ChipsetIntel B460
- Onboard Video ChipsetHardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEV
- Number of Memory Slots4x288pin (DDR4)
- Supports 10th Gen Intel Core processors on LGA 1200 socket
- Dual-channel DDR4 memory up to 2933 MT/s with 128 GB capacity
- Two PCI Express 3.0 x16 slots and one Ultra M.2 socket for NVMe storage
- Intel I219-V LAN and Realtek ALC1200 7.1-channel audio built in
- Six SATA3 6.0 Gb/s ports with RAID 0, 1, 5, 10 support
Socket LGA 1200 ATX motherboard

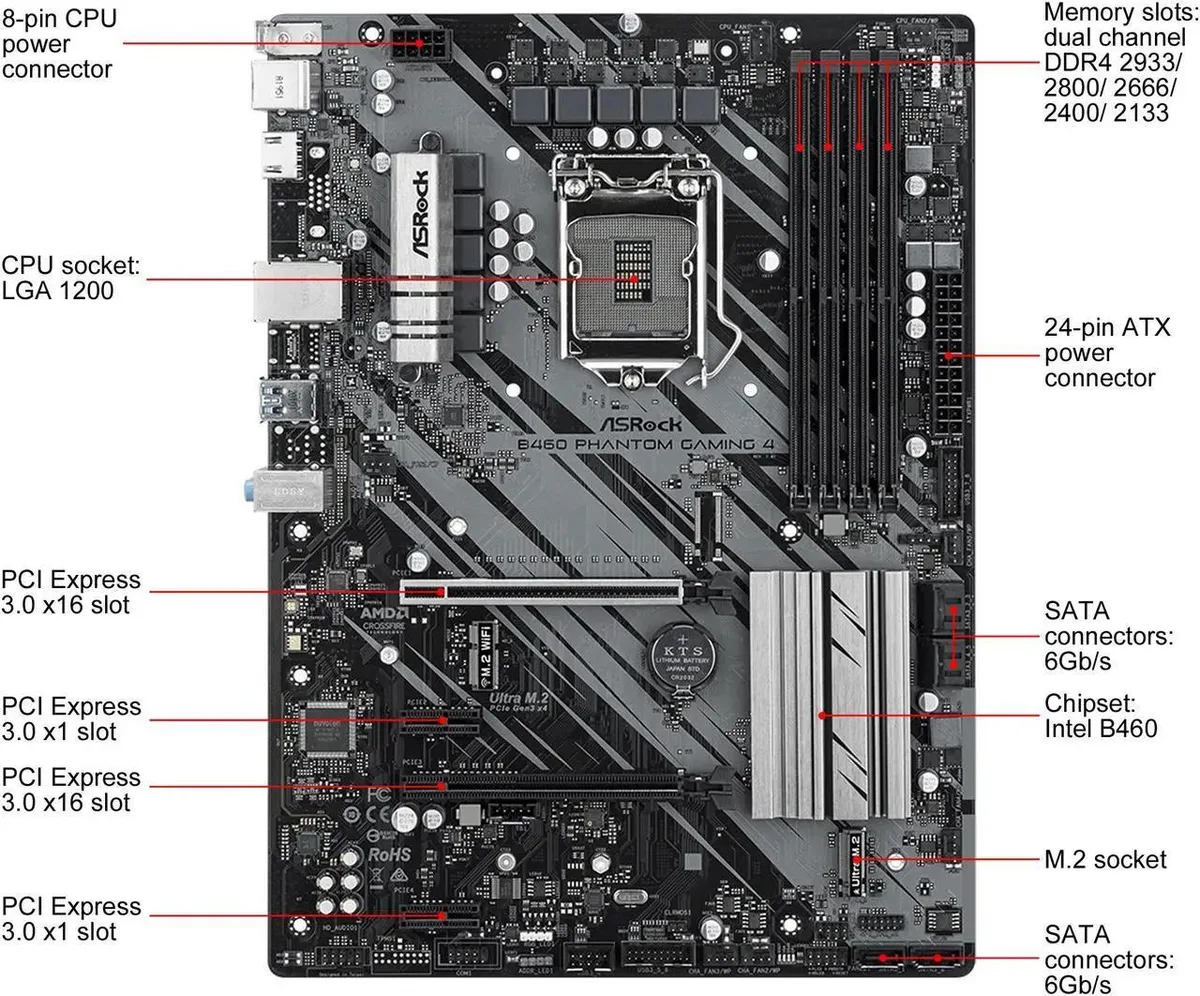

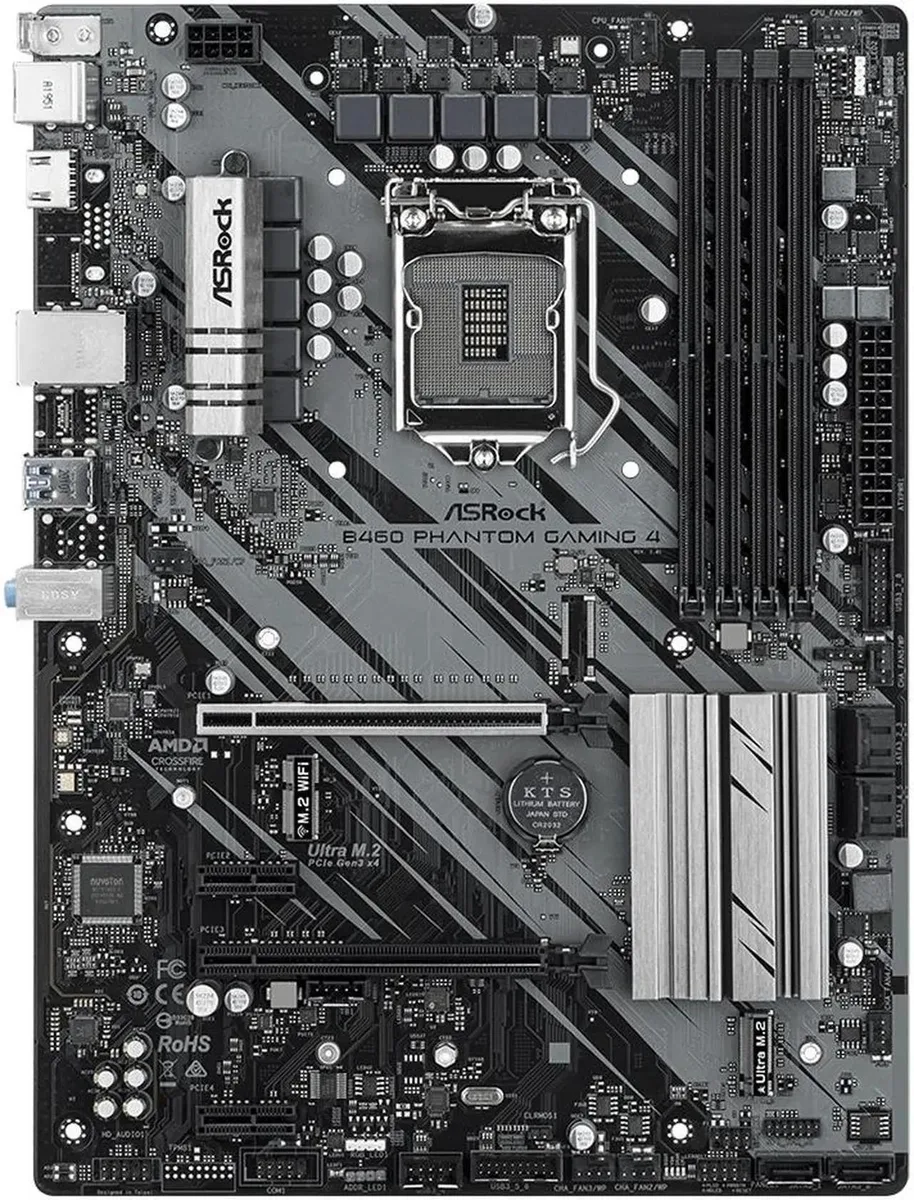

The ASRock B460 Phantom Gaming 4 is an ATX motherboard built around the Intel B460 chipset for Socket 1200 processors. It accepts 10th Gen Intel Core CPUs and provides four DDR4 memory slots supporting speeds up to 2933 MT/s in dual-channel mode. Maximum capacity reaches 128 GB of non-ECC un-buffered memory.
Builders adding 10th Gen Core CPUs
This board suits builders pairing a 10th Gen Core i9, i7, i5 or i3 with mainstream graphics and storage. It offers two PCIe 3.0 x16 slots running at x16 or x16/x4, two x1 slots, six SATA3 ports and one Ultra M.2 socket for PCIe Gen3 x4 or SATA M.2 drives. Users needing PCIe 4.0, Wi‑Fi 6E or more than two full‑size GPU slots should look elsewhere.
Sustained load on B460 VRM and chipset
Under continuous multi‑core workloads the B460 power delivery feeds the CPU without active VRM heatsinks, so temperatures rise steadily until the firmware throttles clocks. The chipset stays cool with passive cooling, while the single M.2 slot lacks a dedicated shield, letting drive temperatures climb during long sequential writes. Expect stable operation at stock settings, but limited headroom for prolonged all‑core turbo.
Highlights
- Supports 10th Gen Intel Core processors on LGA 1200 socket
- Dual-channel DDR4 memory up to 2933 MT/s with 128 GB capacity
- Two PCI Express 3.0 x16 slots and one Ultra M.2 socket for NVMe storage
- Intel I219-V LAN and Realtek ALC1200 7.1-channel audio built in
- Six SATA3 6.0 Gb/s ports with RAID 0, 1, 5, 10 support
Specifications
| Brand | ASRock |
|---|---|
| Model | B460 Phantom Gaming 4 |
| CPU Socket Type | LGA 1200 |
| CPU Type | Supports 10th Gen Intel Core Processors (Socket 1200) |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipset | Intel B460 |
| Onboard Video Chipset | Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1* Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HD |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory* * Please refer to Memory Support List on ASRock's website for more information. * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. |
| Maximum Memory Supported | 128GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)* * Supports NVMe SSD as boot disks |
| PCI Express x1 | 2 x PCI Express 3.0 x1 Slots |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| Serial ATA (SATA) | 6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* * If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. |
| M.2 | 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit |
| SATA RAID | RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17 |
| Audio Chipset | Realtek ALC1200 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Other Connectors | 1 x COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only) * Support in total up to 12V/3A, 36W LED Strip. ** Support in total up to 5V/3A, 15W LED Strip. *** The CPU Fan Connector supports the CPU fan of maximum 1A |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 8.8" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector |
| Features | Gaming Armor: Memory - 15µ Gold Contact in DIMM Slots Internet - Intel LAN Audio - Nahimic Audio Unique Feature: ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU |
| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets |
Questions about this item
Will a 10th Gen Core i5 fit this board and run at its rated memory speed?
Yes, the LGA 1200 socket accepts 10th Gen Core i5 processors. With a Core i5 the board supports DDR4 up to 2666 MT/s; faster modules will run at that speed.
Can I install a PCIe 3.0 x4 NVMe SSD as my boot drive?
The Ultra M.2 slot (M2_2) supports M-key 2280 or 22110 modules up to PCIe 3.0 x4 (32 Gb/s) and can be used as a boot device.
How many SATA drives can I connect if I also use the M.2 slot for a SATA SSD?
Six SATA3 ports are available, but populating M2_2 with a SATA-type M.2 drive disables SATA3_0, leaving five active SATA connections.
