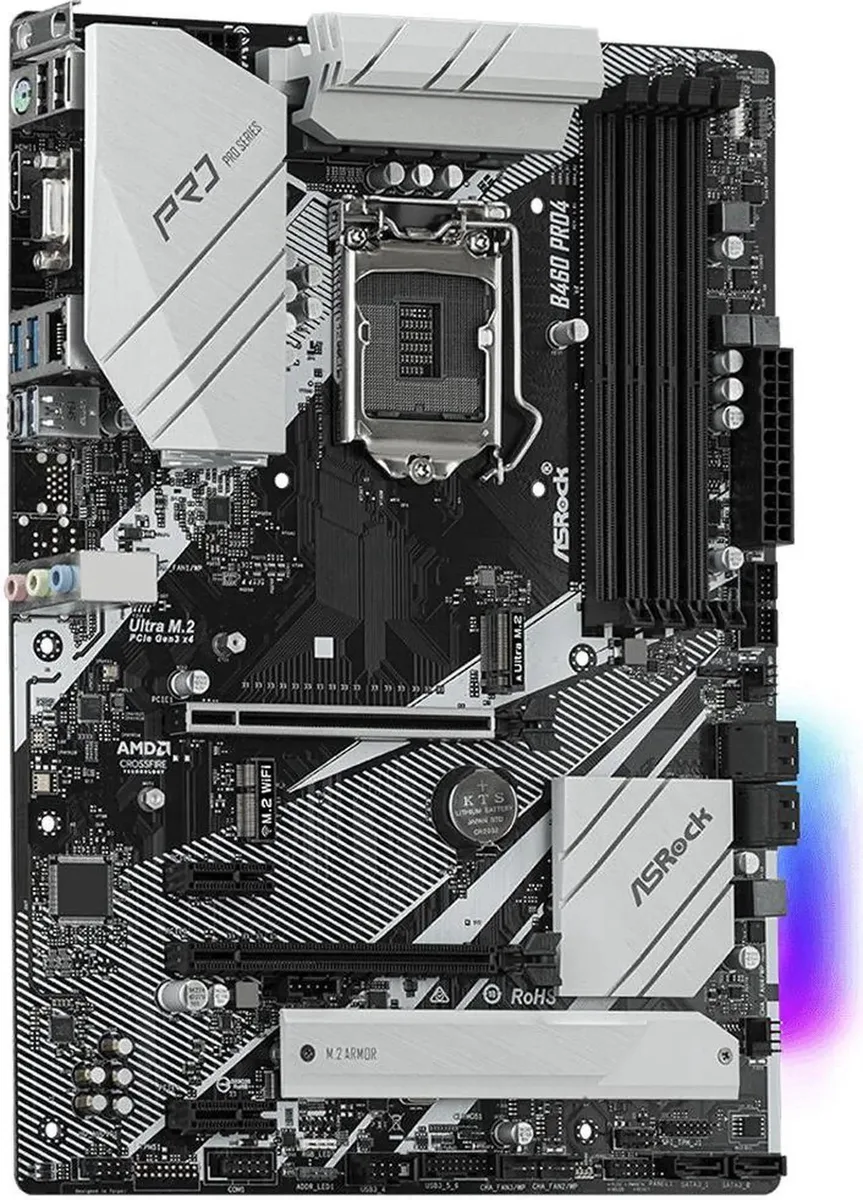

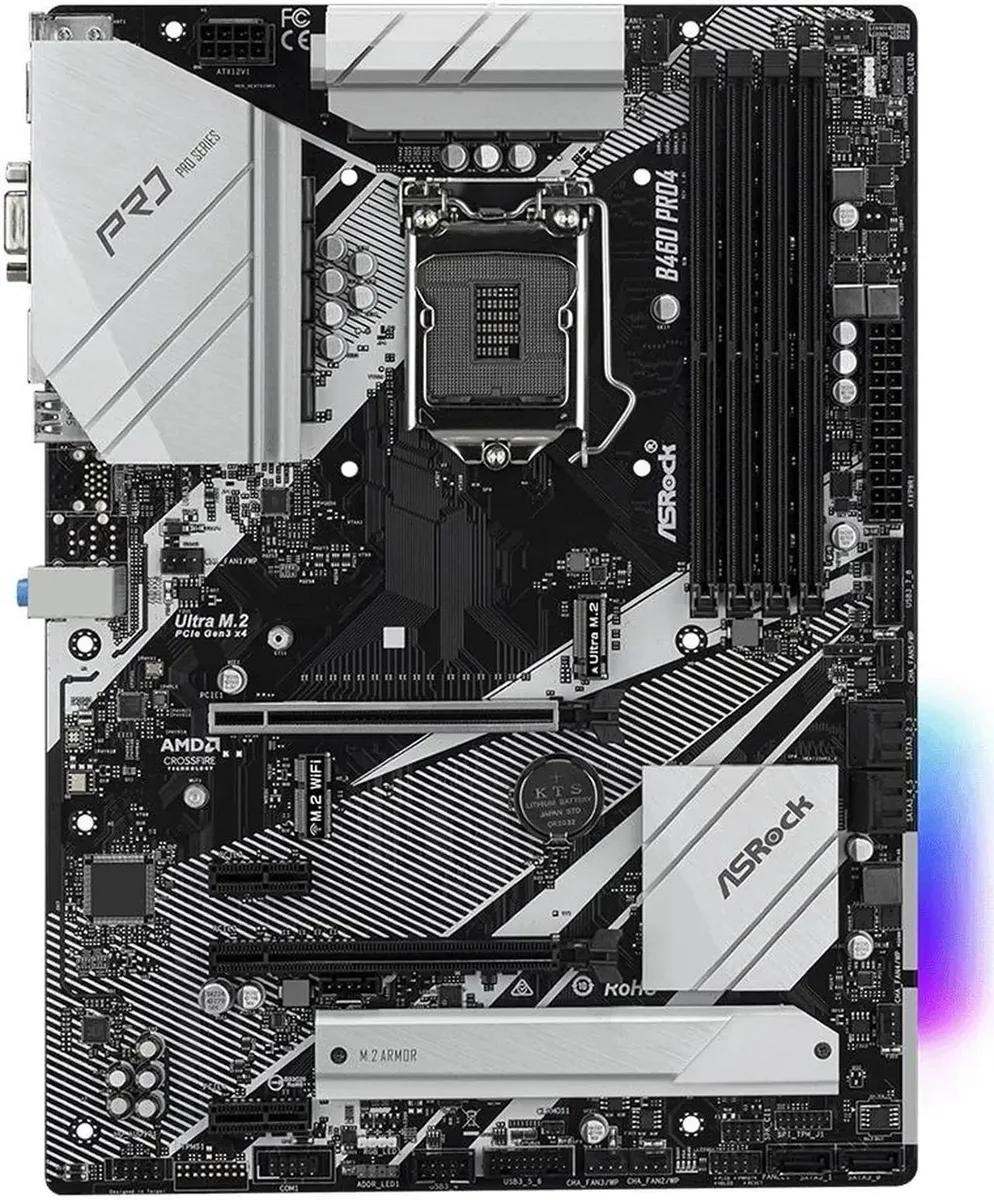

ATX motherboard with black PCB, silver heatsinks, LGA 1200 socket, four DDR4 slots, two full-length PCIe x16 slots, six SATA ports

ASRock

ASRock B460 PRO4 LGA 1200 Intel motherboard

SKU CH-36HG-KEW10

ATX board for 10th Gen Intel Core processors with four DDR4 slots up to 2933 MHz, dual PCIe 3.0 x16, two Ultra M.2 sockets, six SATA3 ports and 7.1-channel Realtek audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel B460
  • Onboard Video ChipsetHardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEV
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB memory in dual-channel mode
  • Ultra M.2 socket delivers PCIe 3.0 x4 speeds for fast NVMe storage
  • Six SATA3 ports with RAID 0, 1, 5, 10 support expand storage flexibility
  • Realtek ALC1200 codec provides 7.1-channel high-definition audio

ASRock B460 PRO4 LGA 1200 Intel Motherboard

This ATX motherboard uses the Intel B460 chipset and the LGA 1200 socket. It is built for 10th Gen Intel Core processors and supports DDR4 memory up to 2933 MT/s. The board provides dual-channel memory architecture with four slots for up to 128 GB total capacity.

Who this suits and who should look elsewhere

Builders pairing a 10th Gen Intel Core i9, i7, i5 or i3 with DDR4 memory will find native support for speeds up to 2933 MT/s on Core i9 and i7 models. Systems needing PCIe 4.0 connectivity or 11th Gen processor compatibility should choose a different chipset.

The spec that decides fit

The LGA 1200 socket combined with the B460 chipset locks CPU choice to 10th Gen Intel Core processors only. If the planned CPU is not a 10th Gen LGA 1200 part, this motherboard will not work.

Highlights

  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB memory in dual-channel mode
  • Ultra M.2 socket delivers PCIe 3.0 x4 speeds for fast NVMe storage
  • Six SATA3 ports with RAID 0, 1, 5, 10 support expand storage flexibility
  • Realtek ALC1200 codec provides 7.1-channel high-definition audio

Specifications

BrandASRock
ModelB460 PRO4
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel B460
Onboard Video ChipsetHardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and D-Sub ports by independent display controllers
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports D-Sub with max.
Number of Memory Slots4x288pin (DDR4)
Memory StandardSupports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory*
* Please refer to Memory Support List on ASRock's website for more information.
* Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported128GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)*
* Supports NVMe SSD as boot disks
PCI Express x12 x PCI Express 3.0 x1 Slots
Other Slots1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Serial ATA (SATA)6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.21 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Supports Intel Optane Technology (M2_1)
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Intel Optane ReadyYes
SATA RAIDRAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17
Audio ChipsetRealtek ALC1200
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Back I/O Ports1 x Antenna Bracket
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x COM Port Header
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)
* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 8.8"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Steel Slots
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, PCH, VCCIO, VCCST, VCCSA Voltage Multi-ad
Package ContentsAccessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket

Questions about this item

What is the maximum memory capacity the board can address?

The motherboard supports up to 128 GB of DDR4 memory across four slots.

How many SATA 6.0 Gb/s ports are available for drives?

Six SATA3 connectors are provided, with RAID 0, 1, 5 and 10 support via Intel Rapid Storage Technology 17.

Which M.2 slot provides PCIe 3.0 x4 bandwidth for an NVMe drive?

The M2_1 Ultra M.2 socket delivers up to 32 Gb/s over PCIe 3.0 x4 for M-key 2280 modules.
