ASRock
ASRock B460M-HDV LGA 1200 Intel motherboard
Micro-ATX board for 10th Gen Intel Core CPUs with dual-channel DDR4 up to 2933 MHz, one PCIe 3.0 x16 slot, two PCIe 3.0 x1 slots, Ultra M.2 up to 32 Gb/s, four SATA3 ports and 7.1-channel audio
- CPU Socket TypeLGA 1200
- CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
- Supported CPU TechnologiesTurbo Boost Technology 3.0
- ChipsetIntel B460
- Onboard Video ChipsetHardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEV
- Number of Memory Slots2x288pin (DDR4)
- Supports 10th Gen Intel Core processors via LGA 1200 socket
- Dual-channel DDR4 memory up to 64 GB at 2933 MHz
- Ultra M.2 slot delivers PCIe Gen3 x4 speeds for fast NVMe storage
- Four SATA3 ports with RAID 0, 1, 5, 10 support
- Realtek ALC887 codec provides 7.1-channel high-definition audio

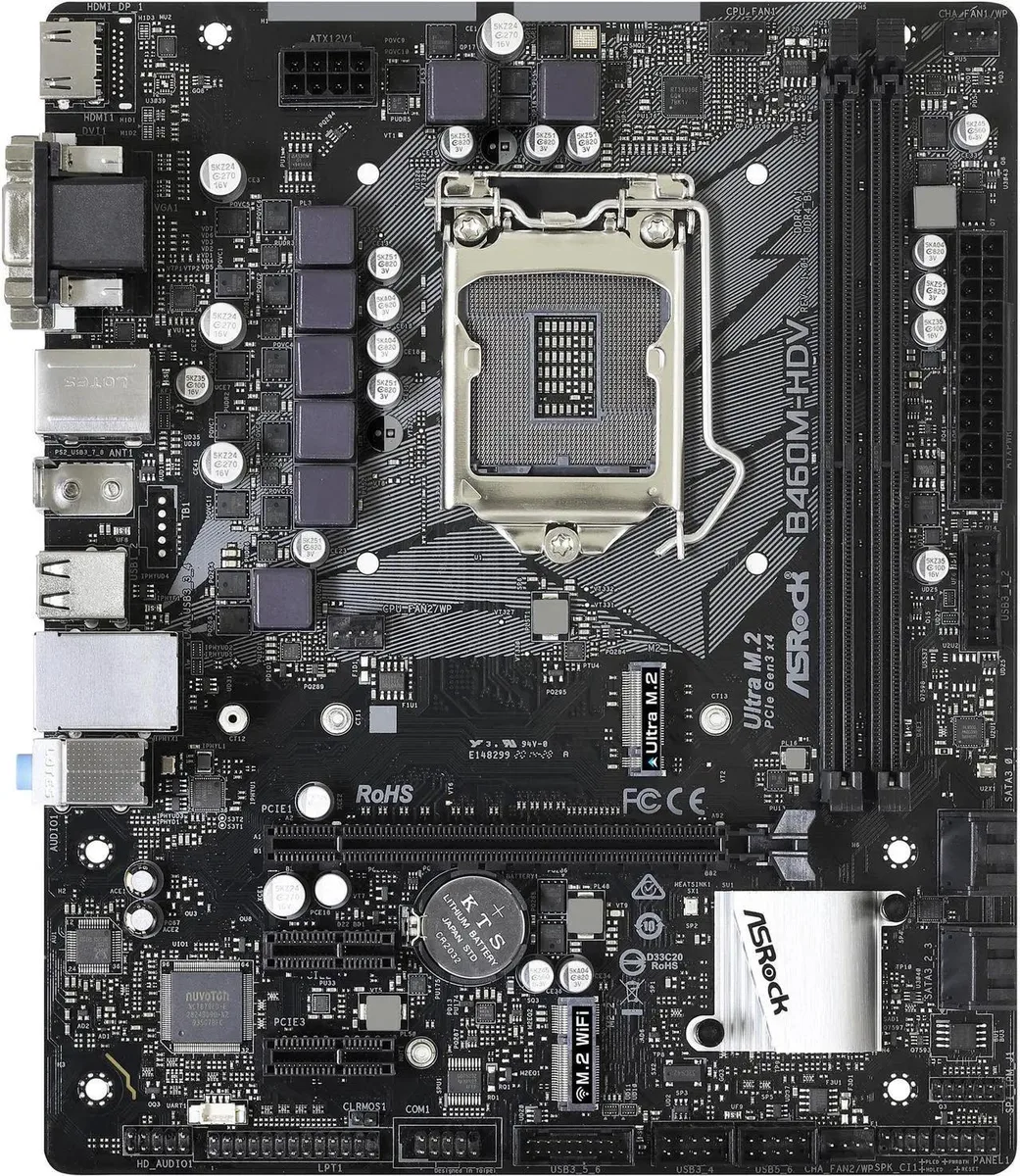

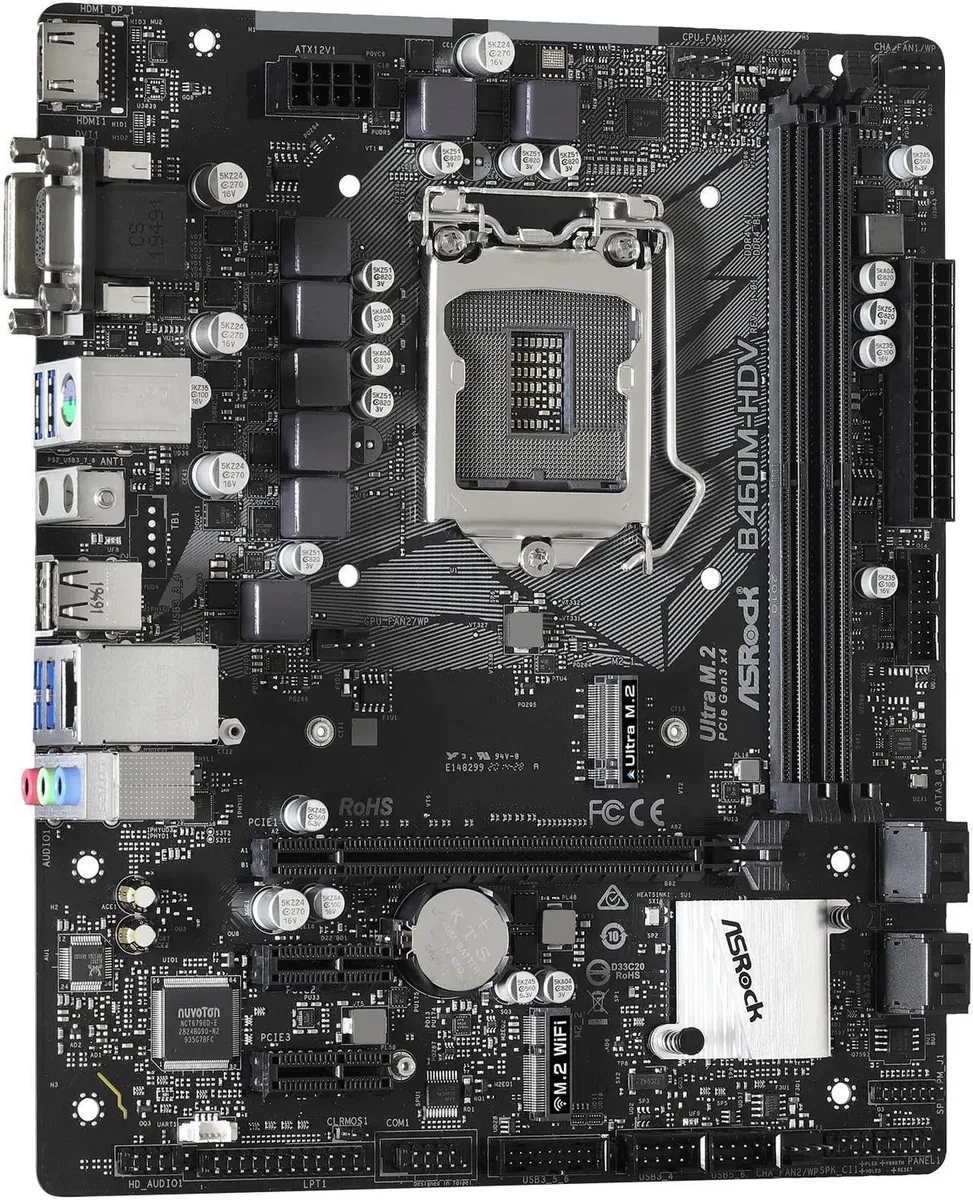

Socket LGA 1200 micro-ATX board

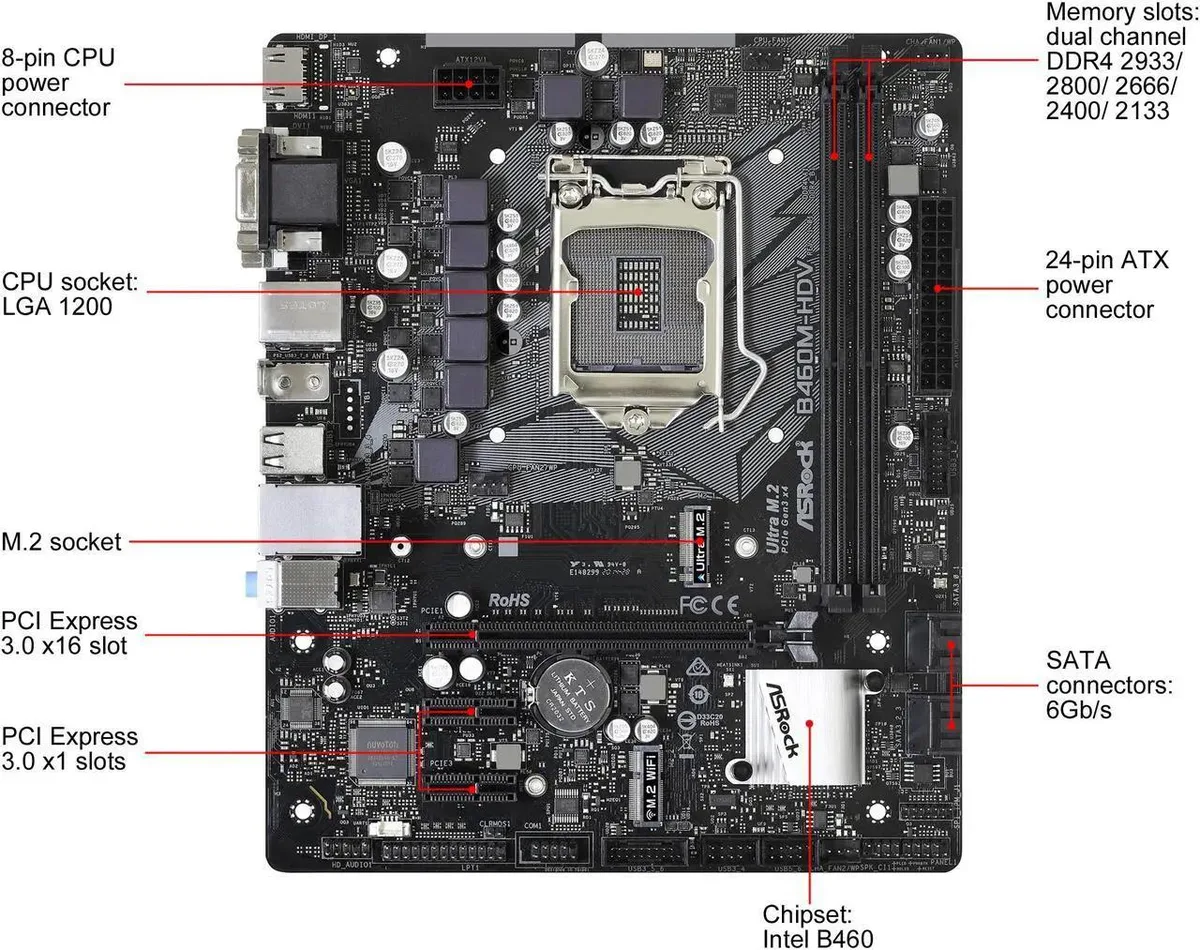

The ASRock B460M-HDV uses the Intel B460 chipset on a micro-ATX form factor. It accepts 10th generation Intel Core processors in the LGA 1200 socket. Two DDR4 slots support up to 64 GB of non-ECC memory at speeds up to 2933 MT/s. A single PCI Express 3.0 x16 slot and two x1 slots handle expansion cards.
Budget builders and office upgrades
This board suits builders who need a compact platform for 10th generation Intel CPUs without overclocking features. The dual memory slots limit maximum capacity to 64 GB and restrict upgrade paths compared to four-slot alternatives. Users requiring multiple graphics cards, extensive storage arrays or advanced connectivity should consider larger ATX models with richer I/O.
Steady operation within B460 limits
Under sustained load the B460 chipset runs within its defined thermal envelope without active cooling on the heatsink. The voltage regulator area relies on case airflow rather than dedicated heatsinks. Turbo Boost 3.0 operates normally for short bursts; extended all-core workloads will settle at the processor base frequency once power limits are reached.
Highlights
- Supports 10th Gen Intel Core processors via LGA 1200 socket
- Dual-channel DDR4 memory up to 64 GB at 2933 MHz
- Ultra M.2 slot delivers PCIe Gen3 x4 speeds for fast NVMe storage
- Four SATA3 ports with RAID 0, 1, 5, 10 support
- Realtek ALC887 codec provides 7.1-channel high-definition audio
Specifications
| Brand | ASRock |
|---|---|
| Model | B460M-HDV |
| CPU Socket Type | LGA 1200 |
| CPU Type | Supports 10th Gen Intel Core Processors (Socket 1200) |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipset | Intel B460 |
| Onboard Video Chipset | Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DVI-D with max. resolutio |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory* * Please refer to Memory Support List on ASRock's website for more information. * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. |
| Maximum Memory Supported | 64GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot* * Supports NVMe SSD as boot disks |
| PCI Express x1 | 2 x PCI Express 3.0 x1 Slots |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| Serial ATA (SATA) | 4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug |
| M.2 | 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* * Supports Intel Optane Technology * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit |
| Intel Optane Ready | Yes |
| SATA RAID | RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17 |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Other Connectors | 1 x Print Port Header 1 x COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** CPU_FAN2/WP, CHA_FAN1/ |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 8.9" x 7.4" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment Software and UEFI: Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock M |
| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets |
Questions about this item
Which 10th Gen Intel Core processor socket does this LGA 1200 board require?
It requires an LGA 1200 socket 10th Gen Intel Core processor; the board will not accept earlier or later socket types.
Will my existing DDR4 2666 memory run at its rated speed on the two 288-pin slots?
Yes, the board supports DDR4 2666 non-ECC un-buffered memory in dual-channel mode up to 64 GB total.
How can I confirm the Ultra M.2 socket is running at PCIe 3.0 x4 after installing an NVMe drive?
Enter the BIOS and verify the M.2 slot shows a PCIe 3.0 x4 link width; the OS device manager should also report a Gen3 x4 connection.
