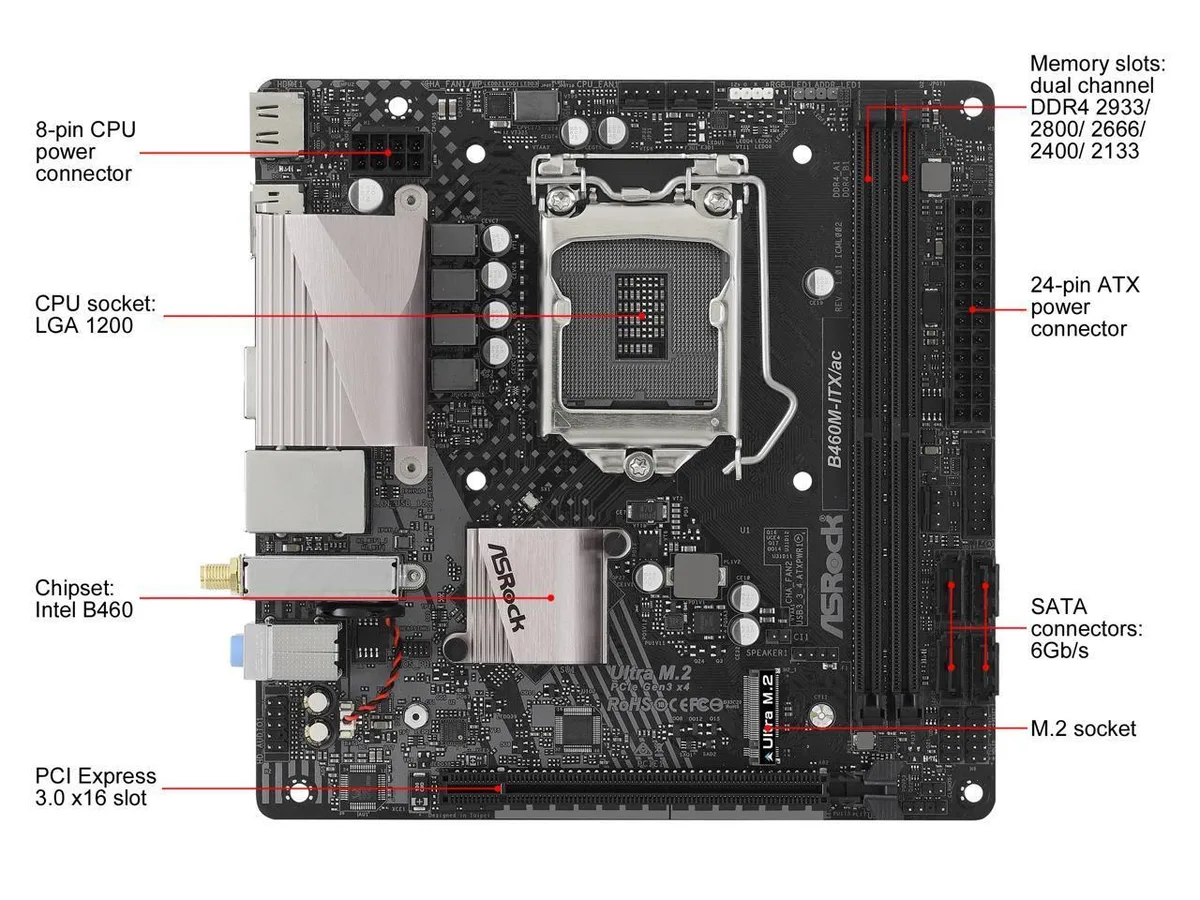

Green Mini-ITX motherboard with silver heatsinks and black PCB

ASRock

ASRock B460M-ITX/AC Intel motherboard

SKU CH-B7FP-B5XQG

Mini-ITX board for 10th Gen Intel Core CPUs with DDR4 up to 2933, one PCIe 3.0 x16 slot, Ultra M.2 at 32 Gb/s, four SATA3 ports, Intel I219-V LAN, Wi-Fi 802.11ac, and 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel B460
  • Onboard Video ChipsetHardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEV
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 10th Gen Intel Core processors with LGA 1200 socket
  • Dual-channel DDR4 memory up to 2933 MT/s for 64 GB capacity
  • Ultra M.2 slot delivers PCIe 3.0 x4 bandwidth for fast NVMe storage
  • Intel I219-V LAN plus bundled Wi-Fi 802.11ac module for wireless connectivity
  • Dual 4K display outputs via HDMI 1.4 and DisplayPort 1.4

Compact Intel board for 10th Gen builds

The ASRock B460M-ITX/AC fits the Mini-ITX footprint and accepts LGA 1200 processors from the 10th Generation Intel Core line-up. Two DDR4 slots support up to 64 GB in dual-channel mode with speeds listed at 2933, 2800, 2666, 2400 and 2133. Integrated graphics provide DirectX 12 and OpenGL 4.5 plus hardware decode for H.264, HEVC 8-bit and 10-bit, VP8 and VP9.

Mini-ITX layout with M.2 and dual video outputs

A single PCI Express 3.0 x16 slot handles a graphics card or an NVMe drive as a boot device. One Ultra M.2 socket takes 2280 modules running at SATA3 6.0 Gb/s or PCIe Gen3 x4 up to 32 Gb/s. Four SATA3 ports offer RAID 0, 1, 5 and 10 through Intel Rapid Storage Technology 17. Rear I/O includes HDMI 1.4 at 4096×2160 30 Hz and DisplayPort 1.4 at 4096×2304 60 Hz.

Intel I219-V LAN and Realtek ALC887 audio

The onboard Intel I219-V controller manages wired networking without extra chips. Realtek ALC887 delivers 7.1-channel sound for everyday media. A vertical M.2 Key E socket ships with a bundled WiFi 802.11ac module mounted on the rear panel. Standard 24-pin and 8-pin CPU power connectors supply the board and the installed processor.

Highlights

  • Supports 10th Gen Intel Core processors with LGA 1200 socket
  • Dual-channel DDR4 memory up to 2933 MT/s for 64 GB capacity
  • Ultra M.2 slot delivers PCIe 3.0 x4 bandwidth for fast NVMe storage
  • Intel I219-V LAN plus bundled Wi-Fi 802.11ac module for wireless connectivity
  • Dual 4K display outputs via HDMI 1.4 and DisplayPort 1.4

Specifications

BrandASRock
ModelB460M-ITX/AC
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors (Socket 1200)
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel B460
Onboard Video ChipsetHardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports Displa
Number of Memory Slots2x288pin (DDR4)
Memory StandardSupports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory*
* Please refer to Memory Support List on ASRock's website for more information.
* Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported64GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
* Supports NVMe SSD as boot disks
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
Serial ATA (SATA)4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.21 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)
** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Intel Optane ReadyYes
SATA RAIDRAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17
Audio ChipsetRealtek ALC887
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANIntel 802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433Mbps
BluetoothSupports Bluetooth 4.2 / 3.0 + High speed class II
Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x Chassis Intrusion Header
1 x RGB LED Header*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x Chassis Fan Connector (4-pin)****
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximu
Windows 11Supported
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock Super Alloy
- Premium 60A Power Choke
- 50A Dr.MOS
- Sapphire Black PCB
- High Density Glass Fabric PCB Intel 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.05V, VCCIO, VCCSA Voltage Multi-adjustment
Software:
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full
Package ContentsAccessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5 GHz Antennas
- 1 x Screw for M.2 Socket

Questions about this item

What PCI Express generation and lane width does the single x16 slot on the ASRock B460M-ITX/AC provide?

The board has one PCI Express 3.0 x16 slot operating in x16 mode, which also supports NVMe SSDs as boot disks.

What physical space and socket type does the ASRock B460M-ITX/AC require for the CPU and memory?

It uses an LGA 1200 socket for 10th Gen Intel Core processors and has two 288-pin DDR4 slots supporting up to 64 GB in dual-channel mode.

How is the bundled Wi-Fi module installed on the ASRock B460M-ITX/AC, and what step is often missed?

The Wi-Fi 802.11ac module comes pre-installed in the vertical M.2 Key E socket on the rear I/O; the step often missed is attaching the two external antenna cables to the module before mounting the board in the case.
