Green micro-ATX board with black sockets and silver heatsinks

ASRock

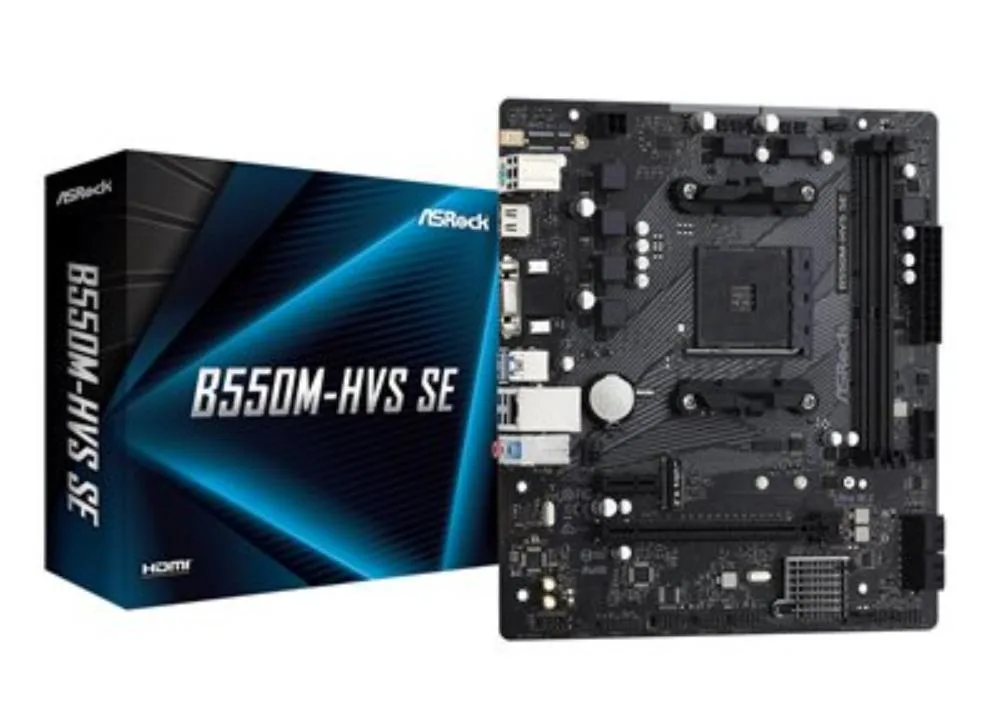

ASRock B550M-HVS SE AMD motherboard

SKU CH-AA92-V6PX8

Micro-ATX AM4 board with AMD PRO 565 chipset supports Ryzen 3000 to 5000 series, up to 64 GB DDR4, PCIe 4.0 x16, Ultra M.2, Gigabit LAN, HDMI, VGA and four USB 3.2 Gen 1 ports

  • Compact micro-ATX board fits small cases
  • AMD PRO 565 chipset supports Ryzen 3000 to 5000 series CPUs
  • Dual-channel DDR4 up to 64 GB at 3200 MHz native
  • PCIe 4.0 x16 plus Ultra M.2 slot for fast GPU and storage
  • Gigabit LAN, HDMI, VGA and USB 3.2 Gen 1 built in

Micro-ATX AM4 Platform

The ASRock B550M-HVS SE is a micro-ATX motherboard built around the AMD PRO 565 chipset for Socket AM4 processors. It supports Ryzen 3000, 4000 G-Series and 5000 series CPUs in a compact form factor suited to smaller chassis. Dual-channel DDR4 memory runs up to 64 GB across two 288-pin slots with a wide range of supported bus clocks including 3200 MHz and overclocked profiles up to 4733 MHz. Onboard graphics output via HDMI and VGA requires a compatible APU.

Passive Chipset Cooling

The PRO 565 chipset operates without an active fan, eliminating a common noise source and reducing long-term dust buildup. Power delivery is handled through a standard 24-pin ATX connector and an 8-pin CPU power header feeding the socket and two DIMM slots. A Realtek RTL8111H controller provides a single Gigabit Ethernet port for wired networking. HD Audio with 8-channel output connects through line-in and line-out mini-jacks on the rear panel.

Two DIMMs One Full-Length Slot

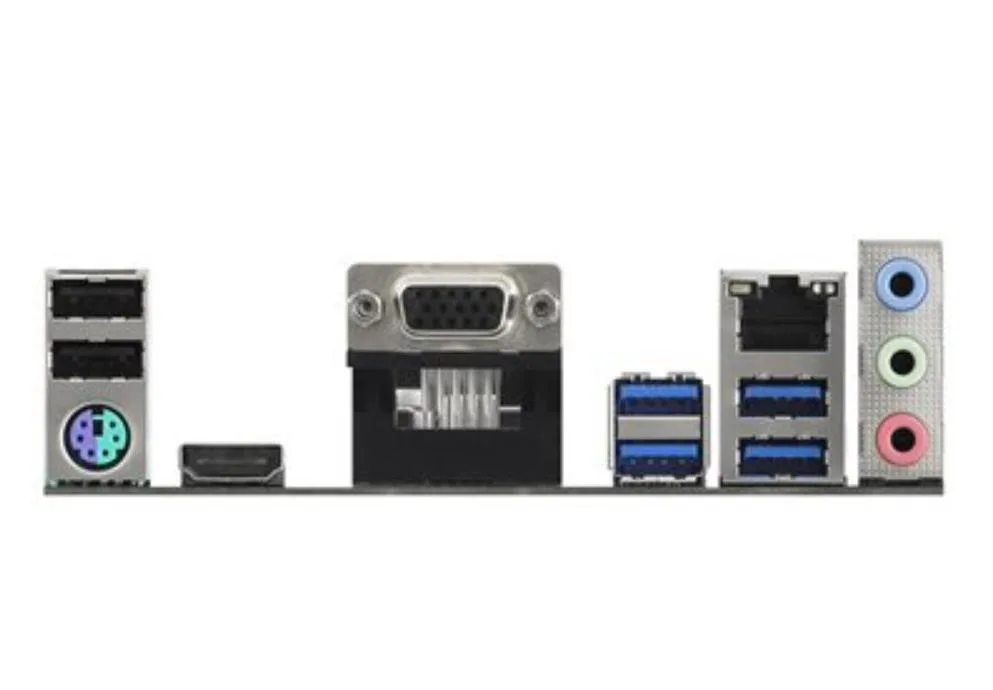

Expansion is limited to one PCIe 4.0 x16 slot for a graphics card and one PCIe 3.0 x1 slot for add-in cards. Storage connects through four SATA 600 ports supporting RAID 0, 1 and 10 plus a single Ultra M.2 Key M slot accepting 2242, 2260 or 2280 drives via PCIe 3.0 or SATA. Rear I/O supplies four USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, PS/2 combo, HDMI, VGA and LAN. Builders needing more than two memory modules, a second x16 slot or additional M.2 sockets should consider a larger board.

Highlights

  • Compact micro-ATX board fits small cases
  • AMD PRO 565 chipset supports Ryzen 3000 to 5000 series CPUs
  • Dual-channel DDR4 up to 64 GB at 3200 MHz native
  • PCIe 4.0 x16 plus Ultra M.2 slot for fast GPU and storage
  • Gigabit LAN, HDMI, VGA and USB 3.2 Gen 1 built in

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the CPU into the Socket AM4 on this micro ATX board, and what step is often missed?

Align the gold triangle on the Ryzen processor with the socket corner marker, lower the retention arm fully until it clicks, then connect the 4-pin CPU power cable before first boot.

What maintenance or replacement will the Ultra M.2 slot or SATA-600 ports need over time?

The M.2 slot and four SATA-600 connectors are passive interfaces; they require no scheduled maintenance unless a drive fails or you upgrade storage.

Which limit appears first when the PCIe 4.0 x16 slot runs sustained heavy loads?

The single PCIe 4.0 x16 slot shares bandwidth with the Ultra M.2; populating both can reduce the graphics slot to x8 speeds under continuous throughput.
