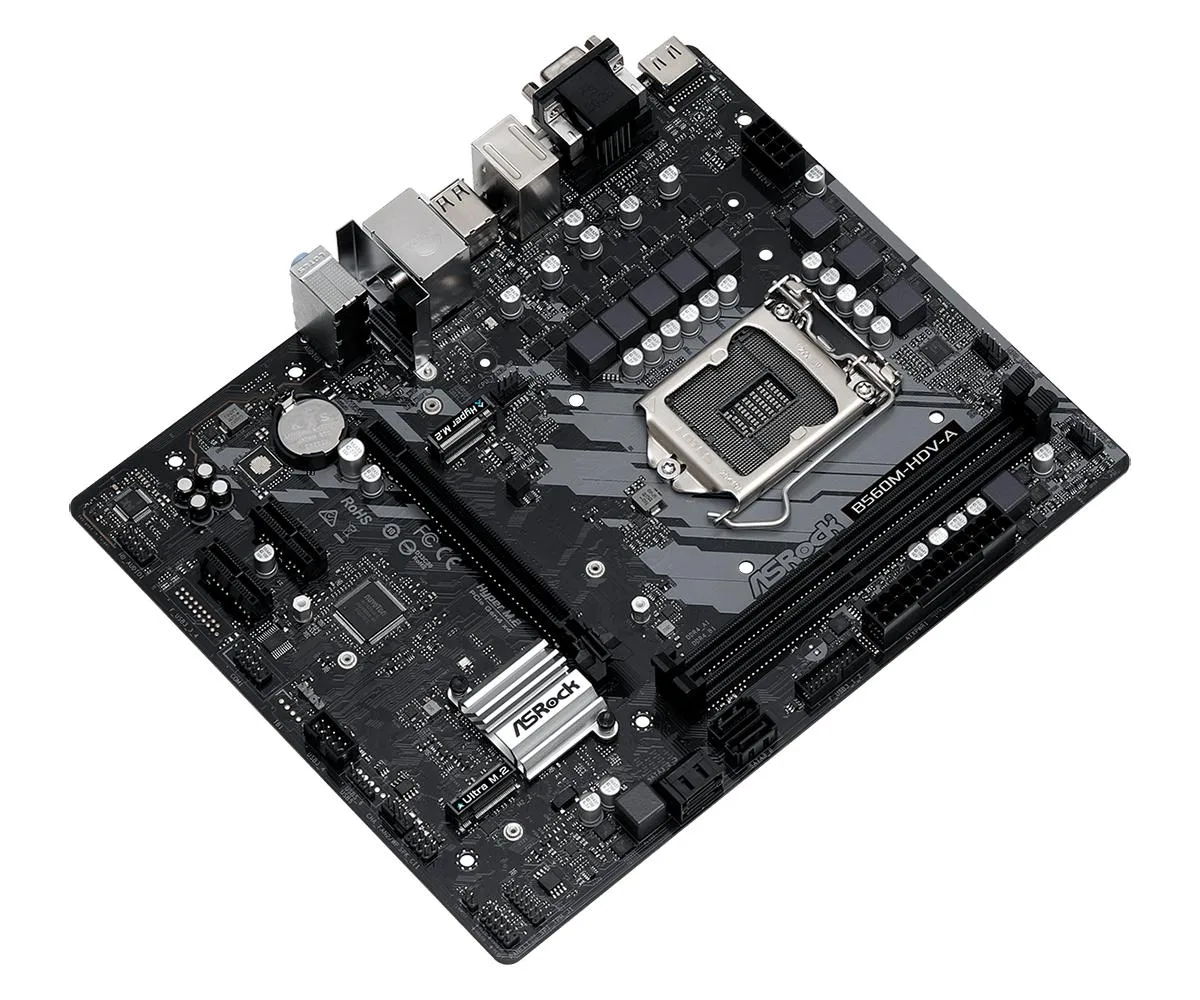

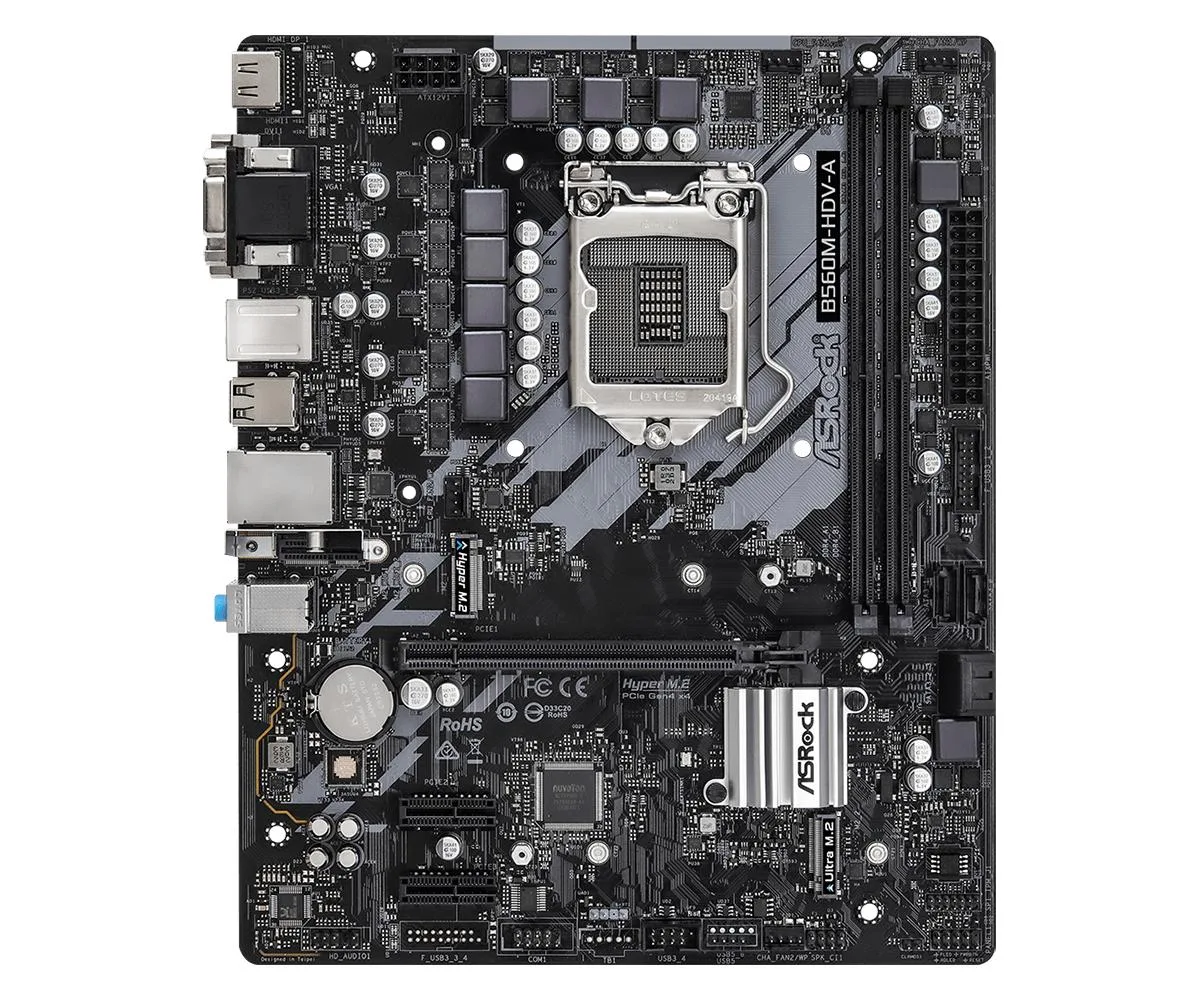

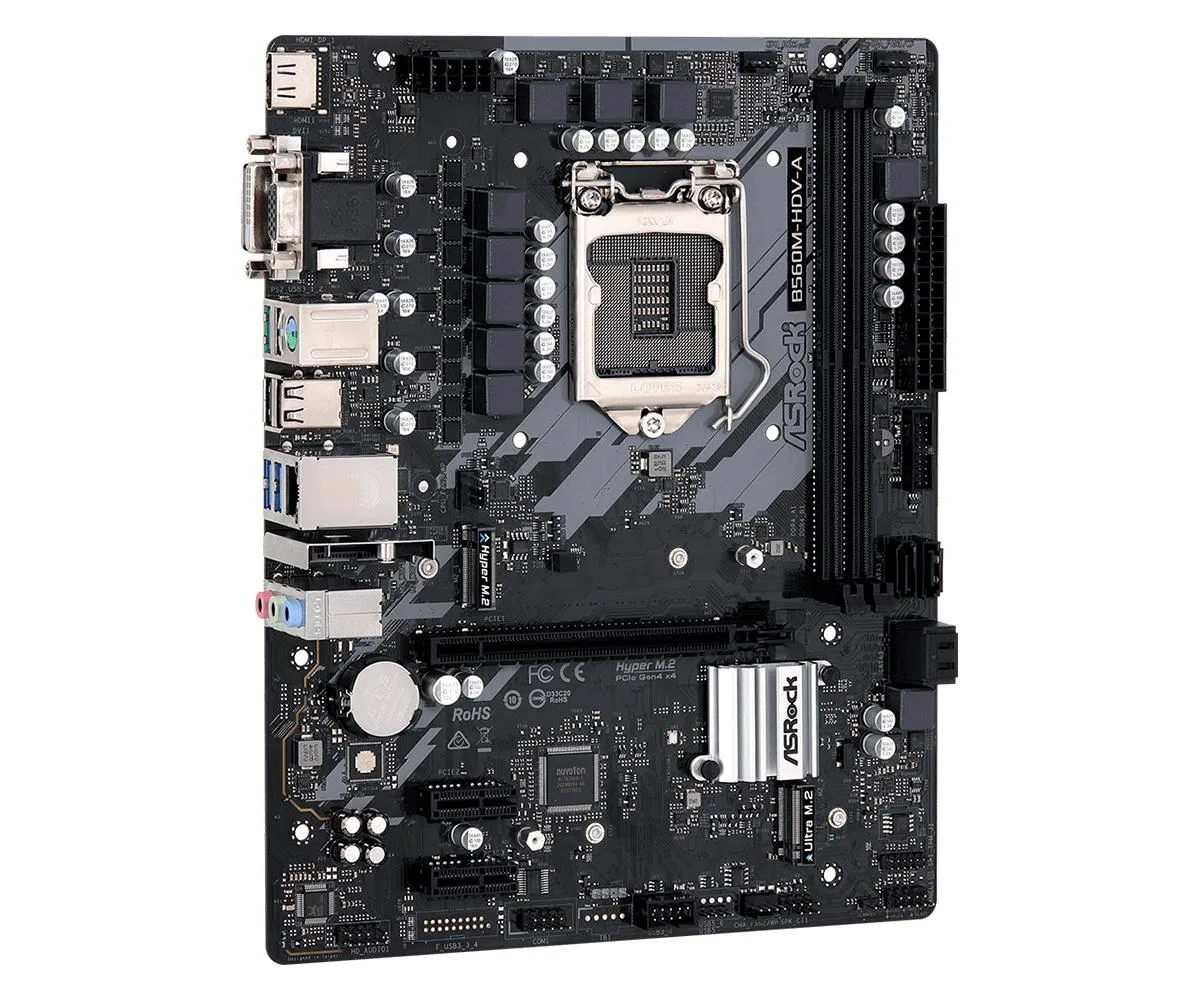

Compact micro-ATX motherboard with black PCB and silver PCIe slots

ASRock

ASRock B560M-HDV-A Intel motherboard DDR4 5000MHz (OC)

SKU CH-TSTY-MJ71B

Micro-ATX board for 10th and 11th generation Intel processors with DDR4 memory up to 5000MHz overclocked, PCIe 4.0 graphics slot, dual M.2 storage sockets, and 7.1 channel audio

  • CPU TypeIntel Core 10th Gen (LGA 1200)
  • Supports 10th and 11th generation Intel Core processors via LGA 1200 socket
  • DDR4 memory up to 5000 MHz overclocked on 11th Gen CPUs
  • PCIe 4.0 x16 slot enables high-speed graphics and storage
  • 1 channel audio with Realtek ALC897 codec for immersive sound
  • Dual M.2 slots with PCIe 4.0 x4 and PCIe 3.0 x4 plus SATA3 support

B560 chipset board for 10th and 11th Gen Intel Core

The ASRock B560M-HDV-A fits the LGA 1200 socket and runs on the Intel B560 chipset. It targets builders pairing 10th or 11th generation Core processors with dual-channel DDR4 memory up to 64 GB capacity. Onboard video outputs include HDMI, DVI-D and D-Sub for systems without a discrete graphics card.

Straightforward ATX install with two memory slots

Mounting follows the standard micro-ATX screw pattern and the 24-pin plus 8-pin power connectors sit in familiar positions. Only two DDR4 DIMM slots are provided, so populating both reaches the 64 GB limit immediately. The single PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots leave little room for expansion cards once a double-width GPU is fitted.

Check CPU generation for memory speed and M.2 wiring

Eleventh-generation Core i9, i7 and i5 CPUs support DDR4 up to 5000 MHz OC, while tenth-generation i9 and i7 top out at 4600 MHz OC; other tenth-generation chips stop at 2933 MHz native. The primary M.2 socket runs PCIe 4.0 x4 only with an 11th Gen processor; with 10th Gen it falls back to PCIe 3.0 x4 or SATA3. Verify your cooler clears the 50 A inductors near the CPU socket.

Highlights

  • Supports 10th and 11th generation Intel Core processors via LGA 1200 socket
  • DDR4 memory up to 5000 MHz overclocked on 11th Gen CPUs
  • PCIe 4.0 x16 slot enables high-speed graphics and storage
  • 1 channel audio with Realtek ALC897 codec for immersive sound
  • Dual M.2 slots with PCIe 4.0 x4 and PCIe 3.0 x4 plus SATA3 support

Specifications

CPU TypeIntel Core 10th Gen (LGA 1200)

Questions about this item

Will my 11th generation Intel Core i5 run its memory at 5000MHz on this board?

The board supports DDR4 up to 5000MHz (OC) with 11th generation Intel Core i9, i7 and i5 processors; native speed for those CPUs is 3200MHz, so faster kits require XMP 2.0 and manual tuning.

Can I install a PCIe 4.0 graphics card and a PCIe 4.0 M.2 SSD at the same time?

Yes, the board provides one PCIe 4.0 x16 slot for the graphics card and one Super M.2 slot wired for PCIe Gen4 x4, both driven by the B560 chipset and 11th generation CPU lanes.

What is the maximum system memory capacity I can install?

The two DDR4 slots support up to 64GB total using non-ECC un-buffered modules; ECC UDIMMs are accepted but will run in non-ECC mode.
