Dark green micro-ATX motherboard with black heatsinks and silver sockets

ASRock

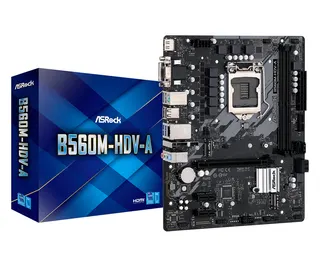

ASRock B560M-HDV-A LGA 1200 Intel B560 Micro ATX Motherboard

SKU CH-4PCF-0BRBG

Micro ATX board for LGA 1200 CPUs with PCIe 4.0 x16, dual M.2 slots, four SATA ports and 7.1 audio

  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory overclocked to 5000 MHz with 11th Gen CPUs
  • PCIe 4.0 x16 slot plus two PCIe 3.0 x1 slots for expansion
  • Hyper M.2 slot with PCIe Gen4 x4 and Ultra M.2 with PCIe Gen3 x4 for fast storage
  • 1 channel HD audio via Realtek ALC897 codec with full spike protection

B560 chipset with 10th

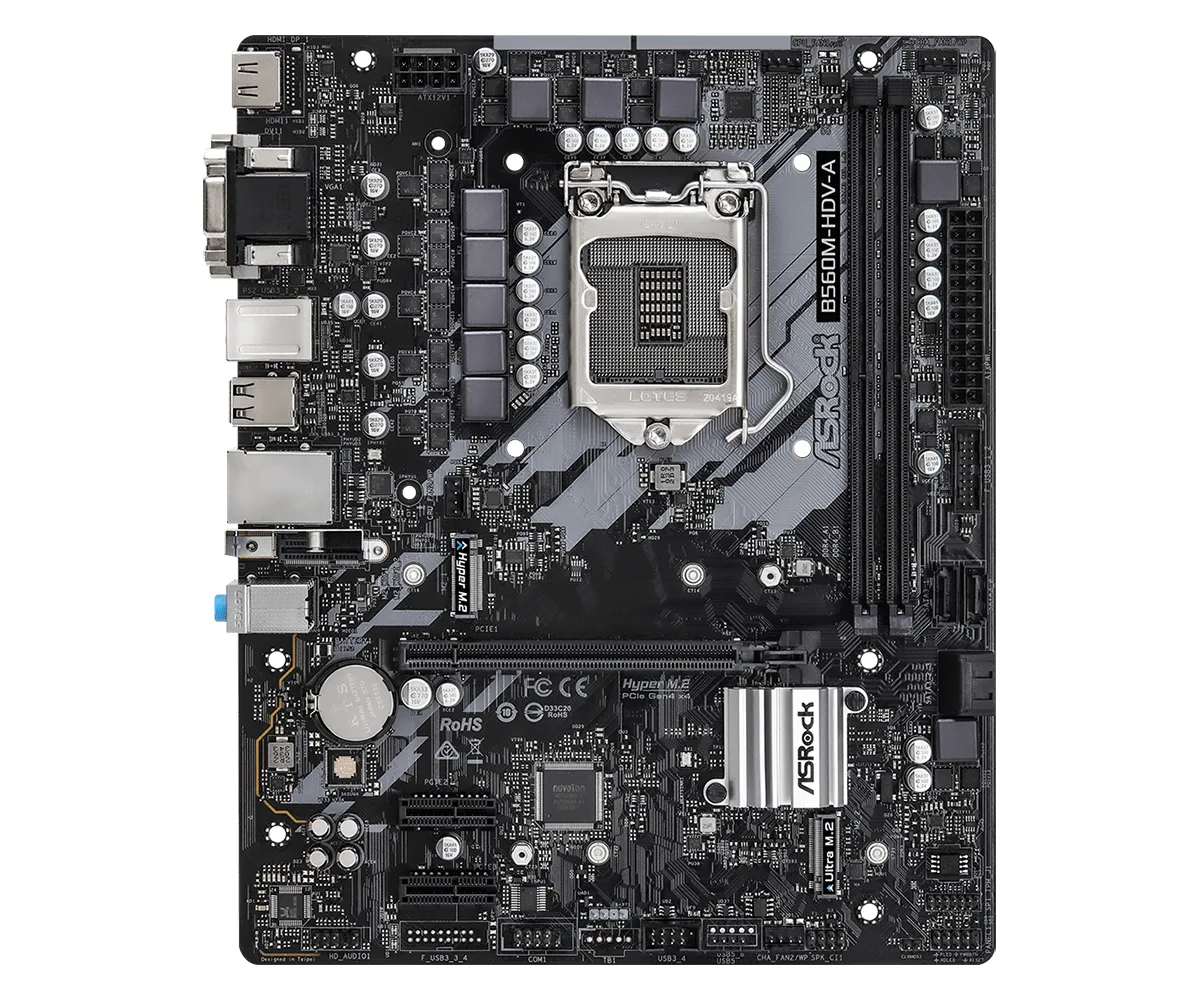

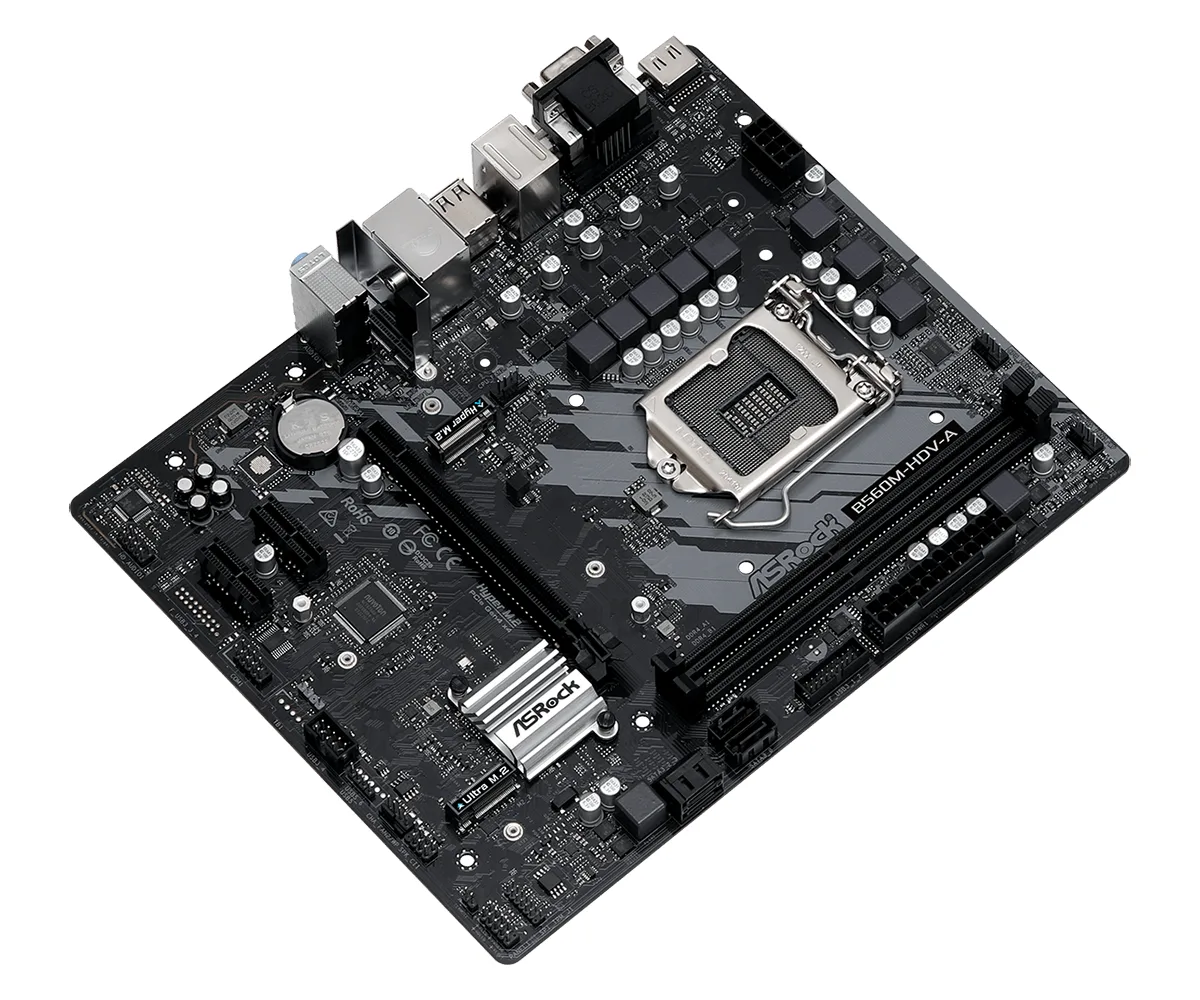

This Micro ATX motherboard uses the Intel B560 chipset and the LGA 1200 socket to run 10th and 11th Generation Intel Core processors. It provides a 6-phase Digi Power design with 50A power chokes and a Sapphire Black PCB built on high-density glass fabric. The board targets builders who want a compact foundation for a mainstream desktop system.

Budget-focused builders using integrated graphics

The rear panel includes HDMI, DVI-D and D-Sub video outputs, so the board works with CPUs that have integrated graphics and needs no discrete card. Two DDR4 slots support up to 64 GB of system memory with XMP 2.0 profiles and speeds up to 5000 MHz on 11th Gen or 4600 MHz on 10th Gen. Builders who need four memory slots or more than two M.2 sockets should look at larger ATX models.

One Hyper M.2 slot at PCIe 4.0 x4

A single Hyper M.2 slot delivers PCIe 4.0 x4 bandwidth for the primary solid-state drive, while a second Ultra M.2 slot runs at PCIe 3.0 x4 and also accepts SATA drives. Four SATA3 ports are available for additional hard drives or SSDs. Expansion consists of one PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots, plus an M.2 Key-E socket for a Wi-Fi module.

Highlights

  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory overclocked to 5000 MHz with 11th Gen CPUs
  • PCIe 4.0 x16 slot plus two PCIe 3.0 x1 slots for expansion
  • Hyper M.2 slot with PCIe Gen4 x4 and Ultra M.2 with PCIe Gen3 x4 for fast storage
  • 1 channel HD audio via Realtek ALC897 codec with full spike protection

Specifications

No published specifications for this item yet.

Questions about this item

How much power does the 6-phase Digi Power design draw under full load all day?

The board uses a 6-phase Digi Power design with 50A chokes, but exact sustained draw depends on the installed CPU and workload.

Which components must I already own to boot this LGA 1200 board?

You need a 10th or 11th Gen Intel Core processor, DDR4 memory modules, a power supply with 24-pin and 8-pin CPU connectors, and storage such as a SATA drive or M.2 module.

Will my existing DDR4 2666 memory run at its rated speed with an 11th Gen Core i5?

Yes, 11th Gen Core i5 processors support DDR4 2933 natively, so 2666 modules will operate at 2666 without overclocking.
