Green rectangular micro-ATX board with black slots and silver I/O shield

ASRock

ASRock B560M-HDV LGA 1200 Intel motherboard

SKU CH-PSJZ-1CK81

Micro-ATX board for 10th and 11th Gen Intel CPUs with DDR4 up to 5000 MT/s, PCIe 4.0 x16, four SATA 6Gb/s ports and one M.2 slot

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors Supports 11th Gen In
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel B560
  • Number of Memory Slots2x288pin (DDR4)
  • Memory Standard11th Gen Intel Core Processors support DDR4 non-ECC, un-buff
  • Supports 10th and 11th Gen Intel Core CPUs on LGA 1200 socket
  • Dual-channel DDR4 memory up to 5000+(OC) with 11th Gen or 4600+(OC) with 10th Gen
  • PCIe 4.0 x16 slot and Gen4x4 M.2 with 11th Gen for fast graphics and storage
  • Realtek ALC897 7.1-channel audio and Intel I219V Gigabit LAN for connectivity
  • Four SATA 6Gb/s ports plus HDMI, DVI-D and D-Sub for multiple displays

Micro-ATX B560 board for 10th and 11th Gen Intel

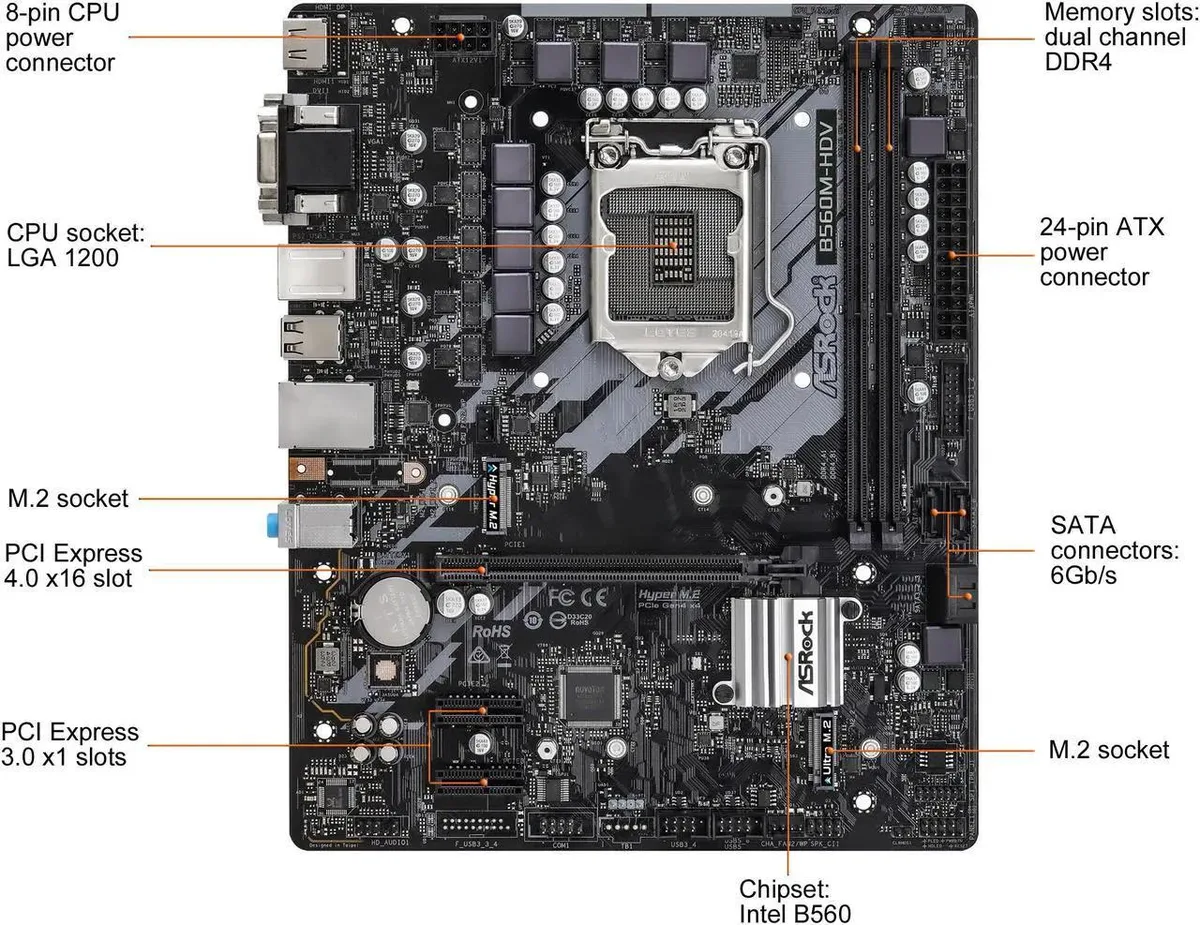

The ASRock B560M-HDV uses the Intel B560 chipset and LGA 1200 socket to support both 10th and 11th Generation Intel Core processors in a micro-ATX form factor. It provides two DDR4 memory slots with a maximum capacity of 64 GB running in dual-channel mode. Rear I/O includes HDMI, DVI-D and D-Sub video outputs alongside four USB 3.2 Gen1 ports and two USB 2.0 ports.

11th Gen PCIe 4.0 step-up

With an 11th Gen Core i9, i7 or i5 the board enables PCI Express 4.0 on the primary x16 slot and on the Hyper M.2 socket for NVMe drives up to Gen4x4 speeds. 10th Gen CPUs limit the same slots to PCI Express 3.0. Memory overclock headroom also rises from 4600+(OC) to 5000+(OC) when moving to 11th Gen silicon.

One Hyper M.2 slot at Gen4x4

The single Hyper M.2 socket (M2_1) accepts M-key 2260 or 2280 modules and delivers PCIe 4.0 x4 bandwidth only when paired with an 11th Gen Core i9, i7 or i5 processor. A second Ultra M.2 socket (M2_2) remains at PCIe 3.0 speeds regardless of CPU choice.

Highlights

  • Supports 10th and 11th Gen Intel Core CPUs on LGA 1200 socket
  • Dual-channel DDR4 memory up to 5000+(OC) with 11th Gen or 4600+(OC) with 10th Gen
  • PCIe 4.0 x16 slot and Gen4x4 M.2 with 11th Gen for fast graphics and storage
  • Realtek ALC897 7.1-channel audio and Intel I219V Gigabit LAN for connectivity
  • Four SATA 6Gb/s ports plus HDMI, DVI-D and D-Sub for multiple displays

Specifications

BrandASRock
ModelB560M-HDV
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors
Supports 11th Gen Intel Core Processors
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel B560
Number of Memory Slots2x288pin (DDR4)
Memory Standard11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)*
* 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 2933; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 4.0 x1611th Gen Intel Core Processors: 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel Core Processors: 1 x PCI Express 3.0 x16 Slot*
* Supports NVMe SSD as boot disks
PCI Express x12 x PCI Express 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel Core Processors)*
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
* Supports Intel Optane Technology (M2_2)
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetIntel I219V
Max LAN Speed1Gbps

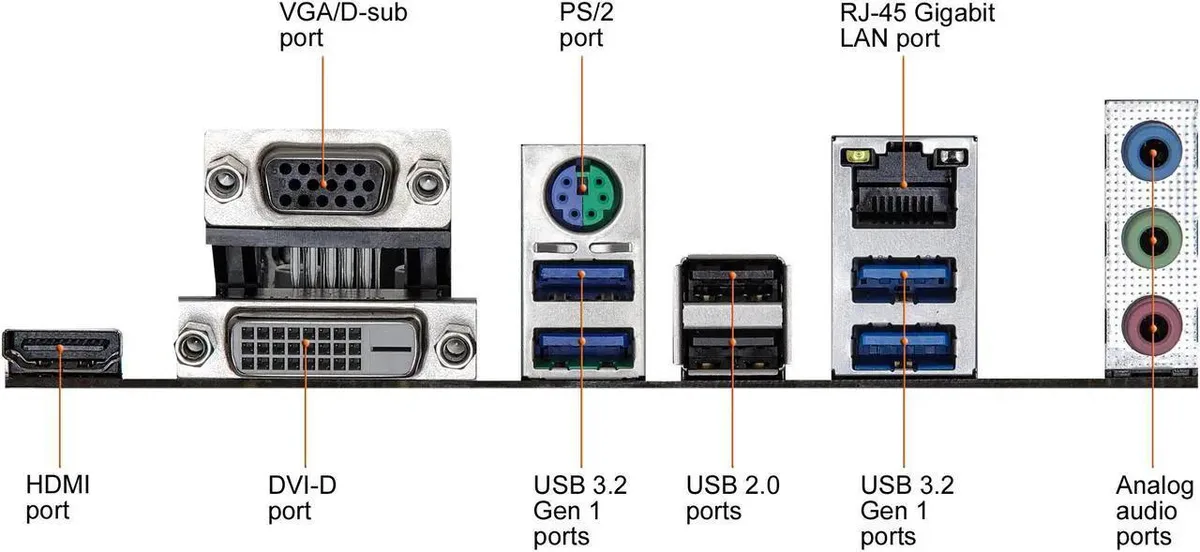

Back I/O Ports1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Other Connectors1 x COM Port Header
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in us
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 7.8"
FeaturesASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Package ContentsQuick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
2 x Screws for M.2 Sockets

Questions about this item

Which CPUs can I install in the LGA 1200 socket?

10th and 11th Gen Intel Core processors are supported on this board.

What is the highest memory frequency supported with an 11th Gen Core i5?

11th Gen Core i5 processors support DDR4 up to 5000+(OC) on this board.

Can I use an M.2 NVMe drive as a boot device?

Yes, the Hyper M.2 socket supports NVMe SSDs as boot disks with 11th Gen CPUs.
