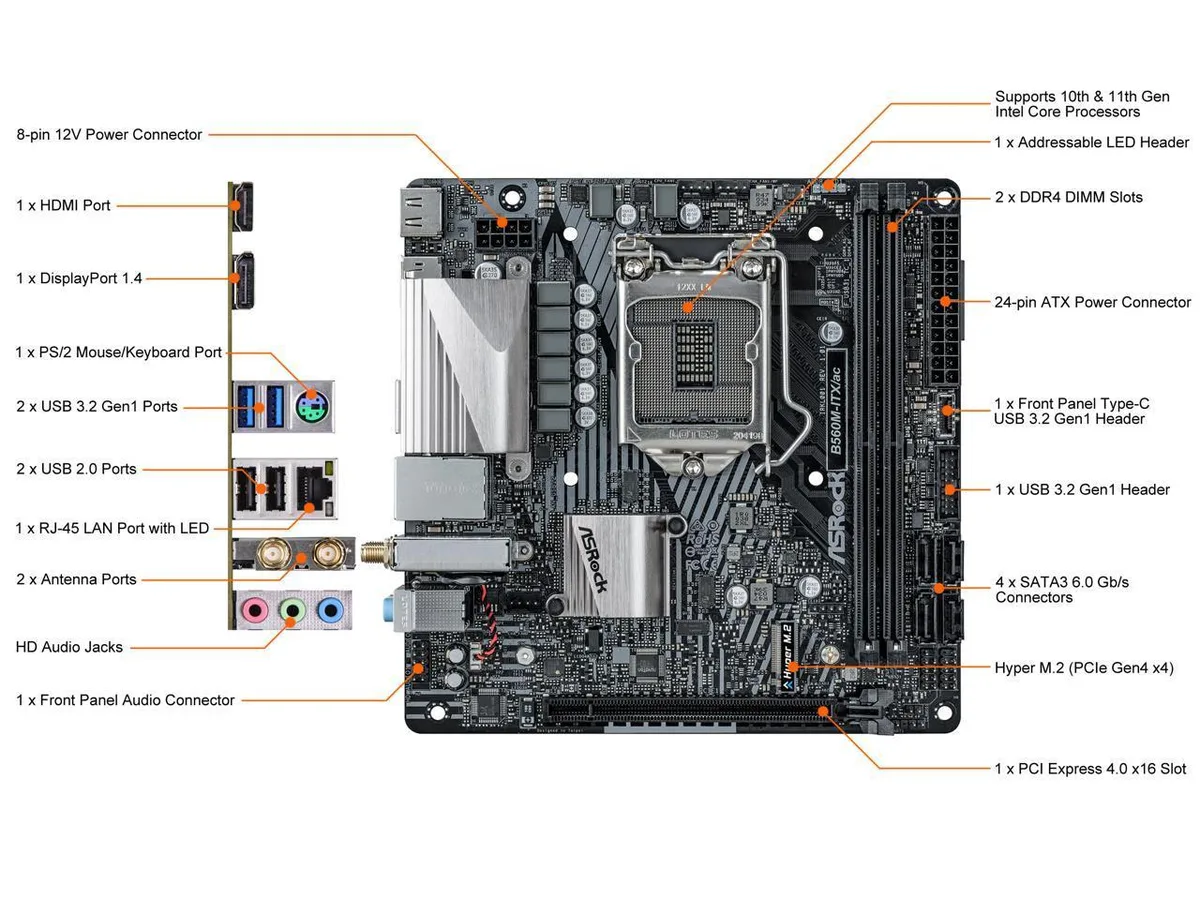

Compact Mini-ITX board, dark PCB, silver sockets, bundled Wi-Fi module visible

ASRock

ASRock B560M-ITX/AC Intel motherboard

SKU CH-GY9T-0RFBG

Mini-ITX board for 10th and 11th Gen Intel Core CPUs with dual-channel DDR4 up to 64 GB, PCIe 4.0 x16, Hyper M.2 Gen4, Intel 1 GbE LAN and 802.11ac Wi-Fi

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors Supports 11th Gen In
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel B560
  • Onboard Video Chipset11th Gen Intel Core Processors support Intel Xe Graphics Arc
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 4800+(OC) with 11th Gen CPUs
  • PCIe 4.0 x16 slot and M.2 Gen4 x4 for fast graphics and storage
  • Intel I219-V 1Gbps LAN plus 802.11ac dual-band Wi-Fi up to 433Mbps
  • Realtek ALC897 7.1-channel audio with HDMI 2.0 and DisplayPort 1.4 video outputs

Mini ITX board for 10th/11th Gen Intel Core

The ASRock B560M-ITX/AC is a Mini ITX motherboard built on the Intel B560 chipset. It fits LGA 1200 processors from the 10th and 11th generation Intel Core families. The board includes an Intel I219-V Gigabit LAN controller and a bundled Intel 802.11ac Wi-Fi module for dual-band wireless connectivity.

Suits compact builds with one x16 card

This board suits small-form-factor systems that need a single PCI Express x16 slot and one Hyper M.2 socket. It provides two DDR4 memory slots and four SATA3 connectors. Builders requiring additional PCIe slots, multiple M.2 sockets, or higher wired network speeds should consider a larger form factor.

Memory speed depends on installed CPU generation

With an 11th Gen Intel Core processor the board supports DDR4 up to 4800+(OC). With a 10th Gen Intel Core processor the supported DDR4 ceiling is 4400+(OC). The maximum installable capacity is 64 GB across the two slots.

Highlights

  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 4800+(OC) with 11th Gen CPUs
  • PCIe 4.0 x16 slot and M.2 Gen4 x4 for fast graphics and storage
  • Intel I219-V 1Gbps LAN plus 802.11ac dual-band Wi-Fi up to 433Mbps
  • Realtek ALC897 7.1-channel audio with HDMI 2.0 and DisplayPort 1.4 video outputs

Specifications

BrandASRock
ModelB560M-ITX/AC
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors
Supports 11th Gen Intel Core Processors
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel B560
Onboard Video Chipset11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with max.
Number of Memory Slots2x288pin (DDR4)
Memory Standard11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4400+(OC)*
* 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported64GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 4.0 x1611th Gen Intel Core Processors
- 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel Core Processors
- 1 x PCI Express 3.0 x16 Slot*
* Supports NVMe SSD as boot disks
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
Serial ATA (SATA)4 x SATA3 6.0Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.21 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen4 x4 (64Gb/s) (with 11th Gen Intel Core Processors) or Gen3 x4 (32Gb/s) (with 10th Gen Intel Core Processors)**
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANIntel 802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433Mbps
BluetoothSupports Bluetooth 4.2 / 3.0 + High speed class II
Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
Other Connectors1 x Chassis Intrusion Header
1 x Addressable LED Header*
1 x CPU Fan Connector (4-pin)**
1 x Chassis Fan Connector (4-pin)***
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
1 x Front Panel Audio Connector
* Support in total up to 5V/3A, 15W LED Strip.
** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
*** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
**** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
**** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan
Windows 11Supported
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
FeaturesUnique Feature:
ASRock Super Alloy
- Premium 60A Power Choke
- 50A Dr.MOS
- Sapphire Black PCB
- High Density Glass Fabric PCB
Intel 802.11ac WiFi
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS:
- 128 MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, CPU GT, VCCSA, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST Voltage Multi-adjustment
Software and UEFI:
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast
Package ContentsAccessories:
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5 GHz Antennas
1 x Screw for M.2 Socket

Questions about this item

Will an 11th Gen Core i5 fit this LGA 1200 socket?

Yes, the board supports both 10th and 11th Gen Intel Core processors in the LGA 1200 socket.

What is the fastest DDR4 speed I can run with an 11th Gen CPU?

11th Gen Core i9, i7 and i5 processors support DDR4 up to 4800+(OC) on the two 288-pin slots.

Can I use a PCIe 4.0 NVMe drive at full speed?

With an 11th Gen processor the M2_1 slot runs at Gen4 x4; with a 10th Gen CPU it runs at Gen3 x4.
