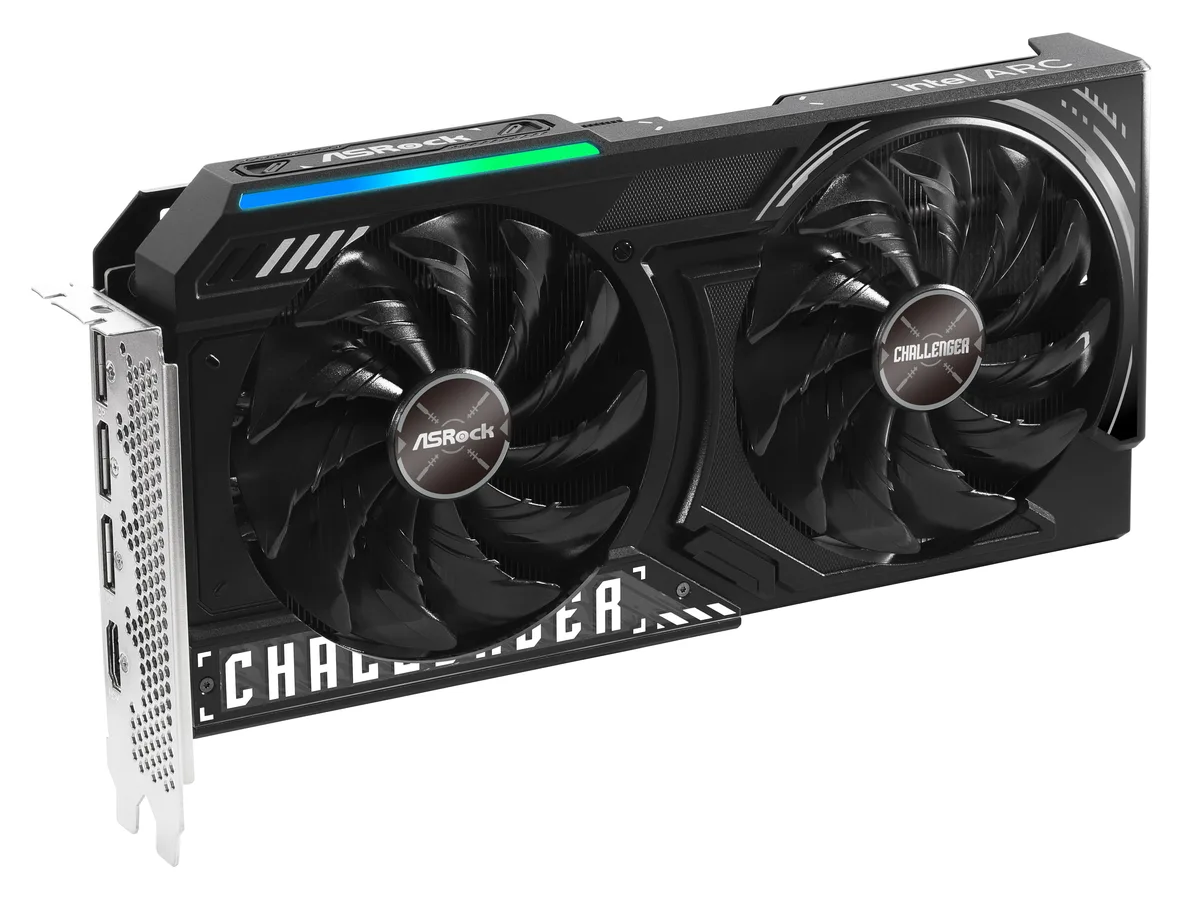

Black dual-fan graphics card, full-length ATX form factor, two-slot width

ASRock

ASRock B580 CL 12GO graphics card

SKU CH-XRE0-7D549 MPN B580 CL 12GO

Intel Arc B580 GPU with 12GB GDDR6, 20 Xe-cores at 2740 MHz, and triple DisplayPort 2.1 plus HDMI 2.1 outputs

  • InterfacePCI Express 4.0 x8
  • Chipset ManufacturerIntel
  • GPU SeriesIntel Arc B-Series
  • GPUArc B580
  • Core Clock2740 MHz
  • Xe-cores20

Option Challenger

Edition B580

  • 12 GB GDDR6 memory handles large textures
  • 2740 MHz core clock drives high frame rates
  • 20 Xe-cores accelerate modern workloads
  • HDMI 2.1 plus three DisplayPort 2.1 outputs support four 8K displays
  • Dual-fan cooler keeps thermals in check

Product identity

The ASRock Challenger Arc B580 graphics card delivers 12GB of GDDR6 memory on a 192-bit bus with a 2740 MHz core clock. It connects through a PCI Express 4.0 x8 slot and drives up to four displays via one HDMI 2.1 and three DisplayPort 2.1 outputs.

Who should choose it

Gamers and creators targeting 1440p resolution with DirectX 12 Ultimate support will find the 20 Xe-cores and 12GB frame buffer well matched. Builders limited to a 650W power supply or a case shorter than 249 mm should consider a smaller model.

Deciding specification

The 12GB GDDR6 memory capacity is the single figure that determines whether this card fits your workload. If your textures, assets or compute buffers regularly exceed 10GB, this 12GB model removes the bottleneck; if they stay below, a lower-capacity alternative may suffice.

Highlights

  • 12 GB GDDR6 memory handles large textures
  • 2740 MHz core clock drives high frame rates
  • 20 Xe-cores accelerate modern workloads
  • HDMI 2.1 plus three DisplayPort 2.1 outputs support four 8K displays
  • Dual-fan cooler keeps thermals in check

Specifications

BrandASRock
SeriesChallenger
ModelB580 CL 12GO
InterfacePCI Express 4.0 x8
Chipset ManufacturerIntel
GPU SeriesIntel Arc B-Series
GPUArc B580
Core Clock2740 MHz
Xe-cores20
Memory Size12GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 2.1 with DSC
ColorBlack
Max Resolution7680 x 4320
CoolerDouble Fans
Recommended PSU Wattage650W
Power Connector8-Pin
Form FactorATX
Max GPU Length249 mm
Slot Width2 Slots
Shipping weight1.00 kg
Package size358 × 224 × 69 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the Arc B580 need an 8-pin power connector and a 650 W PSU to run?

Yes, the card draws power through a single 8-pin connector and the manufacturer recommends a 650 W supply.

Will the PCI Express 4.0 x8 interface work on a motherboard that only has PCI Express 3.0 slots?

The card is backward compatible and will operate at PCI Express 3.0 x8 speeds when installed in a 3.0 slot.

How can I confirm the GPU is running at its 2740 MHz core clock after driver installation?

Open the Intel Arc Control overlay or a monitoring tool such as GPU-Z and verify the reported core clock matches 2740 MHz under load.
