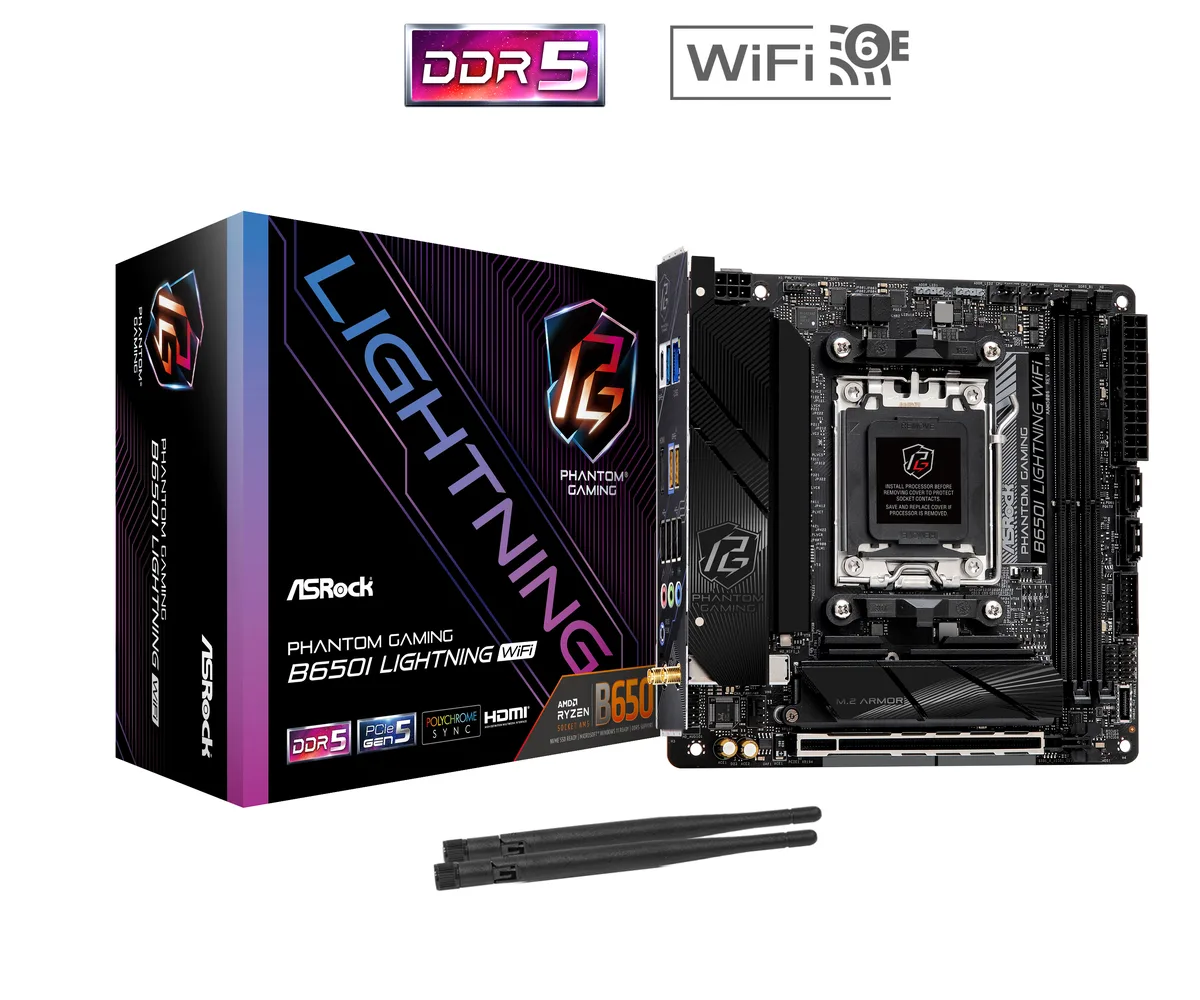

Mini-ITX motherboard, black PCB with silver heatsinks and gold PCIe contacts

ASRock

ASRock B650I LIGHTNING WIFI AMD motherboard

SKU CH-QHJR-0DAWV MPN B650I LIGHTNING WIFI

Mini-ITX AM5 board with dual DDR5 slots up to 7200 MT/s, one PCIe 5.0 M.2, one PCIe 4.0 M.2, 2.5 GbE LAN, Wi-Fi 6E and HDMI output

  • CPU Socket TypeAM5
  • CPU Type- Supports AMD Socket AM5 RyzenTM CPU 7000 Series Processors
  • ChipsetAMD B650
  • Number of Memory SlotsDual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots -
  • Memory StandardDDR5 6400
  • Maximum Memory Supported96GB
  • Supports AMD Ryzen 7000 and 9000 Series CPUs on AM5 socket
  • DDR5 memory up to 7200+(OC) with 96GB maximum capacity
  • PCIe 5.0 x4 M.2 and PCIe 4.0 x4 M.2 for fast NVMe storage
  • 5 Gigabit LAN plus Wi-Fi 6E and Bluetooth connectivity
  • Mini-ITX 6.7-in form factor with 8-layer PCB and 8+2+1 Dr.MOS power phases

Mini-ITX AM5 platform for Ryzen 7000 and 9000 CPUs

This Mini-ITX motherboard fits AMD Socket AM5 processors from the Ryzen 7000 and 9000 series. Two DDR5 DIMM slots support up to 96 GB of memory and run at speeds up to 7200+ when overclocked. The board uses an 8+2+1 Dr.MOS power phase design on an eight-layer PCB. A BIOS update may be required before installing a 9000 series processor.

Thermals noise and power draw in normal use

The eight-layer PCB and Dr.MOS power stages help spread heat evenly across the compact 6.7-in square board. Two 4-pin CPU and water-pump fan headers plus a chassis fan header allow smart speed control for quiet airflow. No onboard fan or radiator is included, so thermal performance depends on the cooler and case ventilation chosen by the builder.

Bundled software and accessories change

Phantom Gaming LAN software adds a visual interface for bandwidth control and network usage statistics. Nahimic Audio enhances the Realtek ALC897 7.1-channel codec with virtual surround and equaliser presets. Wi-Fi 6E and Bluetooth arrive via a vertical M.2 Key E module with dual antenna ports on the rear I/O. A BIOS Flashback button and 15 µm gold PCIe contacts complete the package.

Highlights

  • Supports AMD Ryzen 7000 and 9000 Series CPUs on AM5 socket
  • DDR5 memory up to 7200+(OC) with 96GB maximum capacity
  • PCIe 5.0 x4 M.2 and PCIe 4.0 x4 M.2 for fast NVMe storage
  • 5 Gigabit LAN plus Wi-Fi 6E and Bluetooth connectivity
  • Mini-ITX 6.7-in form factor with 8-layer PCB and 8+2+1 Dr.MOS power phases

Specifications

BrandASRock
ModelB650I LIGHTNING WIFI
Part NumberB650I LIGHTNING WIFI
CPU Socket TypeAM5
CPU Type- Supports AMD Socket AM5 RyzenTM CPU 7000 Series Processors
ChipsetAMD B650
Number of Memory SlotsDual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 96GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking
(EXPO) memory modules
* Please refer to Memory Support List on ASRock's website for more information.
(http://www.asrock.com/)
Memory StandardDDR5 6400
Maximum Memory Supported96GB
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
PCI Express 4.0 x16CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
* Supports NVMe SSD as boot disks
- 15µ Gold Contact in VGA PCIe Slot (PCIE1
Serial ATA (SATA)CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
M.21 x M.2 (Support PCIe 4.0 x4) / 1 x M.2 (Support PCIe 5.0 x4)
SATA RAIDSupports RAID 0 and RAID 1 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10
Audio Channels7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
Max LAN Speed2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Phantom Gaming LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Wireless LAN802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band* support
* Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability
will depend on the different regulation status of each country and region.
It will be activated (for supported countries) through Windows Update and software
updates once available.
* A 6GHz compatible router is required for 6E functionality.
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.2 + High speed class II
- Supports MU-MIMO

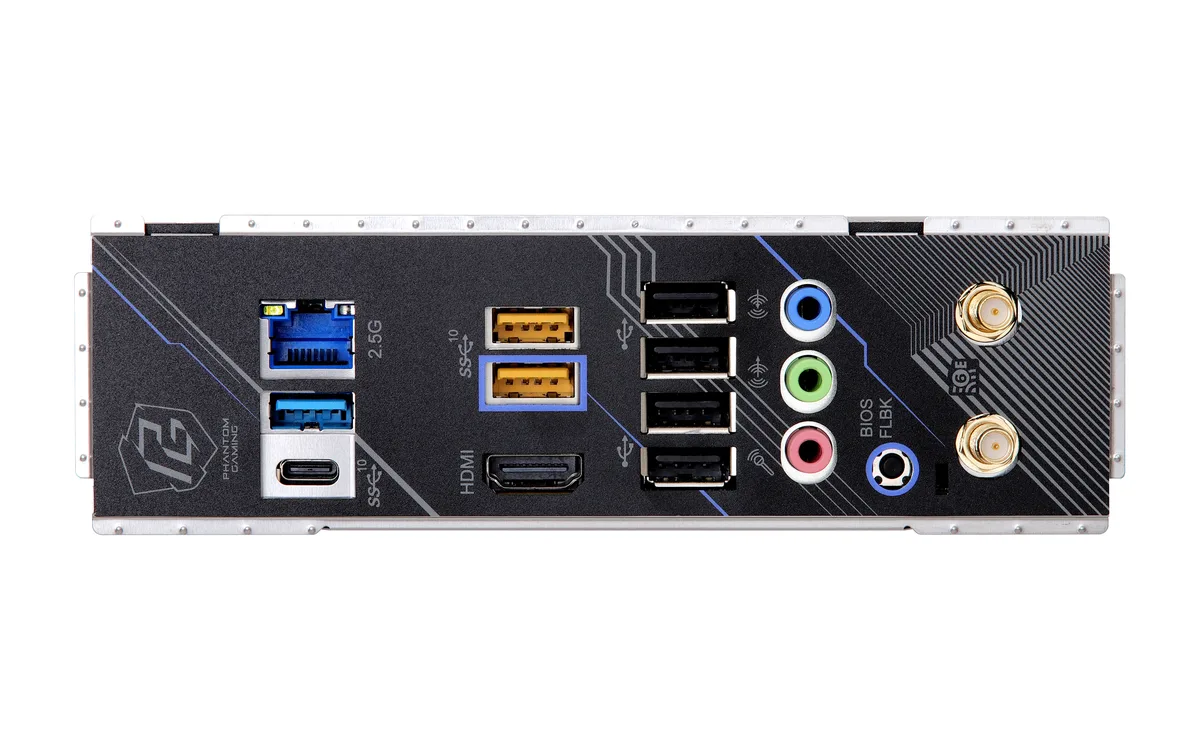

Back I/O Ports2 x Antenna Ports
- 1 x HDMI Port
- 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_23 are Lightning Gaming Ports.)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
Other Connectors2 x Addressable LED Headers*
- 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
* Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1/WP and CPU_FAN2/WP support the fan power up to 2A (24W).
*** CHA_FAN1/WP sup
Form FactorMini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- 8 Layer PCB
Dimensions (W x L)6.7" x 6.7"
Windows 11Microsoft® Windows® OS 10 64-bit / 11 64-bi
FeaturesSoftware
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Shipping weight1.04 kg
Package size234 × 191 × 102 mm

Questions about this item

How do I install the CPU on the AM5 socket without bending pins?

The AM5 socket places the contact pads on the CPU itself; lift the retention lever, align the triangle marker on the processor with the socket corner, lower the chip straight down without pressure, then close and latch the lever.

What maintenance will the board need over time?

Dust the PCIe 4.0 x16 slot and the two M.2 heatsinks periodically; the 4-pin CPU and chassis fan headers allow easy fan replacement if bearings wear out.

What limit appears first during sustained heavy loads?

The 8+2+1 Dr.MOS power phase design on the 8-layer PCB sets the practical ceiling for continuous current delivery to the CPU.
