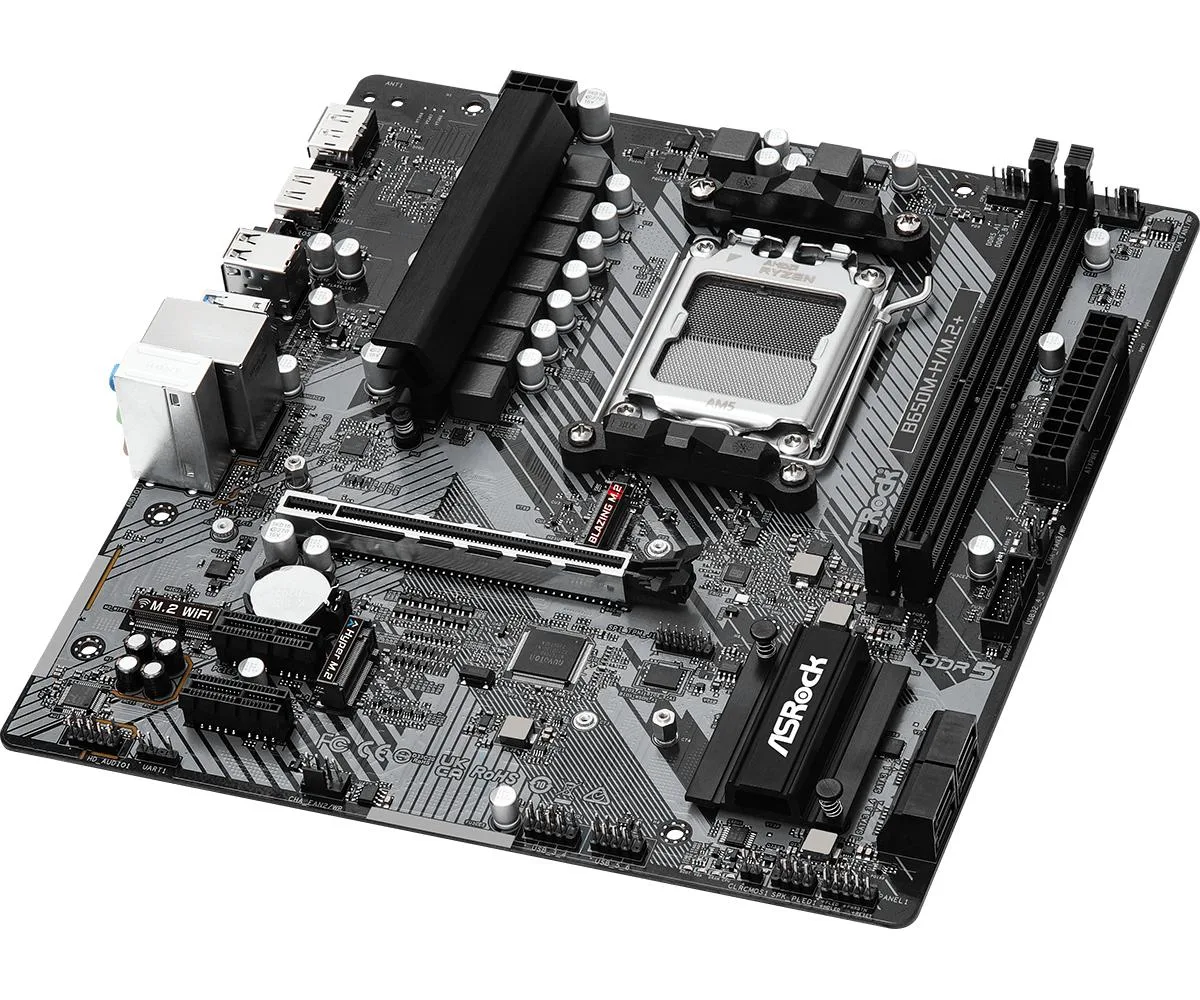

Micro-ATX motherboard in matte black with silver heatsinks

ASRock

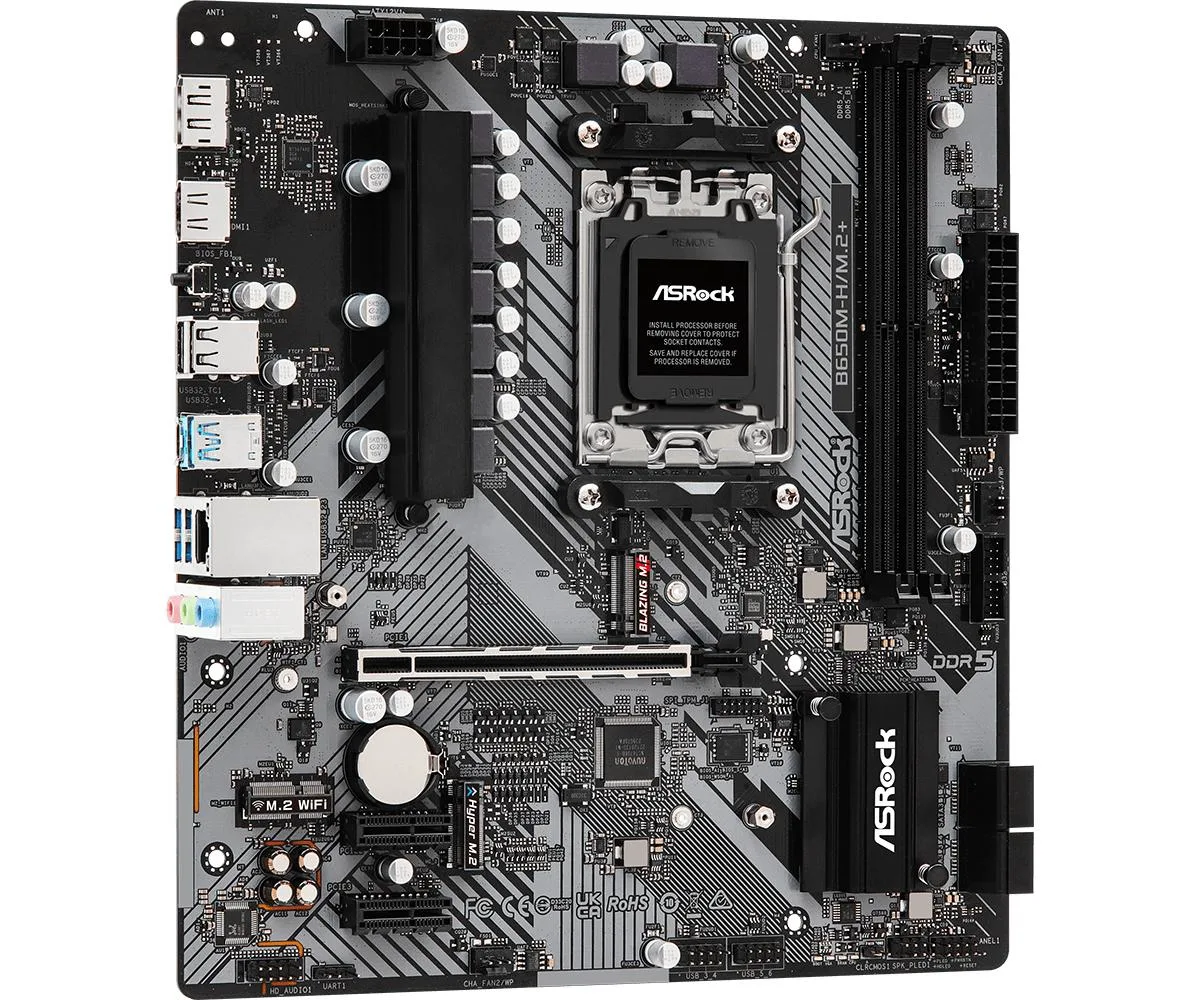

ASRock B650M-H/M.2+ AMD motherboard

SKU CH-H0XE-DHMA8

Micro-ATX AMD board with 6+1+1 Dr.MOS power phases for up to 120 W CPUs, dual DDR5 slots up to 6400 MT/s, one PCIe 4.0 x16 slot, a PCIe 5.0 M.2 and a PCIe 4.0 M.2, HDMI and DisplayPort outputs.

  • Supports Ryzen 7000 and 8000 series processors via Socket AM5
  • 6+1+1 power phase Dr.MOS design handles up to 120W CPUs
  • Two DDR5 DIMM slots reach 6400+(OC) memory speeds
  • One Blazing M.2 slot at PCIe Gen5 x4 plus one Hyper M.2 at Gen4 x4
  • Realtek ALC897 7.1 CH HD Audio with Nahimic enhancement

Target platform

This ASRock B650M-H/M.2+ motherboard accepts AMD Socket AM5 Ryzen 8000 and 7000 Series Processors in a micro ATX layout. The 6+1+1 power phase Dr.MOS design is rated for CPUs up to 120W, giving builders a compact foundation for modern AMD systems.

PCIe and storage lanes

One PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots handle expansion cards at current interface speeds. Storage includes one M.2 slot running PCIe Gen5 x4 and a second at PCIe Gen4 x4, plus four SATA3 ports for additional drives. A Key E M.2 socket is provided for a Wi-Fi module.

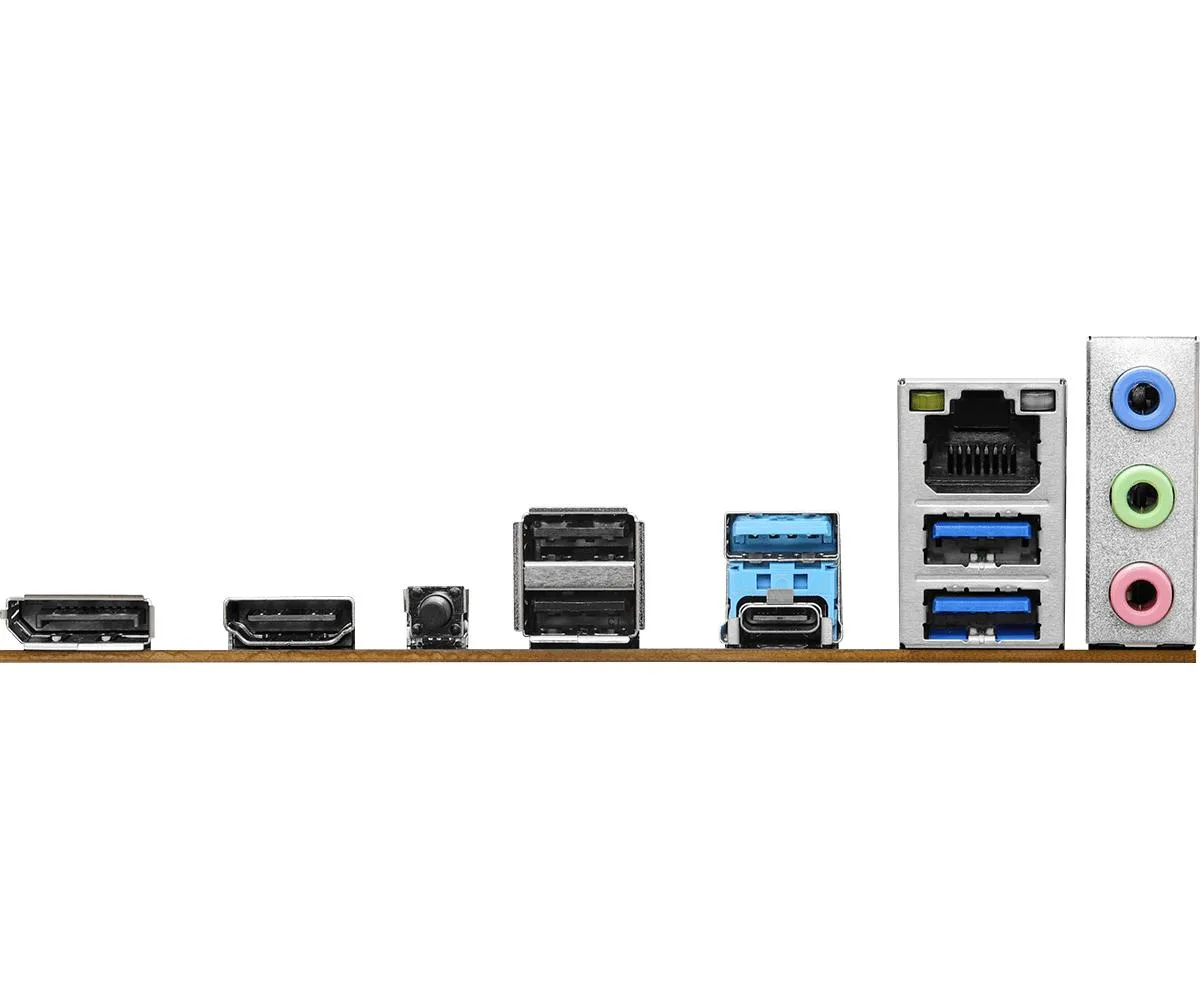

Rear and front connectivity

Video output uses HDMI and DisplayPort driven by integrated AMD RDNA 2 Graphics. Audio runs through a Realtek ALC897 7.1 CH codec with Nahimic enhancement, and networking uses Realtek Gigabit LAN. USB 3.2 Gen1 provides three rear Type-A ports, one rear Type-C port and two front-panel headers for case connections.

Highlights

  • Supports Ryzen 7000 and 8000 series processors via Socket AM5
  • 6+1+1 power phase Dr.MOS design handles up to 120W CPUs
  • Two DDR5 DIMM slots reach 6400+(OC) memory speeds
  • One Blazing M.2 slot at PCIe Gen5 x4 plus one Hyper M.2 at Gen4 x4
  • Realtek ALC897 7.1 CH HD Audio with Nahimic enhancement

Specifications

No published specifications for this item yet.

Questions about this item

Should I pick the Blazing M.2 or the Hyper M.2 for my fastest drive?

The Blazing M.2 slot runs at PCIe Gen5 x4 while the Hyper M.2 slot runs at PCIe Gen4 x4, so install your highest-speed drive in the Blazing slot.

What does the 120 W CPU power rating mean for my build?

The 6+1+1 Dr.MOS power phases are rated for processors up to 120 W, covering mainstream Ryzen 7000 and 8000 series chips at stock settings.

Which PCIe generation does the primary x16 slot use and what bandwidth does that cap?

The primary x16 slot is PCIe 4.0, limiting graphics cards to Gen4 x16 bandwidth even if the card supports Gen5.
