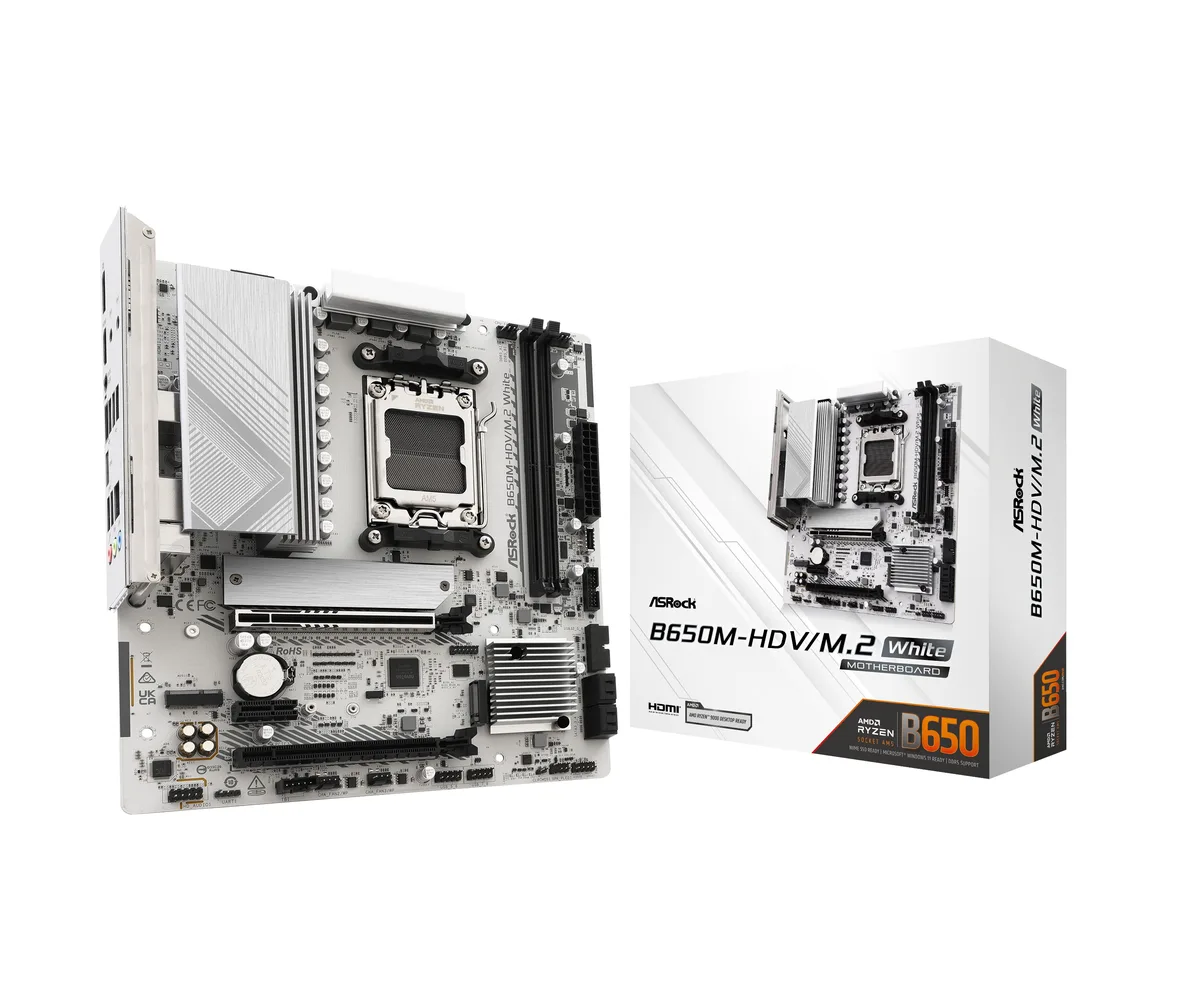

White micro-ATX motherboard with silver heatsinks and two DDR5 slots

ASRock

ASRock B650M-HDV/M.2 White AMD motherboard

SKU CH-04JK-4D706 MPN B650M-HDV/M.2 White

Micro-ATX board for AM5 Ryzen CPUs with dual DDR5 slots up to 8200 MT/s, one PCIe 5.0 x16 slot, one Gen5 M.2 and one Gen4 M.2

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B650
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardUp to 8200+(OC)
  • Maximum Memory Supported128GB
  • Ready for Ryzen 7000, 8000 and 9000 series CPUs with AM5 socket
  • Dual-channel DDR5 up to 8200+(OC) on two 288-pin slots, max 128GB
  • PCIe 5.0 x16 slot for latest graphics cards plus PCIe 4.0 x16 and x1 expansion
  • Two M.2 sockets: CPU Gen5x4 2280 and chipset Gen4x4 2260/2280
  • Realtek ALC897 7.1-channel audio with Nahimic enhancement

White AM5 Micro ATX Platform

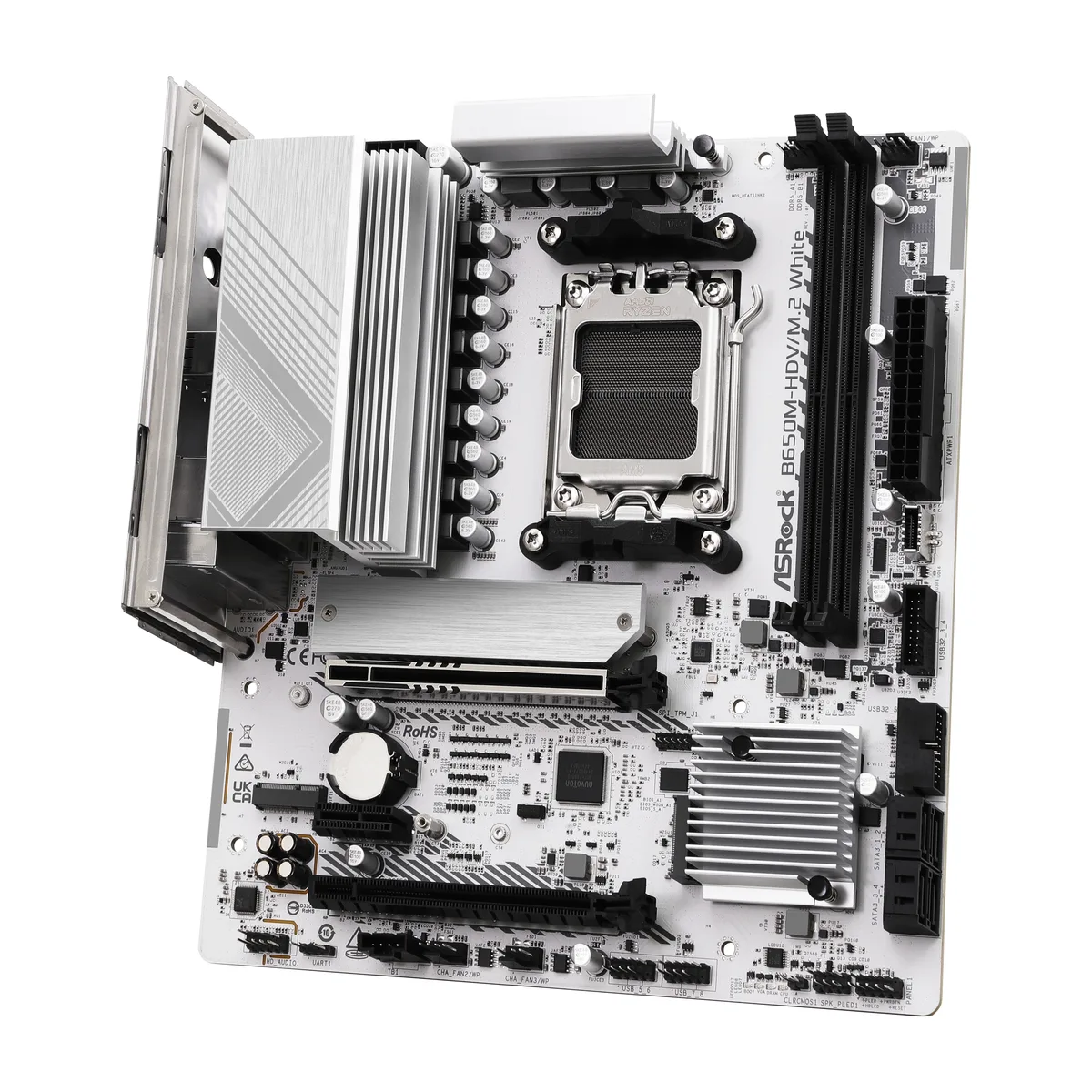

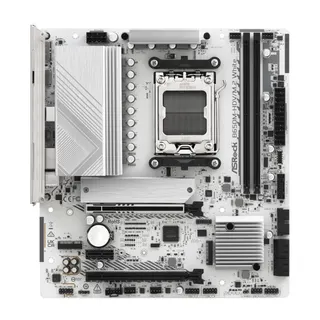

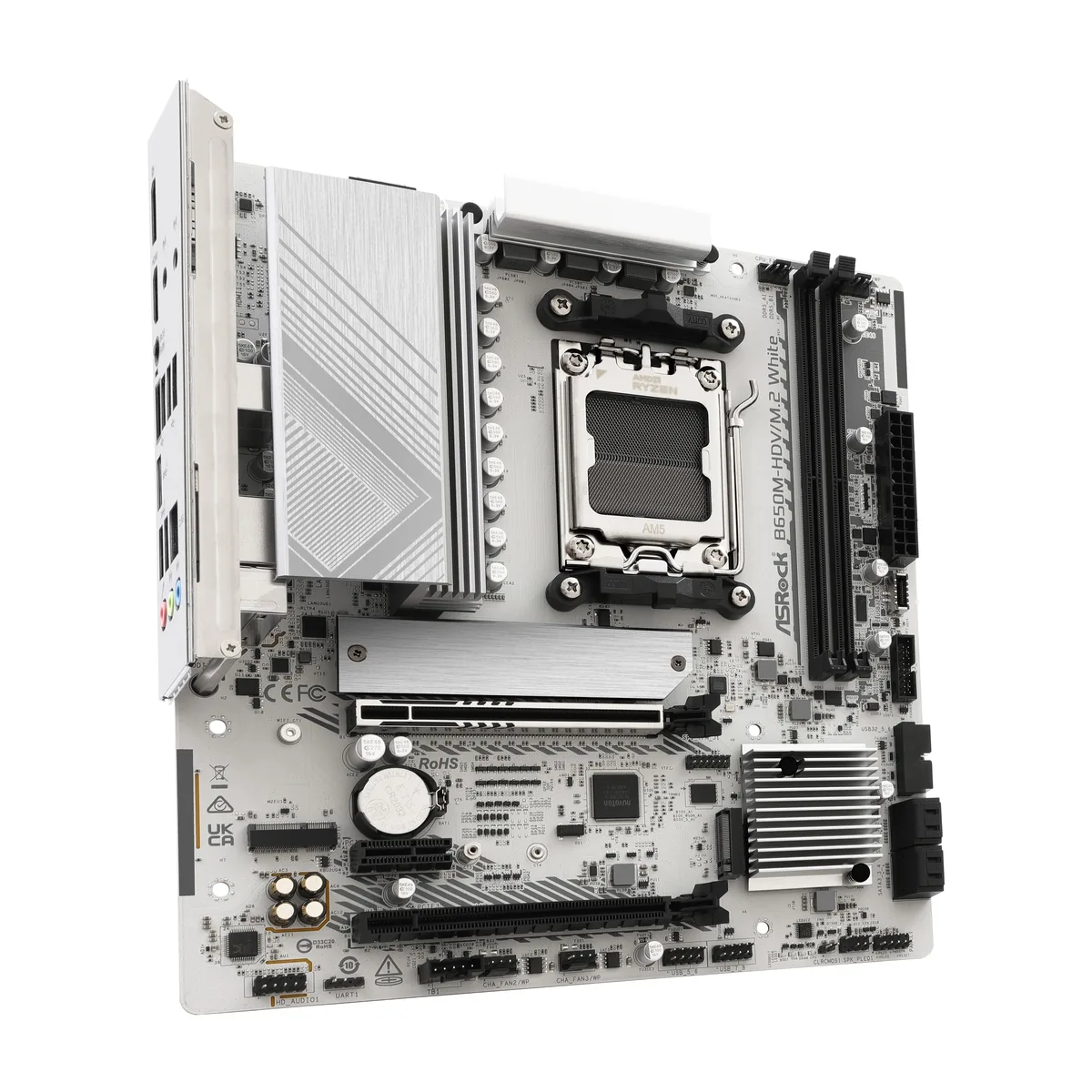

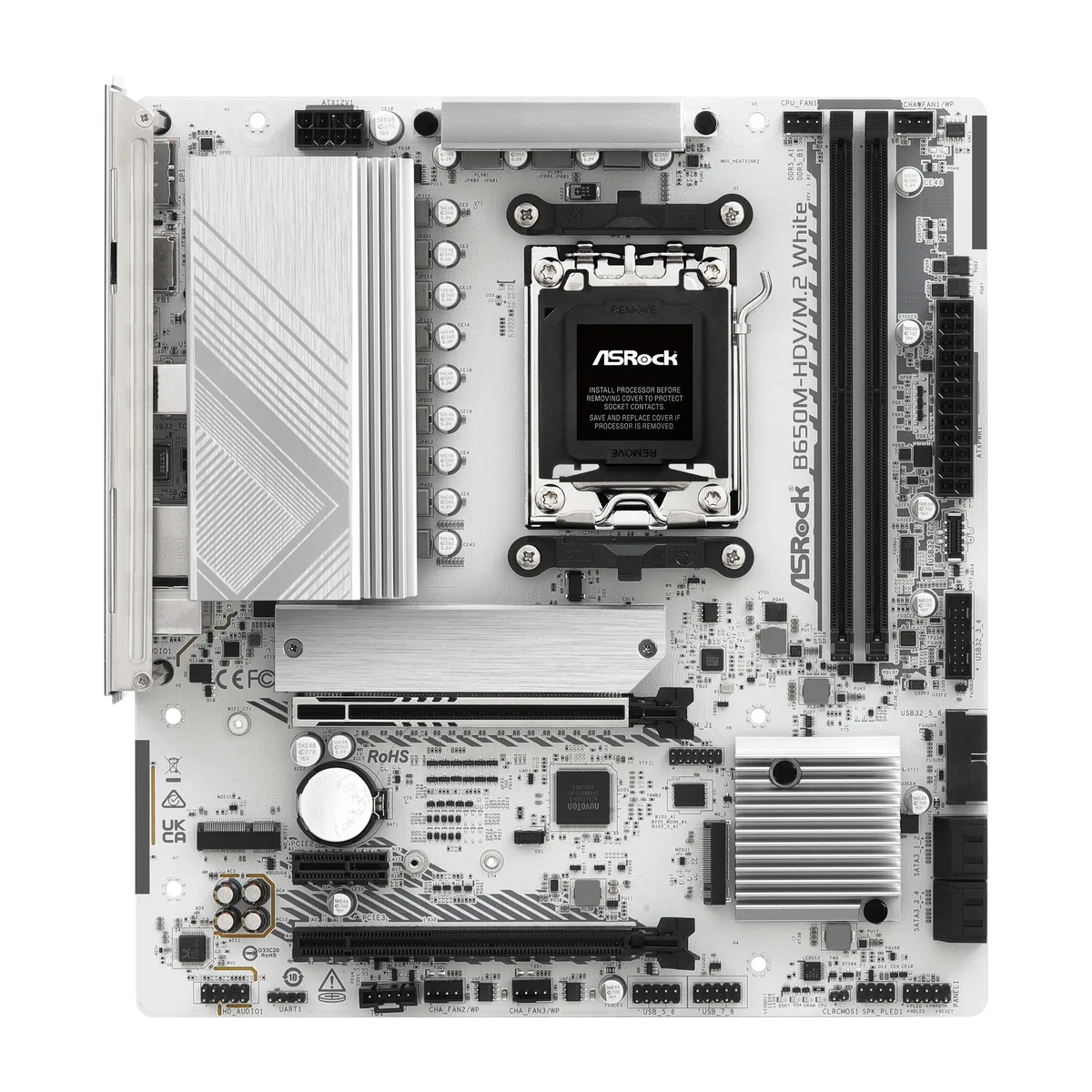

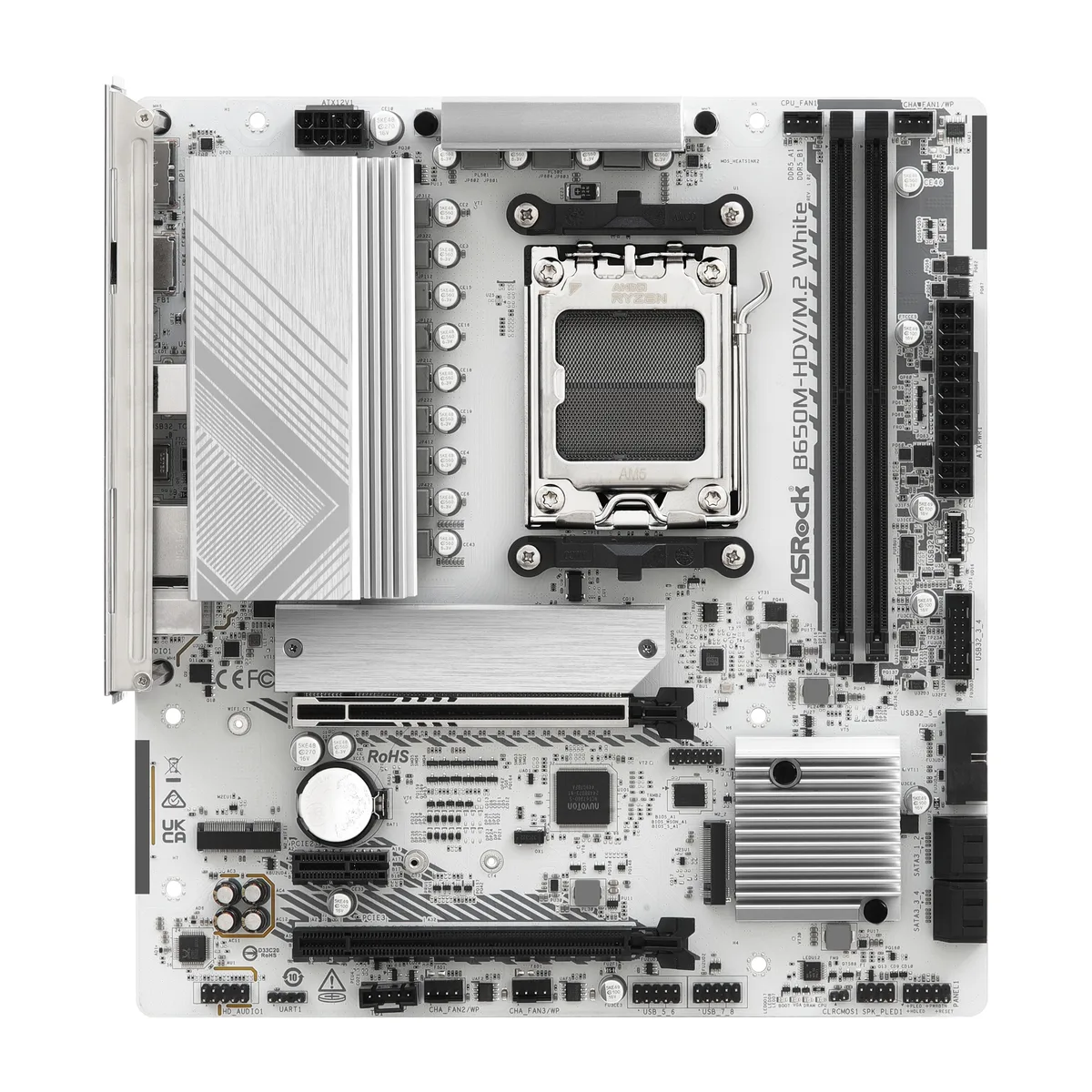

The ASRock B650M-HDV/M.2 White is a micro ATX motherboard built on the AMD B650 chipset for AM5 socket processors. It supports Ryzen 7000, 8000 and 9000 series CPUs with an 8+2+1 Dr.MOS power design. The board provides dual channel DDR5 memory up to 8200+(OC) across two 288pin slots with a maximum capacity of 128GB.

Suits Compact Builders Not Multi GPU Users

This board fits builders who need a white themed micro ATX platform with one PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot. It is not suited for multi GPU configurations because only the primary slot runs at x16 electrical width. Users requiring more than two M.2 drives or four memory slots should look at full ATX alternatives.

Single PCIe 5.0 x16 Slot Decides Fit

The single specification that decides fit is the single PCIe 5.0 x16 expansion slot. If the build requires only one graphics card at full bandwidth this board meets the requirement. If the build needs a second card at x16 or x8 electrical width the platform cannot deliver it.

Highlights

  • Ready for Ryzen 7000, 8000 and 9000 series CPUs with AM5 socket
  • Dual-channel DDR5 up to 8200+(OC) on two 288-pin slots, max 128GB
  • PCIe 5.0 x16 slot for latest graphics cards plus PCIe 4.0 x16 and x1 expansion
  • Two M.2 sockets: CPU Gen5x4 2280 and chipset Gen4x4 2260/2280
  • Realtek ALC897 7.1-channel audio with Nahimic enhancement

Specifications

BrandASRock
ModelB650M-HDV/M.2 White
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B650
Number of Memory Slots2x288pin (DDR5)
Memory StandardUp to 8200+(OC)
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x11 x PCIe 4.0 x1 Slot (PCIE2)*
*M2_1 will run at Gen5x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
*Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation.
PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
SATA RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
*Requires additional M.2 NVMe expansion cards to support RAID 10
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps

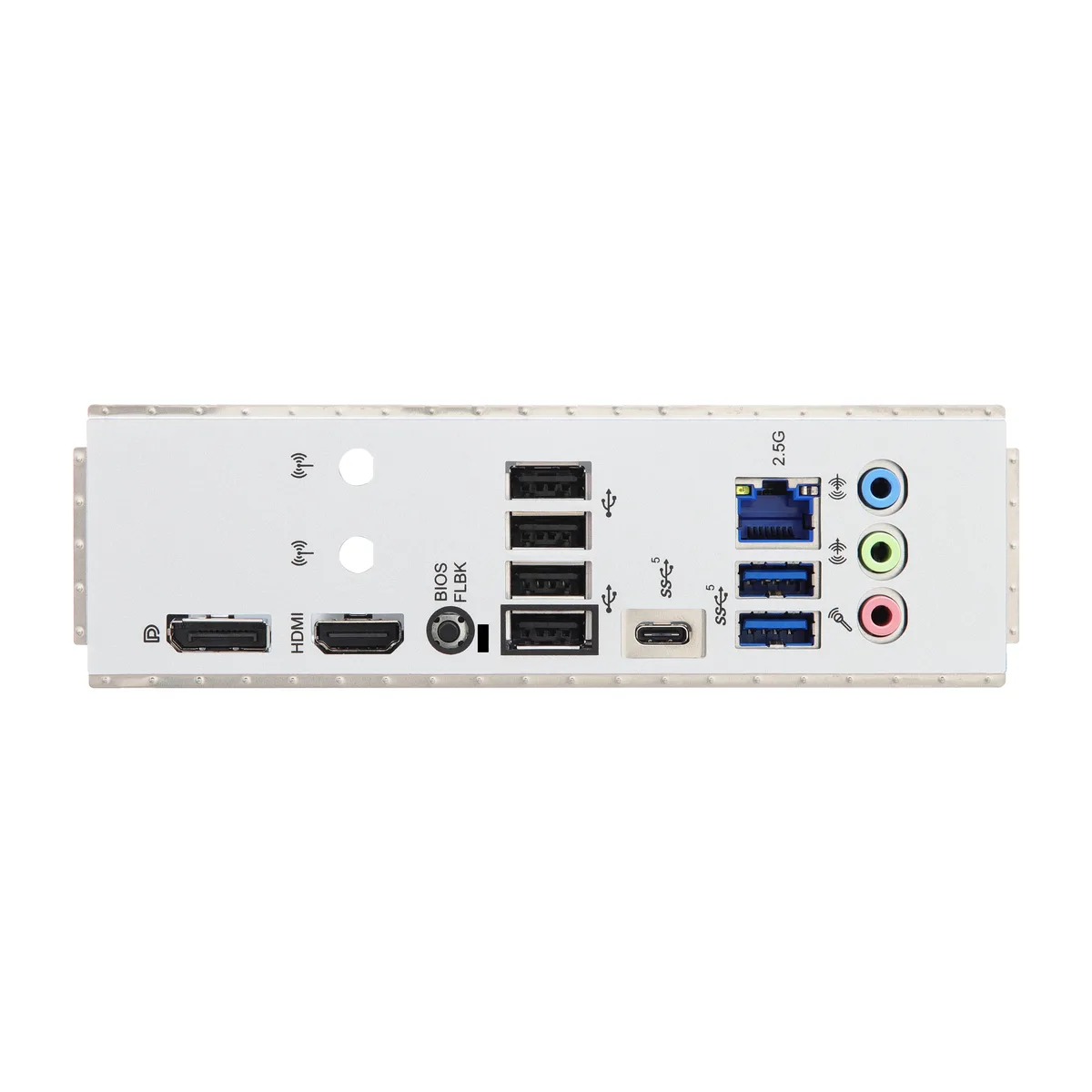

Back I/O Ports2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
2 x USB 3.2 Gen1 Type-A Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x CPU Fan Connector (4-pin)*
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2 Header
*CPU_FAN1 supports the fan power up to 1A (12W).
**CHA_FAN1~3/WP support the fan power up to 2A (24W).
CHA_FAN1~3/WP
Form FactorMicro ATX
Dimensions (W x L)9.6" x 8.9"
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Shipping weight1.18 kg
Package size279 × 254 × 76 mm

Questions about this item

Will my Ryzen 9000 processor run the primary M.2 slot at full PCIe 5.0 speed?

Yes, the M2_1 slot operates at Gen5x4 with Ryzen 9000 and 7000 series CPUs, dropping to Gen4x4 for Phoenix 1 and Gen4x2 for Phoenix 2 8000 series chips.

Can I install four SATA drives and two M.2 NVMe SSDs at the same time?

The board provides four SATA 6Gb/s ports plus two M.2 Key M sockets (one CPU-linked Gen5x4, one chipset-linked Gen4x4), so all six devices can be populated simultaneously.

What memory speed can I expect with a two-stick DDR5 kit?

Dual-channel DDR5 is supported up to 8200+(OC) via AMD EXPO or Intel XMP 3.0 profiles, with a maximum capacity of 128 GB across the two 288-pin slots.
