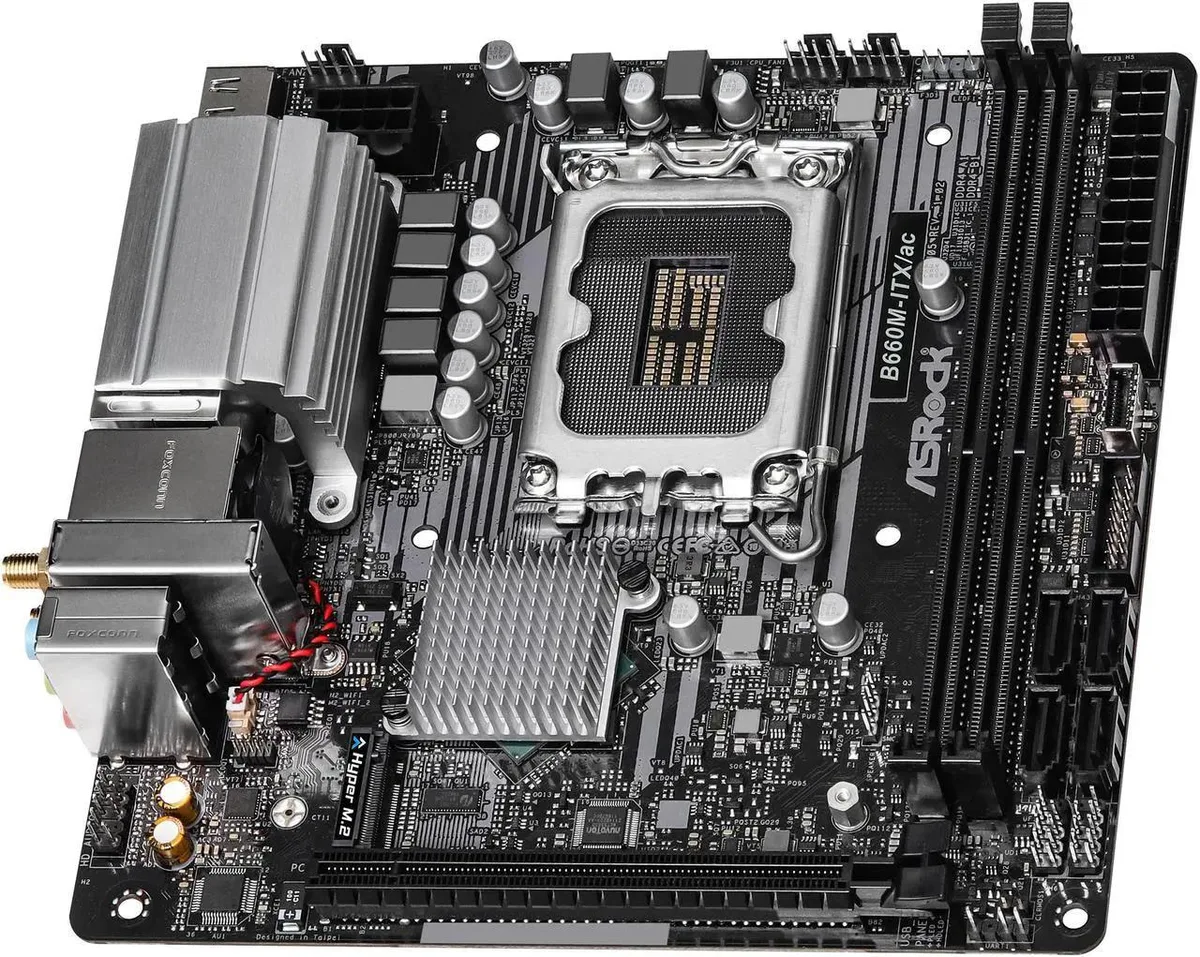

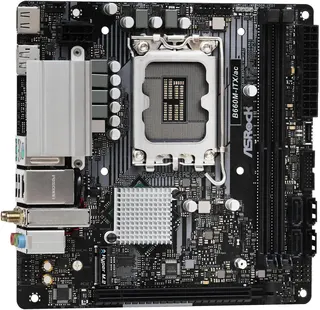

Compact Mini-ITX motherboard with black PCB, silver heatsinks, LGA 1700 socket, HDMI and DisplayPort outputs

ASRock

ASRock B660M-ITX/AC LGA 1700 Intel B660 DDR4 Mini ITX motherboard

SKU CH-GGF6-PYQZQ

Mini ITX board for LGA 1700 CPUs with DDR4 5000MHz support, PCIe 4.0 x16, HDMI, DisplayPort, 7.1 audio and one Hyper M.2 slot

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • 6 Phase Dr.MOS power design delivers stable CPU voltage
  • DDR4 memory overclocked to 5000 MHz for high bandwidth
  • PCIe 4.0 x16 slot enables fast graphics and add-in cards
  • HDMI and DisplayPort outputs drive dual displays from integrated graphics

Compact Intel B660 board for small-form-factor

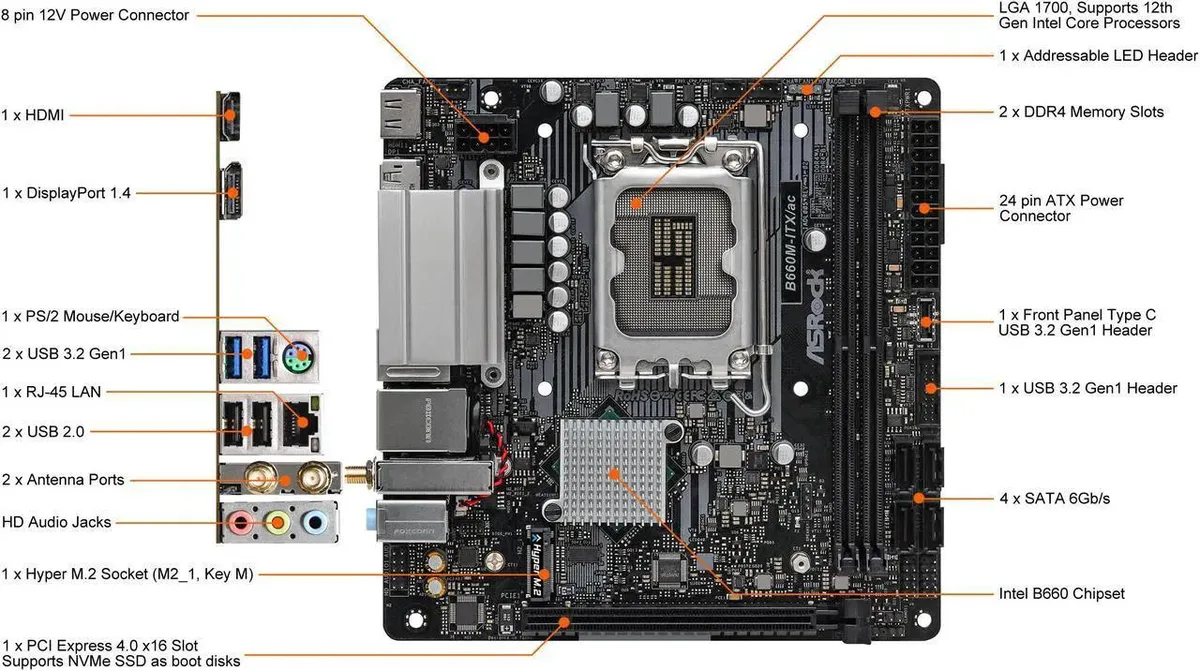

The ASRock B660M-ITX/AC is a Mini-ITX motherboard for LGA 1700 processors. It supports 12th and 13th Gen Intel Core, Pentium Gold and Celeron CPUs. A 6-phase Dr.MOS power design feeds the socket while four SATA3 ports and one Hyper M.2 slot handle storage. HDMI and DisplayPort outputs serve integrated graphics.

Replaces larger ATX boards when space is tight

This board fits cases that cannot accept full-size motherboards. The jump is worth it when you need PCIe 4.0 x16 bandwidth and DDR4 5000 MHz (OC) support in a 170 mm square footprint. Realtek ALC897 7.1-channel audio covers integrated sound without a separate card. Four SATA3 connectors remain available for 2.5-inch or 3.5-inch drives.

Check CPU cooler clearance

Verify that your chosen cooler fits the Mini-ITX keep-out zone around the LGA 1700 socket. The single Hyper M.2 slot accepts PCIe Gen4 x4 and SATA3 drives; confirm your drive matches one of those interfaces. Ensure the case provides an I/O shield cut-out for HDMI, DisplayPort and the rear USB layout. Power-phase count suits mainstream CPUs rather than extreme overclocking.

Highlights

  • Supports 12th and 13th Gen Intel Core processors via LGA 1700 socket
  • 6 Phase Dr.MOS power design delivers stable CPU voltage
  • DDR4 memory overclocked to 5000 MHz for high bandwidth
  • PCIe 4.0 x16 slot enables fast graphics and add-in cards
  • HDMI and DisplayPort outputs drive dual displays from integrated graphics

Specifications

No published specifications for this item yet.

Questions about this item

What case clearance and mounting pattern does the ASRock B660M-ITX/AC require?

The board uses the Mini-ITX form factor with standard 1700 socket mounting holes and measures 170 mm square, so it fits any case that supports Mini-ITX and LGA 1700 coolers.

Which step is most often missed when installing this motherboard into a chassis?

Builders frequently forget to install the M.2 standoff screw before placing the board, then cannot secure the Hyper M.2 drive without removing the motherboard again.

Which component on this board will need replacement over time?

The Realtek ALC897 audio codec and 6-phase Dr.MOS power stages are soldered and not user-replaceable; only peripheral parts such as SATA cables or M.2 drives would be swapped later.
