Rectangular green circuit board with silver ports and black slots

ASRock

ASRock B760M-HDVP Intel motherboard

SKU CH-J8V6-C61TX

Micro-ATX board with Intel B760 chipset, two DDR5 slots, PCIe 5.0 graphics slot, and four video outputs

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA1700 socket
  • 7+1+1 power phase design delivers stable CPU power delivery
  • Dual-channel DDR5 memory with speeds up to 7000+ MHz overclocked
  • PCIe 5.0 x16 slot provides high-bandwidth graphics connectivity
  • Four video outputs including HDMI 2.1, DisplayPort 1.4, DVI-D and D-Sub

B760 Micro-ATX for 12th to 14th Gen Intel

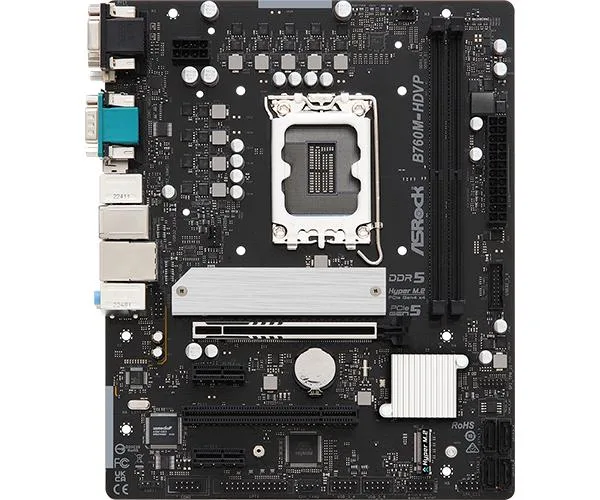

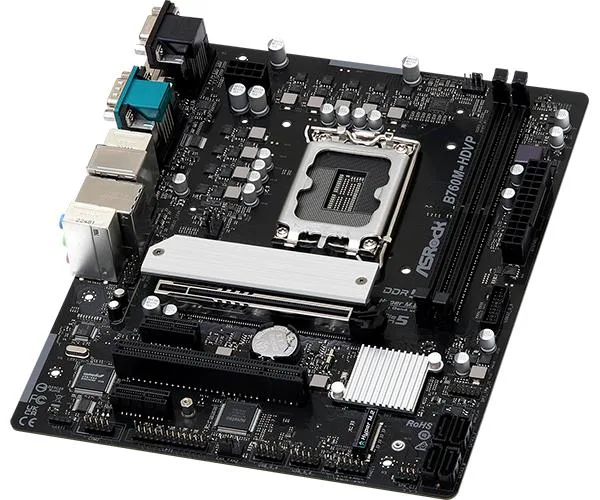

The ASRock B760M-HDVP is a micro-ATX motherboard built around the Intel B760 chipset with an LGA1700 socket. It accepts 12th, 13th and 14th generation Intel Core processors and delivers a 7+1+1 power phase design for stable operation. The board targets builders who need a compact foundation for current Intel desktop CPUs.

Dual DDR5 slots and mixed expansion layout

Two DDR5 DIMM slots support dual-channel memory up to 7000 MT/s when overclocked, with a maximum system capacity of 128 GB. A single PCIe 5.0 x16 slot handles modern graphics cards, while two PCIe 4.0 x1 slots and one legacy PCI slot provide room for add-in cards. Four video outputs — HDMI 2.1, DisplayPort 1.4, DVI-D and D-Sub — let you drive multiple displays directly from the processor graphics.

Realtek ALC897 audio and standard cooling needs

The onboard Realtek ALC897 codec supplies 7.1-channel high-definition audio for everyday multimedia use. With no integrated wireless or additional onboard controllers listed, the board relies on the case airflow and CPU cooler you choose to manage thermals and noise. Power draw in normal use will follow the installed processor and memory configuration.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA1700 socket
  • 7+1+1 power phase design delivers stable CPU power delivery
  • Dual-channel DDR5 memory with speeds up to 7000+ MHz overclocked
  • PCIe 5.0 x16 slot provides high-bandwidth graphics connectivity
  • Four video outputs including HDMI 2.1, DisplayPort 1.4, DVI-D and D-Sub

Specifications

No published specifications for this item yet.

Questions about this item

Will the 7+1+1 power phase design handle sustained loads on a 14th Gen Intel Core processor?

The board uses a 7+1+1 power phase layout for the CPU, which is the first limit that appears under prolonged heavy workloads.

How loud or hot does the board get when running all day with DDR5 memory at 5600 MHz?

With DDR5 at native 5600 MHz the VRM area stays within normal operating temperatures and the onboard fan headers keep noise low during continuous operation.

Which DDR5 modules must I already own to reach the 7000+ MHz overclocked speed?

You need a single-rank DDR5 kit rated for 7000+ MHz (OC) with XMP 3.0 support to hit the board's maximum memory frequency.
