Grey Micro ATX motherboard with black aluminium heatsinks and silver PCIe slots

ASRock

ASRock B760M PG Lightning WiFi Intel motherboard

SKU CH-J359-Z3S0N MPN B760M PG Lightning WiFi

Micro-ATX board for 12th and 13th Gen Intel CPUs with DDR5 memory up to 7200 MHz, PCIe 5.0 graphics slot, three Gen4 M.2 sockets, 2.5 GbE LAN and Wi-Fi

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 13th Gen & 12th Gen and next gen Intel Core Process
  • Supported CPU TechnologiesSupports Intel Hybrid Technology Supports Intel Turbo Boost
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports DDR5 non-ECC, un-buffered memory up to 7200+(OC) 1D
  • Supports 12th and 13th Gen Intel Core CPUs on LGA 1700 socket
  • 7+1+1 Dr.MOS power phases deliver stable CPU voltage
  • Four DDR5 slots reach 7200 MHz OC for up to 192 GB
  • PCIe 5.0 x16 plus three Gen4 M.2 sockets for fast NVMe storage
  • 5 Gbps Dragon LAN with Phantom Gaming software optimisation

LGA 1700 micro-ATX platform

The ASRock B760M PG Lightning WiFi is a micro-ATX motherboard built for Intel Core processors using the LGA 1700 socket. It supports 12th and 13th generation CPUs and handles Intel hybrid architectures with Turbo Boost Max 3.0 and Thermal Velocity Boost. Four DDR5 slots accept up to 192 GB of memory in dual-channel mode.

7+1+1 Dr.MOS power phases

The board uses a 7+1+1 phase design with Dr.MOS integrated power stages to deliver clean current to the CPU cores and graphics. A six-layer PCB and aluminium heatsinks spread heat during sustained loads. Fan-Tastic Tuning auto-detects connected fans and adjusts curves for quieter operation at typical workloads.

Three PCIe Gen4 M.2 and 2.5 GbE LAN

Three Hyper M.2 sockets from the CPU and chipset provide PCIe Gen4 x4 storage paths for NVMe drives. Four SATA 6 Gb/s ports and RAID 0, 1, 5, 10 add capacity options. The Dragon RTL8125BG controller gives 2.5 Gbps wired networking with Phantom Gaming LAN software for traffic prioritisation.

Highlights

  • Supports 12th and 13th Gen Intel Core CPUs on LGA 1700 socket
  • 7+1+1 Dr.MOS power phases deliver stable CPU voltage
  • Four DDR5 slots reach 7200 MHz OC for up to 192 GB
  • PCIe 5.0 x16 plus three Gen4 M.2 sockets for fast NVMe storage
  • 5 Gbps Dragon LAN with Phantom Gaming software optimisation

Specifications

BrandASRock
ModelB760M PG Lightning WiFi
CPU Socket TypeLGA 1700
CPU TypeSupports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700)
Supported CPU TechnologiesSupports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports DDR5 non-ECC, un-buffered memory up to 7200+(OC)
1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureSupports Intel Extreme Memory Profile (XMP) 3.0
PCI Express 5.0 x16CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- Supports AMD CrossFire
*Supports NVMe SSD as boot disks
PCI Express 3.0 x16Chipset:
1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
*Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
*Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
SATA RAID0/1/5/10
Audio Chipset7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Supports Phantom Gaming LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Max LAN Speed2.5Gbps
Wireless LAN802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band* support
* Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
* A 6GHz compatible router is required for 6E functionality.
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3 + High speed class II
- Supports MU-MIMO
BluetoothBluetooth 5.3
Back I/O Ports2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Other Connectors1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
*CPU_FAN1 supports the fan power up to 1A (12W).
**CPU_FAN2/WP supports the fan power up to 2A (24W).
***CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5
Rock-Solid Durability
- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
Ultrafast Connectivity
- 2.5G LAN EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker

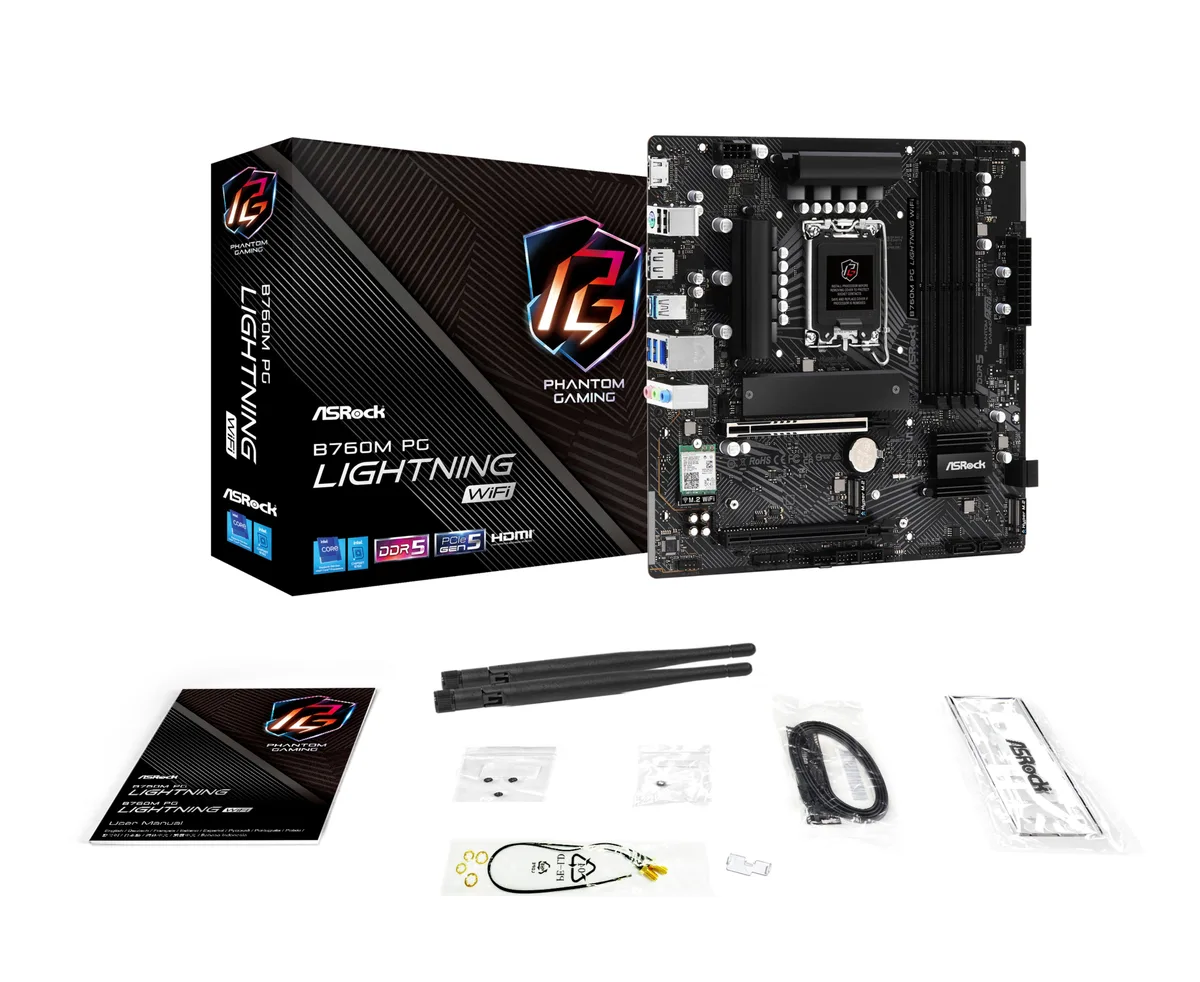

Package Contents1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
2 x SMA WiFi Antenna Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Plastic Cover for Wi-Fi Module
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Shipping weight1.09 kg
Package size279 × 254 × 70 mm

Questions about this item

How do I install the CPU into the LGA 1700 socket and what step is often missed?

Align the processor triangle with the socket marker, lower it gently, then close the retention lever before securing the load plate; the load plate step is the one most builders forget.

Which components on this board will need replacement or maintenance over time?

The CMOS battery on the motherboard will eventually need swapping; the aluminium heatsinks and Dr.MOS power stages have no user-serviceable parts.

What is the first limit reached during sustained heavy loads on this motherboard?

The 7+1+1 Dr.MOS power phases and aluminium heatsinks set the thermal ceiling for the CPU VRM before any other onboard limit is hit.
