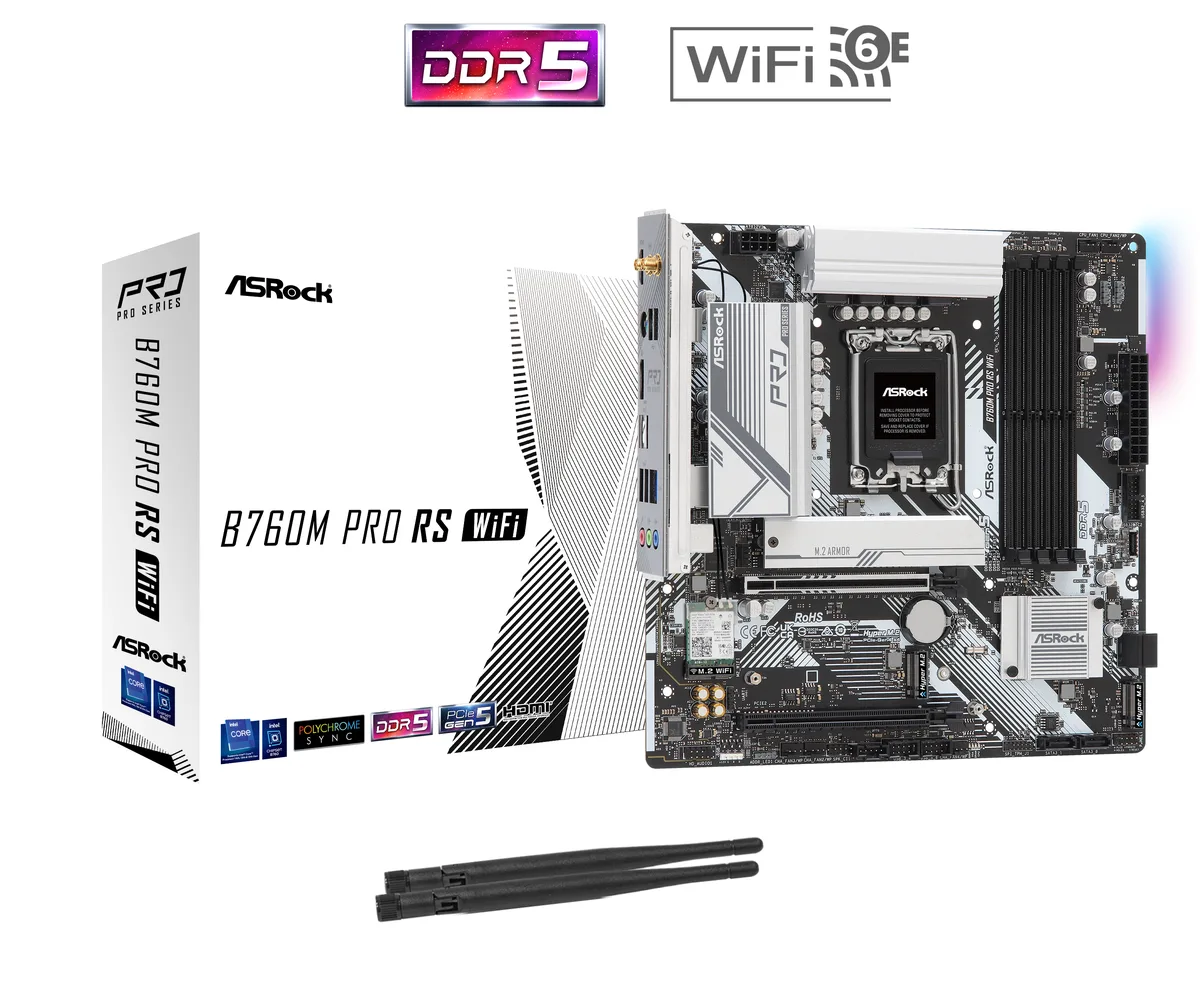

Micro ATX motherboard with black PCB and silver heatsinks

ASRock

ASRock B760M Pro RS WiFi Intel motherboard LGA 1700 DDR5 256GB

SKU CH-THCH-05MAC MPN B760M Pro RS WiFi

Micro-ATX board for 12th, 13th and 14th Gen Intel Core CPUs with four DDR5 slots, 2.5 Gbps LAN, Wi-Fi and three PCIe Gen4 M.2 sockets

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 17
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 7200+(OC)
  • Maximum Memory Supported256GB
  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • Four DDR5 slots deliver up to 256 GB capacity with XMP 3.0 profiles
  • PCIe 5.0 x16 slot provides full bandwidth for latest graphics cards
  • Three M.2 sockets with PCIe Gen4 x4 give 64 Gb/s storage speed
  • 5 Gbps LAN plus Wi-Fi 802.11 ax for fast wired and wireless networking

Micro ATX Board for 12th 13th 14th Gen Intel

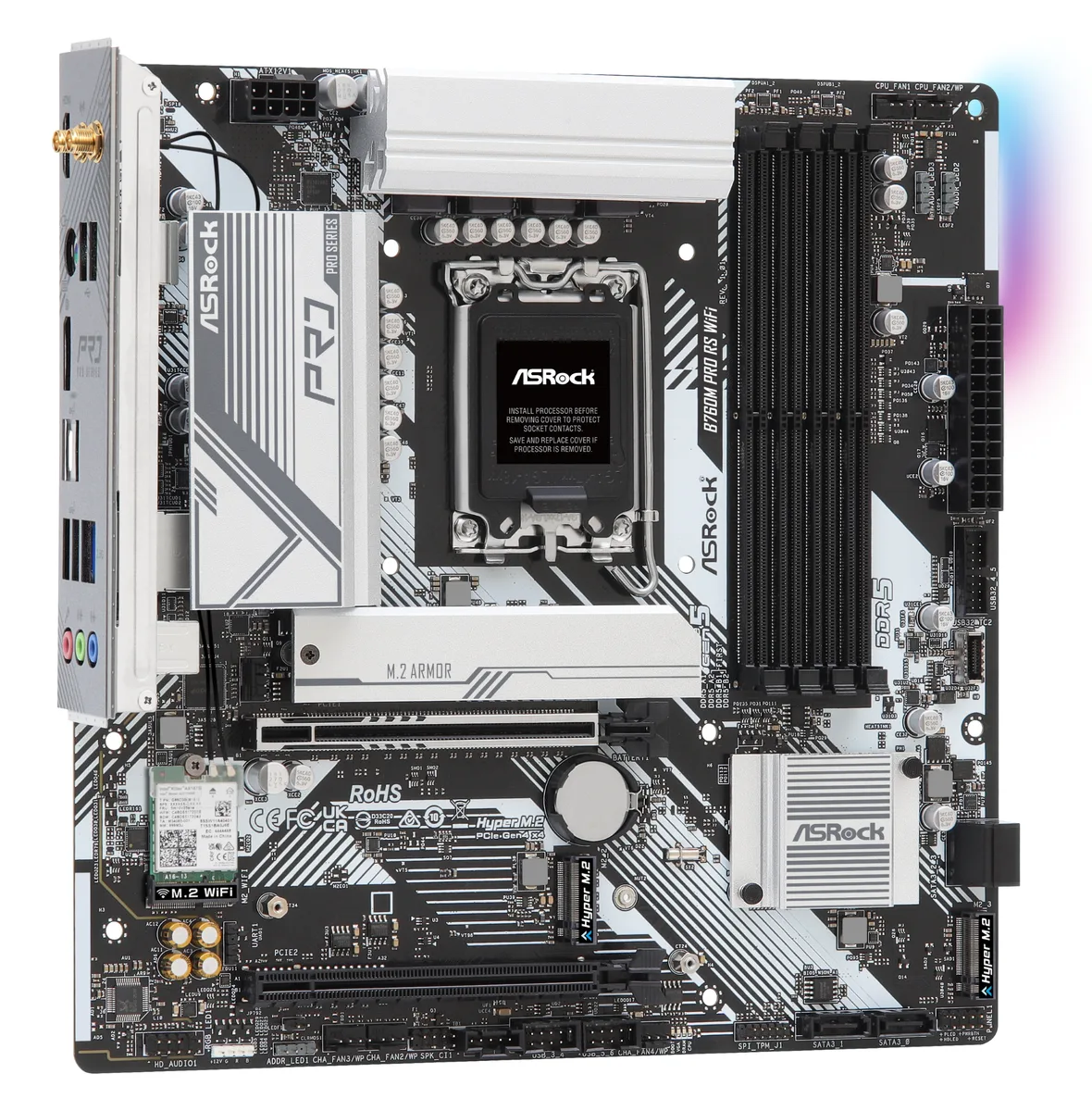

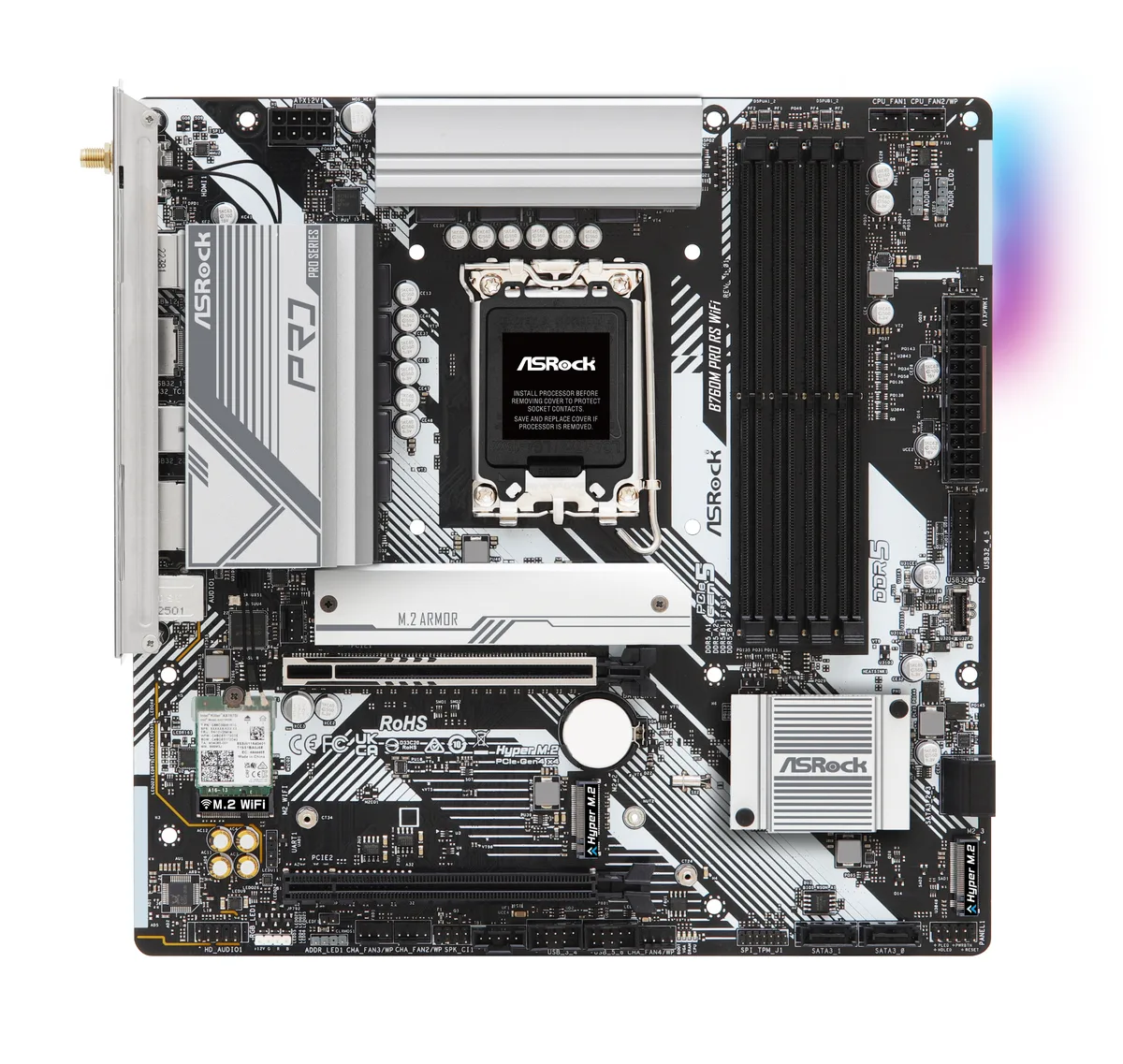

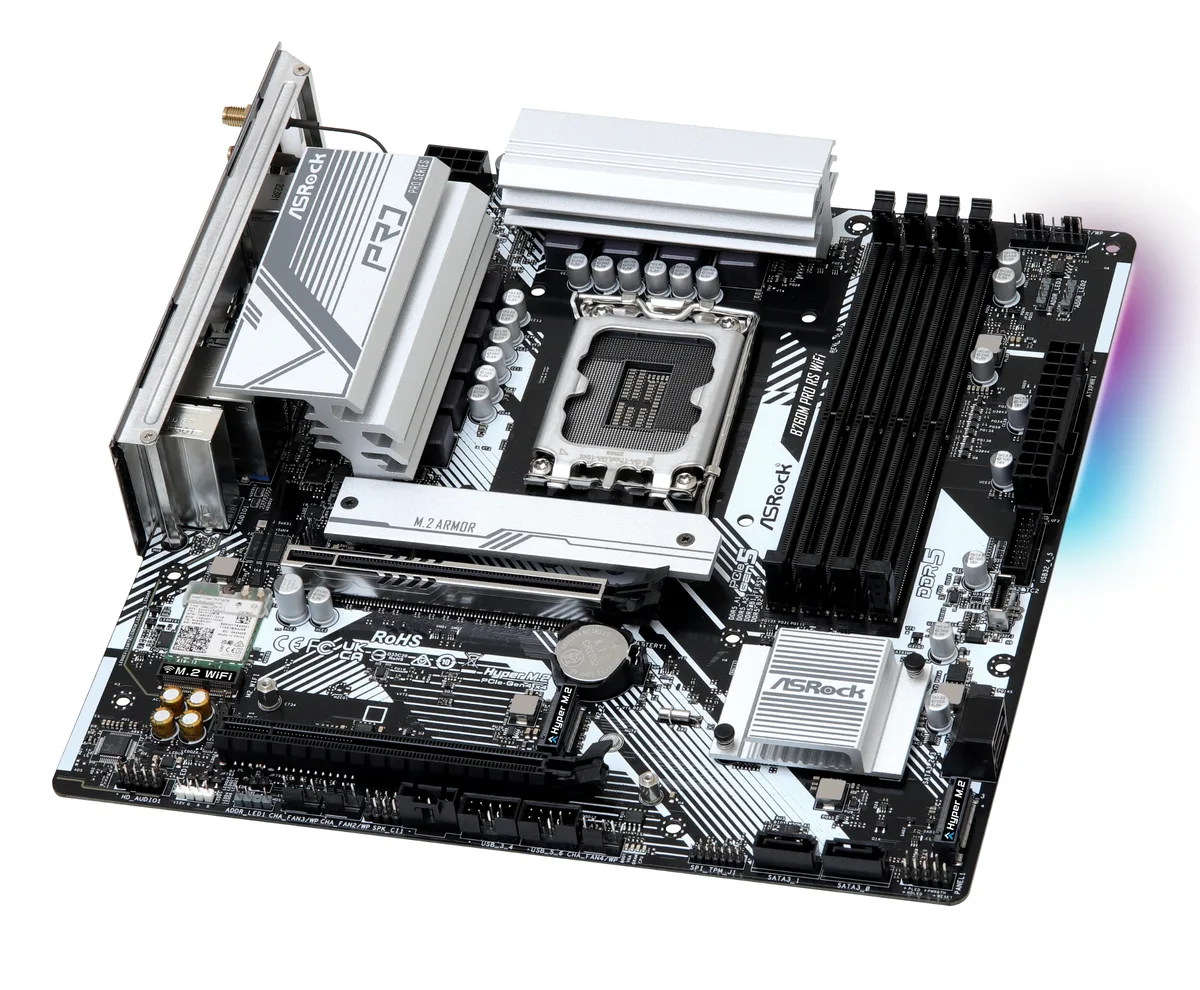

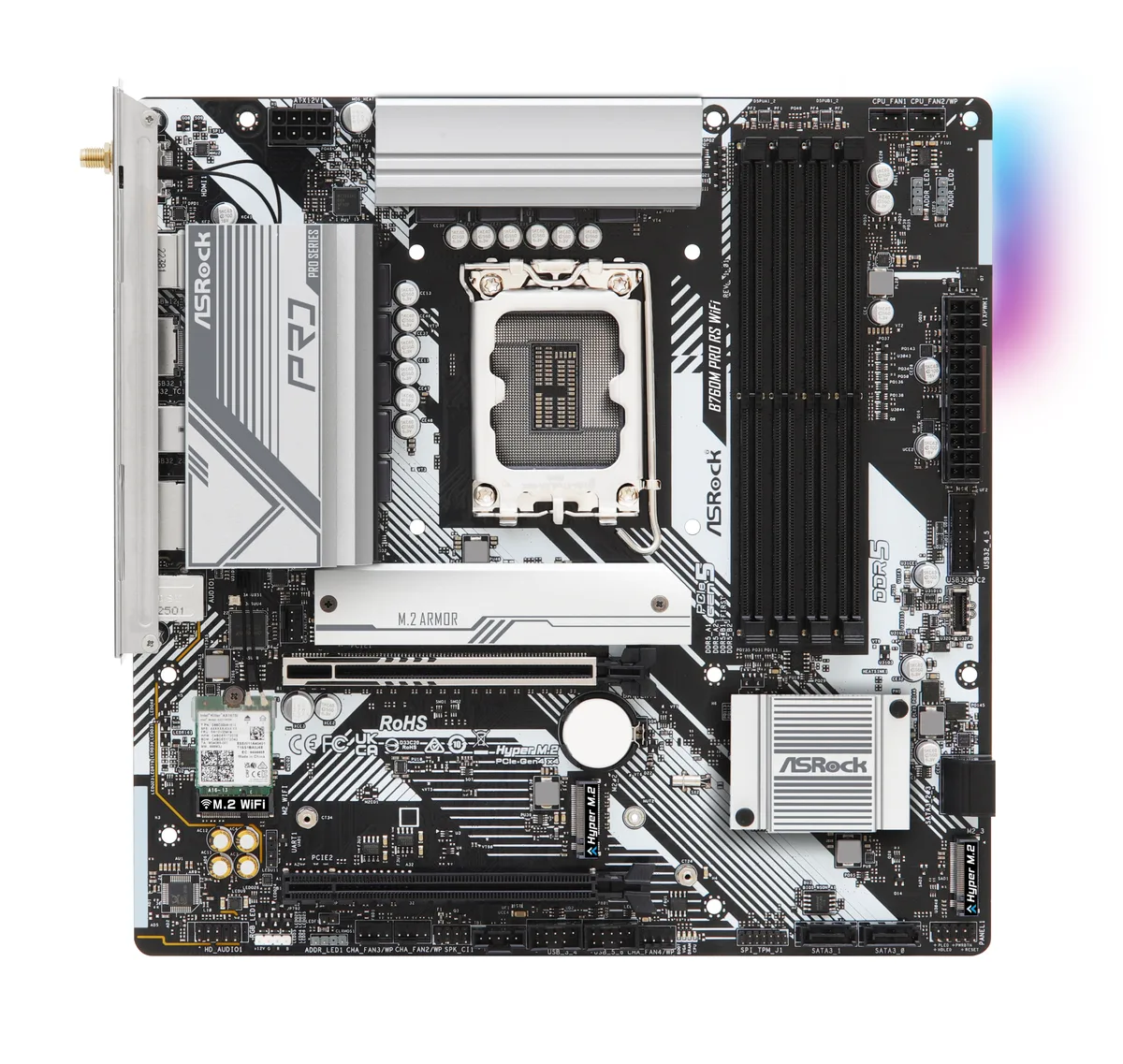

The ASRock B760M Pro RS WiFi is a Micro ATX motherboard built around the Intel B760 chipset and the LGA 1700 socket. It accepts 12th 13th and 14th Gen Intel Core processors and provides four 288 pin DDR5 slots with a maximum capacity of 256 GB running in dual channel mode.

Three Hyper M.2 Sockets and 2.5 Gigabit LAN

The board includes three Hyper M.2 sockets each supporting PCIe Gen4 x4 speeds of 64 Gbps for NVMe SSDs in 2242 2260 and 2280 form factors. Four SATA 6 Gbps ports add traditional storage options while a 2.5 Gbps LAN port and Wi-Fi 802.11 ax deliver wired and wireless networking. Realtek ALC897 7.1 channel audio with Nahimic Audio completes the I/O set.

Straightforward Installation With Standard Mounting

The Micro ATX form factor fits standard chassis mounting points and uses a conventional 24 pin ATX plus 8 pin CPU power arrangement. Memory slots support Intel XMP 3.0 profiles for DDR5 speeds up to 7200 MTs when compatible modules are installed. Builders should verify CPU cooler clearance against the VRM heatsink area and ensure the chosen case provides adequate airflow for the 7+1+1 Dr.MOS power phase design.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • Four DDR5 slots deliver up to 256 GB capacity with XMP 3.0 profiles
  • PCIe 5.0 x16 slot provides full bandwidth for latest graphics cards
  • Three M.2 sockets with PCIe Gen4 x4 give 64 Gb/s storage speed
  • 5 Gbps LAN plus Wi-Fi 802.11 ax for fast wired and wireless networking

Specifications

BrandASRock
ModelB760M PRO RS WiFi
CPU Socket TypeLGA 1700
CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700)
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 7200+(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
PCI Express 5.0 x161 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 3.0 x161 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
* Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto
BIOS Feature128Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- Killer Control Center
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin24 Pin
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5
Rock-Solid Durability
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN, Killer 802.11axe Wi-Fi 6E Module
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Shipping weight1.13 kg
Package size279 × 267 × 64 mm

Questions about this item

Will the 7+1+1 Dr.MOS power phases need active cooling during long rendering sessions?

The 7+1+1 Dr.MOS design handles typical sustained loads without extra cooling; case airflow over the heatsink is usually sufficient.

What speed ceiling appears first when all four DDR5 slots are populated?

With four ranks installed the board tops out at 3600 MHz native or 4800+ MHz with XMP 3.0 enabled.

How loud does the chipset fan get when the 2.5 GbE and Wi-Fi 802.11 ax run continuously?

No chipset fan is present; the passive heatsink keeps the B760 and wireless module quiet under constant network traffic.
