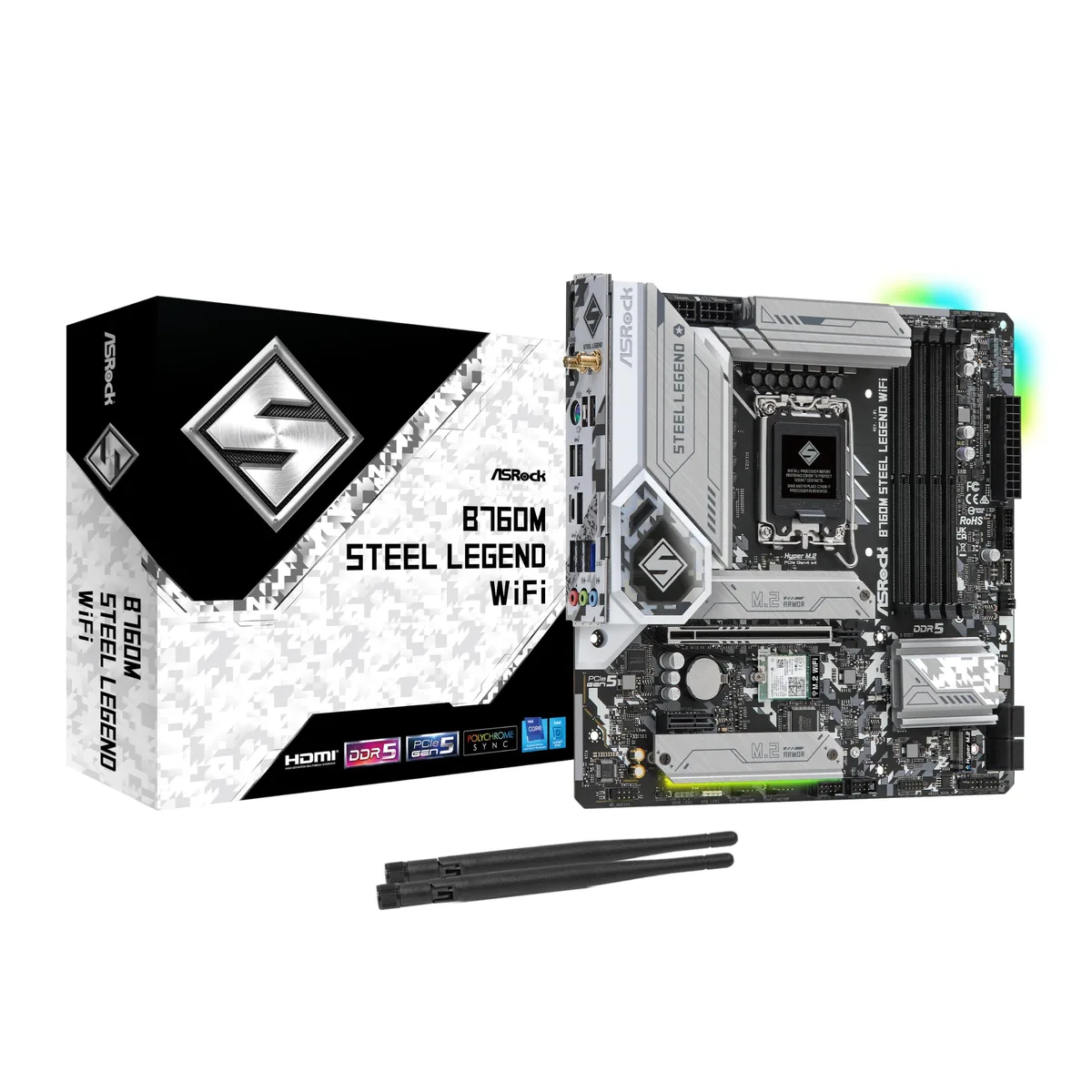

Micro-ATX motherboard with grey and silver heatsinks, black PCB, integrated WiFi antennas

ASRock

ASRock B760M Steel Legend WiFi Intel motherboard

SKU CH-HRNF-64ZRZ

Micro-ATX board with 12+1+1 Dr.MOS power phases, DDR5 7200 MHz support, PCIe 5.0 x16, 2.5G LAN, WiFi 6E and Bluetooth 5.3

  • Supports 13th and 12th Gen Intel Core LGA1700 processors
  • 12+1+1 Dr.MOS power phases deliver stable VCore and GT current
  • DDR5 memory overclocked to 7200 MHz for high bandwidth
  • PCIe 5.0 x16 plus PCIe 4.0 x1 for fast GPU and add-in cards
  • 5 Gb Dragon LAN, WiFi 6E and Bluetooth 5.3 for modern connectivity

Steel Legend WiFi board for LGA1700 CPUs

This ASRock motherboard accepts 12th and 13th Gen Intel Core processors on the LGA1700 socket. A 12+1+1 Dr.MOS power design feeds the CPU and graphics. It targets builders who want DDR5 memory support and integrated wireless in a compact form factor.

Suits DDR5 builders with WiFi 6E needs

The board suits users who plan to run DDR5 memory up to 7200 MHz (OC) and need 2.5G LAN plus WiFi 6E with Bluetooth 5.3. Builders requiring more than one full-length PCIe 5.0 slot or additional 2.5G ports should consider other platforms.

One PCIe 5.0 x16 slot defines expansion

A single PCIe 5.0 x16 slot handles the graphics card while a PCIe 4.0 x1 slot covers add-in cards. Video outputs include HDMI, DisplayPort and eDP for integrated graphics use. Three Hyper M.2 sockets provide Gen4x4 storage connections.

Highlights

  • Supports 13th and 12th Gen Intel Core LGA1700 processors
  • 12+1+1 Dr.MOS power phases deliver stable VCore and GT current
  • DDR5 memory overclocked to 7200 MHz for high bandwidth
  • PCIe 5.0 x16 plus PCIe 4.0 x1 for fast GPU and add-in cards
  • 5 Gb Dragon LAN, WiFi 6E and Bluetooth 5.3 for modern connectivity

Specifications

No published specifications for this item yet.

Questions about this item

Does the 12+1+1 Dr.MOS phase design keep the VRM cool enough for a 13th Gen Intel Core CPU under sustained all-core load?

The 12+1+1 Dr.MOS power phase layout is built for 13th Gen and 12th Gen Intel Core processors on LGA1700, delivering stable VCore and GT current during extended workloads.

How loud or hot does the board get when the 2.5G LAN, WiFi 6E and Bluetooth 5.3 run continuously?

Active components include Dragon 2.5G LAN, 802.11 ax WiFi 6E and Bluetooth 5.3; thermal performance depends on case airflow and the cooler mounted on the CPU.

Which DDR5 memory speed does the board guarantee without manual overclocking?

The motherboard supports DDR5 up to 7200MHz (OC); JEDEC base speeds are configured automatically at boot.
