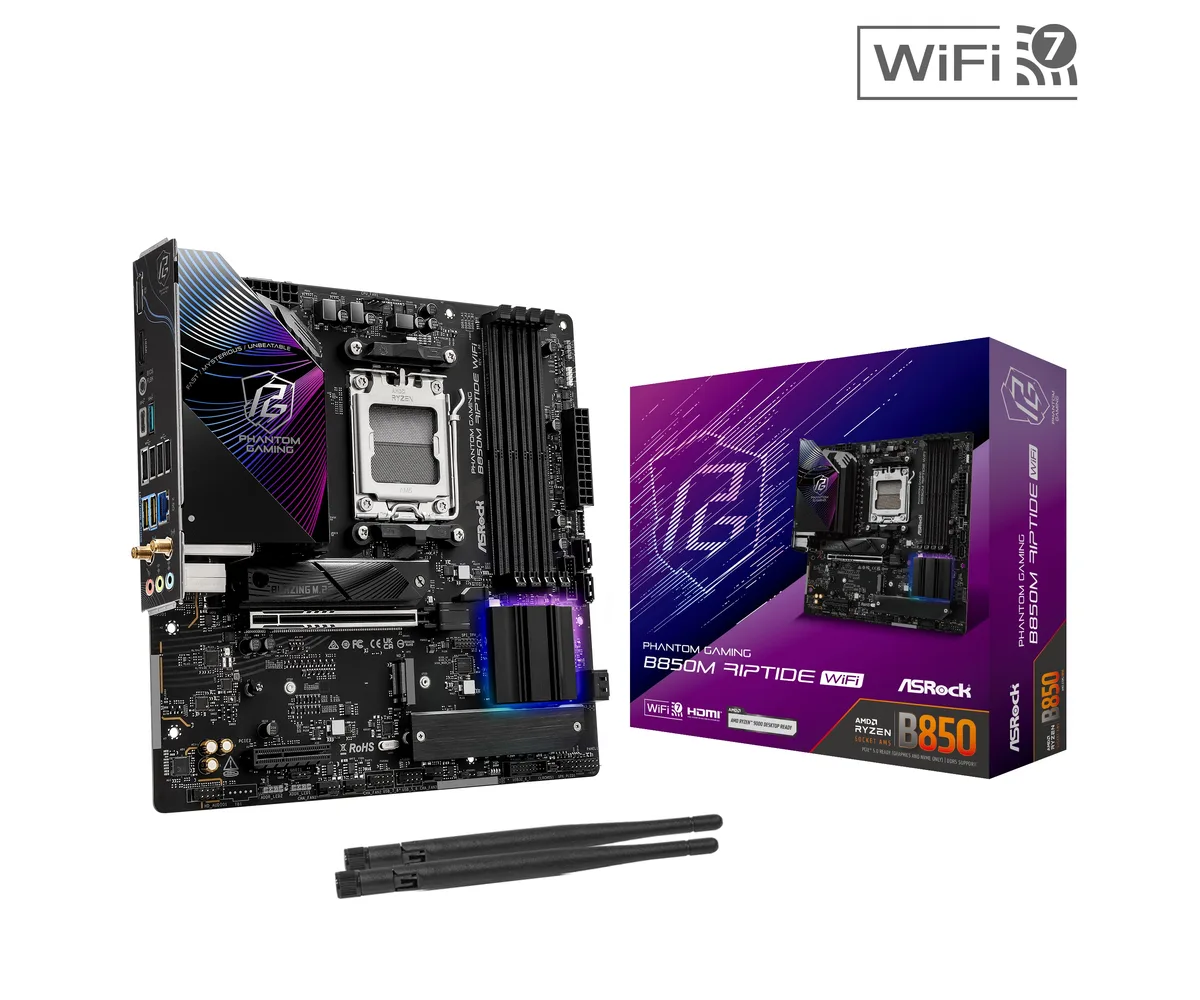

Micro-ATX motherboard with black PCB and silver heatsinks

ASRock

ASRock B850M Riptide WiFi AMD motherboard

SKU CH-CTTD-H4JWY MPN B850M Riptide WiFi

Micro-ATX AM5 board with 12+2+1 power phases, PCIe 5.0 x16, Gen5 M.2, four DDR5 slots up to 8000+ MT/s, Realtek 7.1 audio and Dragon RTL8125BG LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8000+(OC)
  • Maximum Memory Supported256GB

Option B850M Riptide WiFi

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 12+2+1 phase Dr.MOS power design with 1000uF 20K capacitors
  • Four DDR5 slots up to 8000+(OC) with AMD EXPO and Intel XMP 3.0
  • PCIe 5.0 x16 plus three M.2 slots including Gen5x4 and Gen4x4
  • Realtek ALC1220 7.1 audio with Nahimic and Dragon RTL8125BG LAN

Micro-ATX AM5 Board With Three M.2 Slots

This board suits builders choosing a Ryzen 7000, 8000 or 9000 CPU and needing four DDR5 slots, a PCIe 5.0 x16 slot and three M.2 sockets. The 12+2+1 phase Dr.MOS layout and 20K capacitors give stable power for high loads.

Straightforward Install With Standard Clearances

The micro-ATX footprint fits most cases using regular standoffs and the I/O shield is pre-mounted. CPU power uses an 8-pin connector and the 24-pin ATX sits at the usual edge. Tall coolers can block the first DIMM slot, so check cooler height before ordering.

Compact Builds Needing Triple M.2 And 256GB RAM

Enthusiasts wanting up to 256GB DDR5, three M.2 drives and 7.1 audio in a smaller chassis will match well. Users requiring more than one PCIe x16 slot or more than four SATA ports should look at a full-size ATX alternative.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 12+2+1 phase Dr.MOS power design with 1000uF 20K capacitors
  • Four DDR5 slots up to 8000+(OC) with AMD EXPO and Intel XMP 3.0
  • PCIe 5.0 x16 plus three M.2 slots including Gen5x4 and Gen4x4
  • Realtek ALC1220 7.1 audio with Nahimic and Dragon RTL8125BG LAN

Specifications

BrandASRock
ModelB850M Riptide WiFi
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8000+(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
* Supports NVMe SSD as boot disks
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)
PCI Express 4.0 x161 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports NVMe SSD as boot disks
* M2_1 is the first priority for M.2 installation.
* M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
SATA RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4

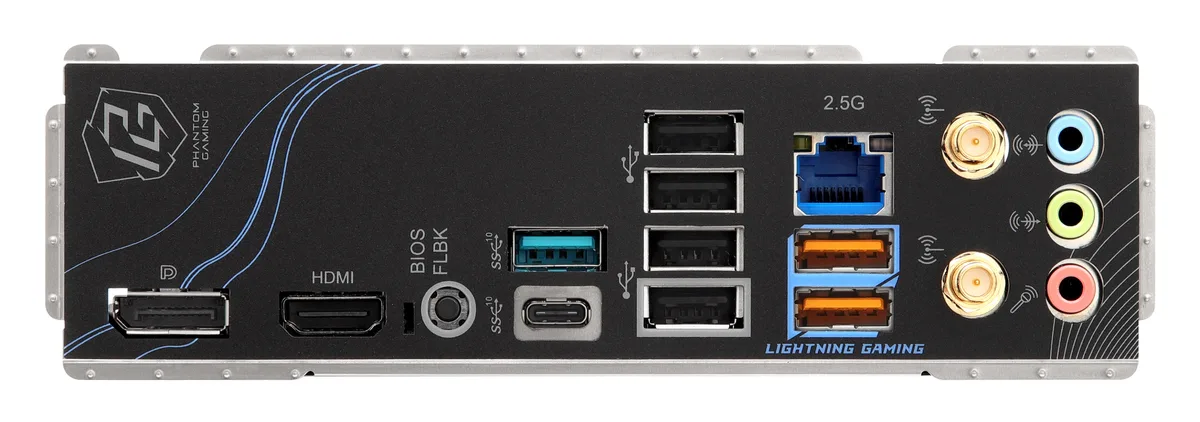

Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
* USB32_23 are Lightning Gaming Ports
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors1 x SPI TPM Header
1 x Thermistor Cable Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
*** CPU_FAN2 and CHA_FAN1~3 support the fan power up to 3A (36W).
*** CPU_FAN2 and CHA_FAN1~3 can auto detect if 3-pin or 4-pin fan is in use.
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Windows 11Windows OS 10 64-bit / 11 64-bit
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 12+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink
Armor
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Gaming
- 2.5G LAN, 802.11be Wi-Fi 7 Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Package Contents2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Thermistor Cable
2 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Shipping weight1.36 kg
Package size305 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the ASRock B850M Riptide WiFi is running correctly after first boot?

Enter the BIOS and verify the CPU is detected as a Ryzen 7000, 8000 or 9000 series processor, that all four DDR5 slots show the installed capacity totalling up to 256 GB, and that the primary M.2 socket reports a Gen5 x4 link.

What comes in the box with the B850M Riptide WiFi and what must I source separately?

The motherboard includes an I/O shield, SATA cables, M.2 screws and a quick-install guide; you must purchase an AM5 CPU, DDR5 memory modules, storage drives and a graphics card separately.

Which M.2 socket should I use for the fastest NVMe drive on this board?

Use the CPU-attached Blazing M.2 socket (M2_1) which supports PCIe 5.0 x4 at 128 Gb/s for a 2280 drive; the chipset sockets run at Gen4 x4 or x2 speeds.
