Green Micro-ATX motherboard with silver heatsinks and rear I/O shield

ASRock

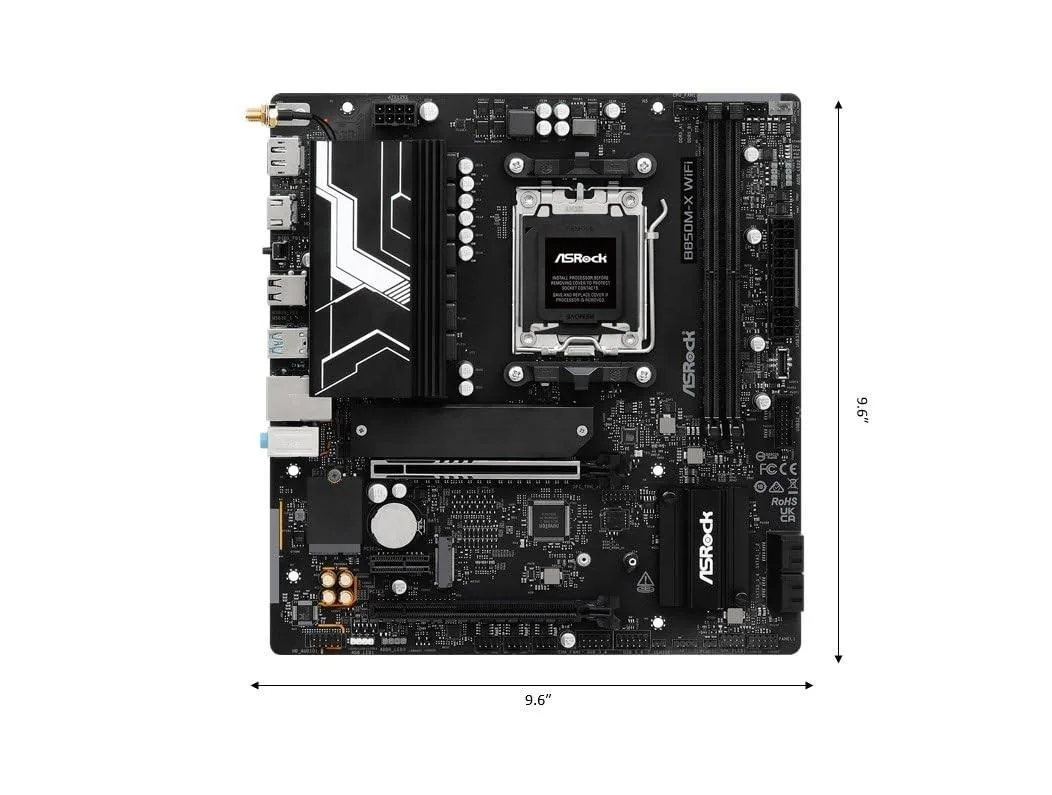

ASRock B850M-X WiFi R2.0 AM5 Micro-ATX AMD motherboard

SKU CH-QM6Y-H4YNZ

Micro-ATX board for Ryzen 9000, 8000 and 7000 CPUs with DDR5 up to 8200 OC, PCIe 5.0 x16, Wi-Fi 6E and 2.5G LAN

  • Supports AMD Ryzen 9000, 8000 and 7000 series CPUs
  • 6+1+1 phase Dr.MOS power design for stable CPU delivery
  • Dual-channel DDR5 memory up to 8200+ (OC) on two DIMMs
  • PCIe 5.0 x16 plus Gen5 M.2 for high-speed graphics and storage
  • Wi-Fi 6E with 2.5G LAN and Bluetooth connectivity

Micro-ATX board for Ryzen 7000, 8000 and 9000 series

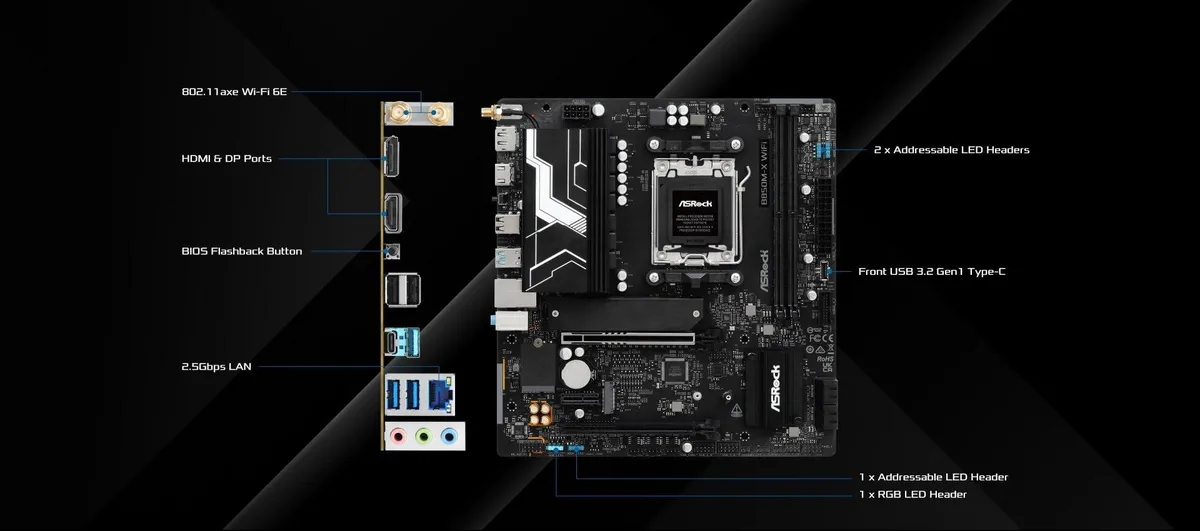

This ASRock B850M-X WiFi R2.0 uses the AM5 socket and supports AMD Ryzen 7000, 8000 and 9000 series processors. It provides two DDR5 DIMM slots running dual-channel up to 8200+ (OC). The 6+1+1 phase Dr.MOS power design feeds the CPU. Onboard Wi-Fi 6E and 2.5G LAN handle networking.

Standard Micro-ATX layout with BIOS Flashback

Installation follows the usual Micro-ATX pattern in compatible chassis. The board includes BIOS Flashback so firmware can be updated without a CPU installed. Only two DDR5 slots are present, so four-stick kits cannot be used. The note about built-in systems means some OEM cases or proprietary front-panel connectors may not fit.

Builders wanting Wi-Fi 6E

This suits builders who need Wi-Fi 6E, a PCIe 5.0 x16 slot and a Gen5 M.2 drive in a Micro-ATX form factor. It is not for buyers who want four memory slots, more than two M.2 sockets or additional PCIe 5.0 expansion lanes.

Highlights

  • Supports AMD Ryzen 9000, 8000 and 7000 series CPUs
  • 6+1+1 phase Dr.MOS power design for stable CPU delivery
  • Dual-channel DDR5 memory up to 8200+ (OC) on two DIMMs
  • PCIe 5.0 x16 plus Gen5 M.2 for high-speed graphics and storage
  • Wi-Fi 6E with 2.5G LAN and Bluetooth connectivity

Specifications

No published specifications for this item yet.

Questions about this item

How do I confirm the Wi-Fi 6E module is active after installing the motherboard?

After setup, open the OS network list and look for the 802.11axe adapter; it will appear as Wi-Fi 6E with Bluetooth once the drivers supplied by ASRock are installed.

What accessories are included in the box with the B850M-X WiFi R2.0 board?

The package contains the Micro-ATX motherboard, rear I/O shield, driver disc and quick-installation guide. Cables for the four SATA3 ports and M.2 mounting screws are not included.

Which DDR5 speed should I target for the 8200+ (OC) limit on this board?

The two DIMM slots support dual-channel DDR5 up to 8200 MT/s when overclocked; choose a kit rated at or above that speed and enable the XMP/EXPO profile in BIOS to reach the rated frequency.
