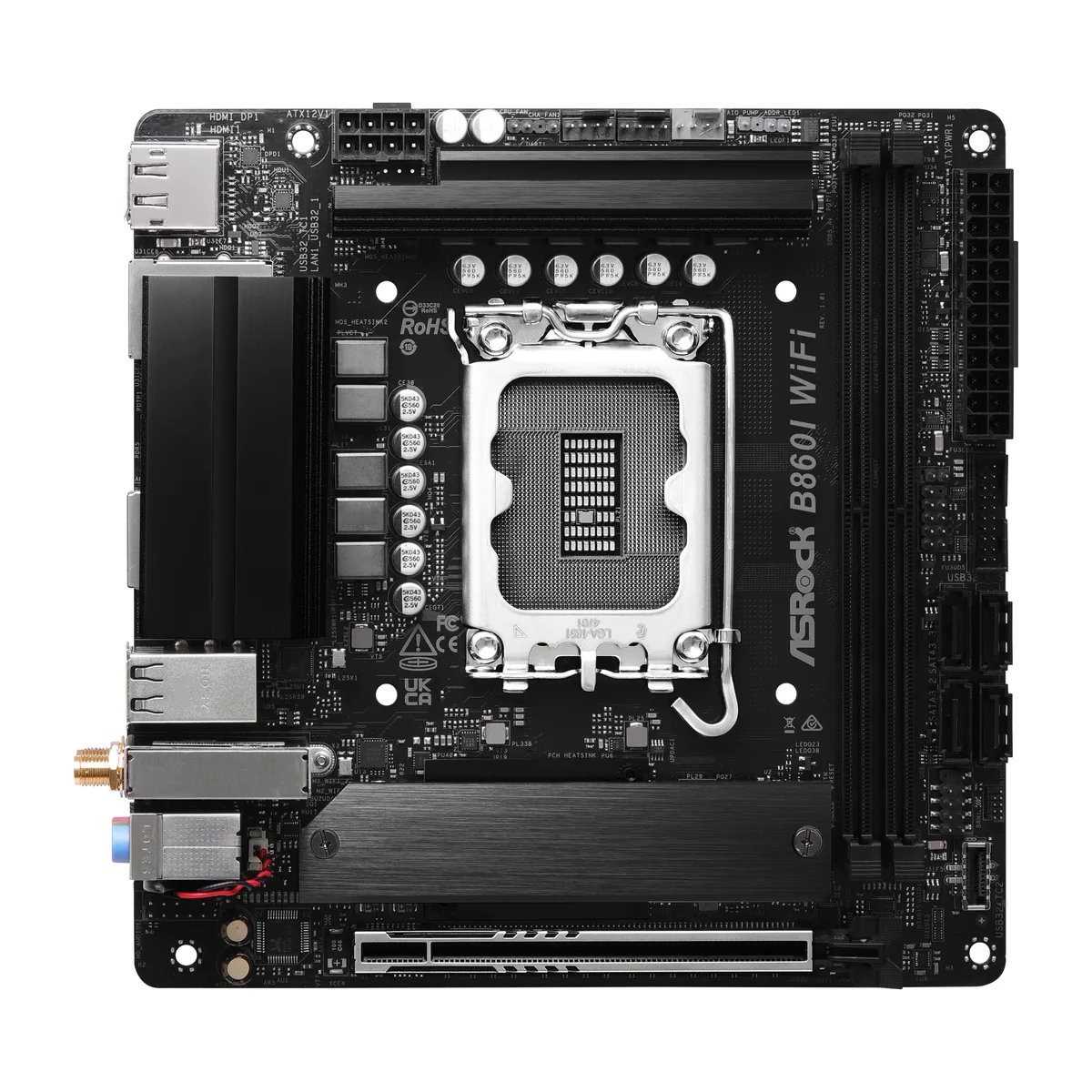

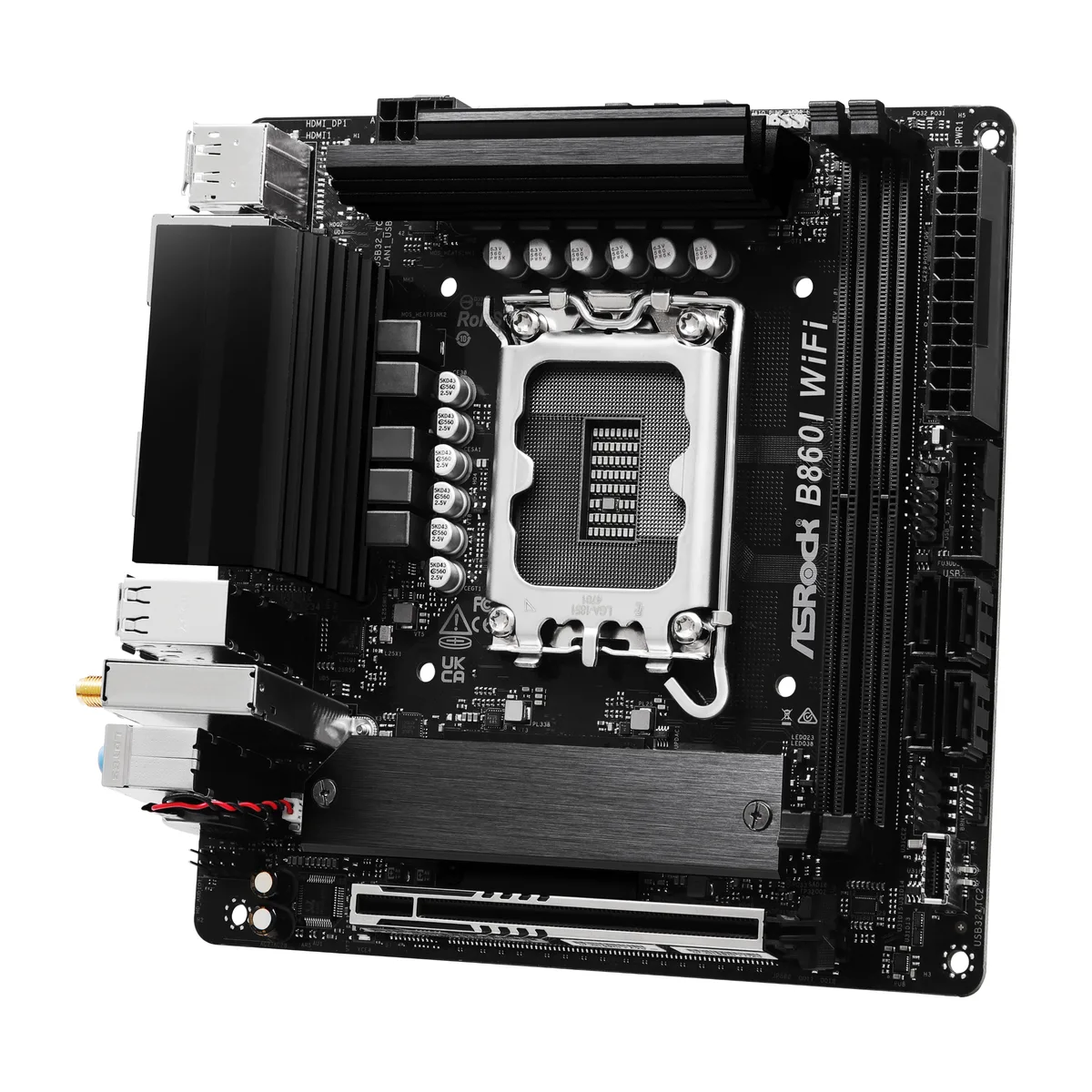

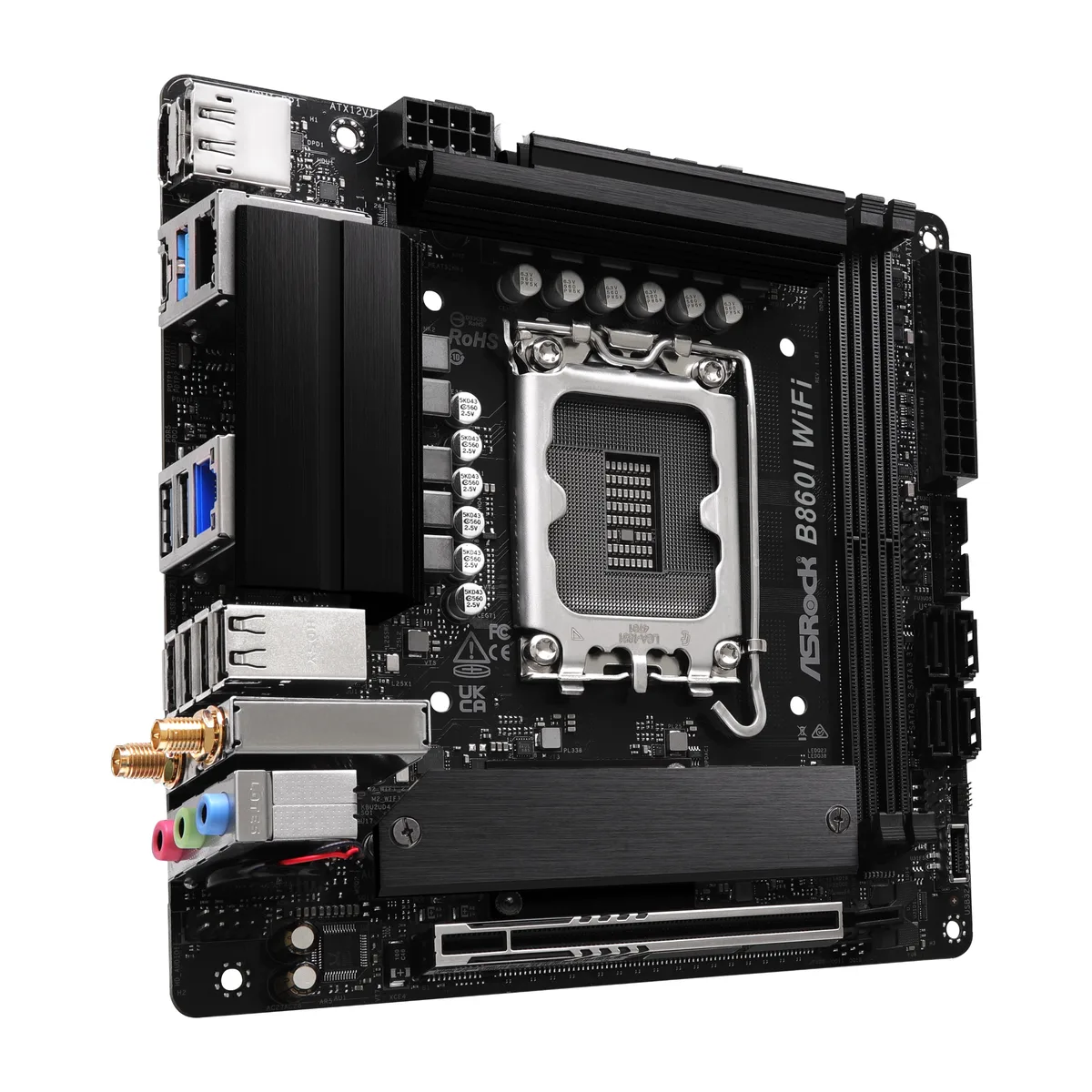

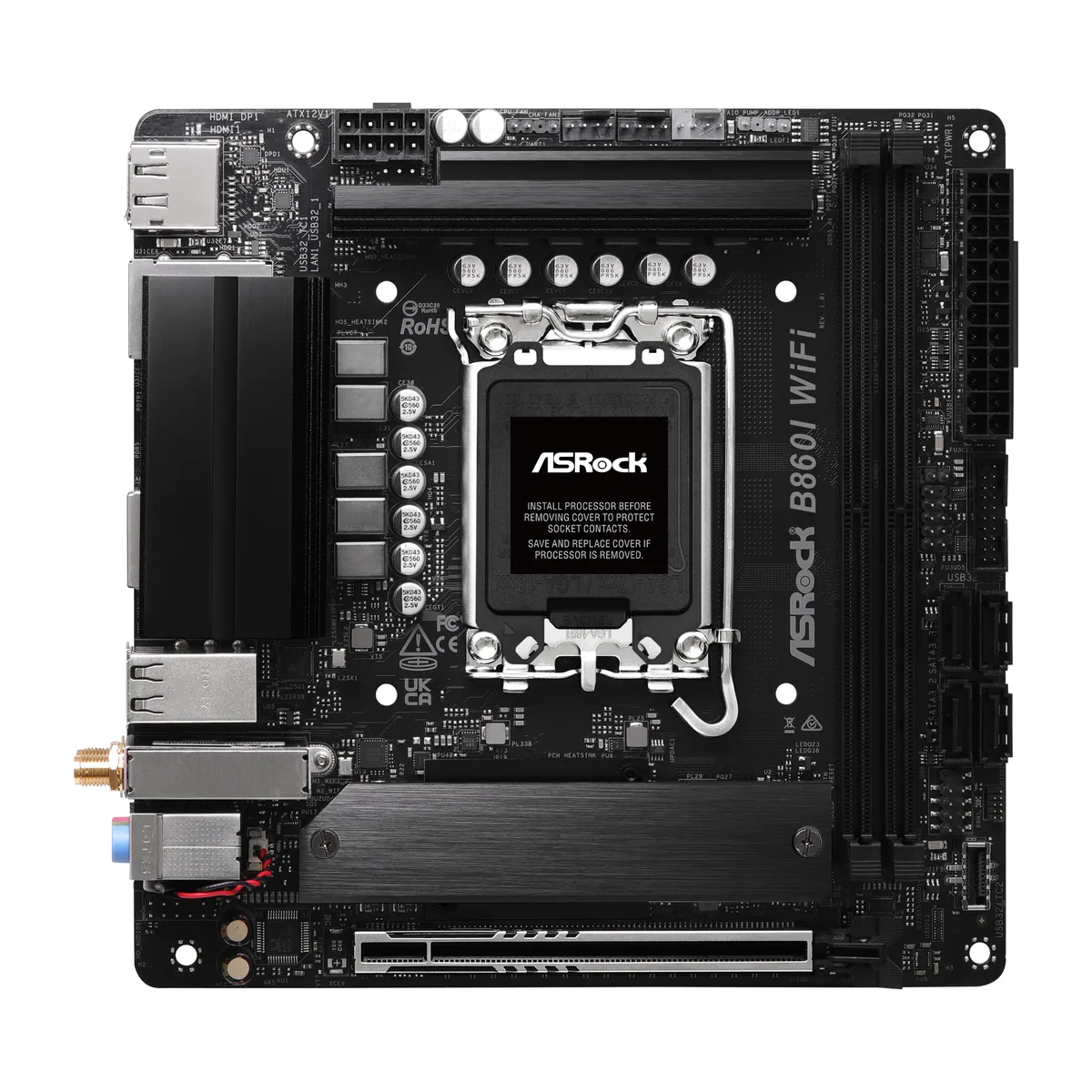

Compact Mini-ITX board, dark PCB with silver heatsinks, LGA 1851 socket, two DDR5 slots, PCIe 5.0 x16, HDMI and DisplayPort, 2.5G

ASRock

ASRock B860I WiFi Intel motherboard

SKU CH-KZ5C-8PDT2 MPN B860I WiFi

Mini-ITX LGA 1851 board with two DDR5 slots up to 8933+(OC), one PCIe 5.0 x16 slot, one Gen5 and one Gen4 M.2 socket, four SATA ports, 2.5Gb LAN and 7.1 audio

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel B860
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardUp to DDR5 8933+(OC)
  • Maximum Memory Supported128GB

Option B860I WiFi

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors with LGA 1851 socket
  • Dual-channel DDR5 up to 8933+(OC) across two 288-pin slots
  • PCIe 5.0 x16 slot for graphics or NVMe SSD boot
  • Gen5x4 M.2 at 128 Gb/s plus Gen4x4 M.2 at 64 Gb/s
  • 5 Gbps LAN and Realtek ALC897 7.1-channel audio

Socket LGA 1851 Mini-ITX board

The ASRock B860I WiFi is a Mini-ITX motherboard built for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It targets compact workstations and gaming systems that need a full feature set in a small footprint. The Intel B860 chipset provides mainstream connectivity without overclocking the CPU itself. Two DDR5 slots support up to 128 GB of memory.

DDR5 8933 OC and dual M.2 under load

Sustained memory throughput relies on the 8+1+1+1+1 power phase design feeding the two DDR5 slots, which are rated for DDR5 8933+(OC) via Intel XMP 3.0. The CPU-linked Blazing M.2 socket runs at PCIe Gen5x4 for the primary NVMe drive, while the chipset Hyper M.2 socket adds a second Gen4x4 slot. Four SATA 6Gb/s ports support RAID 0, 1, 5 and 10 arrays. A 2.5 Gbps Dragon RTL8125BG LAN controller handles wired traffic.

Mini-ITX install notes and common issues

The board uses standard Mini-ITX mounting holes and a 24-pin ATX plus 8-pin EPS power layout. Only two DDR5 slots exist, so 128 GB requires 64 GB modules that must be non-ECC un-buffered DIMMs or CUDIMMs. The PCIe 5.0 x16 slot shares bandwidth with the primary M.2 when an NVMe boot drive is used. Rear I/O includes HDMI and DisplayPort for integrated graphics, plus 7.1-channel audio from the Realtek ALC897 codec.

Highlights

  • Supports Intel Core Ultra Series 2 processors with LGA 1851 socket
  • Dual-channel DDR5 up to 8933+(OC) across two 288-pin slots
  • PCIe 5.0 x16 slot for graphics or NVMe SSD boot
  • Gen5x4 M.2 at 128 Gb/s plus Gen4x4 M.2 at 64 Gb/s
  • 5 Gbps LAN and Realtek ALC897 7.1-channel audio

Specifications

BrandASRock
ModelB860I WiFi
Part NumberB860I WiFi
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel B860
Number of Memory Slots2x288pin (DDR5)
Memory StandardUp to DDR5 8933+(OC)
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupports DDR5 non-ECC, un-buffered memory up to 8933+(OC)
Supports Clocked Unbuffered DIMM (CUDIMM)
PCI Express 5.0 x16CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
*Supports NVMe SSD as boot disks
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
*Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
1 x USB 3.2 Gen2 Type-A Port
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
2 x RJ-45 LAN Ports
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Other Connectors1 x Addressable LED Header*
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector
*Supports in total up to 5V/3A, 15W LED Strip
**CPU_FAN and CHA_FAN1 support the fan power up to 2A (24W).
***AIO_PUMP supports the fan power up to 3A (36W).
AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Windows 11Windows 11 64-bit
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 8+1+1+1+1 Power Phase, SPS for VCore+GT+VCCSA
Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
- ASRock Auto Driver Installer
Package Contents1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
Shipping weight0.86 kg
Package size279 × 208 × 61 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat does the 8+1+1+1+1 power phase design produce when the board runs all day with an Intel Core Ultra processor?

The 8+1+1+1+1 phase SPS layout distributes load across multiple stages, keeping VRM temperatures lower during sustained workloads on LGA 1851 CPUs.

Which DDR5 memory kit must I already own to reach the 8933+(OC) speed on the two 288-pin slots?

You need a dual-channel DDR5 kit rated for 8933 MT/s or higher with Intel XMP 3.0 support; the board accepts non-ECC un-buffered modules up to 128 GB total.

Will my existing SATA 6Gb/s drives and PCIe Gen4 NVMe SSD work alongside the new PCIe 5.0 x16 slot and Gen5 M.2 socket?

Yes — four SATA 6Gb/s ports, one Gen4x4 M.2 (64 Gb/s) and one Gen5x4 M.2 (128 Gb/s) all operate simultaneously with the PCIe 5.0 x16 graphics slot.
